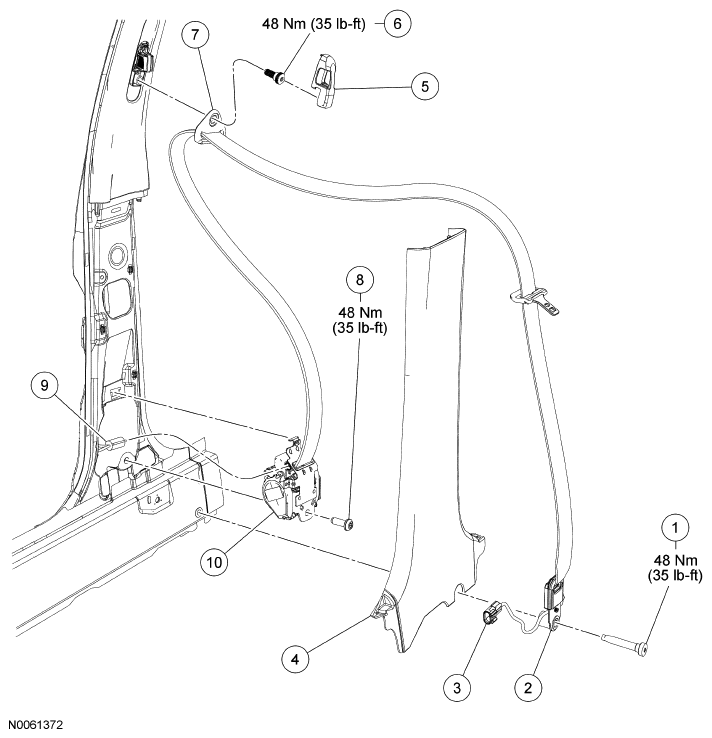

Safety Belt Retractor: Notes
NOTE:
Passenger side shown, driver similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt anchor bolt (part of 611B08) |
| 2 | - | Safety belt anchor (part of 611B08) |
| 3 | - | Belt Tension Sensor (BTS) electrical connector (part of 611B08) (passenger side only) |
| 4 | 24356 | Lower B-pillar trim cover |
| 5 | 60262 | D-ring bolt cover |
| 6 | - | D-ring bolt (part of 611B08) |
| 7 | - | D-ring (part of 611B08) |
| 8 | W707722 | Safety belt retractor bolt |
| 9 | - | Pretensioner electrical connector (part of 611B08) |
| 10 | 611B08 | Safety belt retractor |
