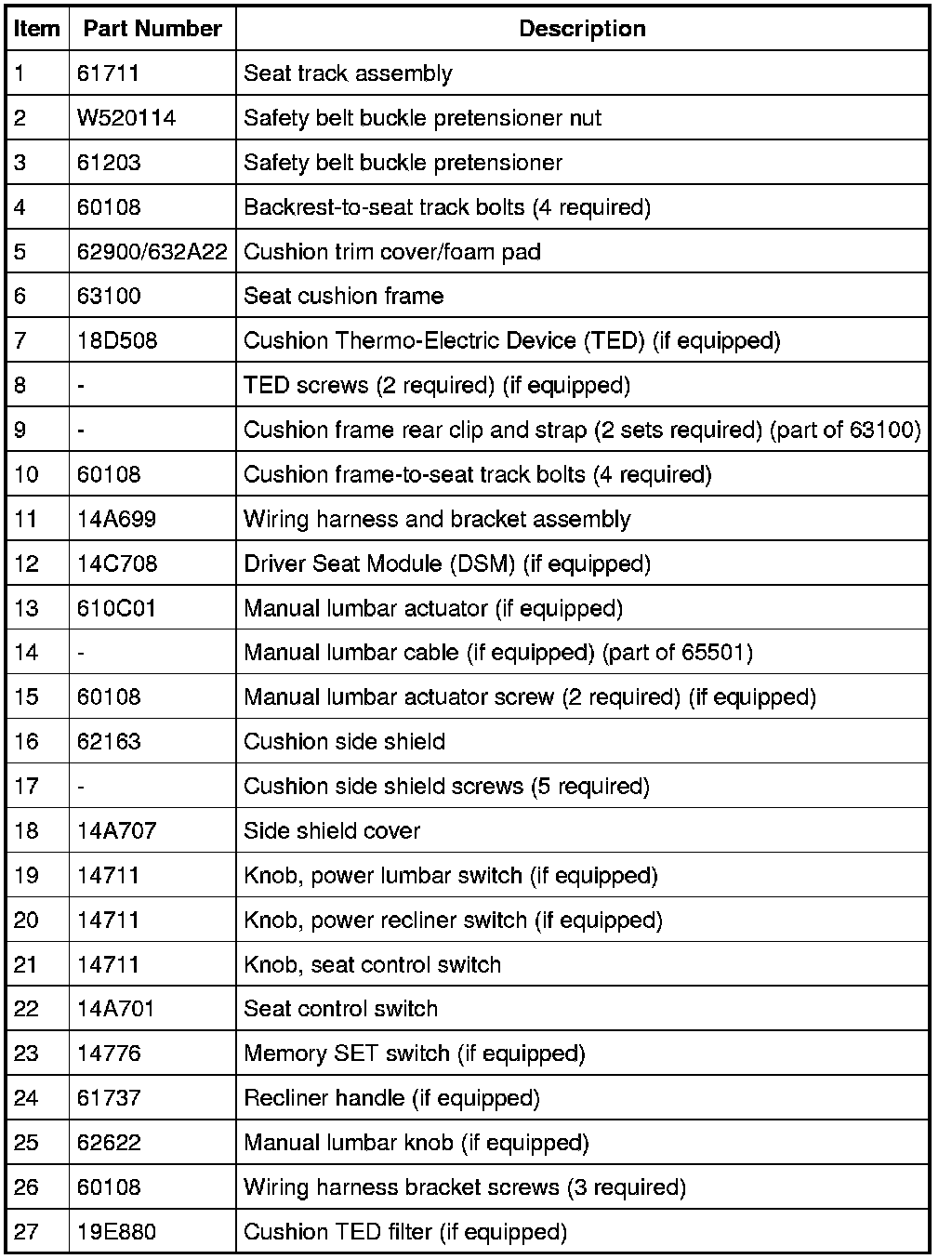

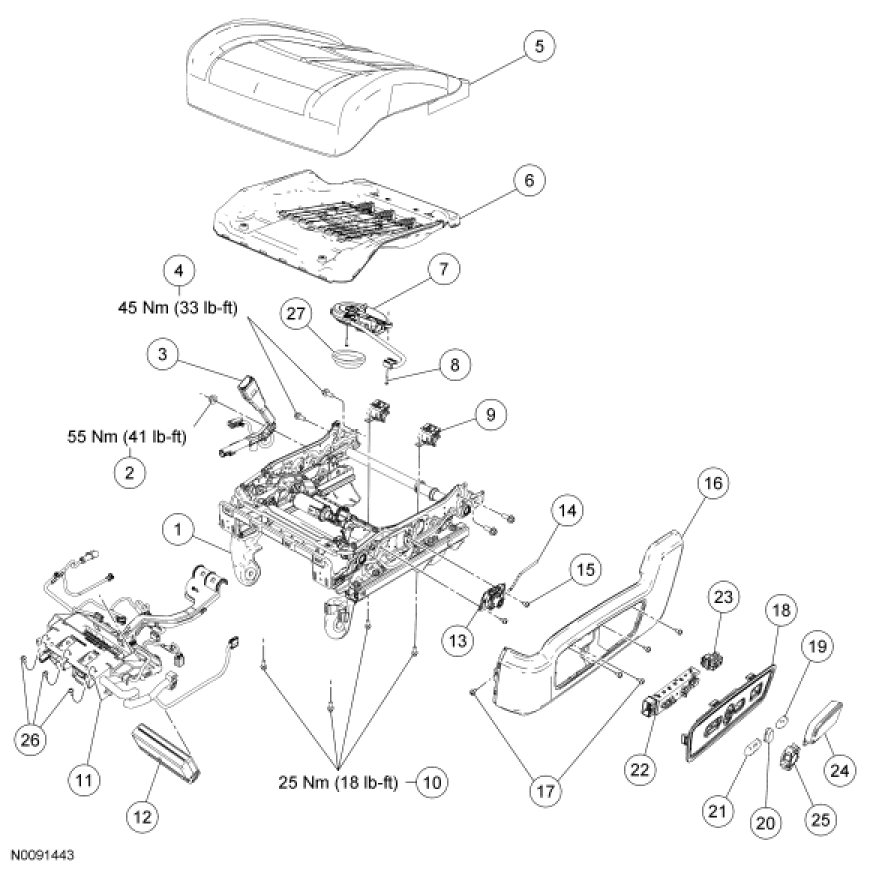

Seat - Exploded View, Front

Seat - Exploded View, Front

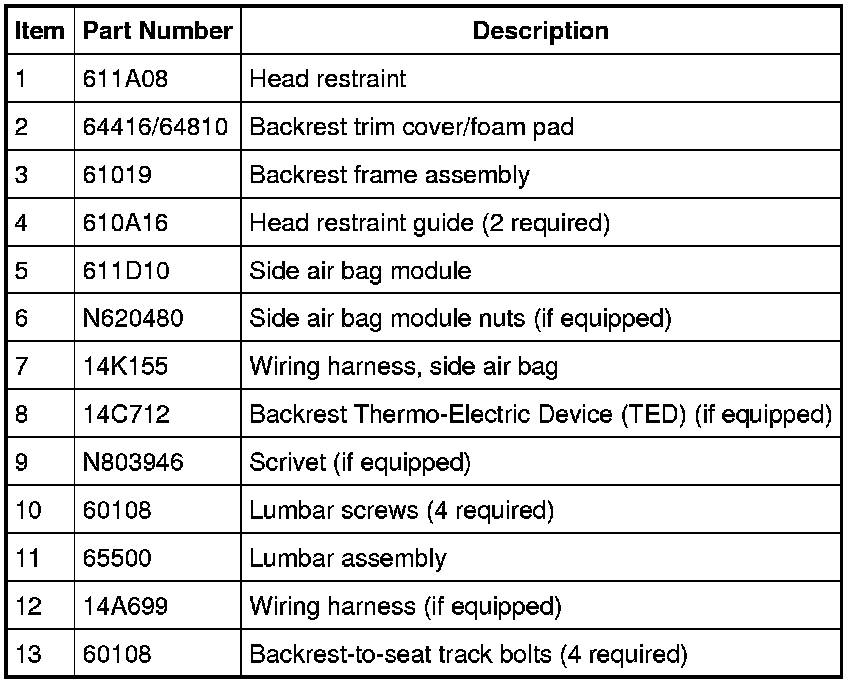

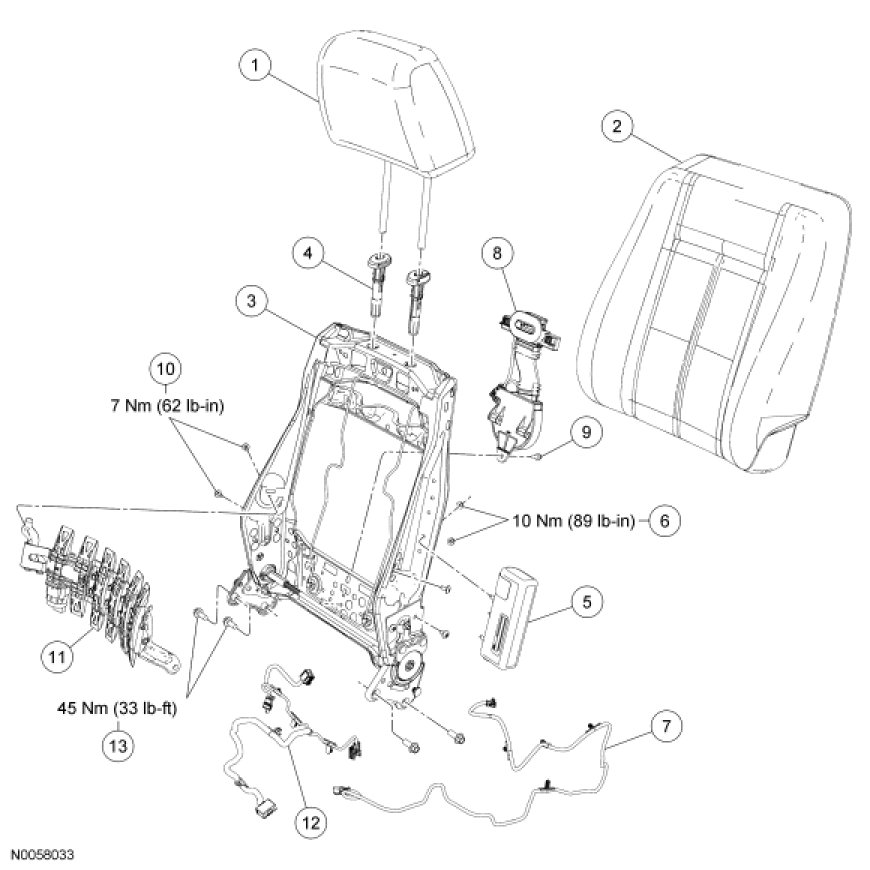

Seat Backrest - Front, 40 Percent

NOTE: Driver power seat backrest shown, passenger and manual similar.











Seat Cushion - Front, 40 Percent

NOTE: Driver memory seat shown, driver and passenger power seat similar.










1. For additional information, refer to the procedures.
