Fuel Tank Unit
>>
Fuel Pump (FP) Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

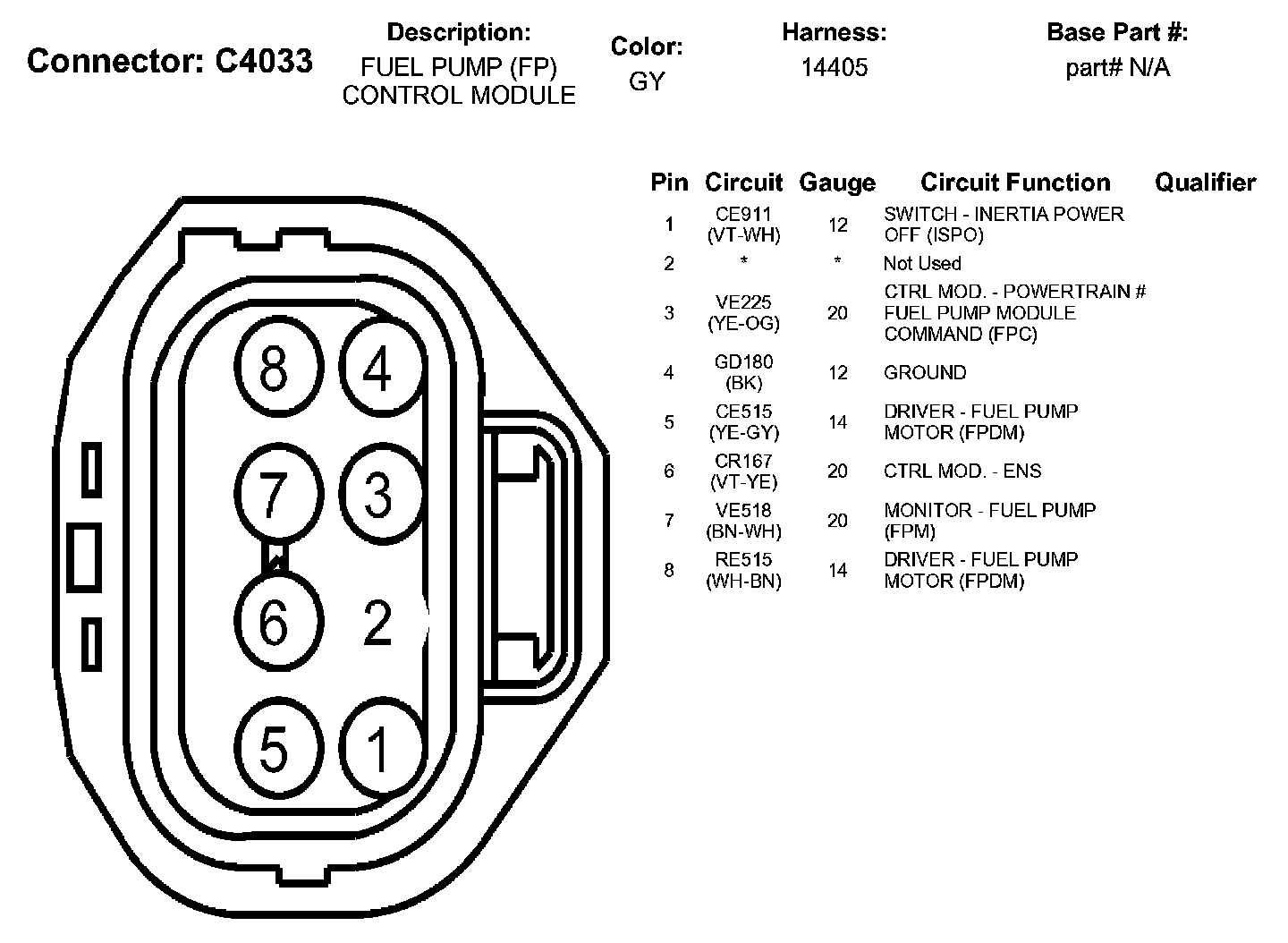

Fuel Pump (FP) Control Module
