Connector Locations

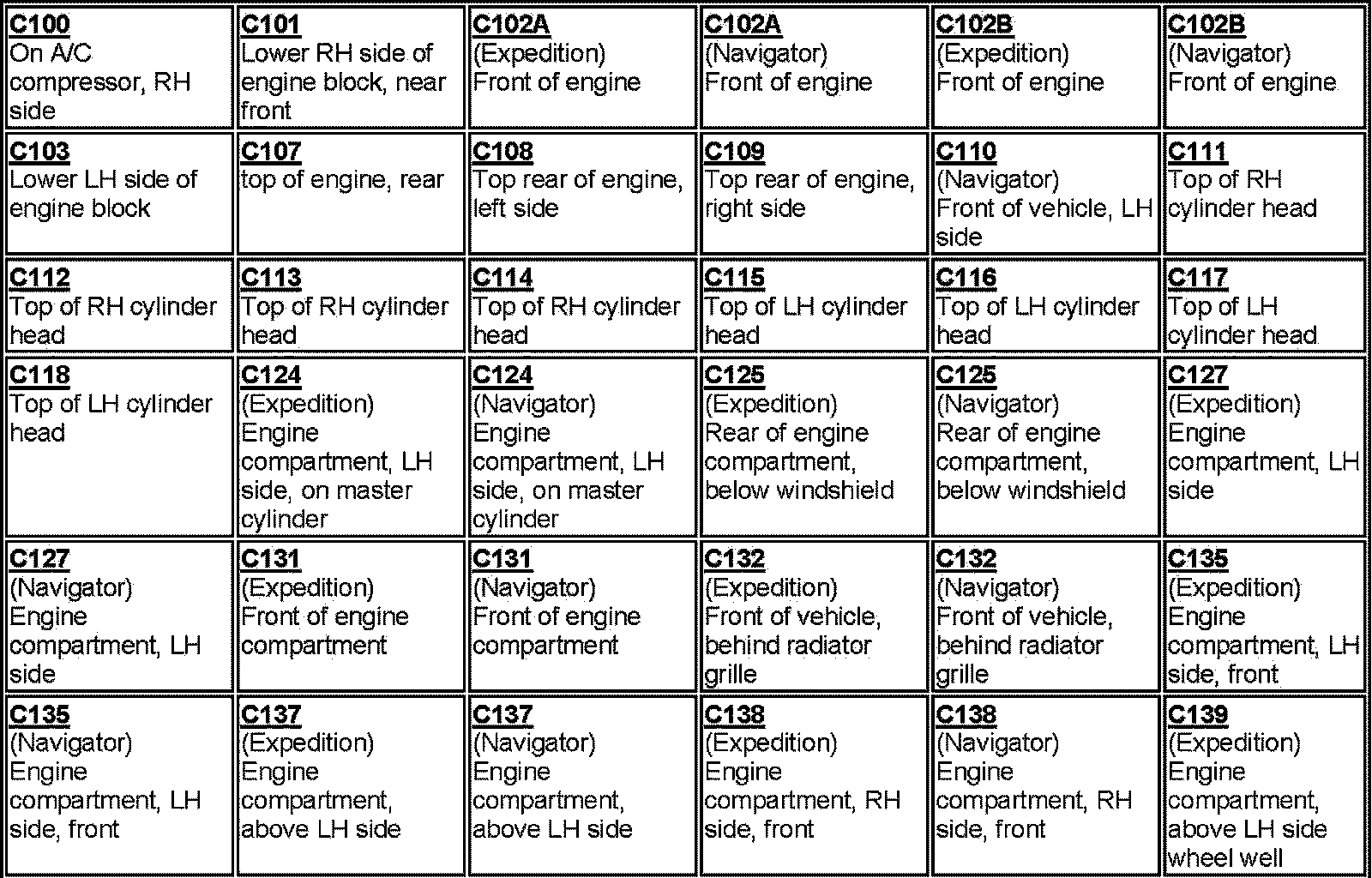

C100-C139:

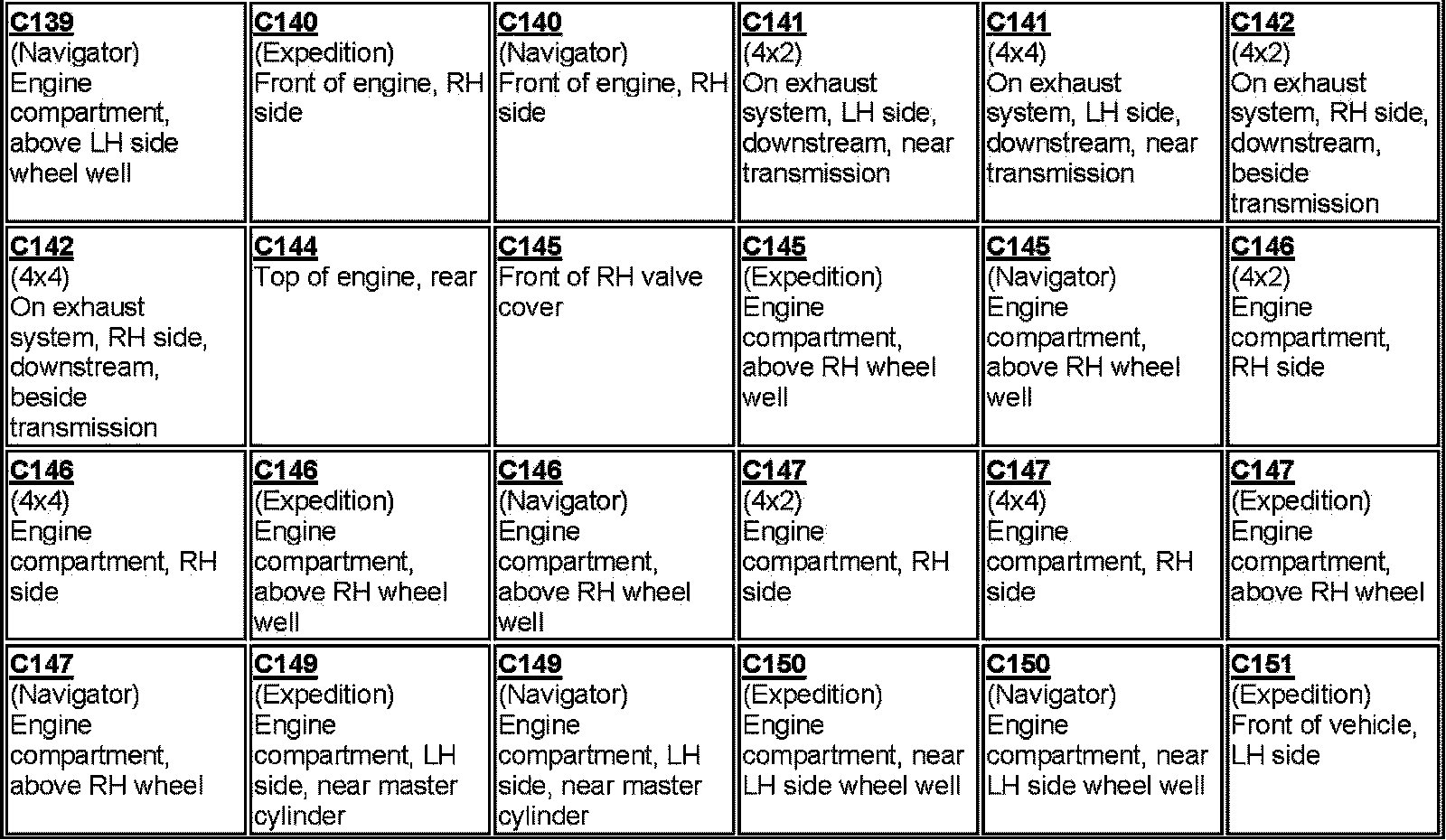

C139-C151:

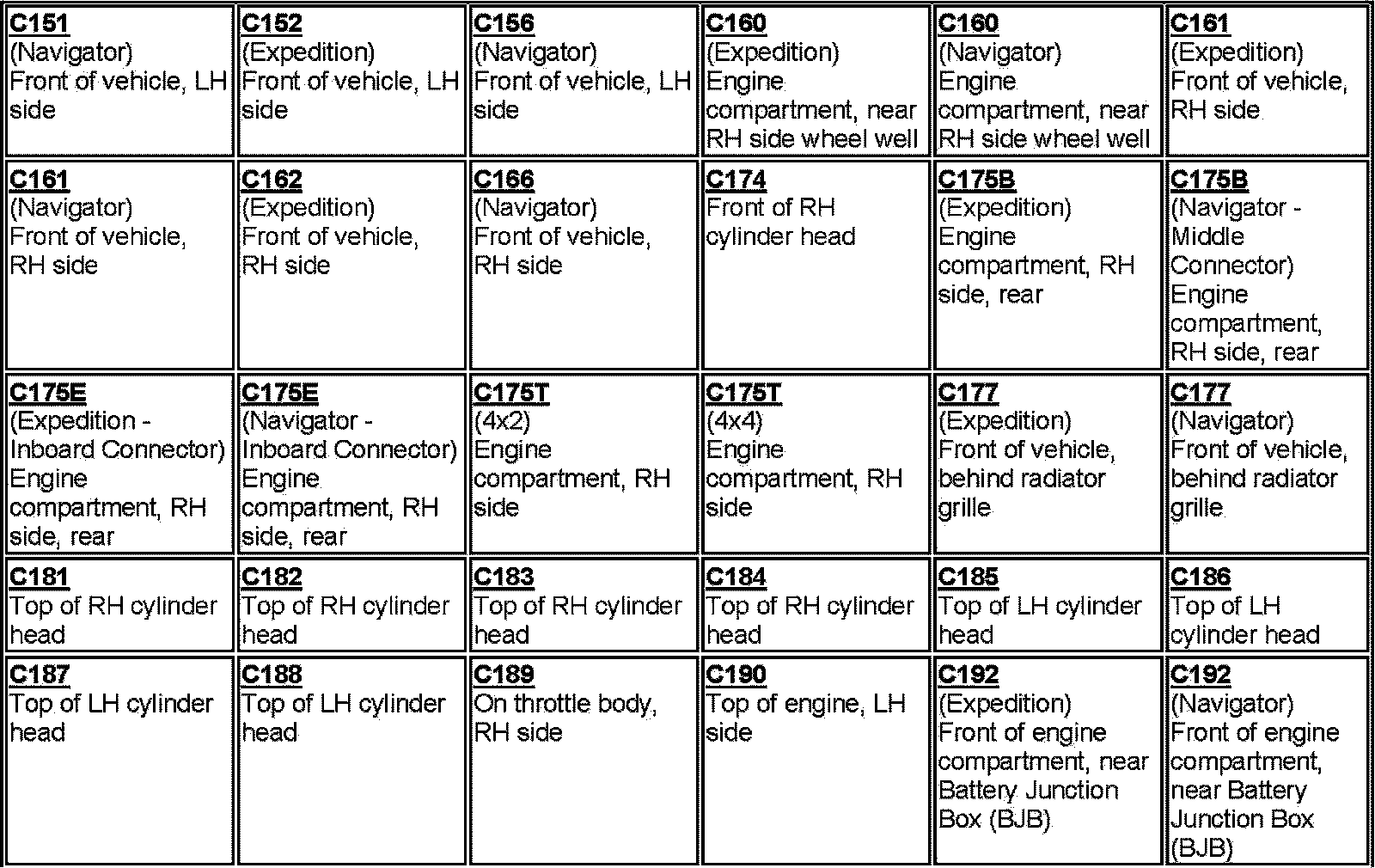

C151-C192:

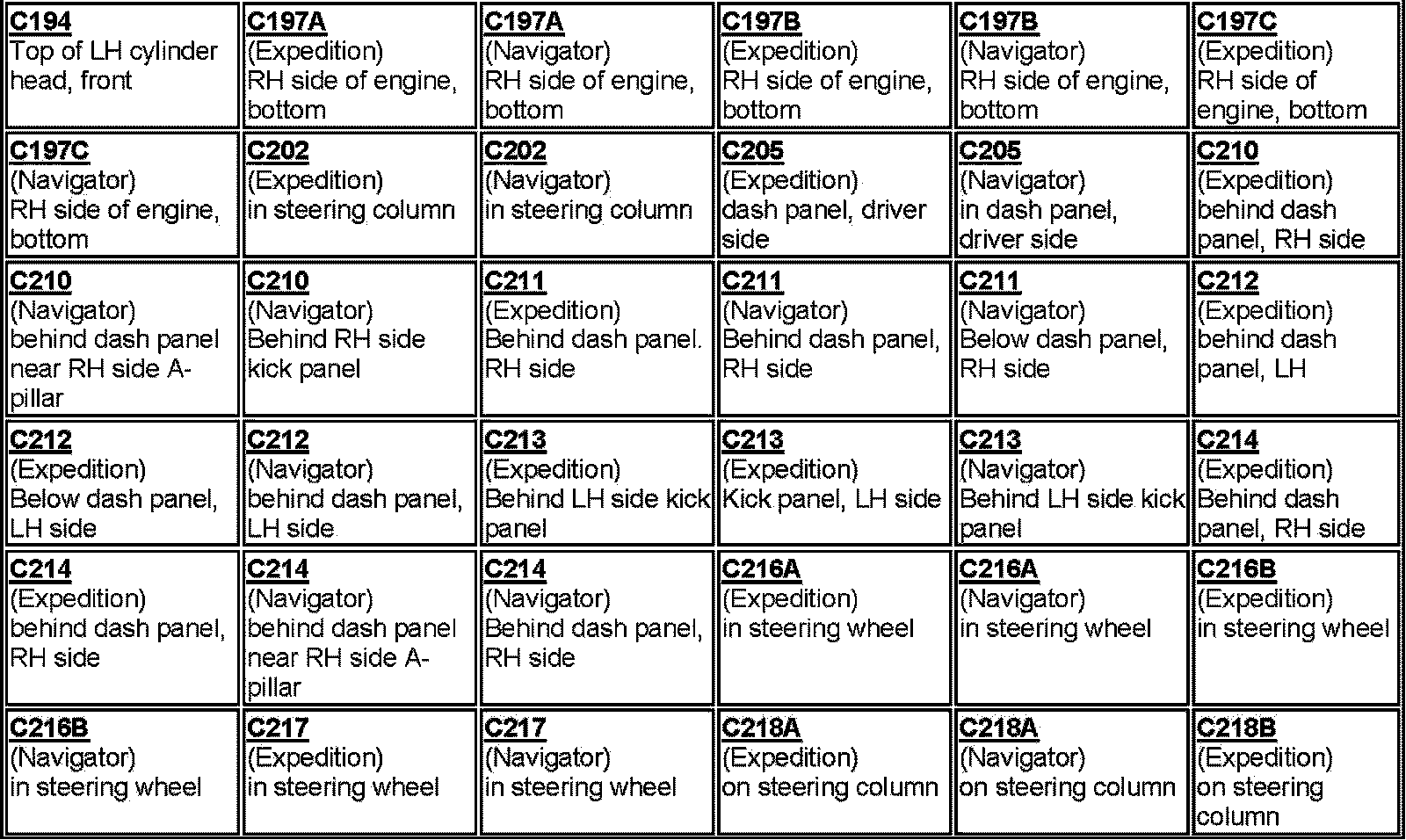

C194-C218B:

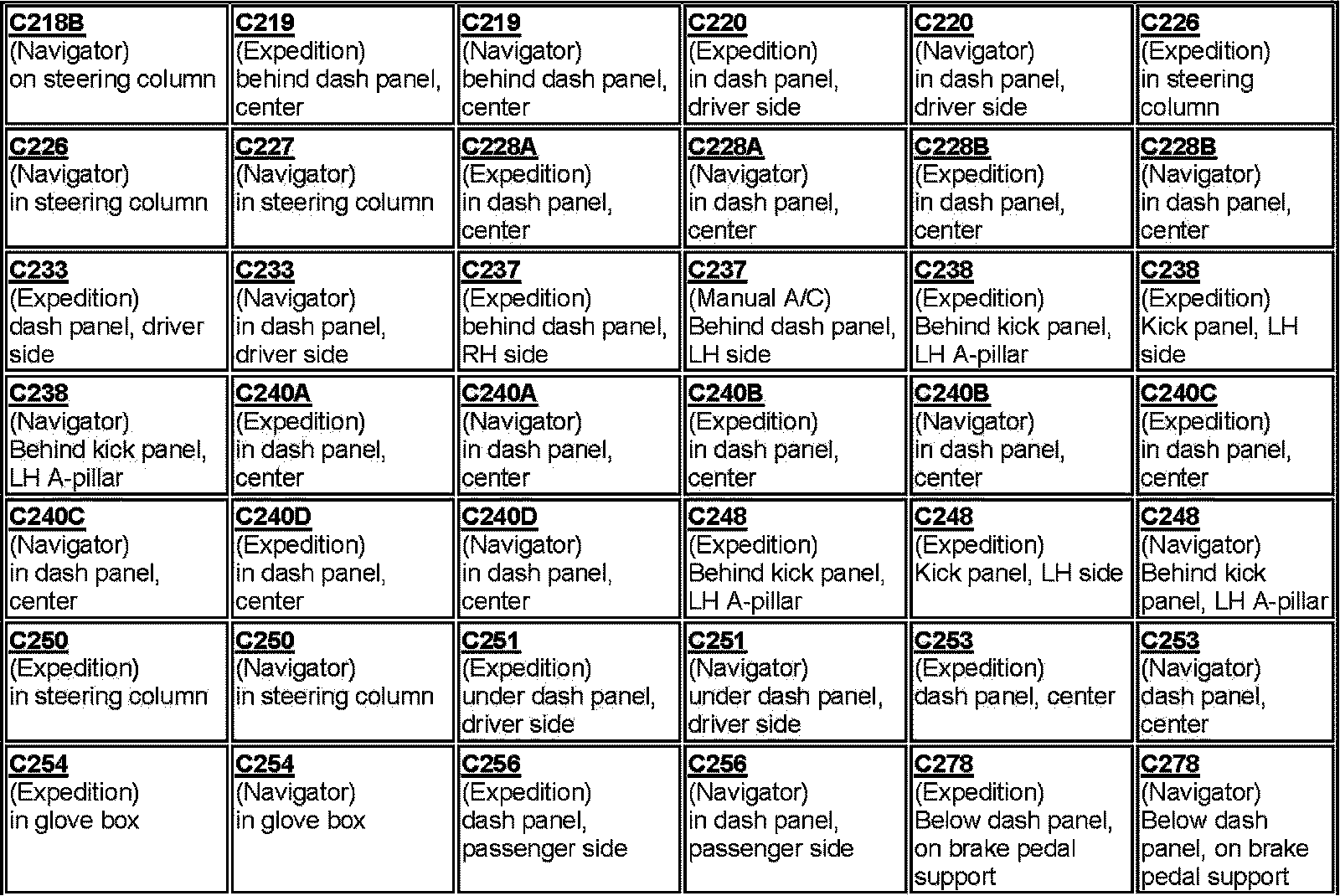

C218B-C278:

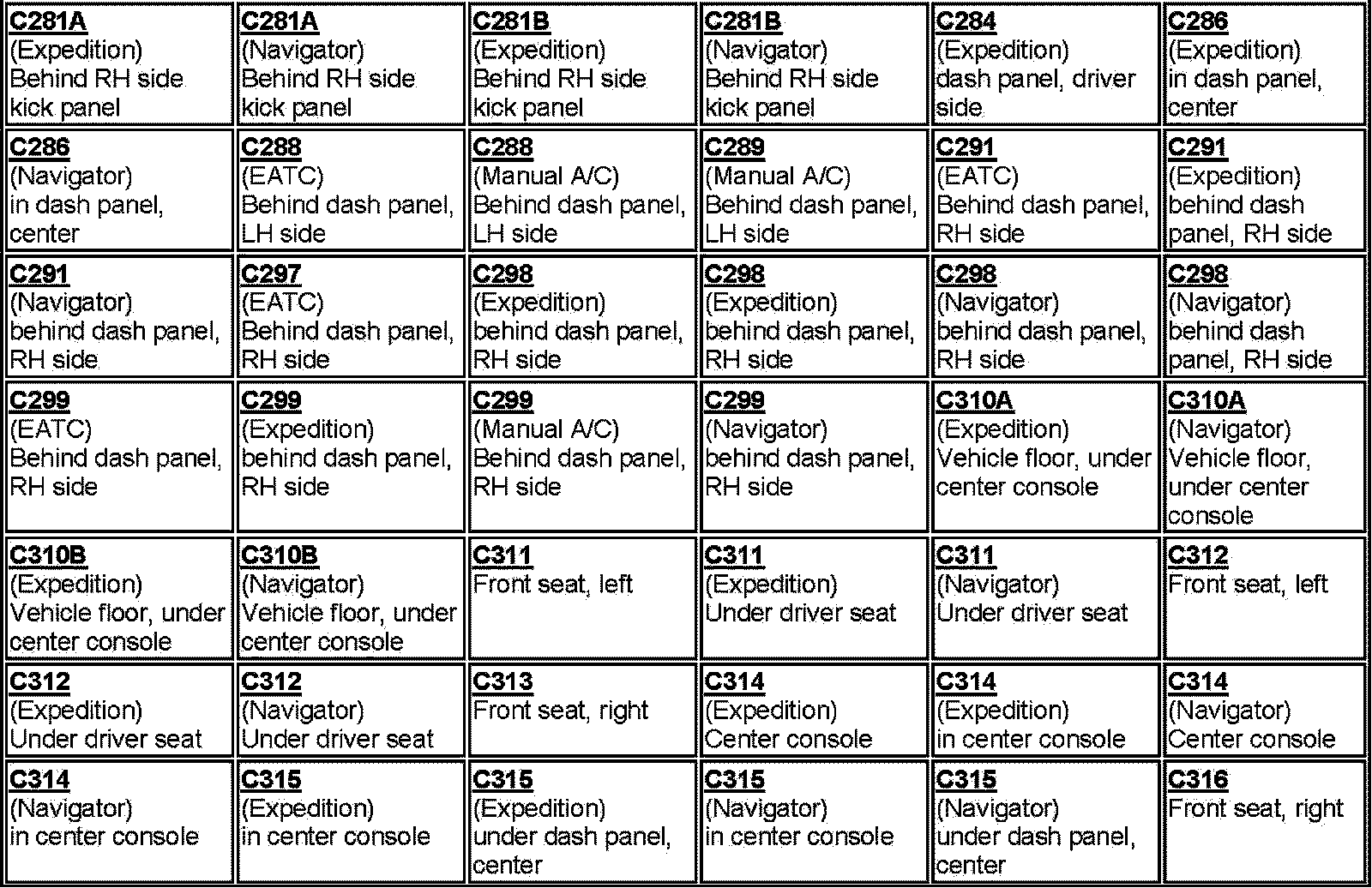

C281A-C316:

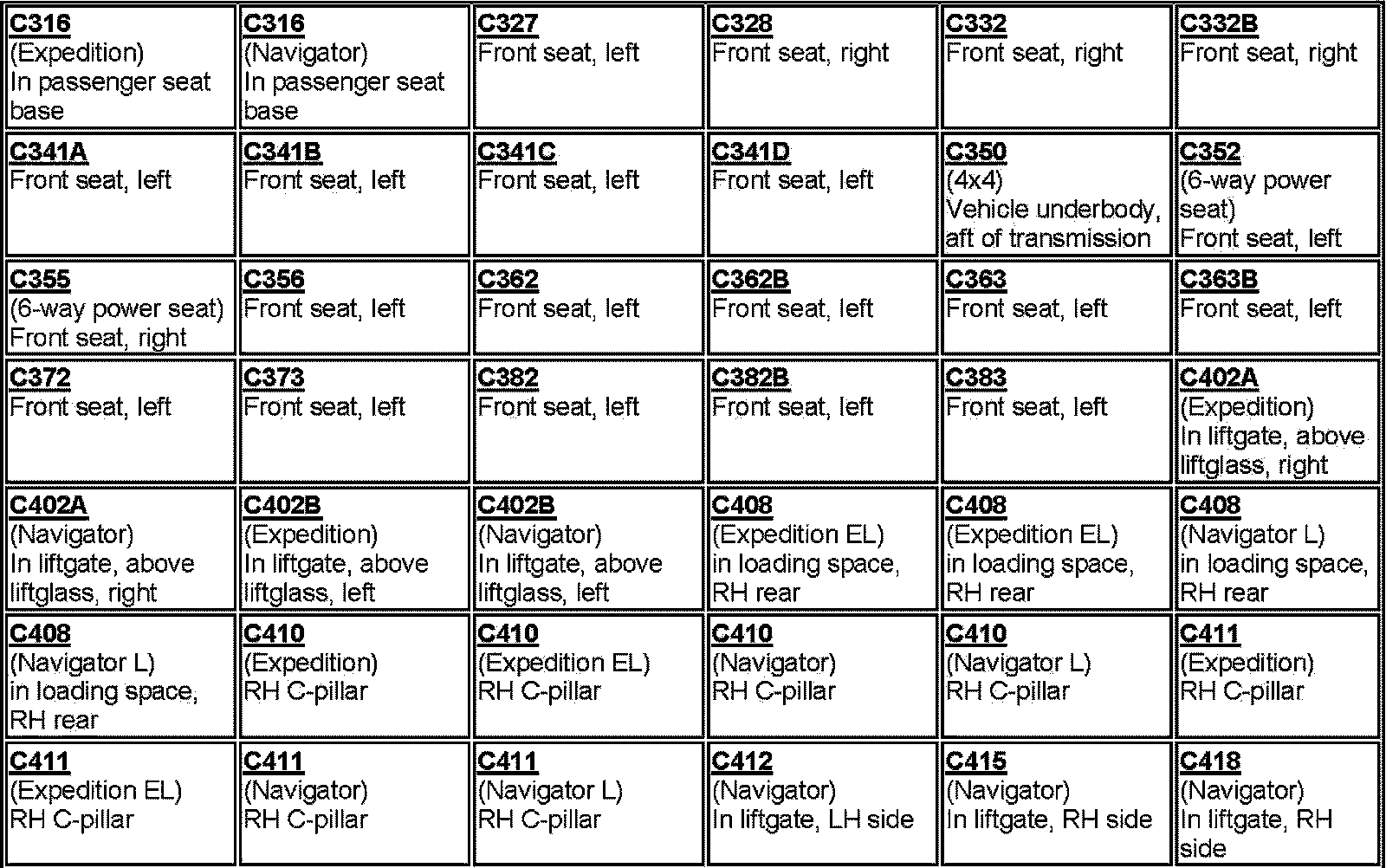

C316-C418:

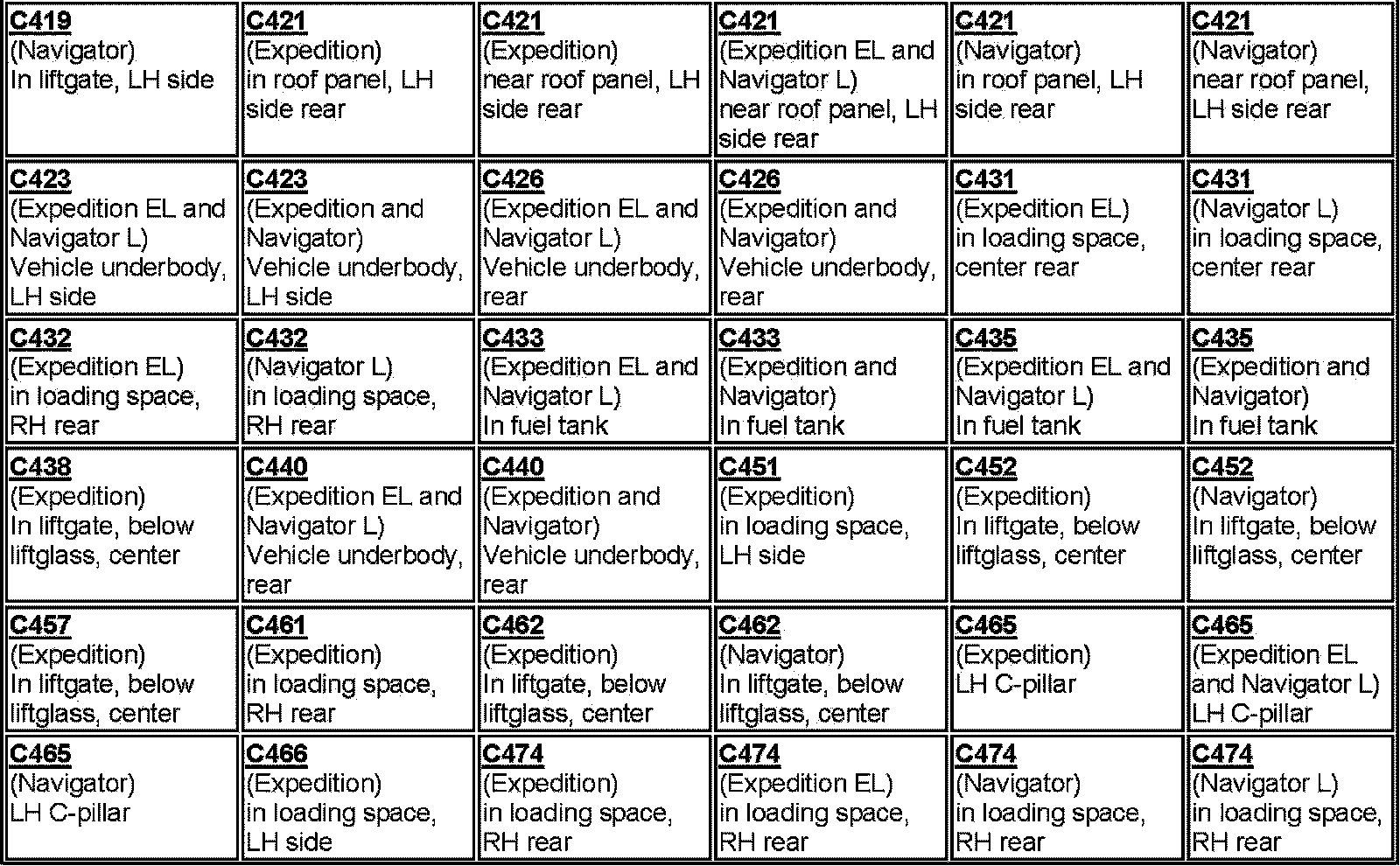

C419-C474:

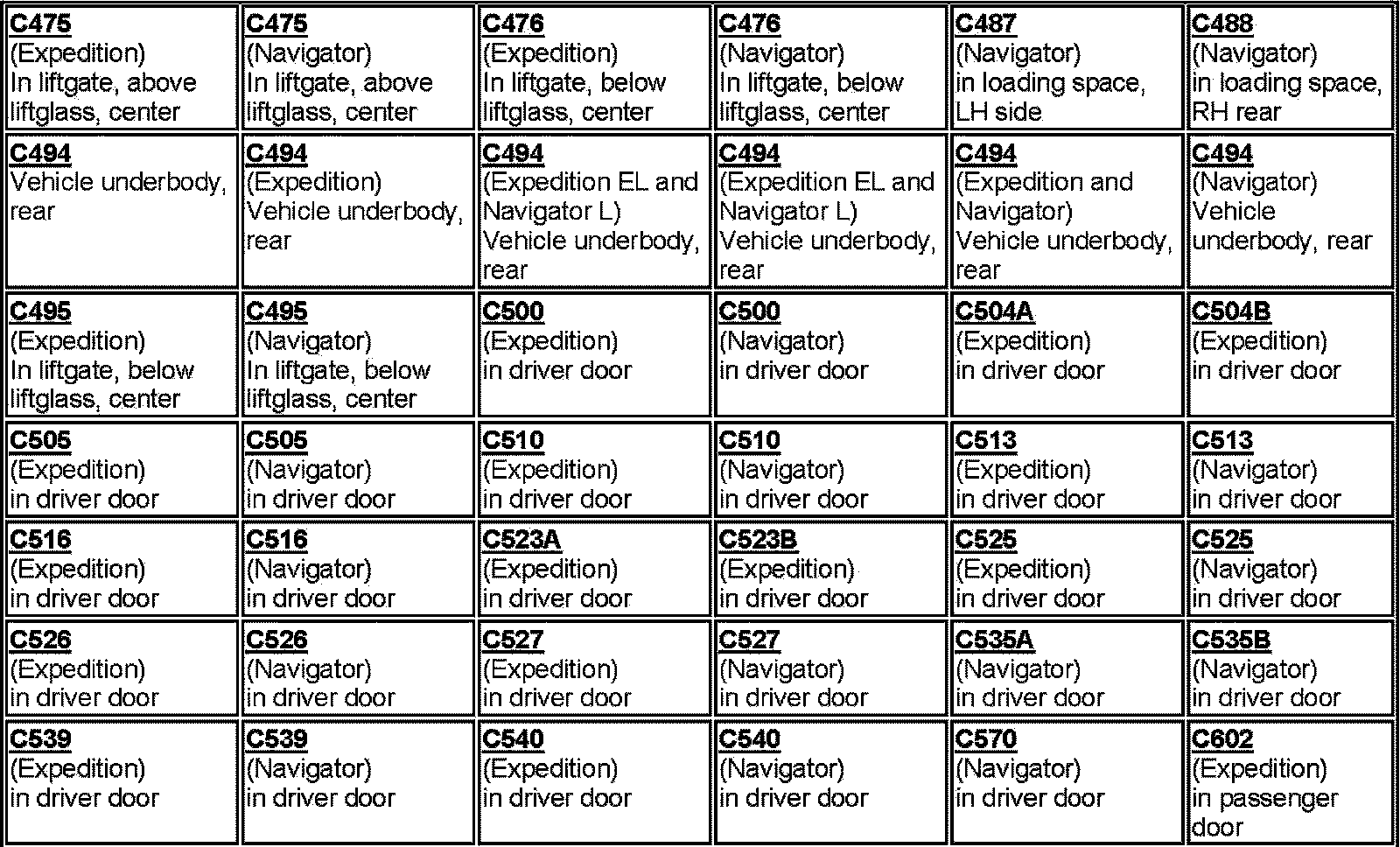

C475-C602:

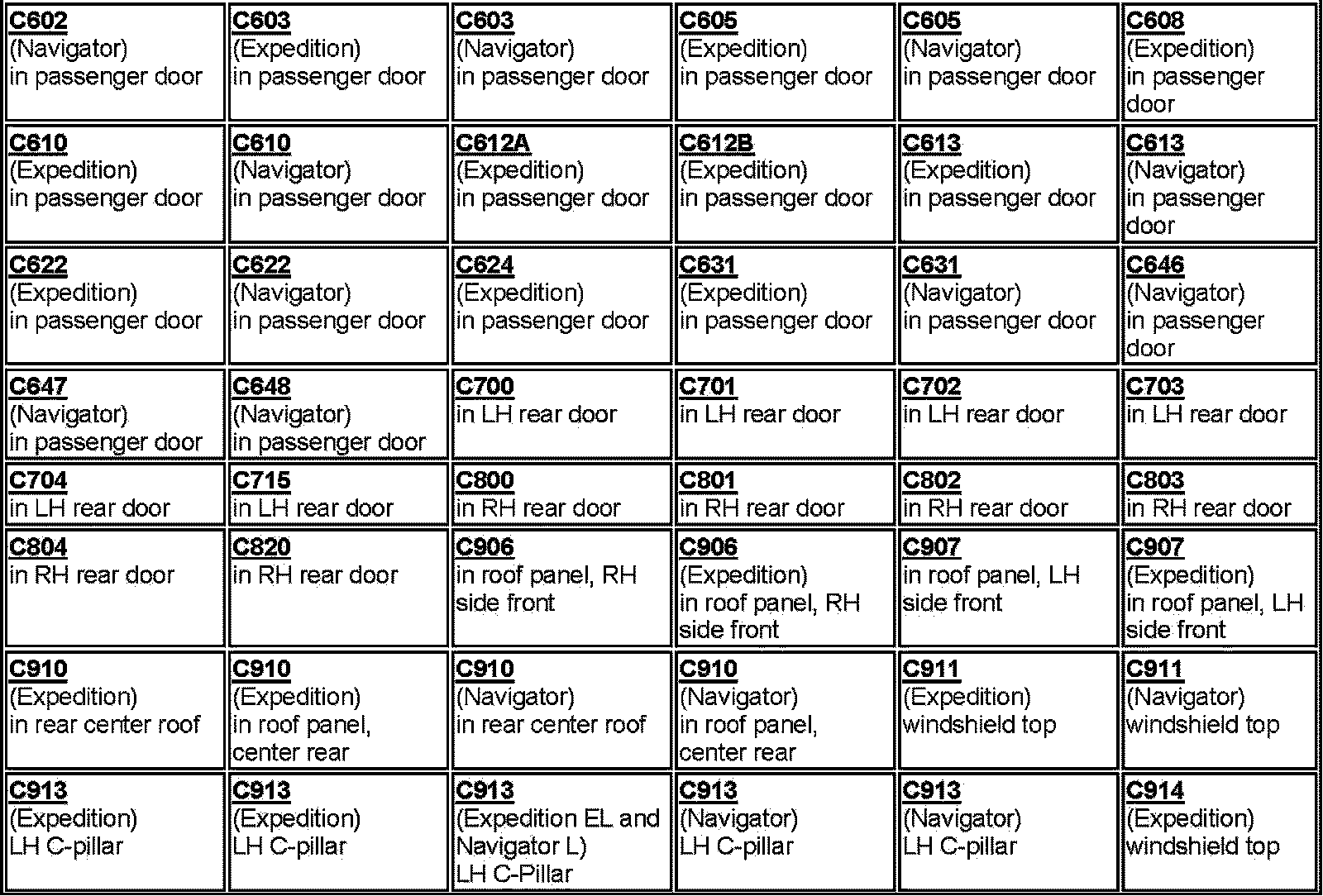

C602-C914:

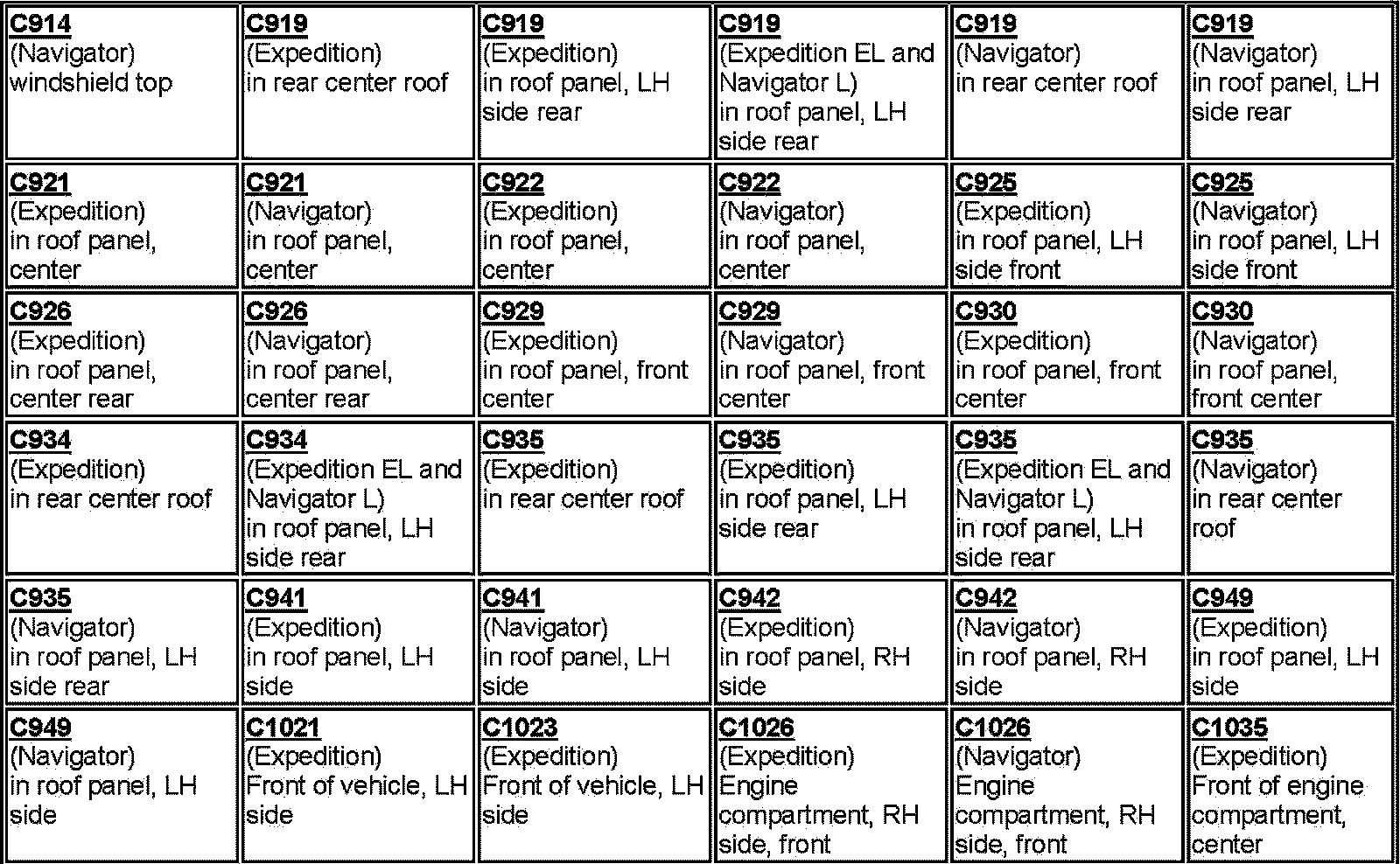

C914-C1035:

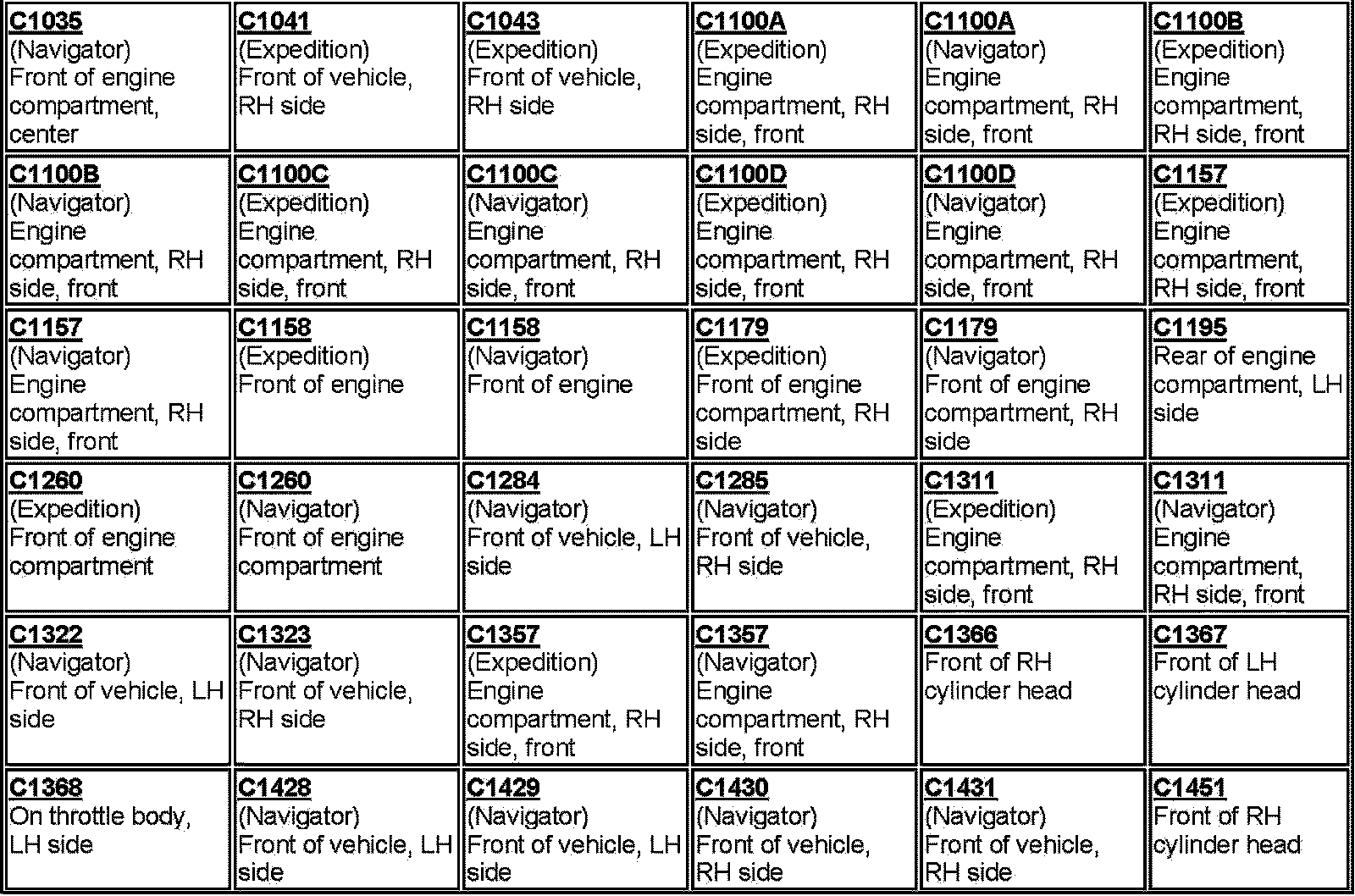

C1035-C1451:

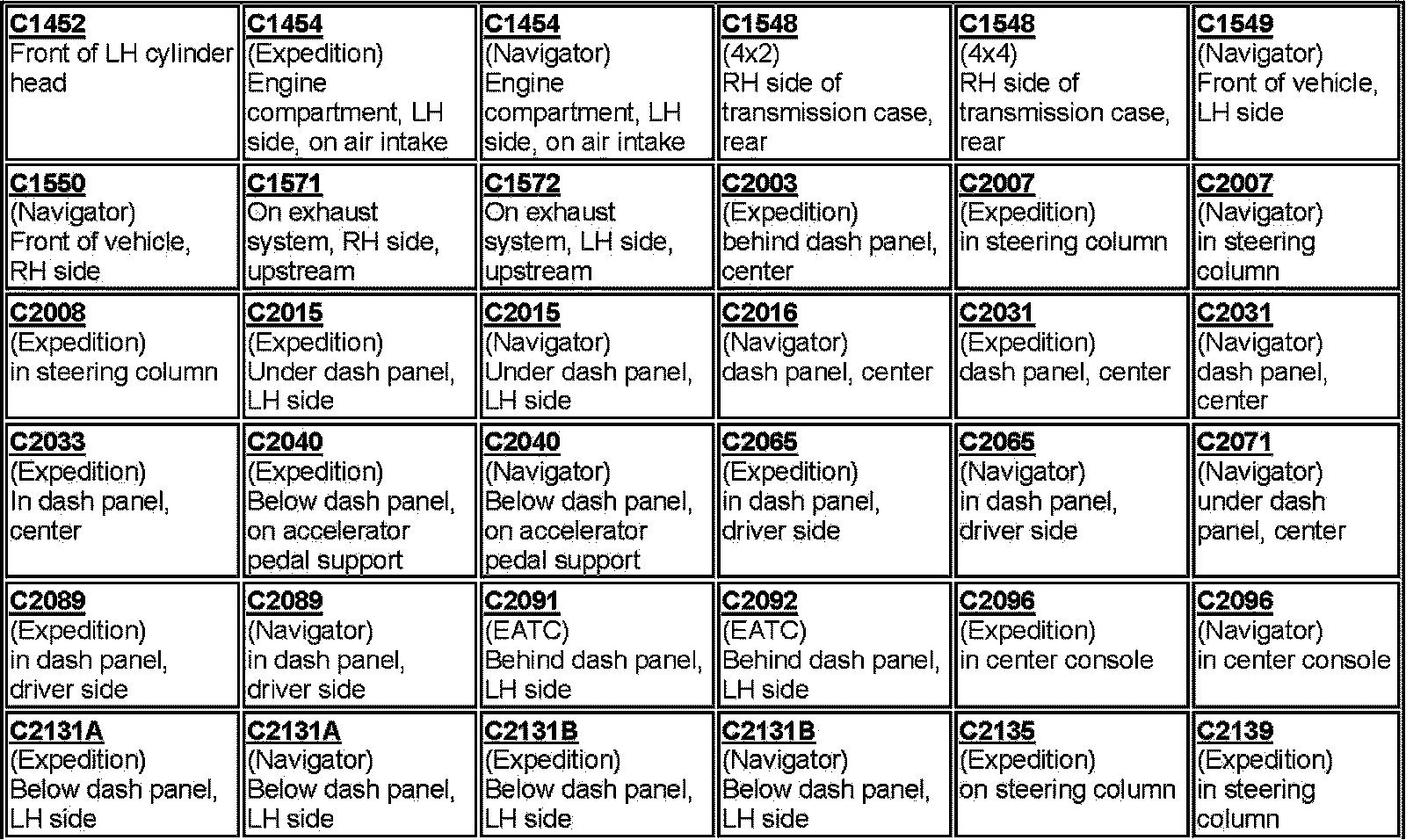

C1452-C2139:

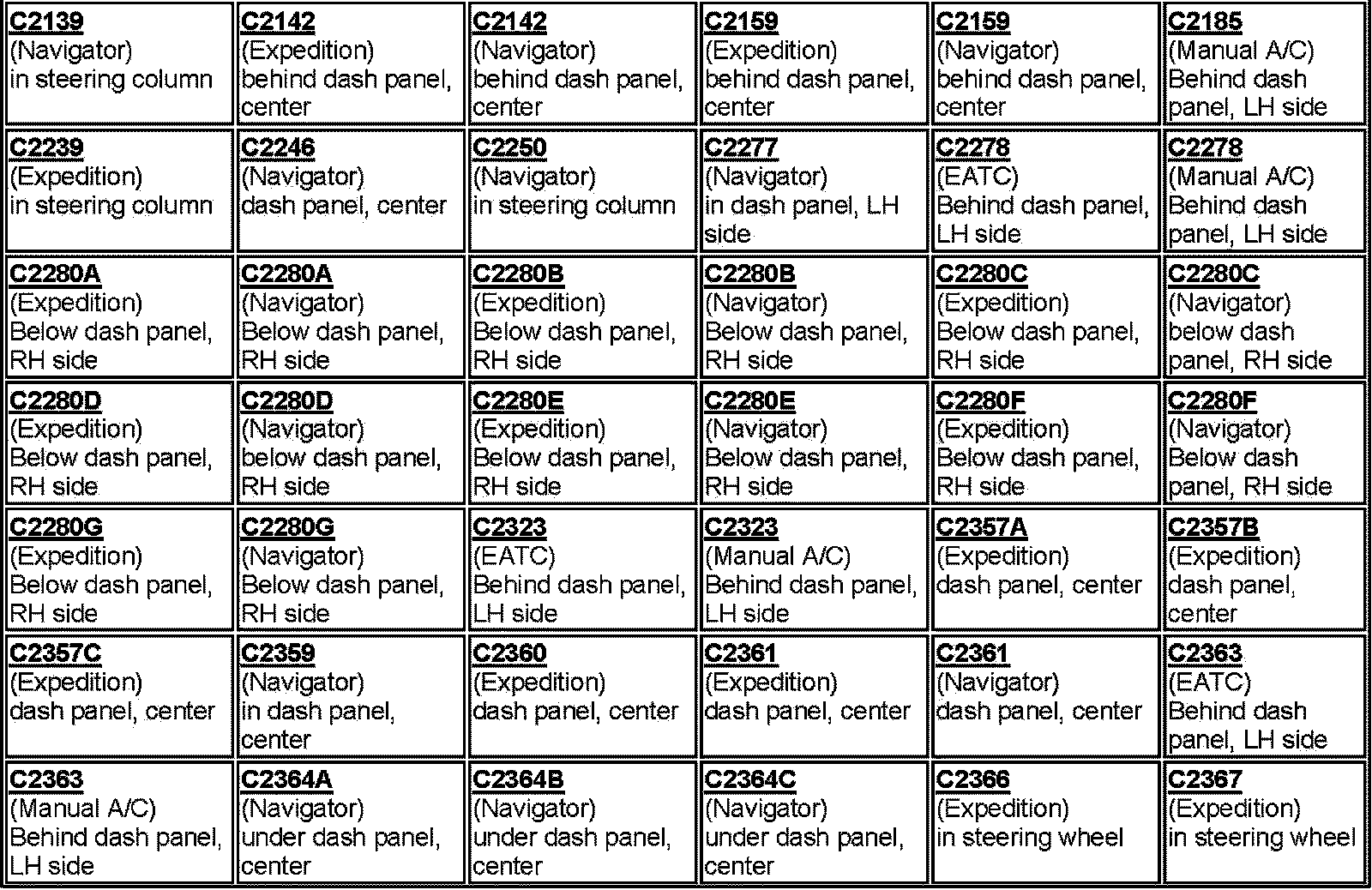

C2139-C2367:

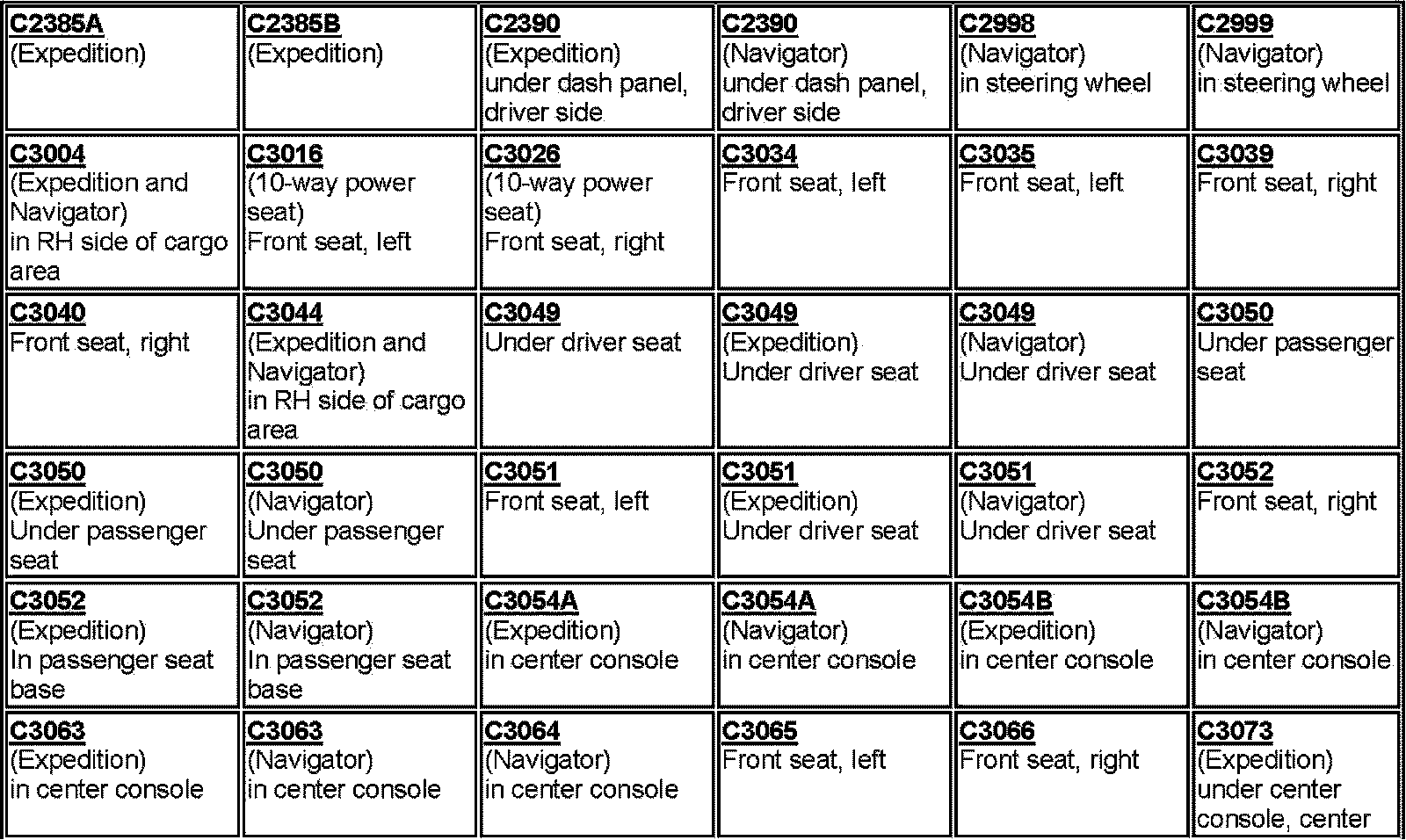

C2385A-C3073:

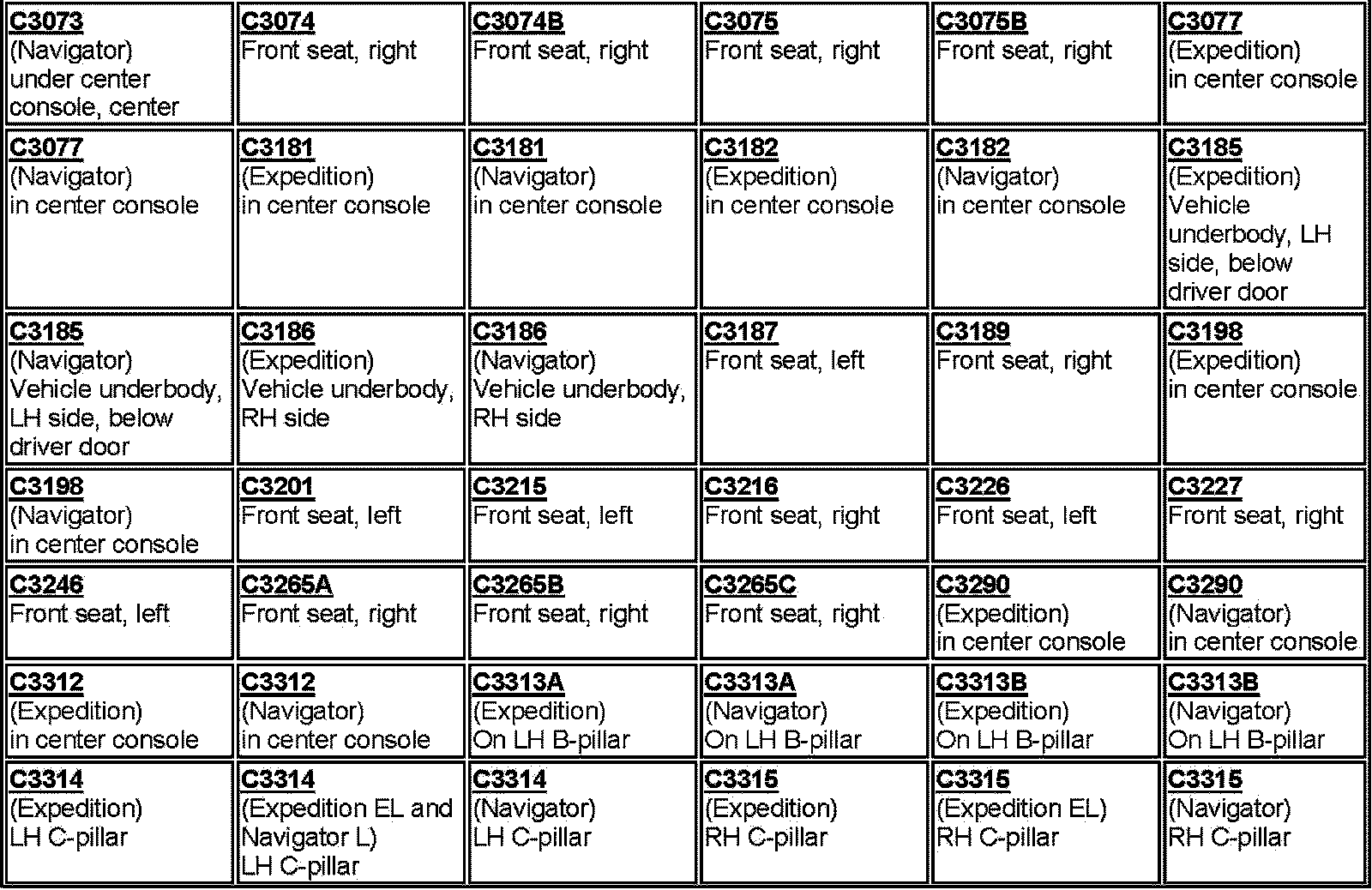

C3073-C331:

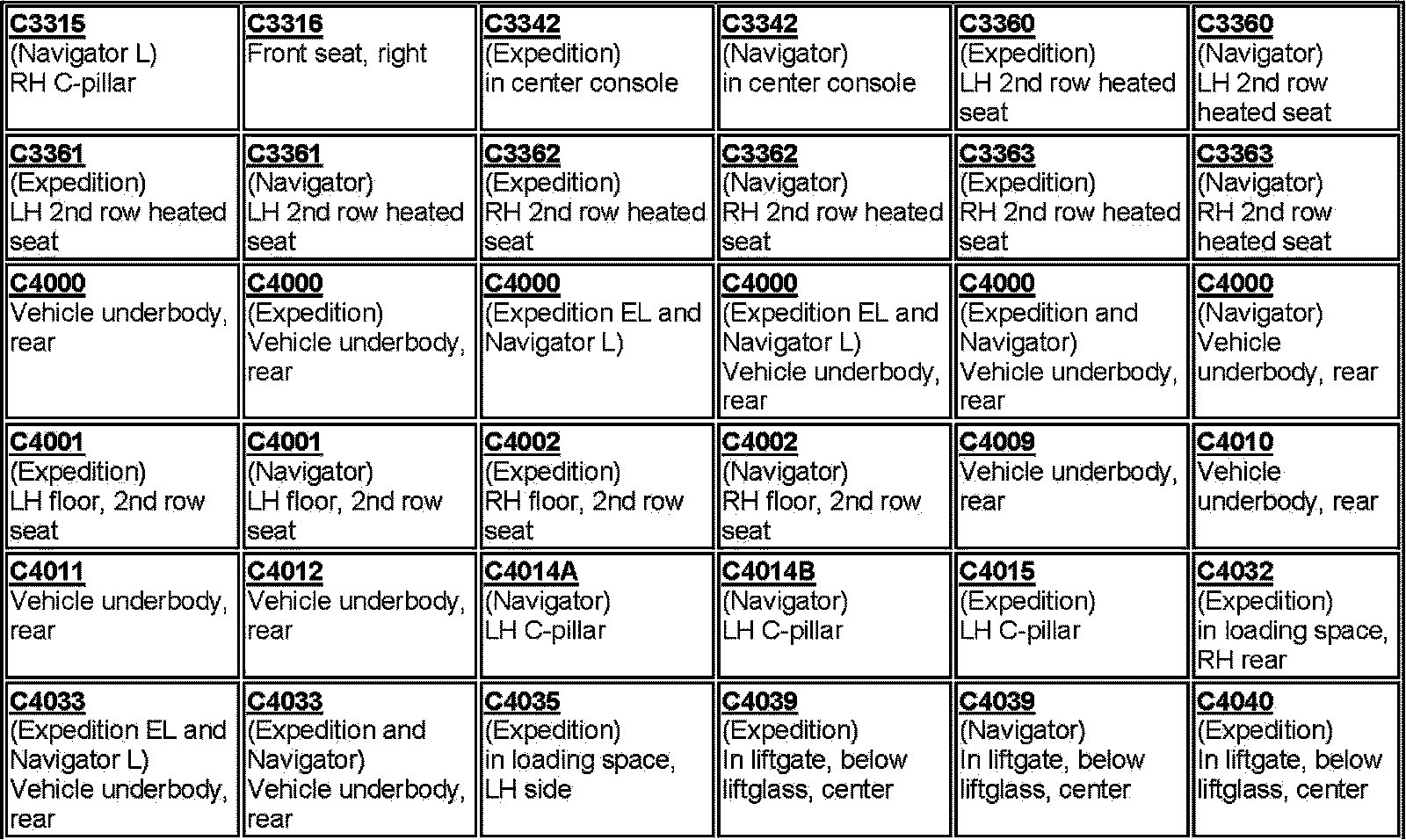

C3315-C4040:

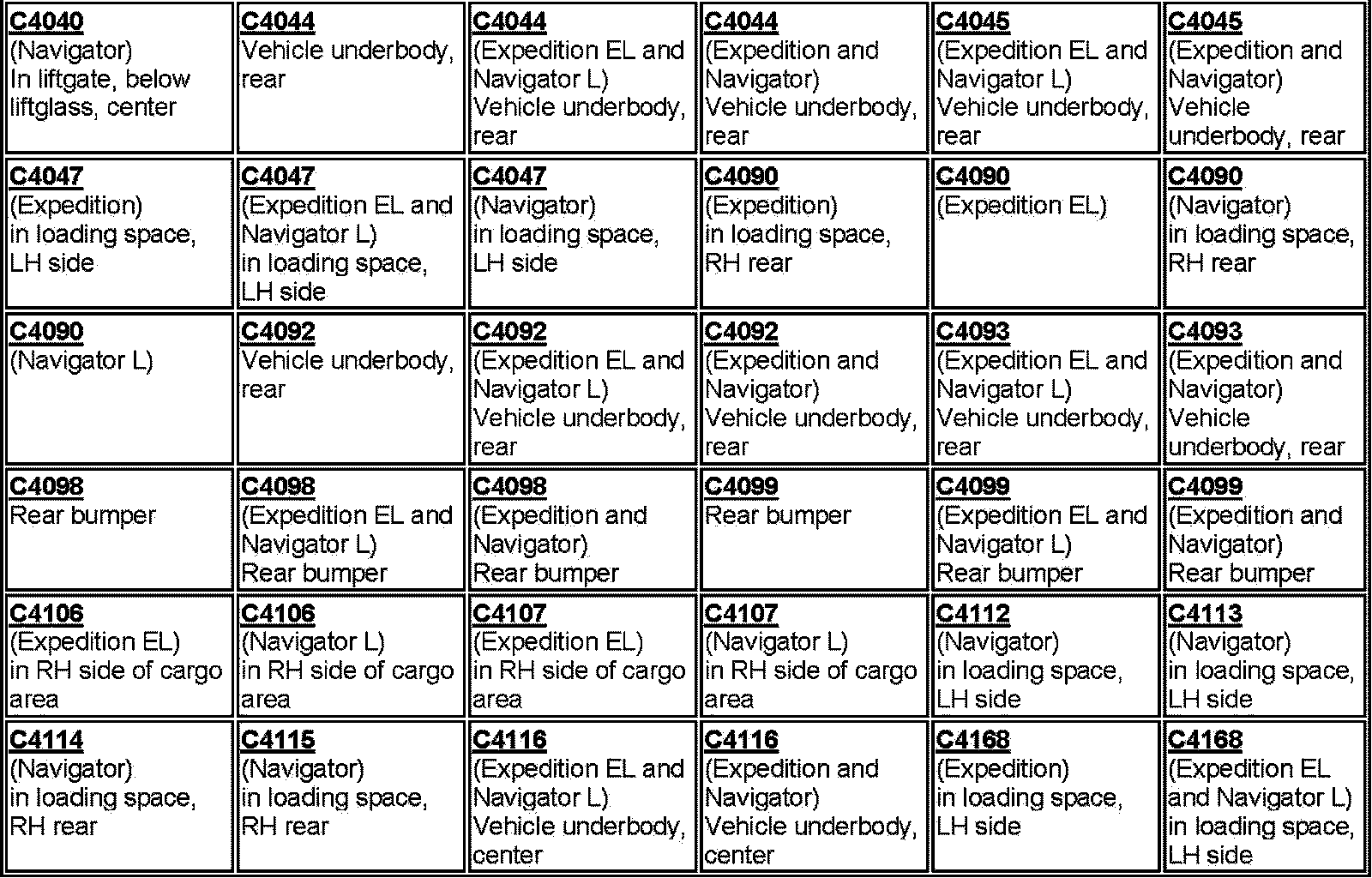

C4040-C4168:

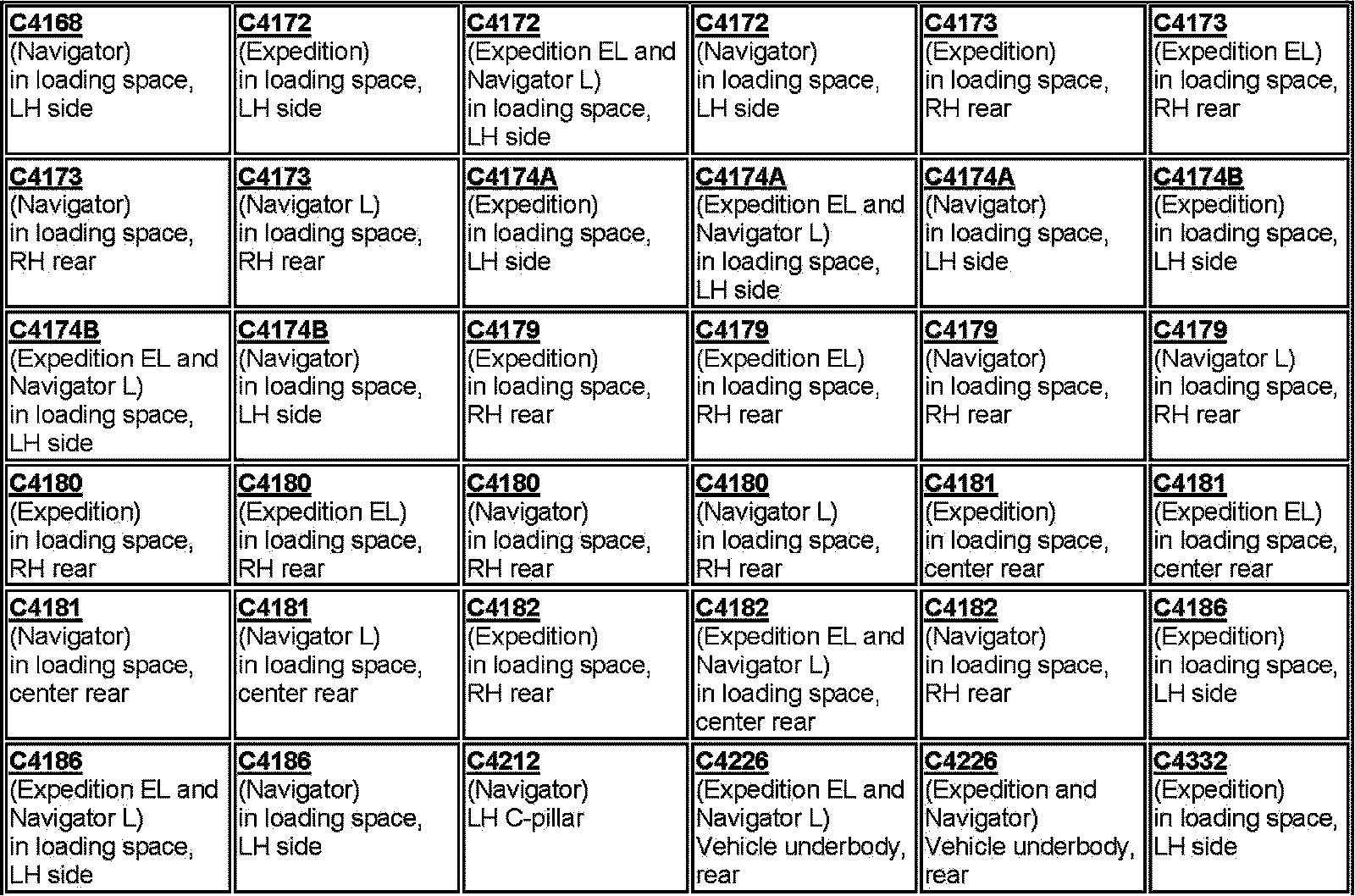

C4168-C4332:

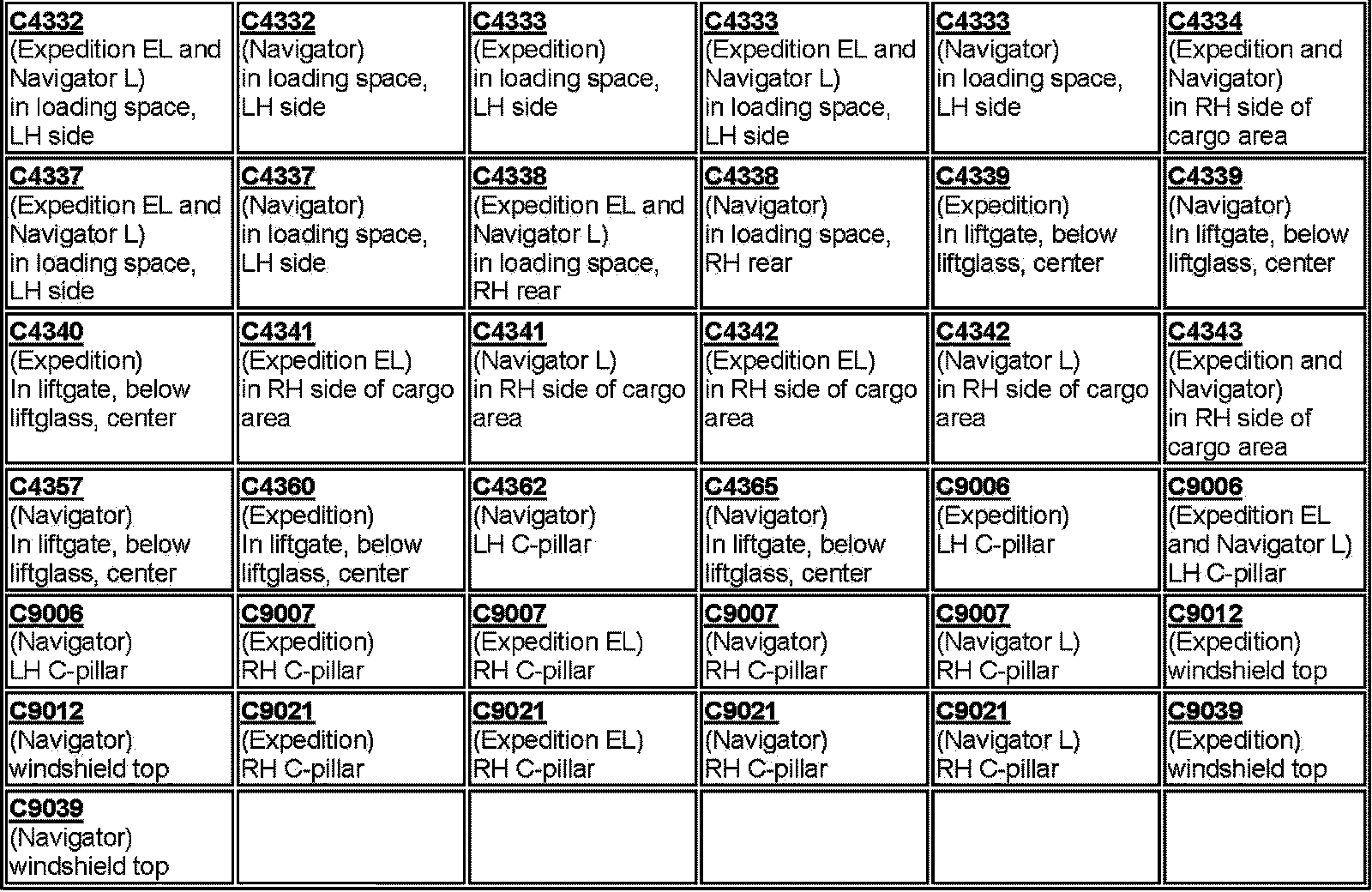

C4332-C9039:
