Evaporative Emission (EVAP) System Components - Exploded View




Evaporative Emission (EVAP) System Components - Exploded View

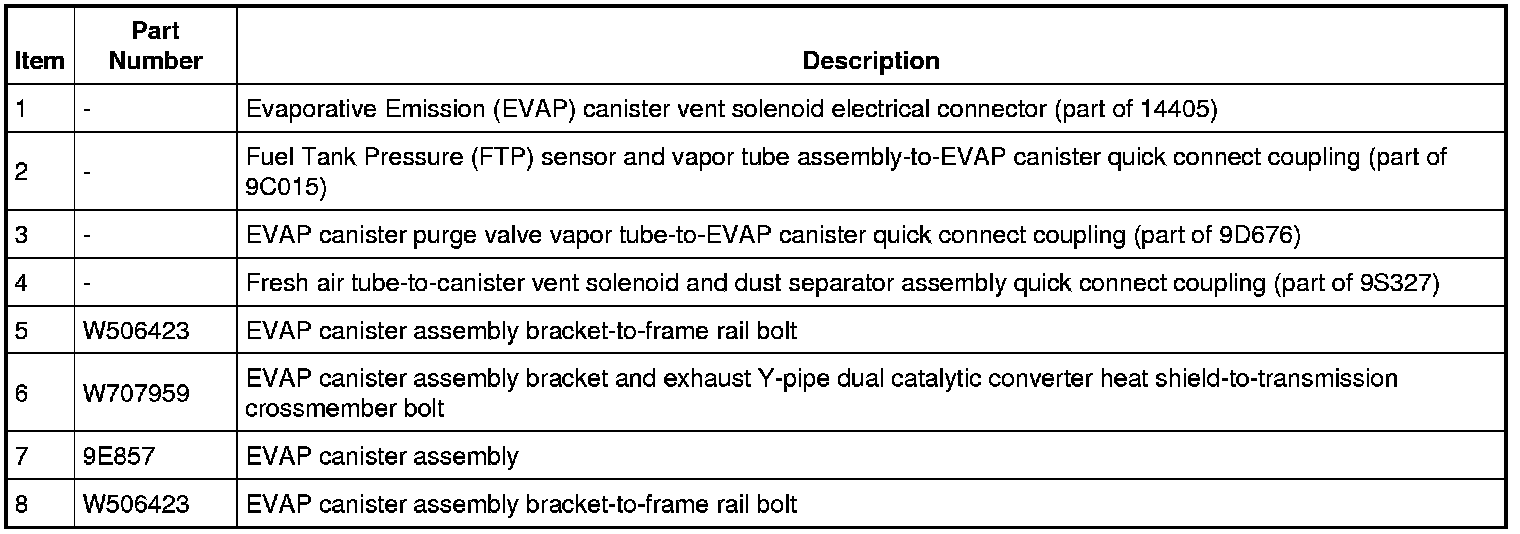

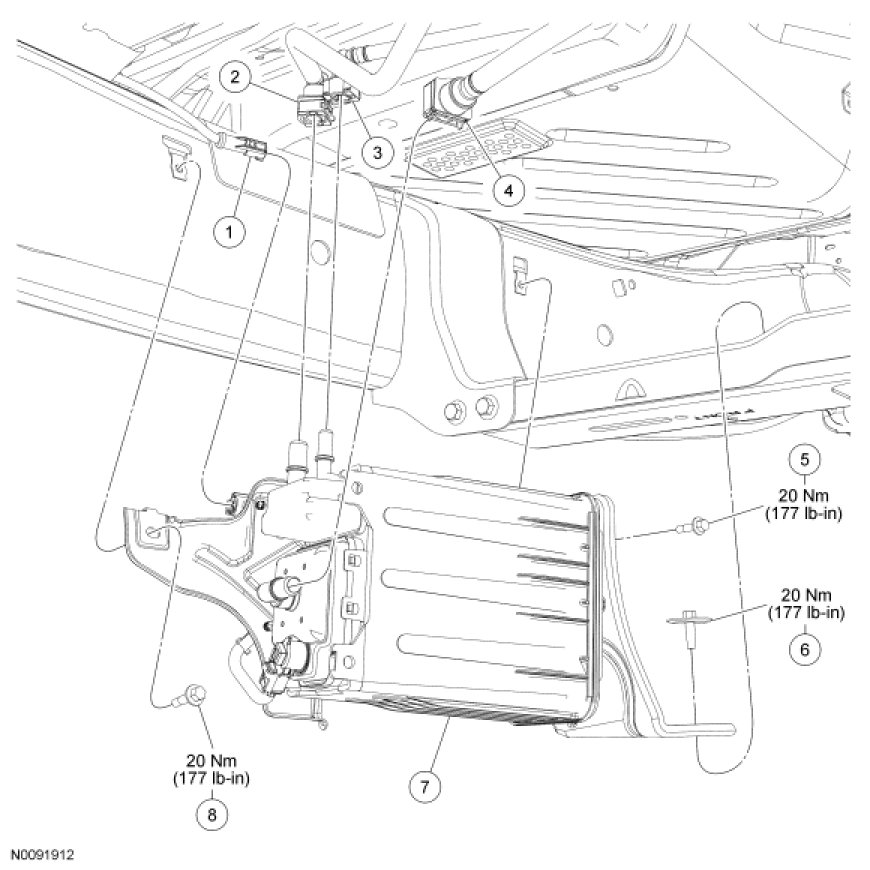

Evaporative Emission (EVAP) Canister Assembly

NOTE: 106L (28 gal) fuel tank vapor tubes shown, 125L (33 gal) similar.

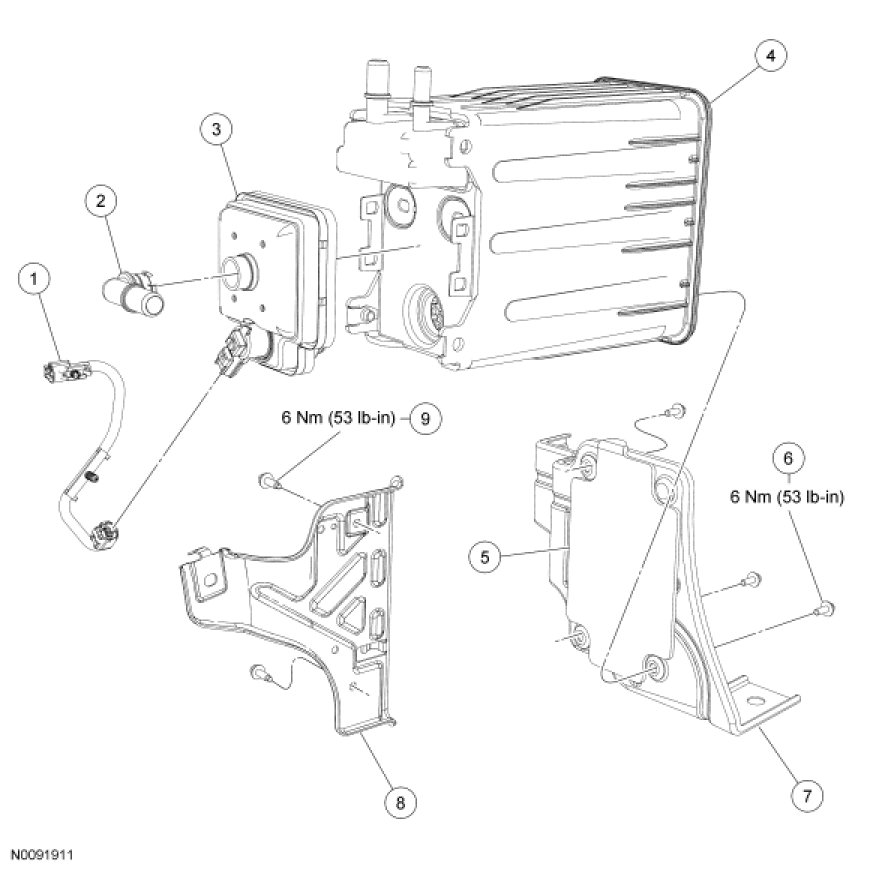

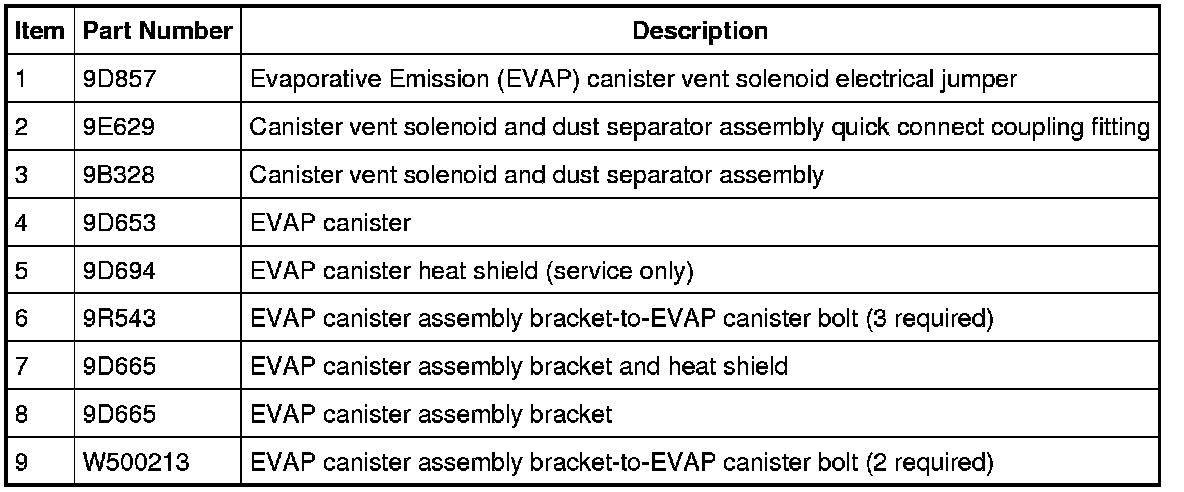

EVAP Canister, Vent Solenoid and Dust Separator and Brackets









1. For additional information, refer to the procedures.
