Liftgate Latch Remote Control

Liftgate Latch Remote Control

Removal and Installation

NOTE: The liftgate latch remote control is available with power liftgate only.

1. Remove the liftgate trim panel.

2. Position the watershield aside.

3. NOTICE: Be careful not to kink the liftgate latch actuating cable while disconnecting it from the latch.

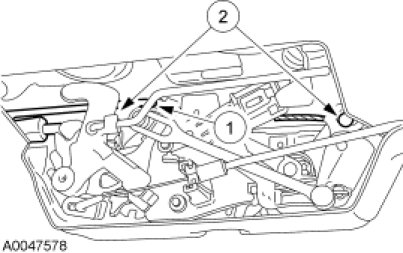

Disconnect the liftgate latch.

1. Release the liftgate latch actuator rod.

2. Disconnect the liftgate latch actuating cable.





4. Remove 3 bolts and position the liftgate latch remote control aside.
- To install, tighten to 11 Nm (8 lb-in).

5. Disconnect the electrical connectors and remove the liftgate latch remote control.

6. To install, reverse the removal procedure.
