Liftgate/Trunk Module (LTM)

Liftgate/Trunk Module (LTM)

Removal and Installation









1. Remove the rear quarter trim panel.

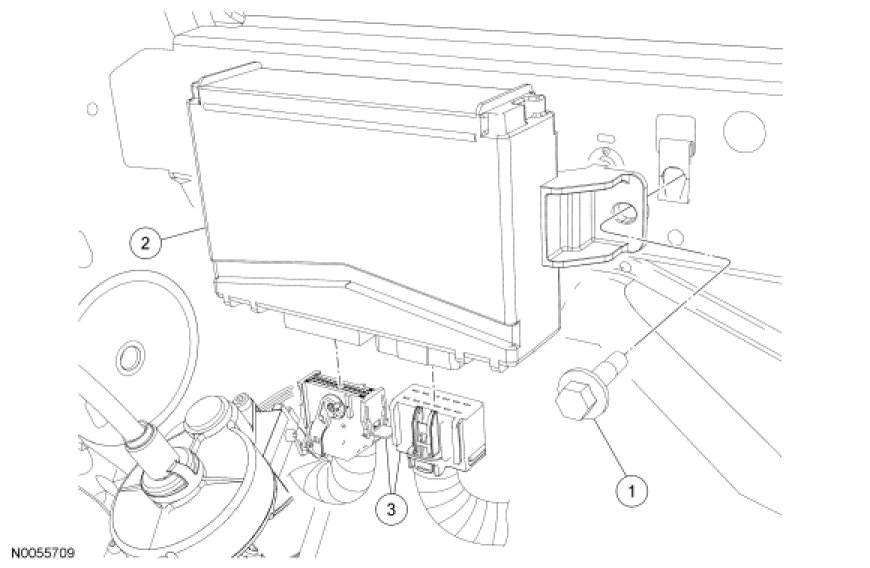

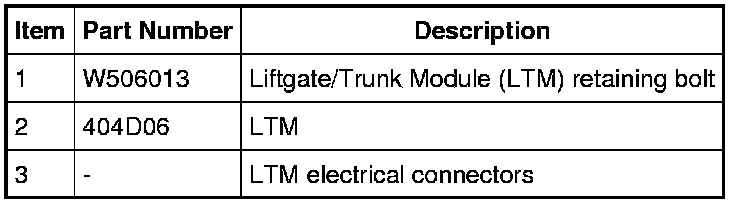

2. Remove the Liftgate/Trunk Module (LTM).

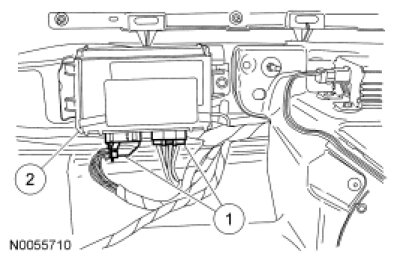

1. Disconnect the electrical connectors.

2. Remove the bolt.
- To install, tighten to 9 Nm (80 lb-in).





3. To install, reverse the removal procedure.
- Initialize the power liftgate. For additional information, refer to Power Liftgate Initialization Programming and Relearning.
