Oil Pan, Engine

Position a new gasket and the oil pan and install the 16 bolts.

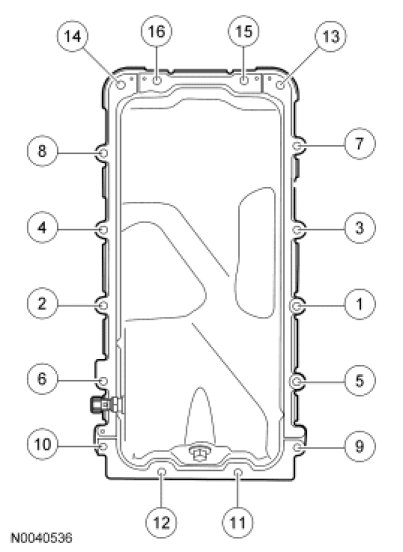

Tighten the bolts in the sequence shown in 3 stages.
Stage 1: Tighten to 2 Nm (18 lb-in).
Stage 2: Tighten to 20 Nm (177 lb-in).
Stage 3: Tighten an additional 60 degrees.
