Fuel Tank And Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

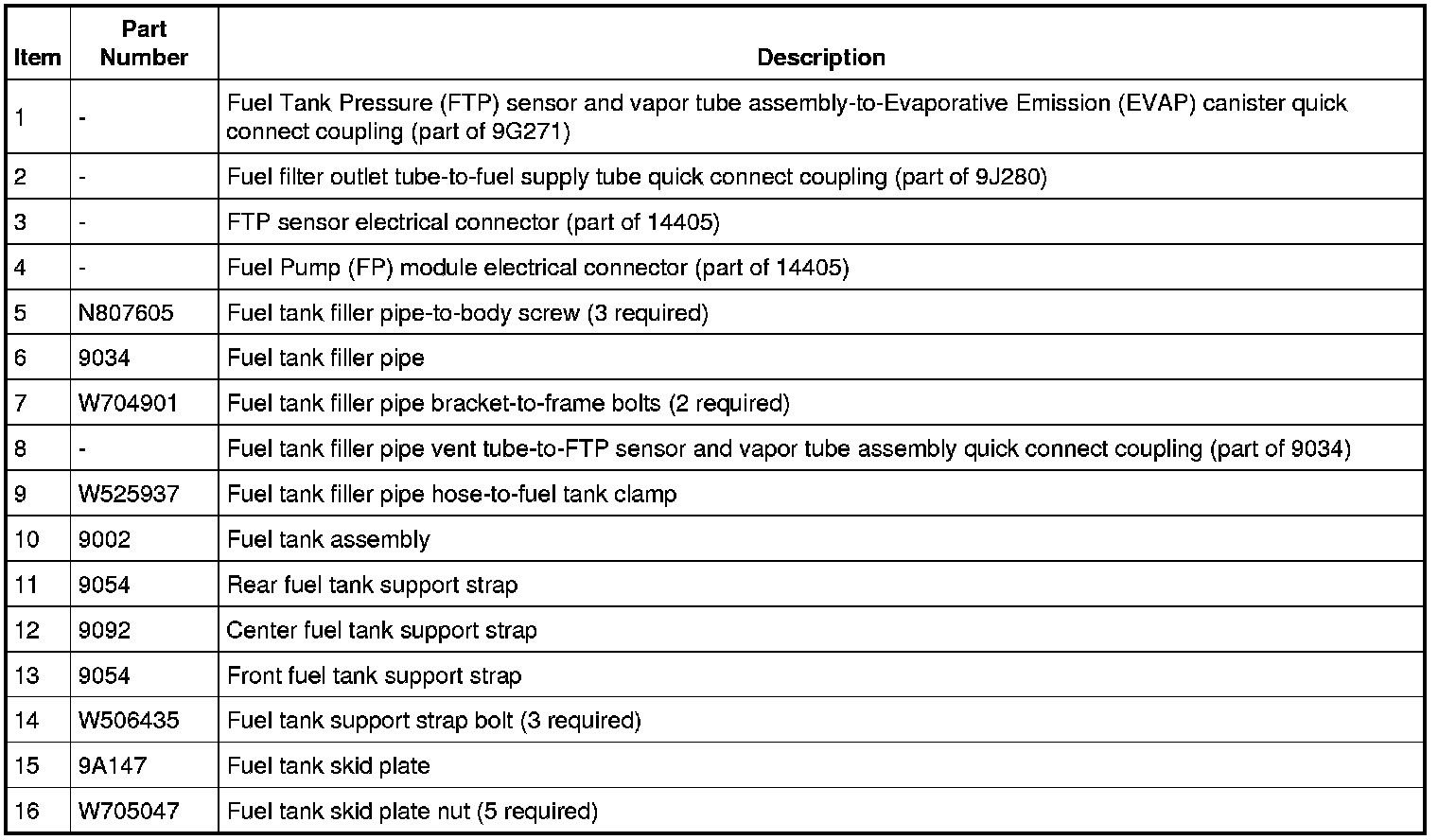

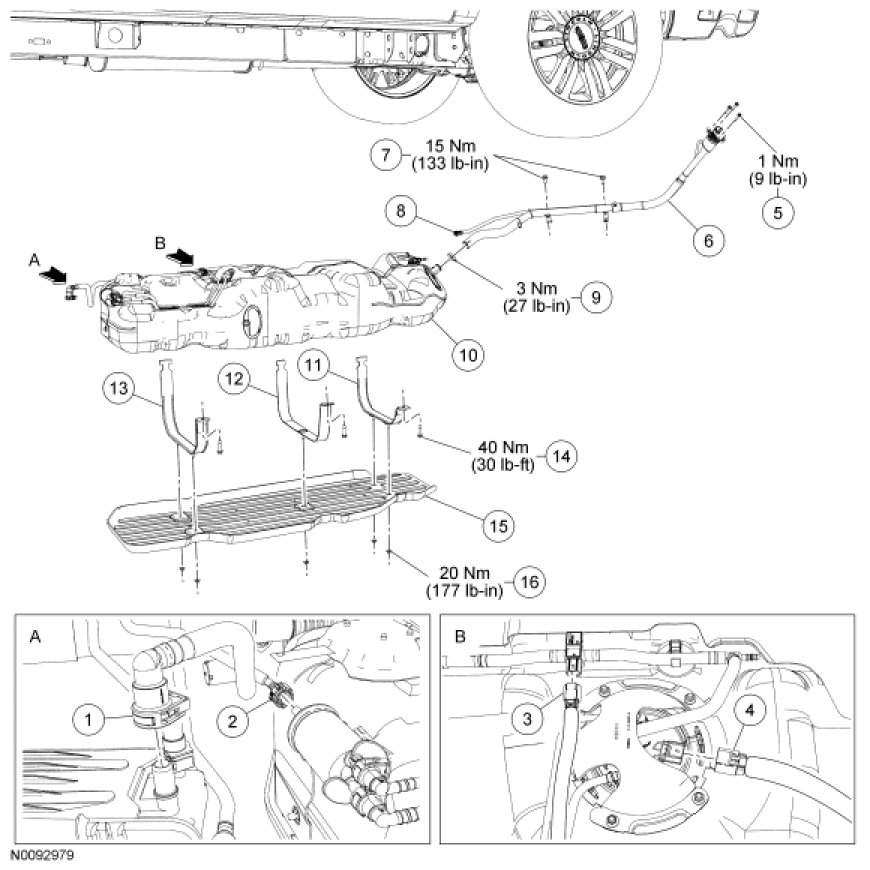

106L (28 Gal) Fuel Tank

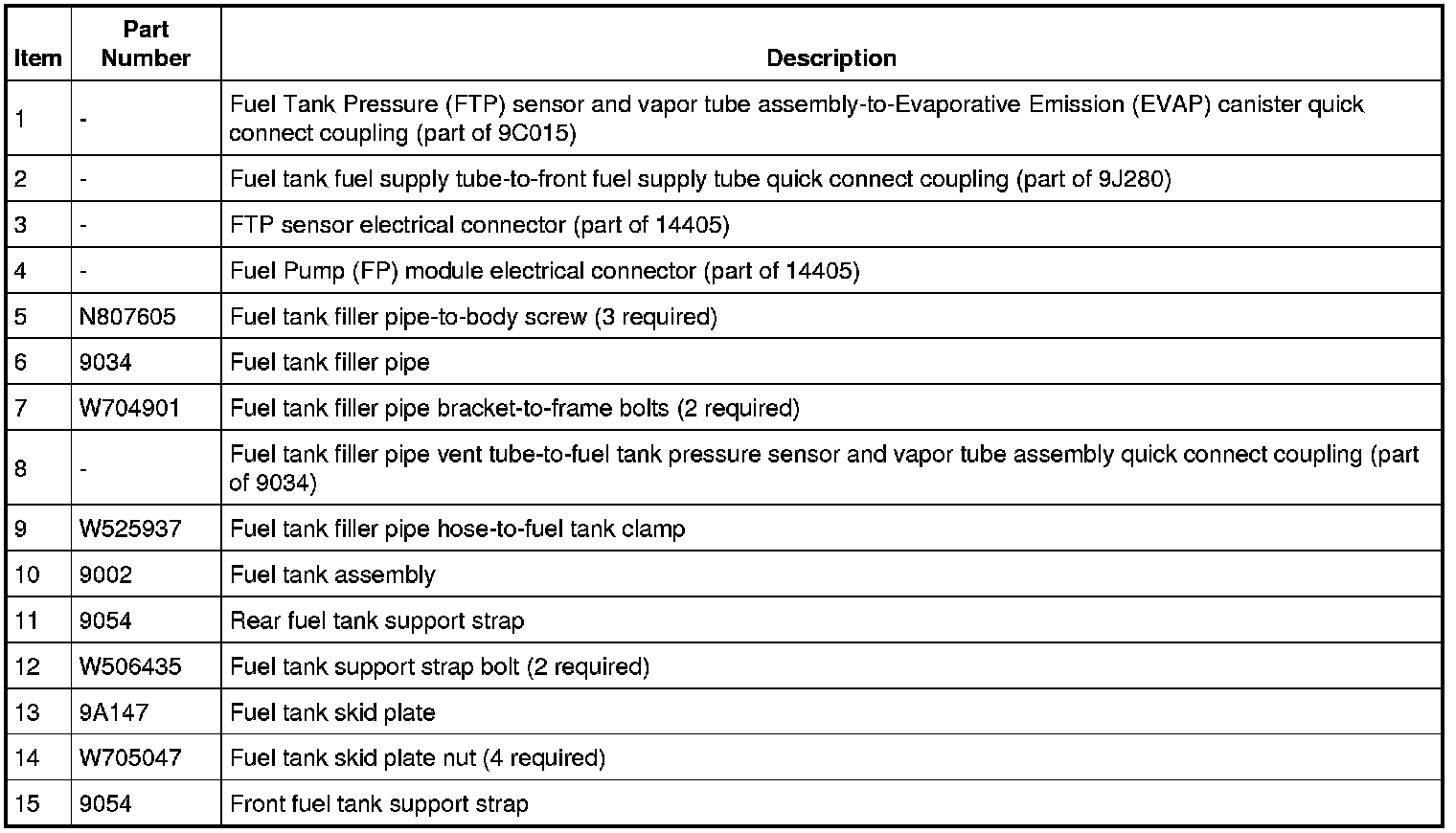

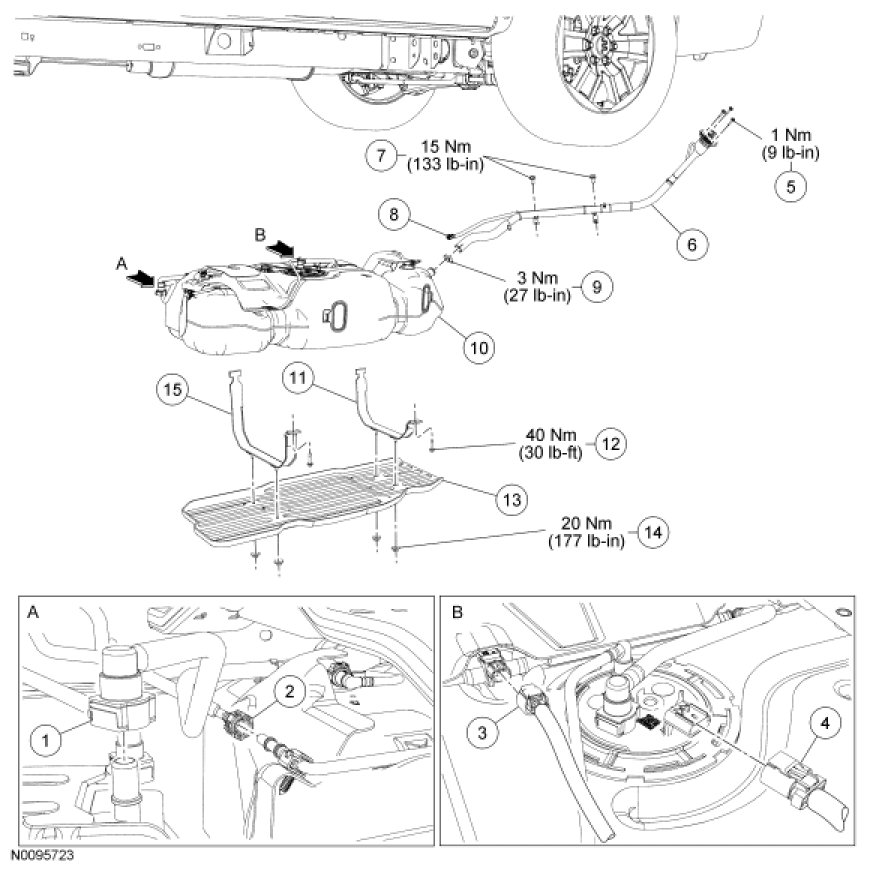

127L (33.5 Gal) Fuel Tank









1. For additional information, refer to the procedures.
