Overhaul Specs

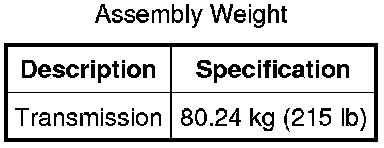

Assembly Weight:

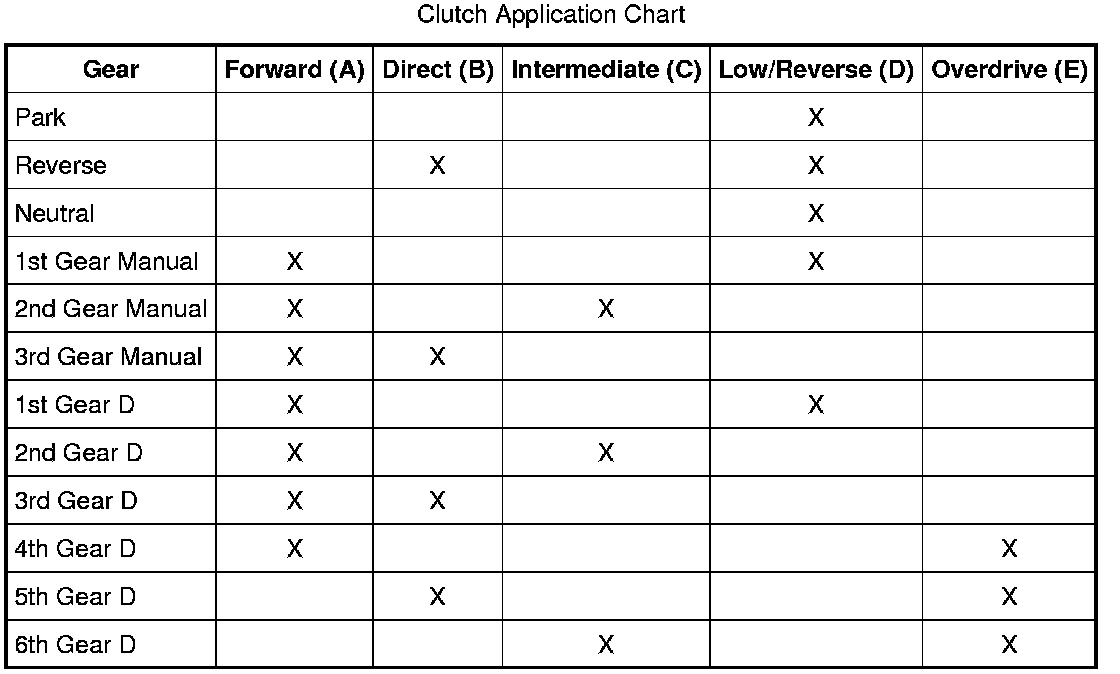

Clutch Application Chart:

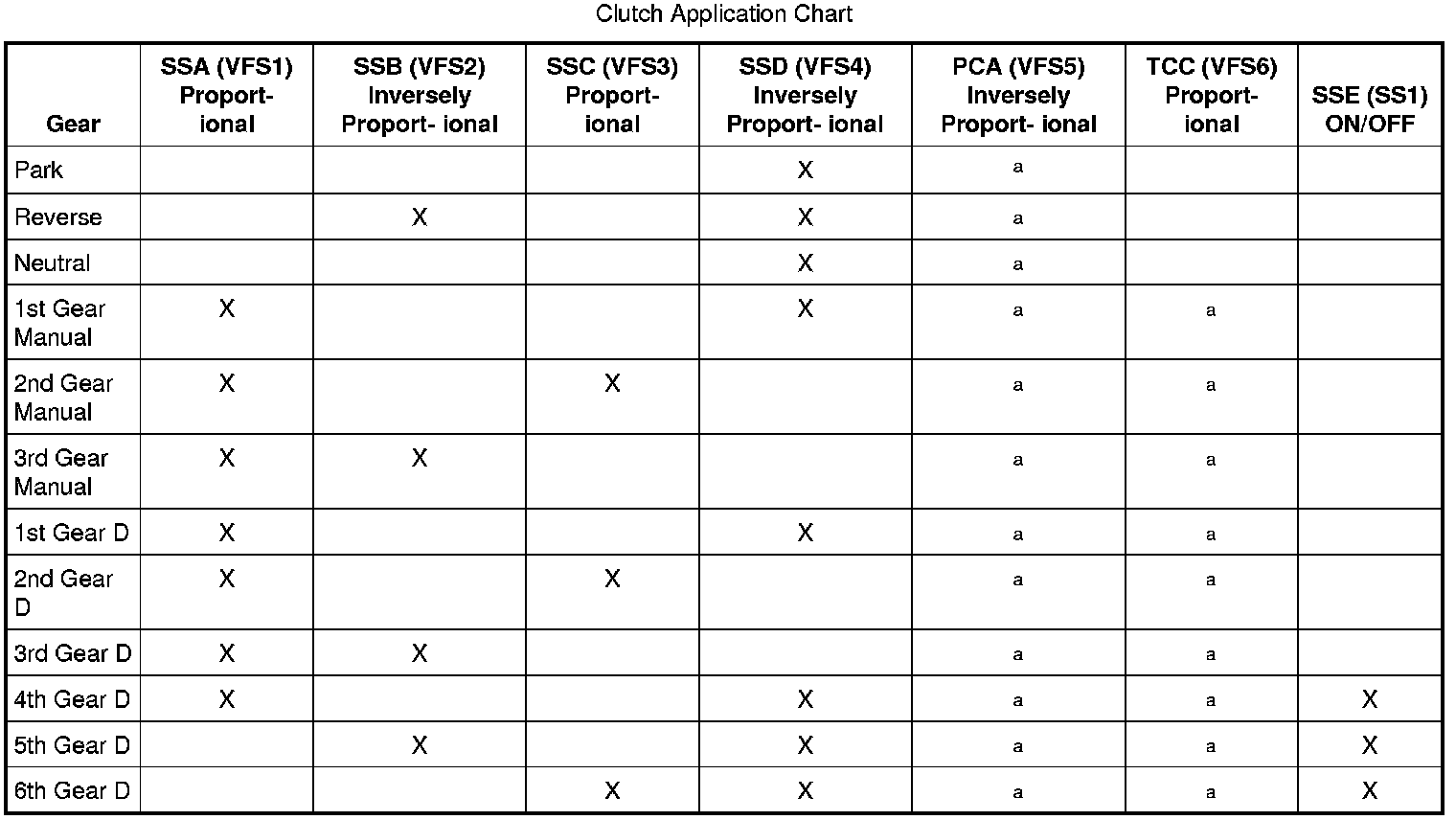

Clutch Application Chart:

a Transmission control module (TCM) controlled

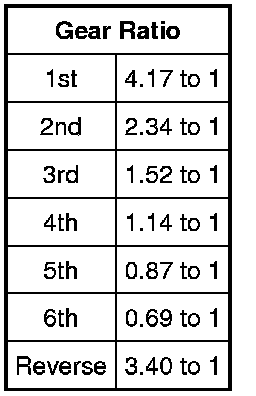

Gear Ratio:

Stall Speed:

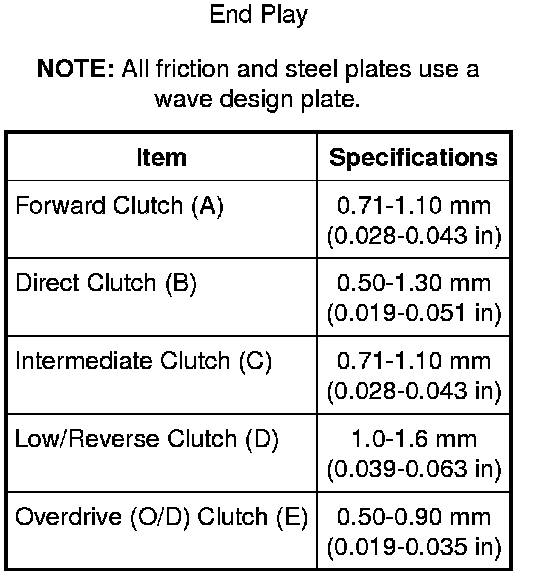

End Play:

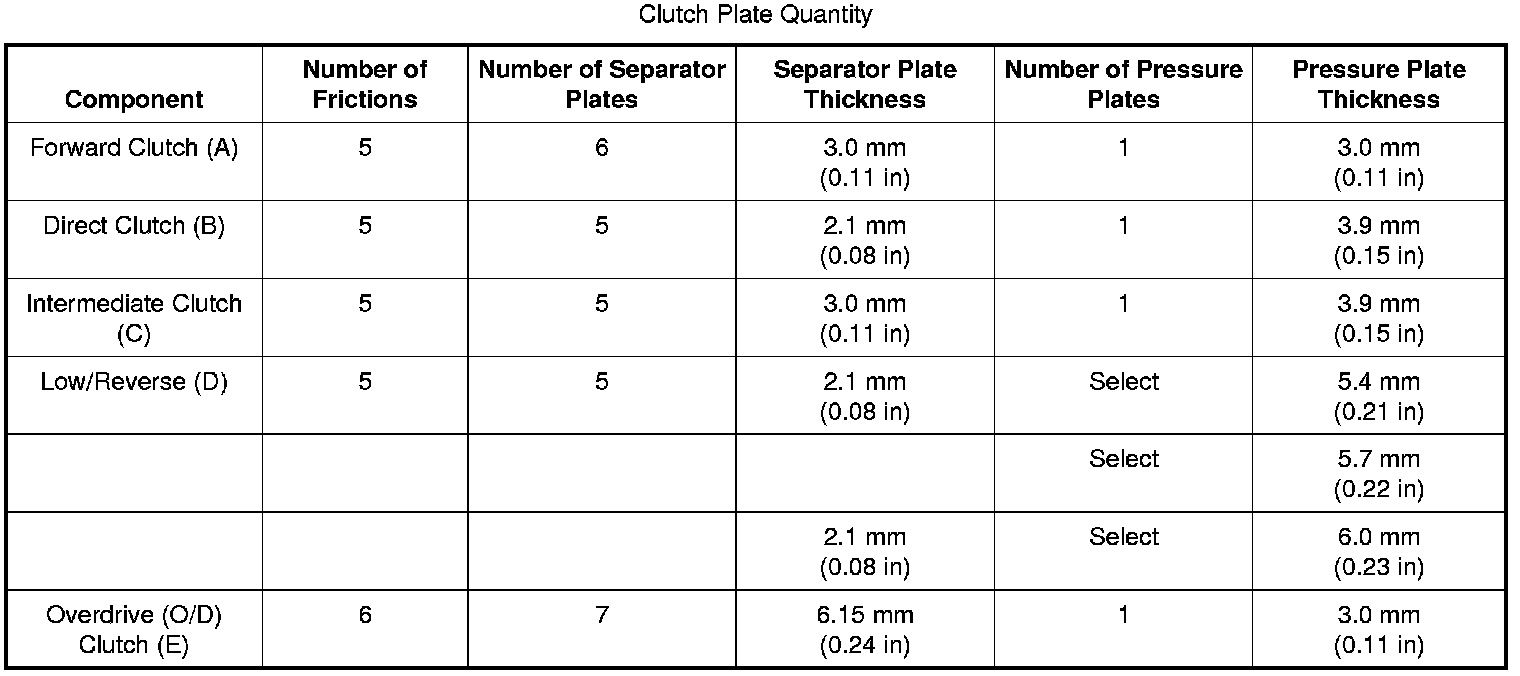

Clutch Plate Quantity:

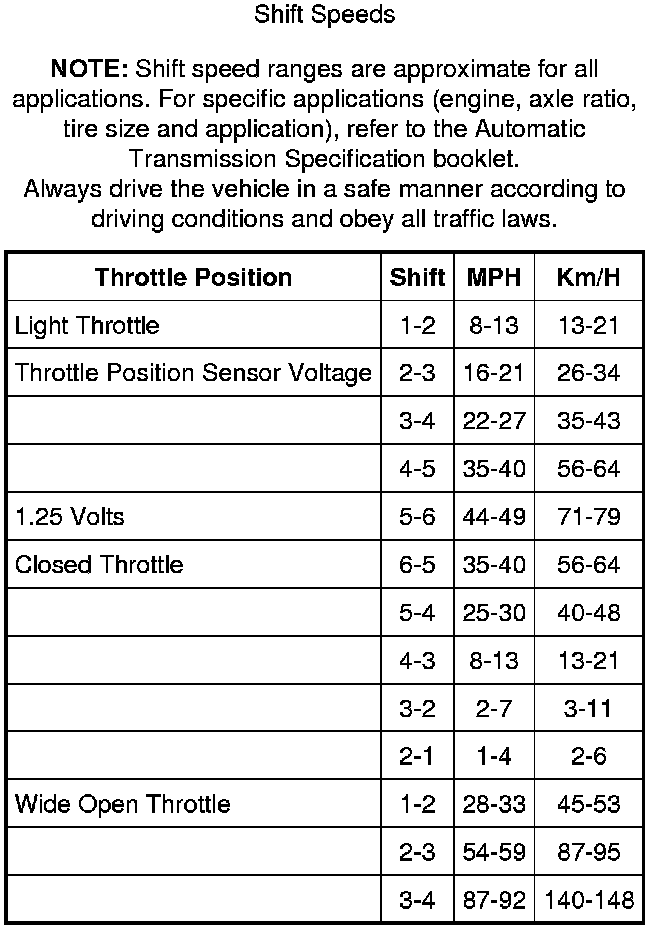

Shift Speeds:
