Safety Belt Retractor - Second Row, Center: Notes

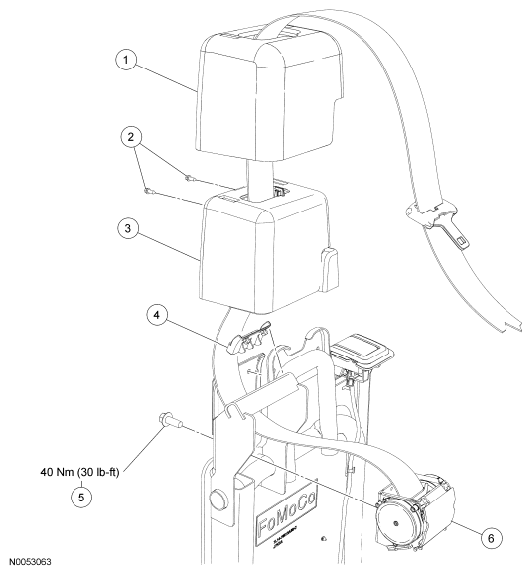

Fig 1: Safety Belt Retractor - Second Row, Center With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	611D52	Safety belt retractor cover foam
2	W504042	Safety belt retractor cover screws (2 required)
3	613C46	Safety belt retractor cover
4	-	Safety belt retractor guide (part of 611B64)
5	W505274	Safety belt retractor bolt
6	611B64	Safety belt retractor
