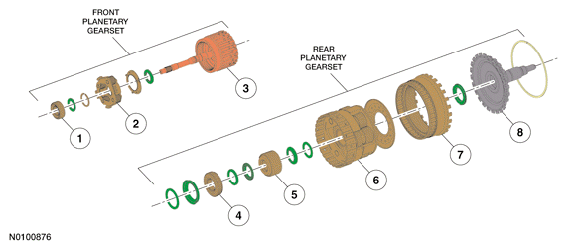

Planetary Gearset Exploded View
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D063 | Front planetary No. 1 sun gear |
| 2 | 7A398 | Front planetary carrier |
| 3 | 7F207 | Front planetary ring gear (part of input shaft assembly) |
| 4 | 7D063 | Rear planetary No. 2 sun gear |
| 5 | 7D063 | Rear planetary No. 3 sun gear |
| 6 | 7D006 | Rear planetary carrier |
| 7 | 7A153 | Rear planetary ring gear |
| 8 | 7060 | Output shaft |
