Low/Reverse Clutch Assembly: Assembly

Low/reverse piston

1. Install new low/reverse outer piston O-ring seals.
   Fig 1: Locating Low/Reverse Outer Piston O-Ring Seals

   Courtesy of FORD MOTOR CO.
2. Install new low/reverse drum O-ring seals.
   Fig 2: Locating Low/Reverse Drum O-Ring Seals

   Courtesy of FORD MOTOR CO.
3. Lubricate the O-ring seal with clean automatic transmission fluid and install the low/reverse piston.
   Fig 3: Locating Low/Reverse Piston

   Courtesy of FORD MOTOR CO.
4. Install the low/reverse clutch return spring.
   Fig 4: Locating Low/Reverse Clutch Return Spring

   Courtesy of FORD MOTOR CO.
5. Install a new low/reverse clutch return spring washer.
   Fig 5: Locating Low/Reverse Clutch Return Spring Washer

   Courtesy of FORD MOTOR CO.
6. Using the Clutch Spring Compressor 307-525, compress the low/reverse clutch return spring and install the retaining ring.
   Fig 6: Locating Retaining Ring

   Courtesy of FORD MOTOR CO.

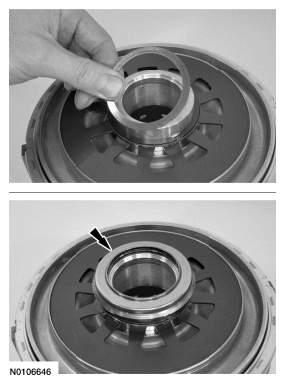

7. Install the shim and the T7 thrust bearing on the center support.
   Fig 7: Installing Shim And T7 Thrust Bearing On Center Support

   Courtesy of FORD MOTOR CO.

   Low/reverse clutch stack up

NOTE: All intermediate clutch plates, friction and steel are of a wave-type design.

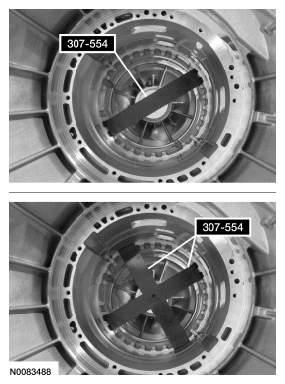

Fig 8: Identifying D-Clutch Measurement Gauge 307-554
Courtesy of FORD MOTOR CO.
8. Install the D-Clutch Measurement Gauge 307-554 into the case.
9. With the D-Clutch Measurement Gauge 307-554 positioned in the case, use the Depth Micrometer 303-D075 to measure the case stop depth.
   READING DESCRIPTION CHART



   Description	Reading
   Measure the distance from the top of the upper gauge bar to the top of the lower gauge bar. Record this reading as the case measurement. Record as reading A.

   Fig 9: Identifying D-Clutch Measurement Gauge 307-554 And Depth Micrometer 303-D075

   Courtesy of FORD MOTOR CO.
10. Measure the clutch pack height.
    READING DESCRIPTION CHART



    	Description	Reading

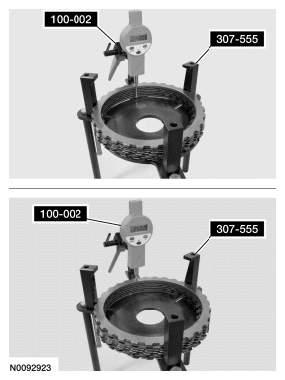

    A. Place the low/reverse clutch pack on the Clutch End Play Gauge 307-555 with the wave spring down and the pressure plate on top. Using the Dial Indicator Gauge with Holding Fixture 100-002, place the plunger on the pressure plate. Slide the clutch to the side so the plunger of the Dial Indicator is touching the gauge plate of the Clutch End Play Gauge 307-555. Zero out the Dial Indicator Gauge.
    B. Carefully lift the plunger enough to slide the clutch pack under the plunger to take a reading. Record this reading. Rotate the clutch pack 180 degrees and take a second reading. Add the first and second readings together and divide the total by 2. Record this reading as B.

    Fig 10: Measuring Clutch Pack Height

    Courtesy of FORD MOTOR CO.
11. Using the Depth Micrometer 303-D075, measure the piston to center support shoulder height.
    READING DESCRIPTION CHART



    Description	Reading
    Measure the piston to center support shoulder height. Record this measurement. Rotate the center support 180 degrees and record this measurement. Add the first and the second measurements, then divide by 2. Record this as reading C.

    Fig 11: Measuring Piston To Center Support Shoulder Height

    Courtesy of FORD MOTOR CO.
12. Calculate the end clearance.
    READING DESCRIPTION CHART



    Description	Reading
    Subtract B and C from A to determine end clearance
    Total C measurement
    End clearance specification	1.0-1.6 mm (0.039-0.062 in)

    Compare the end clearance to the specification. If the end clearance is out of specification, select the next thinner or thicker plate as required and repeat Steps  10,  11 and  12.
