Mechatronic Assembly: Disassembly

NOTE: Do not touch the electrical connector pins or the exposed solenoid tabs on the Transmission Control Module (TCM). An electrostatic discharge may occur and may cause damage to the TCM /mechatronic assembly.

NOTE: Make an identifying mark on each solenoid and the corresponding bore for correct assembly.

NOTE: Solenoids may visually appear the same but their designs/functions are different. Caution must be taken not to assemble the mechatronic assembly incorrectly. Incorrect solenoid installation will result in poor transmission shift quality.

NOTE: Note where the 8 check balls, 6 solenoid dampers, 2 internal valves and springs and 2 internal filters are located for reassembly.

Mechatronic assembly upper half

Make an identifying mark on each solenoid and the corresponding bore for correct assembly.

Fig 1: Identifying Mark On Solenoid And Corresponding Bore
Courtesy of FORD MOTOR CO.
Remove the 6 long bolts from the Transmission Control Module (TCM) unit.

Fig 2: Locating Transmission Control Module Unit Long Bolts
Courtesy of FORD MOTOR CO.
Carefully separate the TCM from the mechatronic assembly.
1. TCM
2. Mechatronic assembly

  Fig 3: Identifying TCM And Mechatronic Assembly
  Courtesy of FORD MOTOR CO.
Remove 19 short bolts from the mechatronic assembly.

Fig 4: Locating Mechatronic Assembly Short Bolts
Courtesy of FORD MOTOR CO.
Separate the lower half of the mechatronic assembly from the upper half of the mechatronic assembly.

Fig 5: Separating Lower Half Of Mechatronic Assembly From Upper Half Of Mechatronic Assembly
Courtesy of FORD MOTOR CO.
Remove and discard the separator plate.

Fig 6: Locating Separator Plate
Courtesy of FORD MOTOR CO.

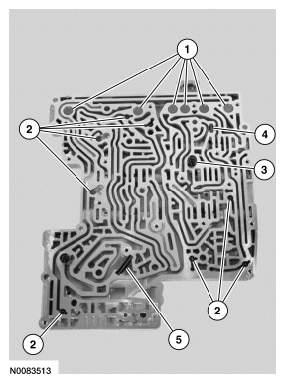

Remove the solenoid dampers, check balls, converter drain back valve and filter screens from the mechatronic assembly. Note the location for assembly. Refer to Fig 6.
1. Solenoid dampers
2. Check balls
3. Converter drain back valve
4. Small screen
5. Big screen

  Fig 7: Identifying Solenoid Dampers And Check Balls, Converter Drain Back Valve, Small Screen, Big Screen
  Courtesy of FORD MOTOR CO.

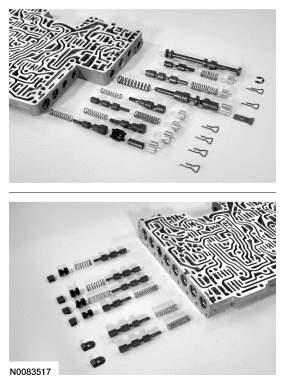

Remove the clips, caps, valves and springs from each bore of the mechatronic assembly. Note the location and order for assembly. Refer to Fig 7.

Fig 8: Identifying Clips, Caps, Valves And Springs Of Mechatronic Assembly
Courtesy of FORD MOTOR CO.
Using clean mineral spirits, clean the upper half of the mechatronic assembly.
Mechatronic assembly lower half
Remove the 8 solenoid bracket bolts and the solenoid bracket.

Fig 9: Locating Solenoid Bracket Bolts
Courtesy of FORD MOTOR CO.
Remove the solenoids.

Fig 10: Identifying Solenoids
Courtesy of FORD MOTOR CO.
Remove the clips, caps, valves and springs from each bore of the mechatronic assembly. Note the location and order for assembly. Refer to Fig 10.

Fig 11: Identifying Clips, Caps, Valves And Springs Of Mechatronic Assembly
Courtesy of FORD MOTOR CO.
Using clean mineral spirits, clean the lower half of the mechatronic assembly.
