Satellite Digital Audio Receiver System (SDARS) Module: Notes

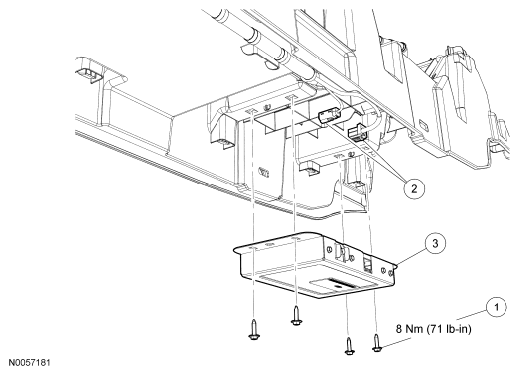

Fig 1: Identifying Satellite Digital Audio Receiver System (SDARS) Module Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W707628-S	Satellite Digital Audio Receiver System (SDARS) module screws (4 required)
2	-	SDARS  module electrical connectors (part of 14A464)
3	18806	SDARS  module
