Restraints Control Module (RCM): Notes

NOTE: Seats removed for clarity.

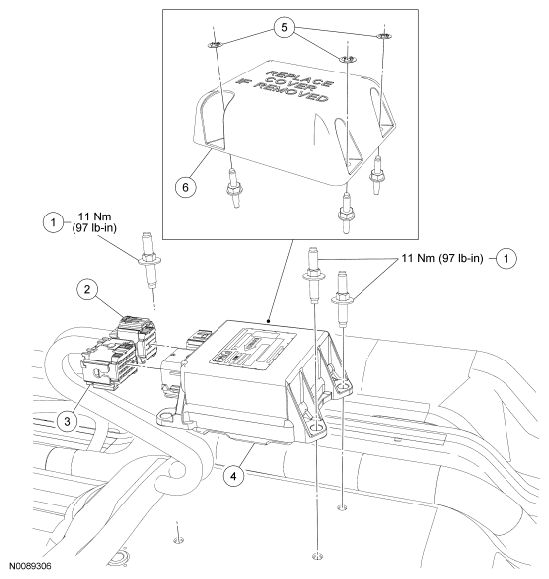

Fig 1: Identifying Restraints Control Module (RCM)

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	W710898	Restraints Control Module (RCM) bolts (3 required)
2	-	Small RCM electrical connector (part of 14A005)
3	-	Large RCM electrical connector (part of 14A005)
4	14B321	RCM
5	W623482	RCM cover push nut retainers (vehicles with bucket seats and no center console only)
6	14A099	RCM cover (vehicles with bucket seats and no center console only)
