Seat - Exploded View, Third Row

Seat - Exploded View, Third Row

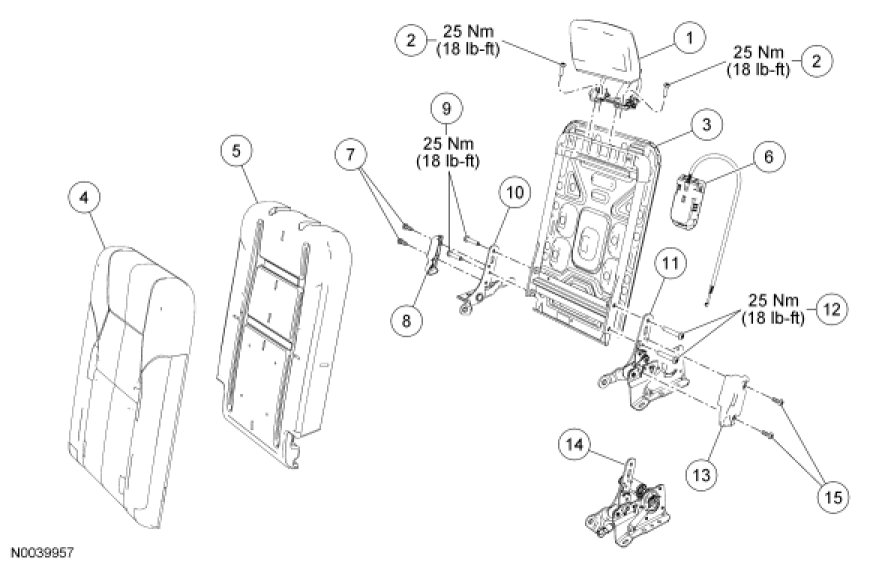

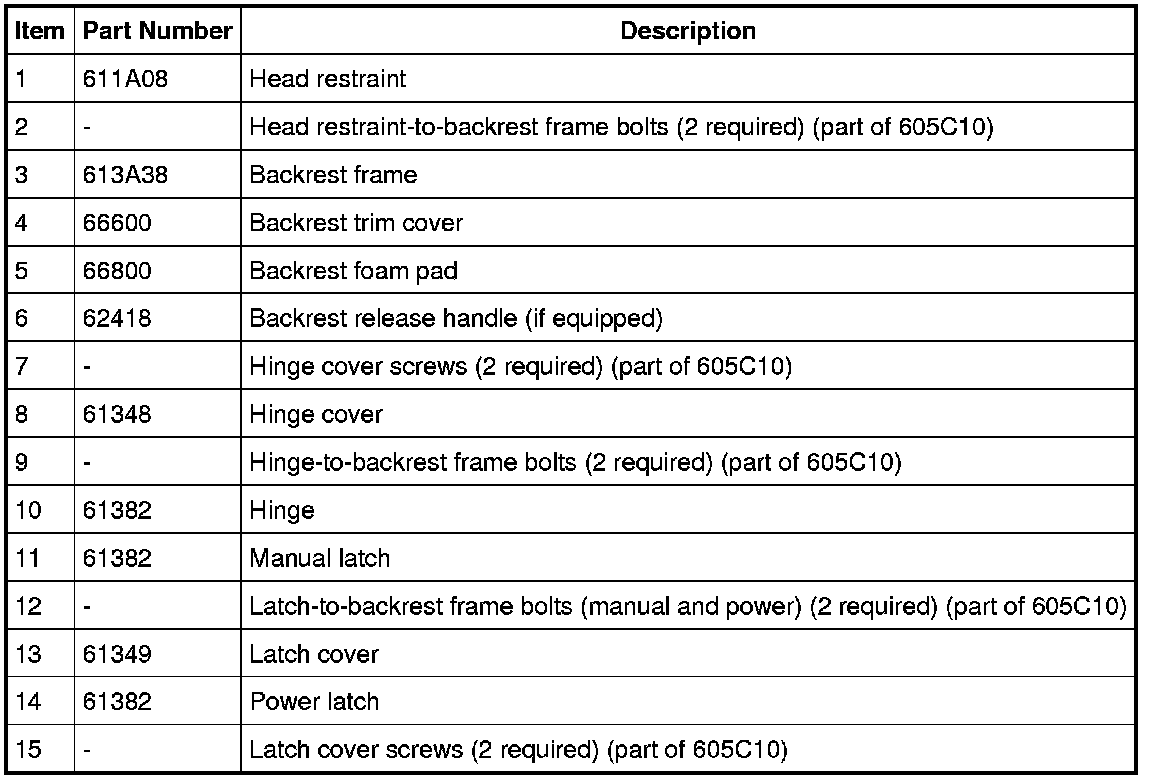

Third Row Seat Backrest

NOTE: RH backrest shown, LH similar.

NOTE: Power latch shown, manual latch similar.

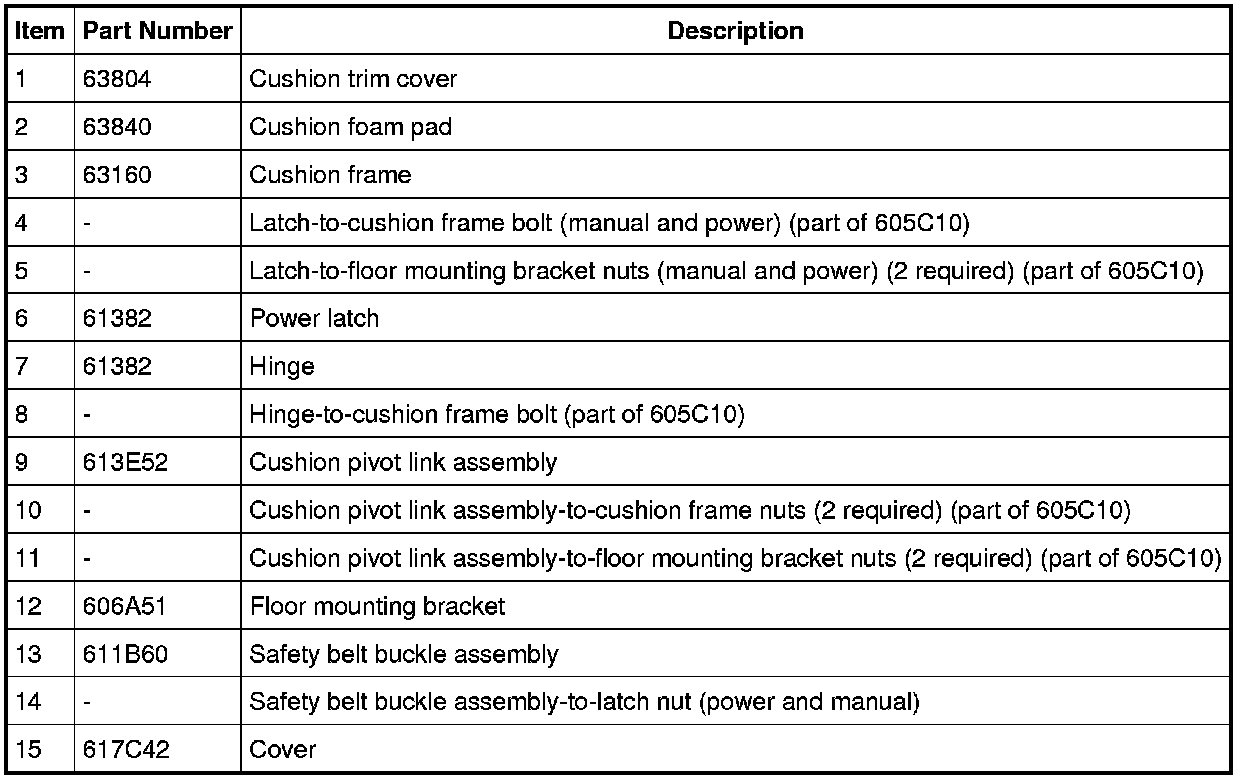

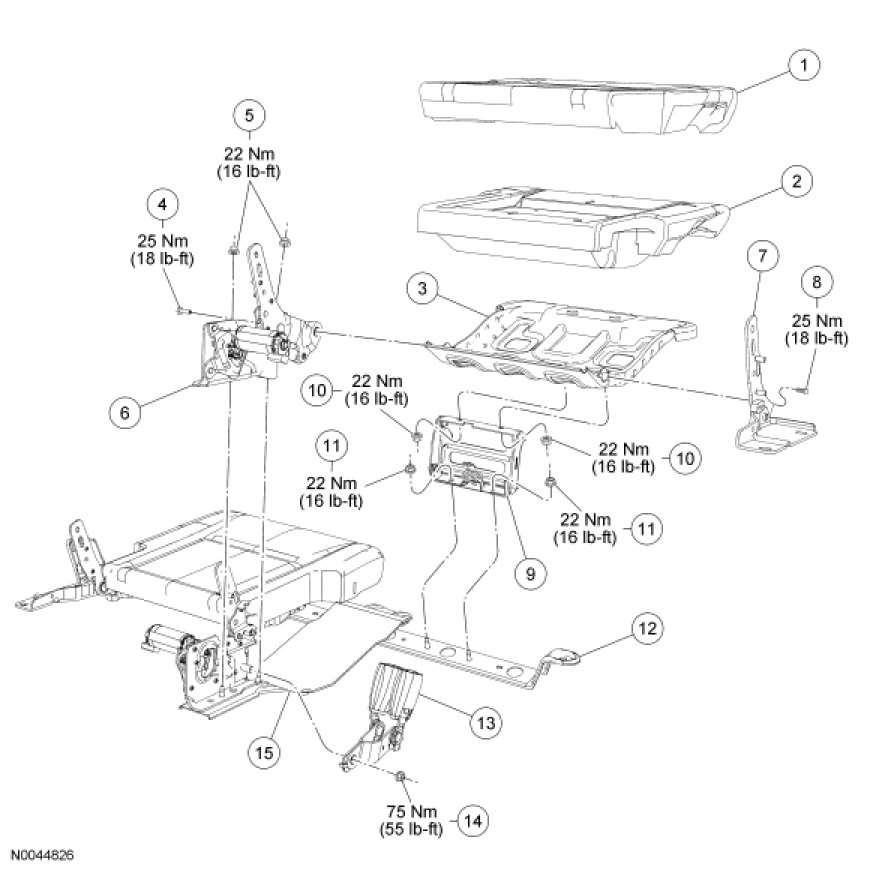

Third Row Seat Cushion

NOTE: RH cushion shown, LH similar.

NOTE: Power latch shown, manual latch similar.










1. For additional information, refer to the procedures.
