Camshaft Position Sensor: Service and Repair

Camshaft Position (CMP) Sensor - 4.0L SOHC

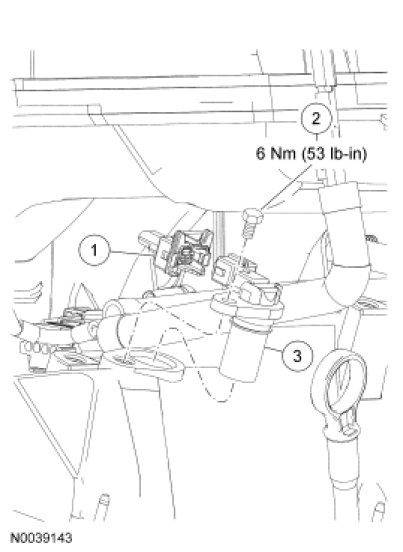

Removal and Installation

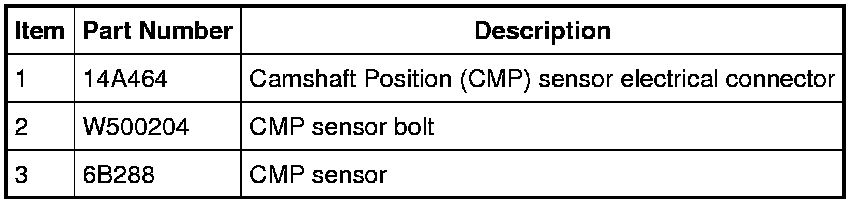

1. Disconnect the Camshaft Position (CMP) sensor electrical connector.

2. Remove the bolt and the CMP sensor.
- To install, tighten to 6 Nm (53 lb-in).

3. To install, reverse the removal procedure.
