5R55S

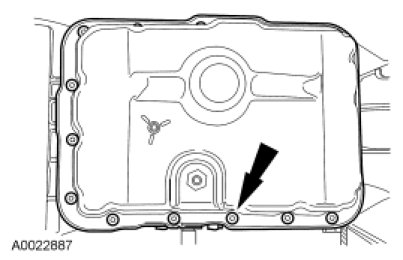

Tighten the transmission fluid pan screws in a crisscross sequence.
Tighten to 11 Nm (97 lb-in).
