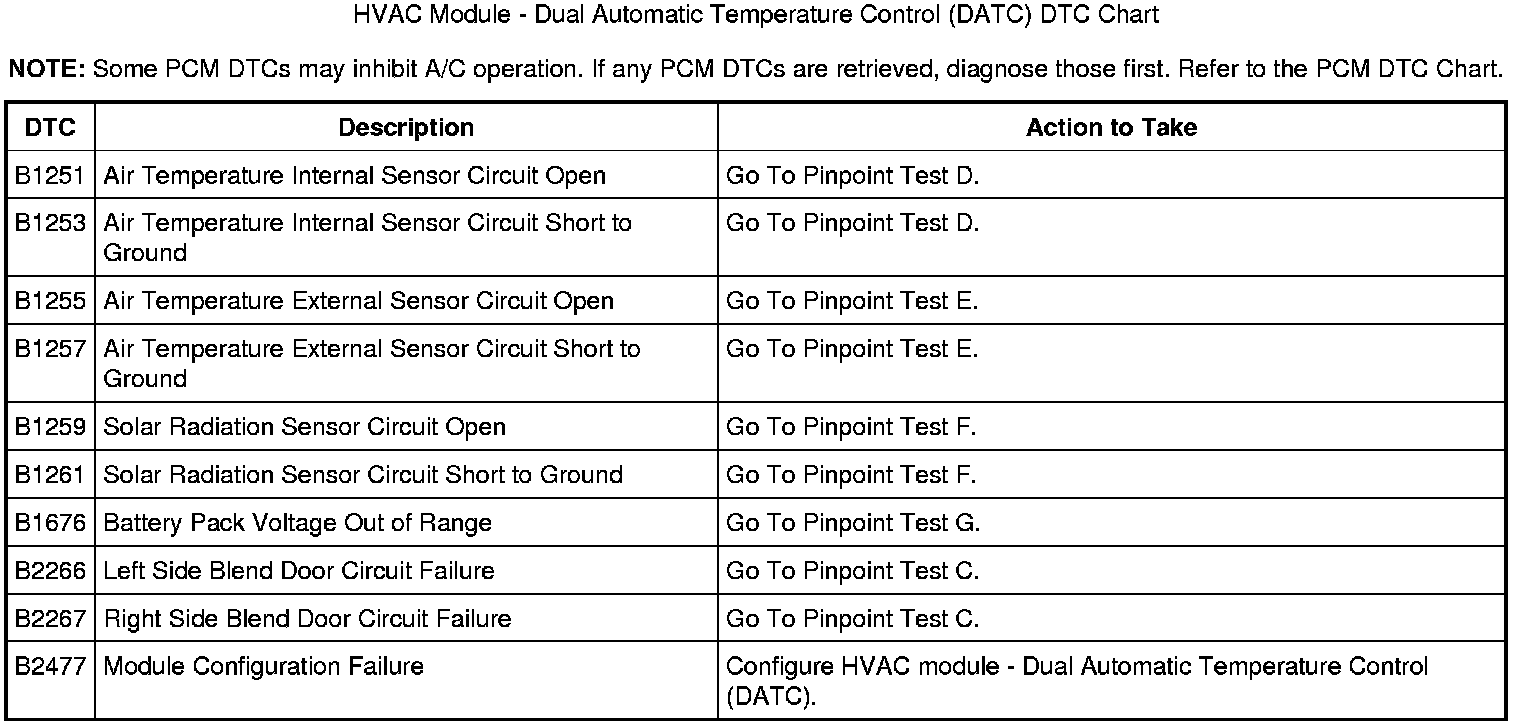

HVAC Module - Dual Automatic Temperature Control (DATC) DTC Chart
Climate Control System
DTC Charts
B1251-B2477:
