Connector Locations

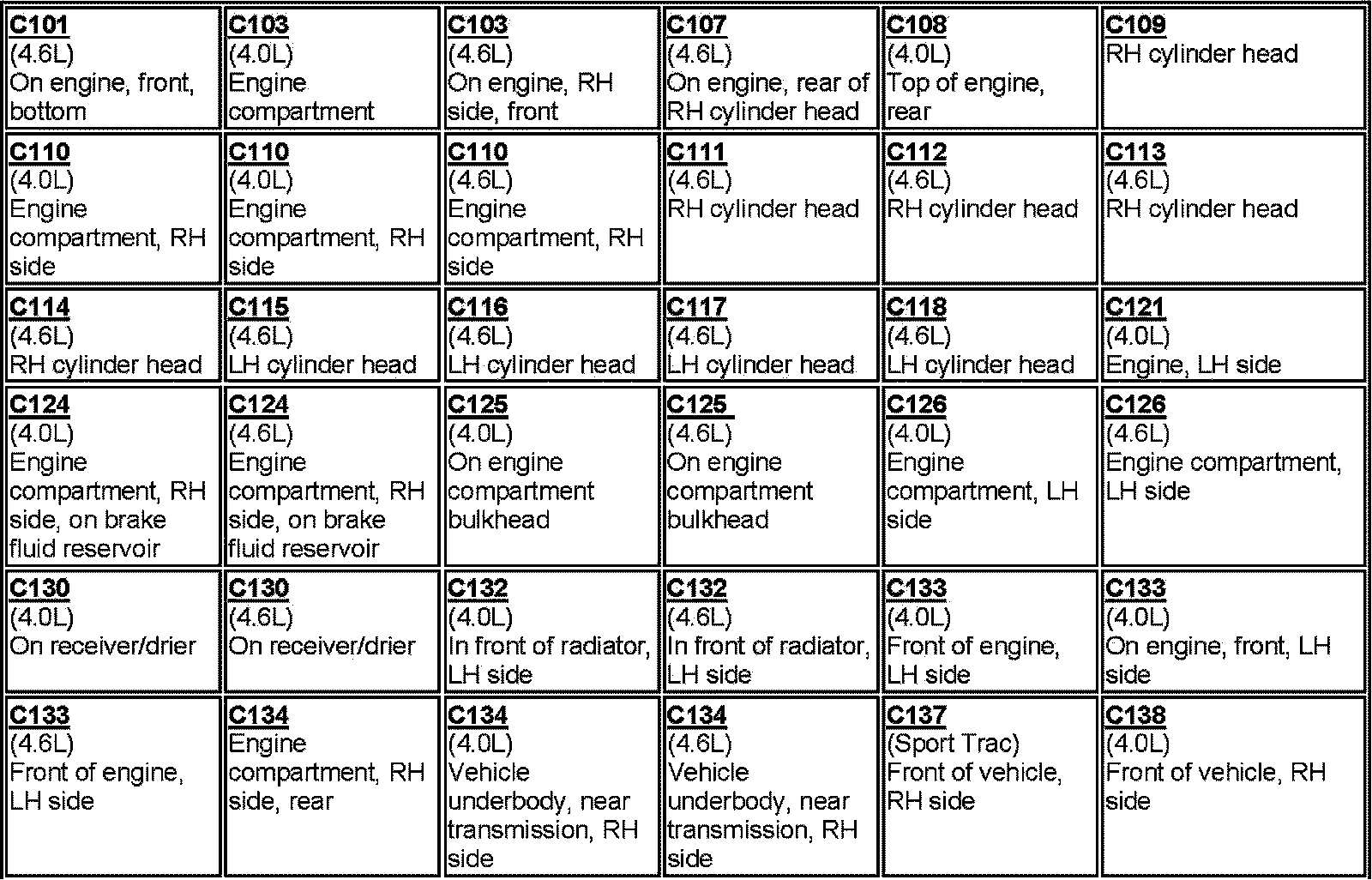

C101-C138:

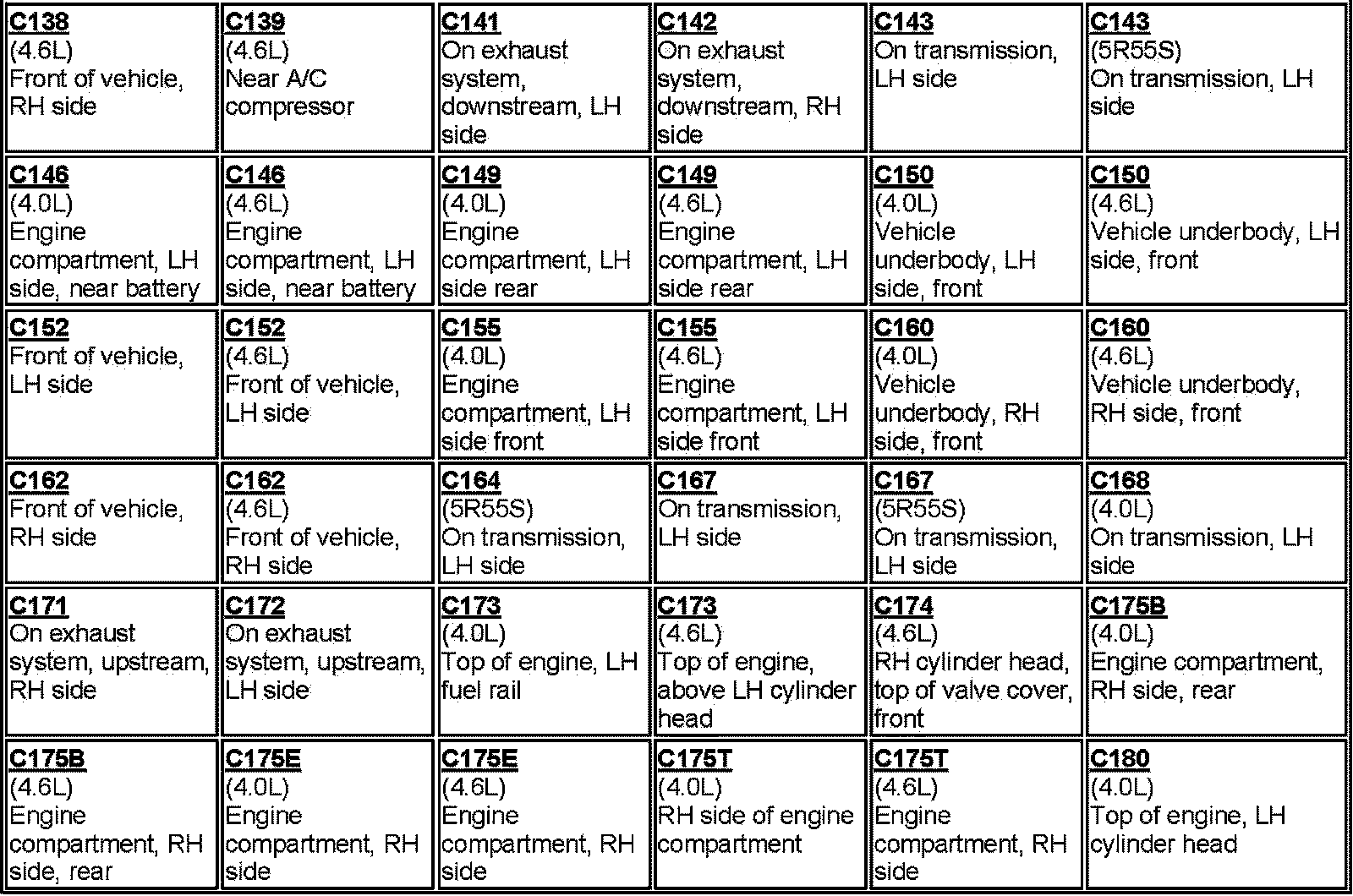

C138-C180:

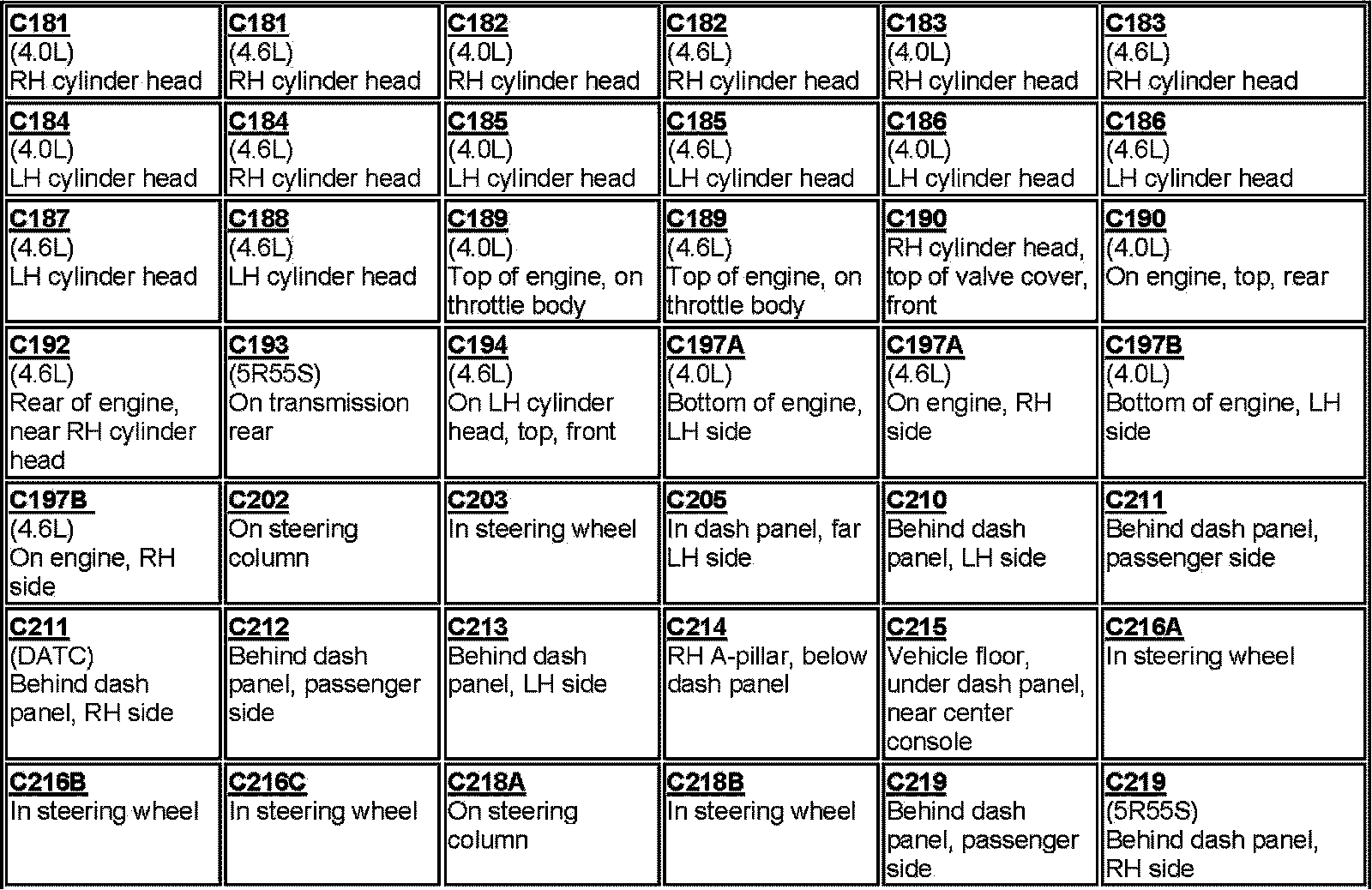

C181-C219:

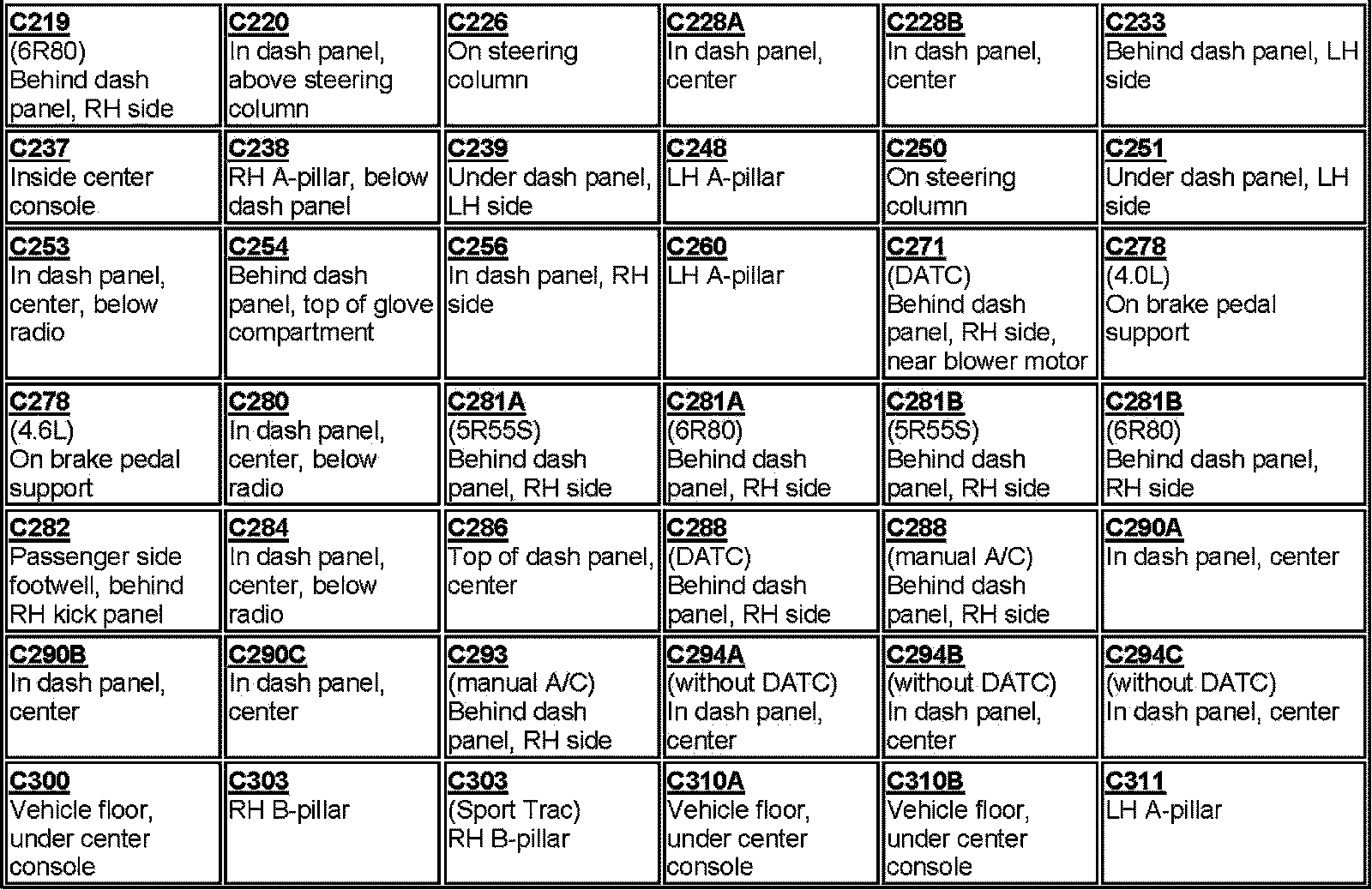

C219-C311:

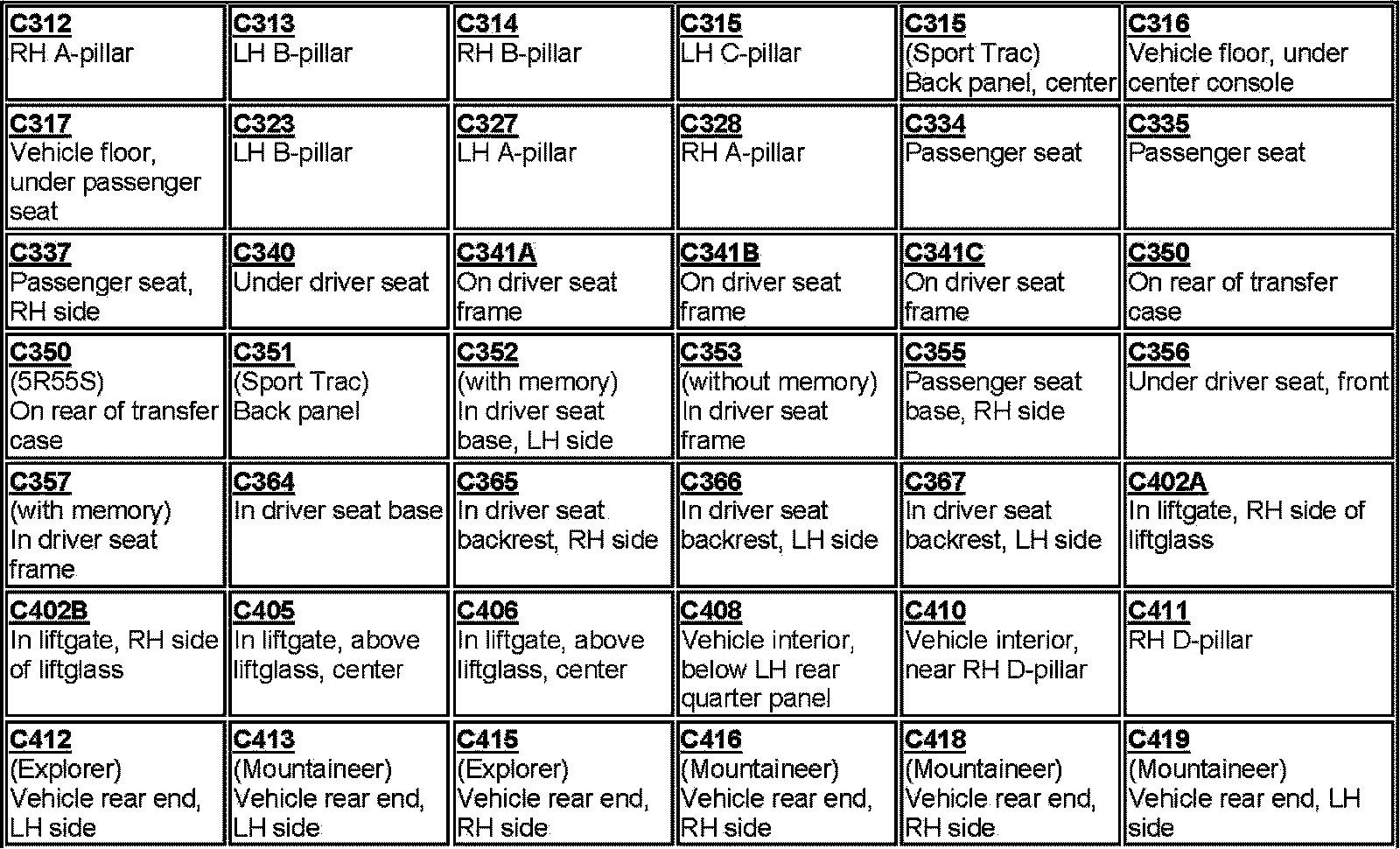

C312-C419:

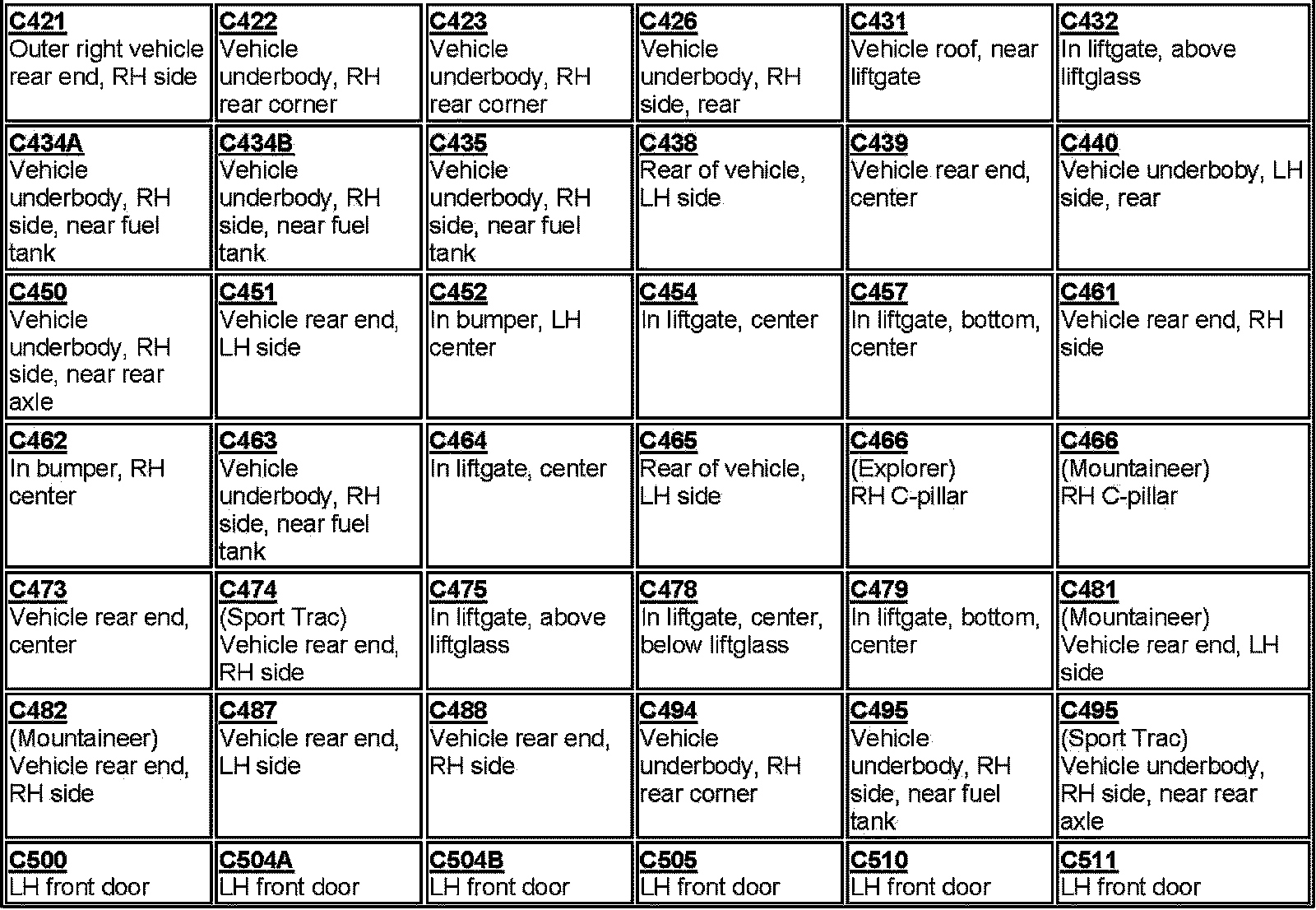

C421-C511:

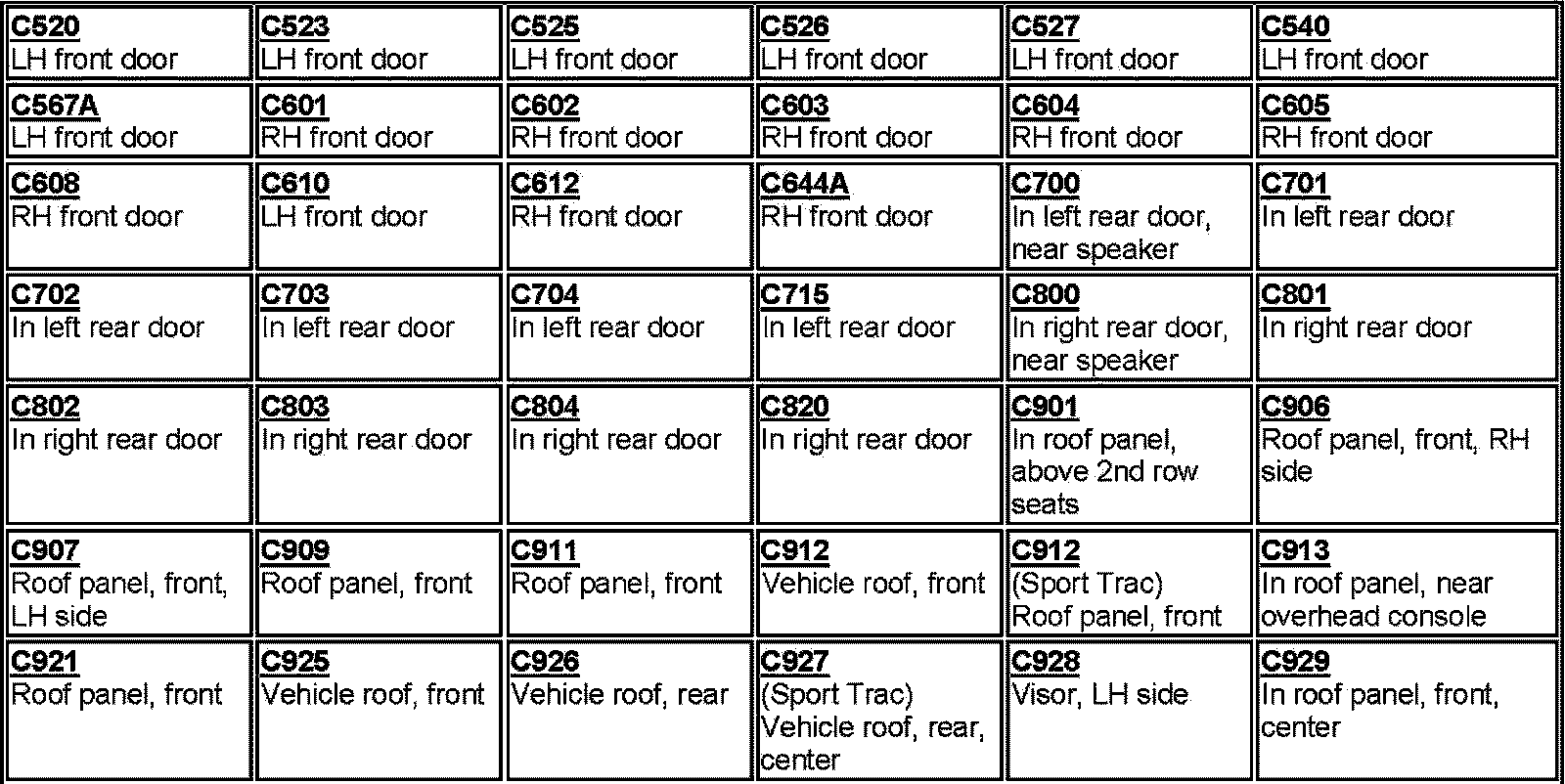

C520-C929:

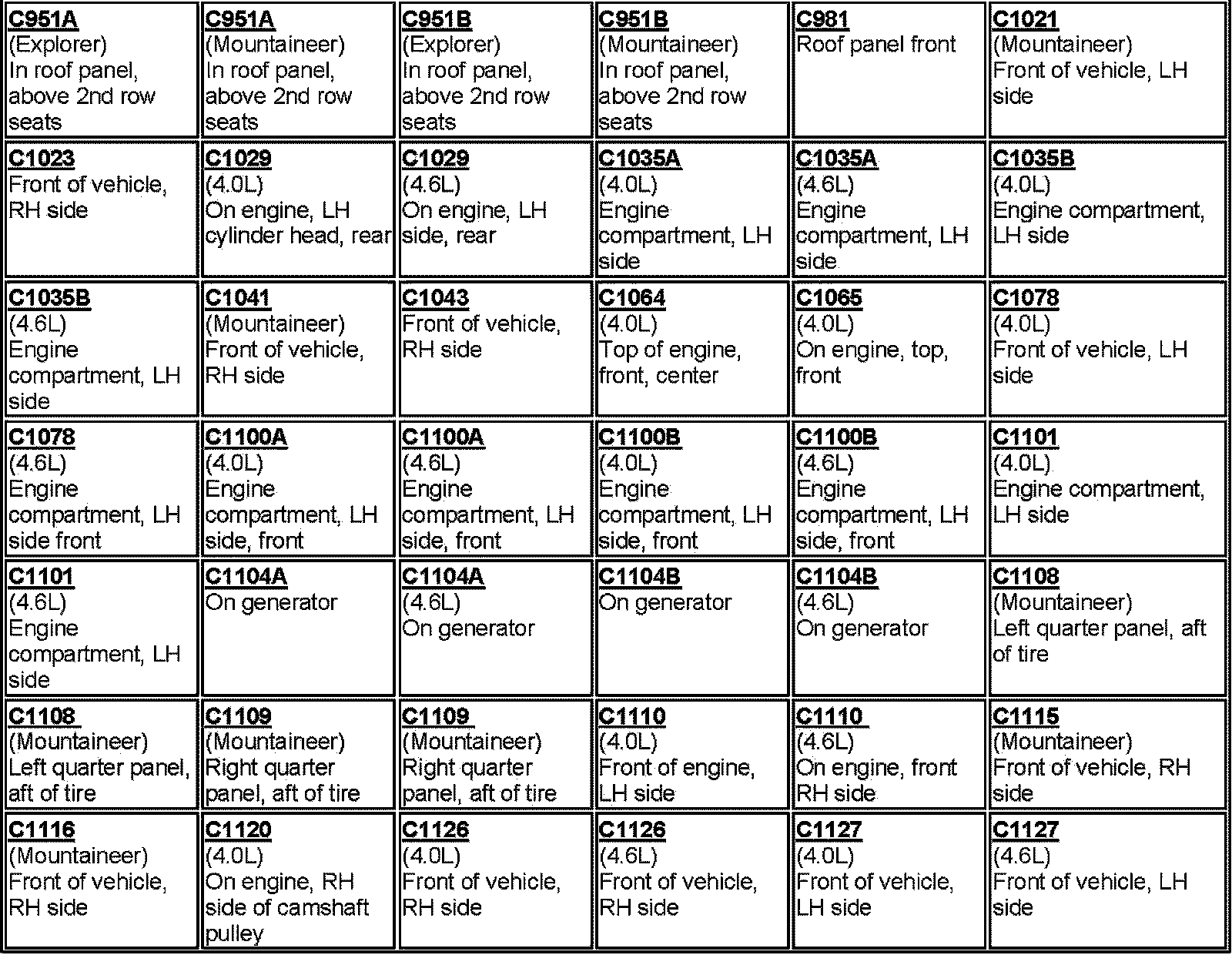

C951A-C1127:

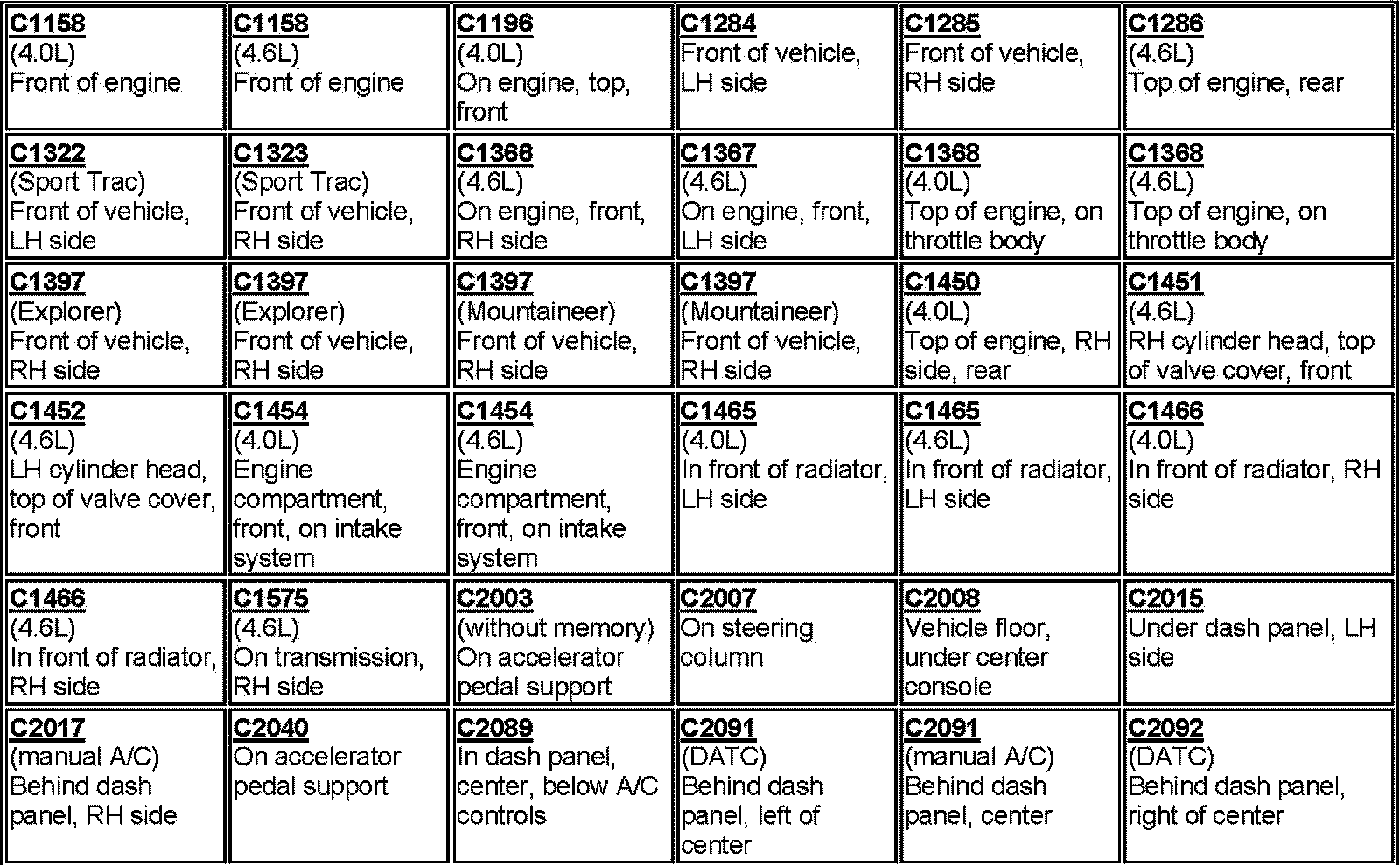

C1158-C2092:

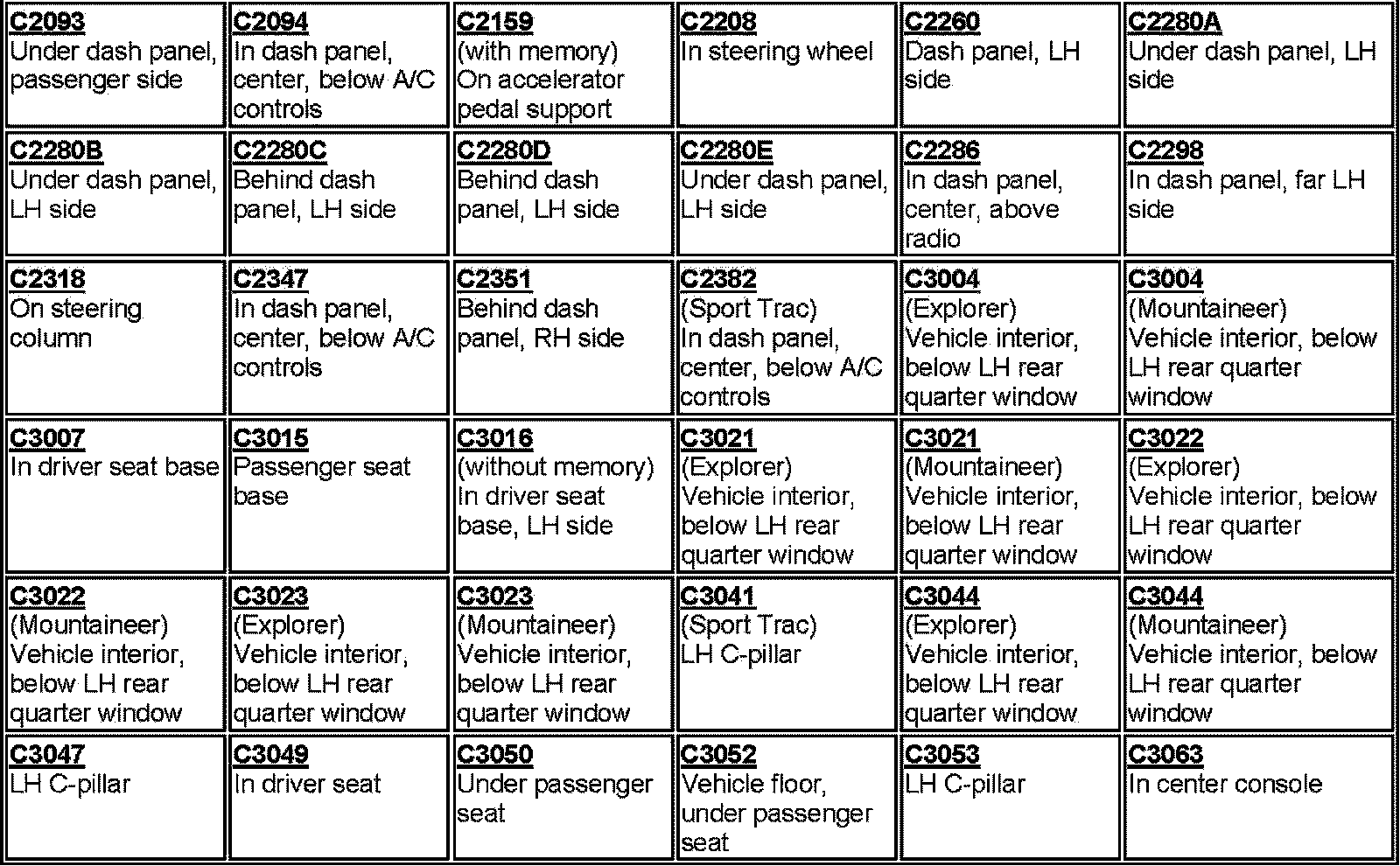

C2093-C3063:

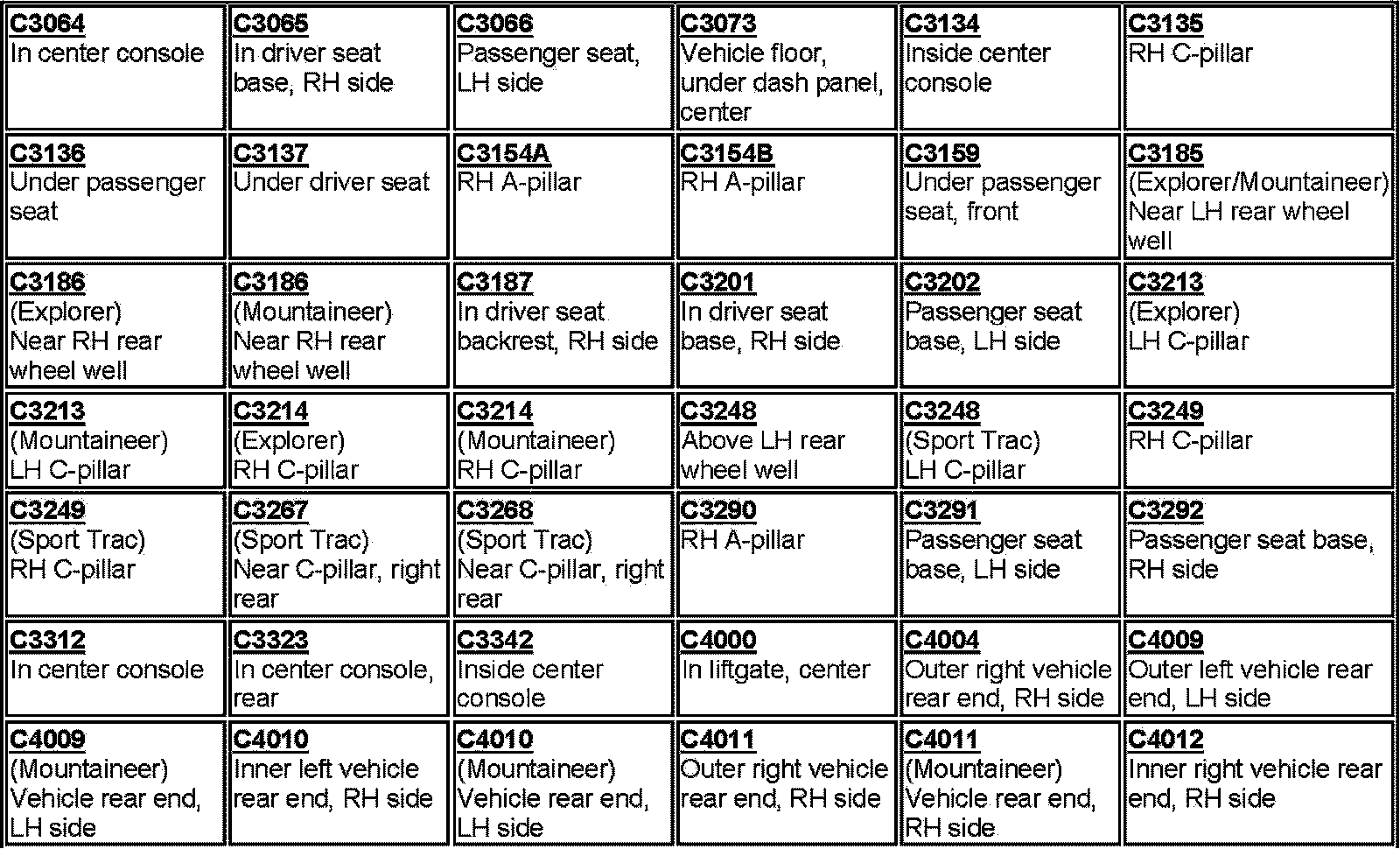

C3064-C4012:

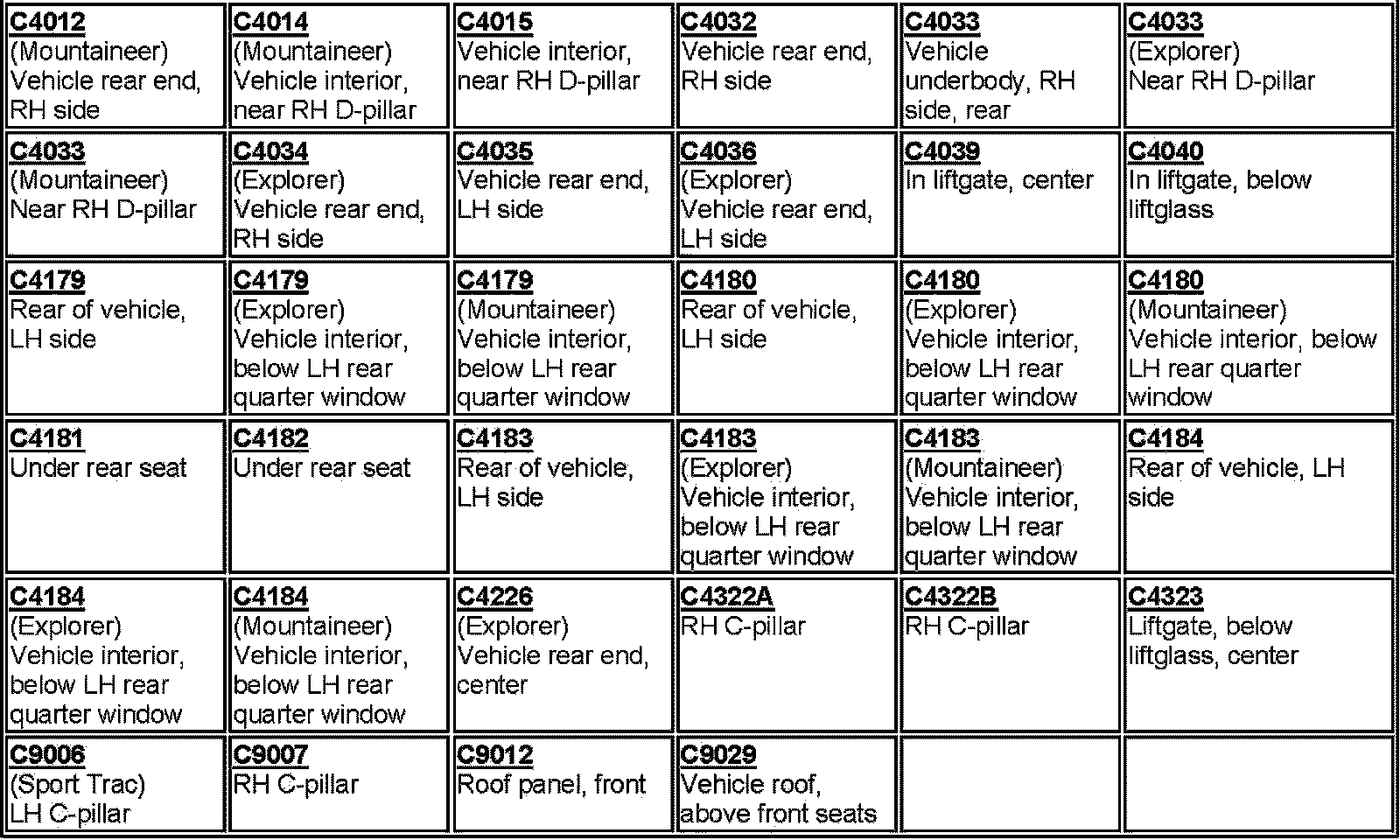

C4012-C9029:
