Toe Adjustment - Rear

Toe Adjustment - Rear

1. Using alignment equipment and the manufacturer's instructions, measure the rear toe.

2. Start the engine and center the steering wheel.

3. Turn the engine OFF and, using a suitable holding device, lock the steering wheel in the straight ahead position.

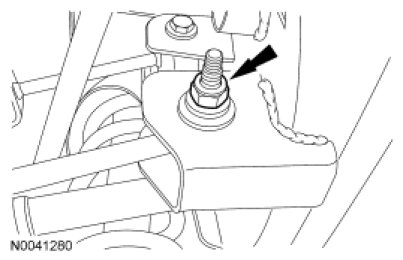

4. Loosen the rear toe link inboard nut.

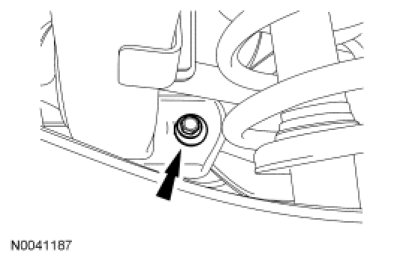

5. Rotate the rear toe link cam bolt until the toe setting is within specification.





6. NOTE: Make sure the toe settings are not disturbed while tightening the nut.

While holding the adjustment cam bolt, tighten the toe link inboard nut.

- Tighten to 275 Nm (202 lb-ft).

7. Recheck the toe settings and adjust if necessary.
