Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

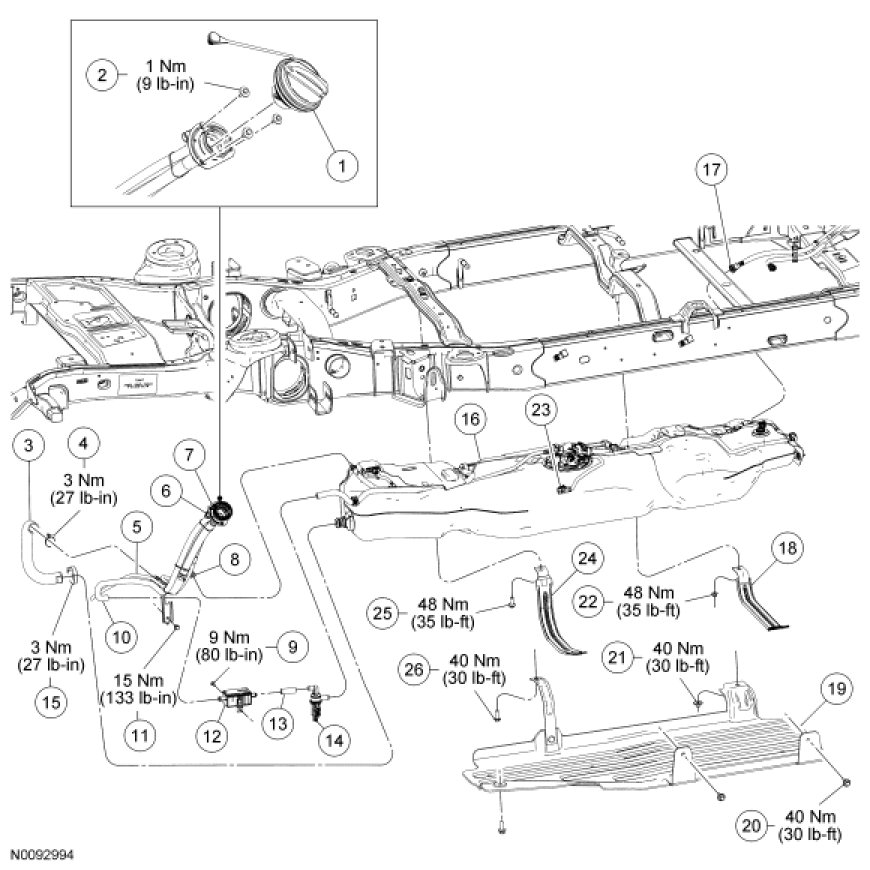

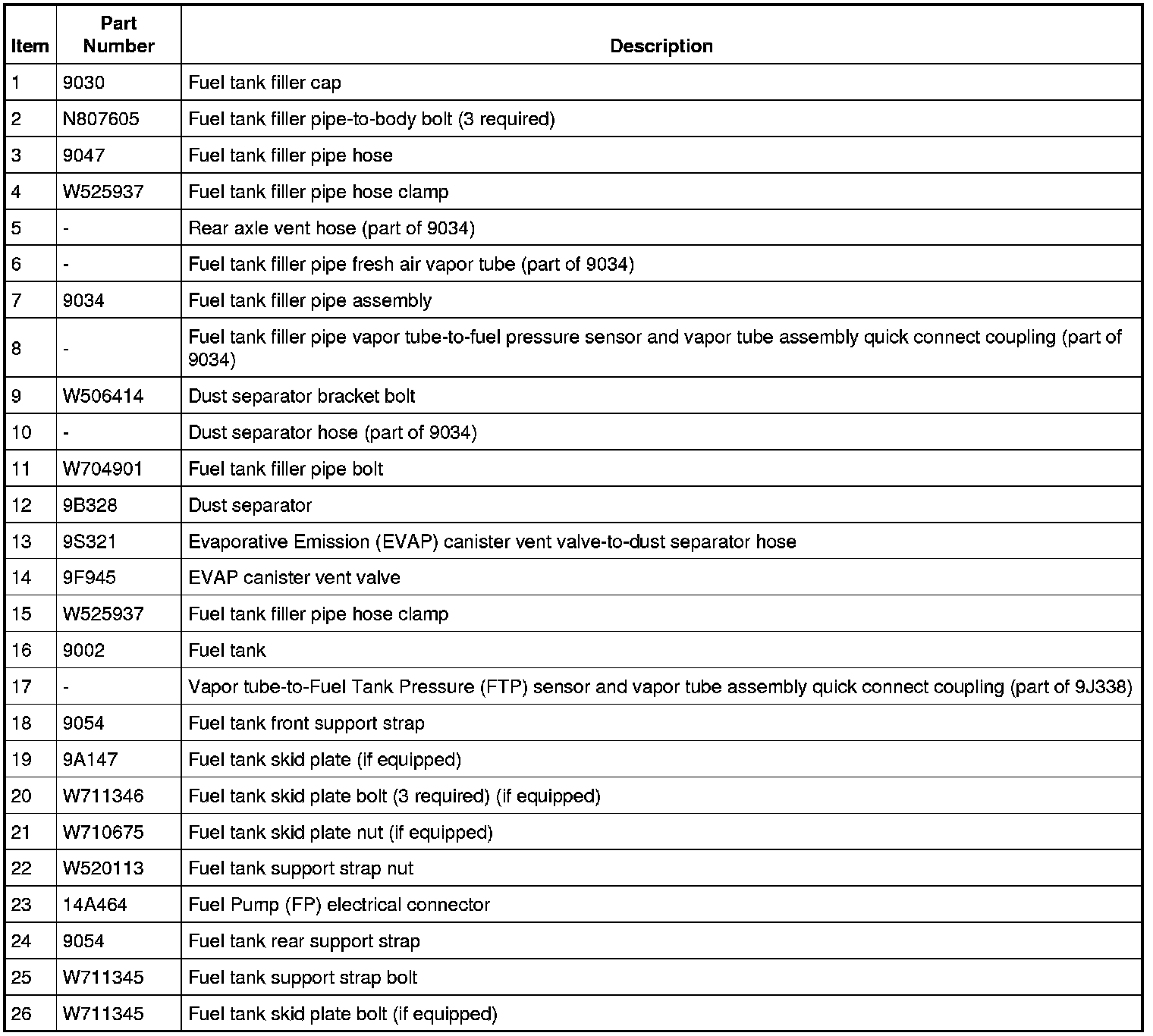

Explorer Sport Trac

NOTE: Vehicle body removed from art for clarity.

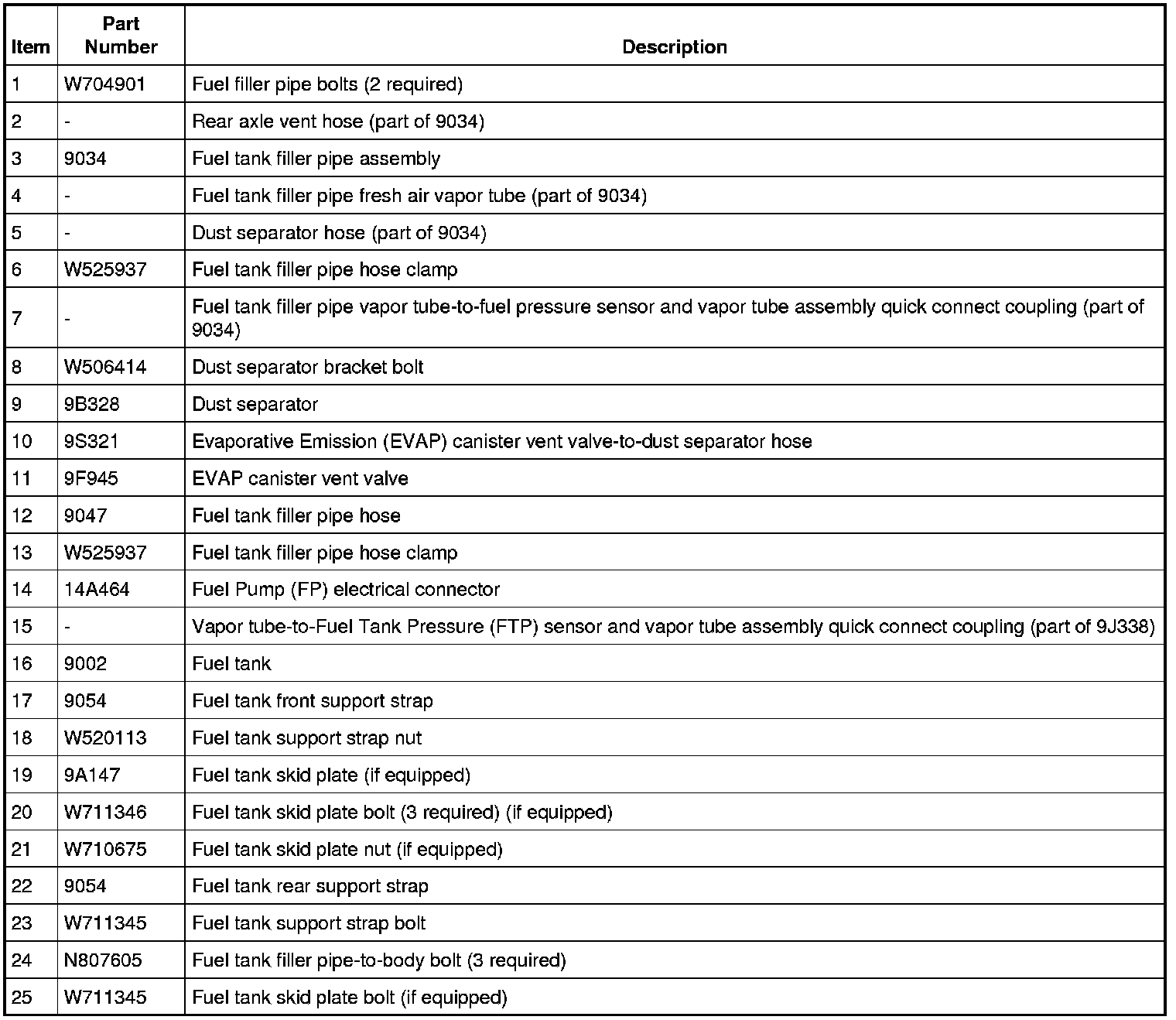

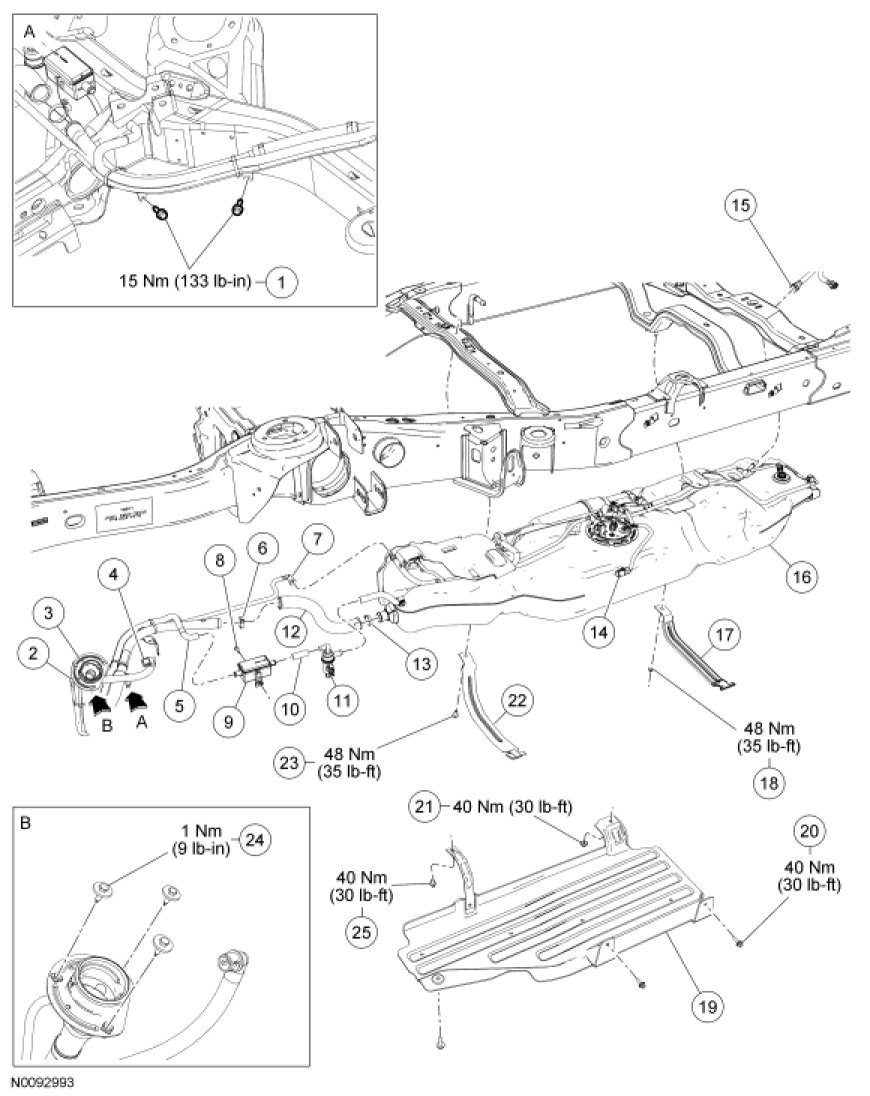

Explorer/Mountaineer

NOTE: Vehicle body removed for clarity.










1. For additional information, refer to the procedures.
