6R80

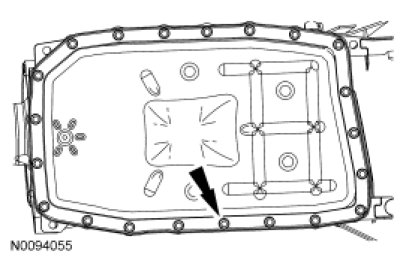

Install the transmission fluid pan and tighten the bolts in a crisscross pattern.
Tighten to
12 Nm (106 lb-in).
