Exhaust Manifold

Install 8 new RH exhaust manifold studs.
Tighten to 12 Nm (106 lb-in).

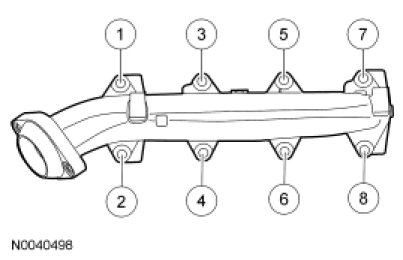

Position new gaskets, the RH exhaust manifold and tighten the 8 new nuts in the sequence shown.
Tighten to 25 Nm (18 lb-ft).





Install 8 new LH exhaust manifold studs.
Tighten to 12 Nm (106 lb-in).

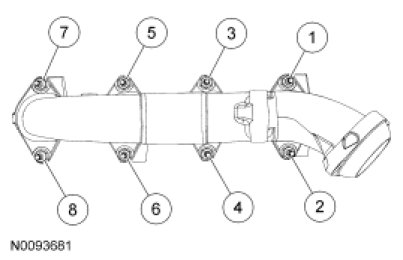

Position new gaskets, the LH exhaust manifold and tighten the 8 new nuts in the sequence shown.
Tighten to 25 Nm (18 lb-ft).
