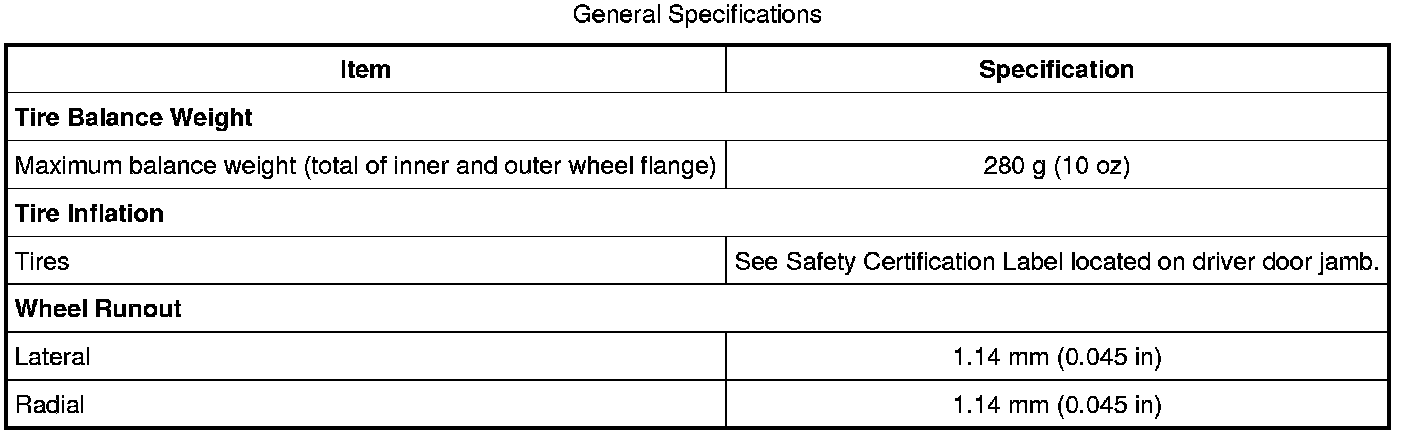

General Specifications









NOTE: Use only the Digital Tire Gauge any time tire pressures are measured to be sure that accurate values are obtained.
For accuracy, Ford recommends the use of a digital or dial-type tire pressure gauge rather than a stick-type pressure gauge.

Inflate the tire to the pressure specified on the safety certification sticker located on the driver door or door pillar.
