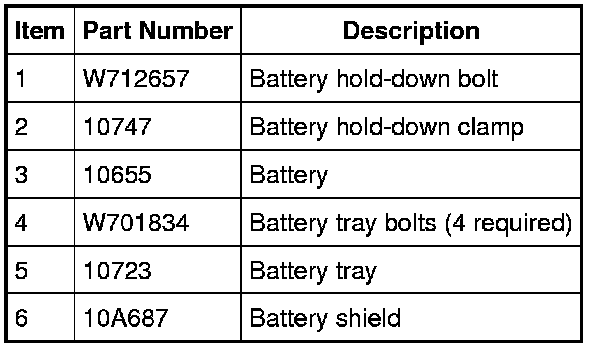

Battery and Battery Tray - Exploded View

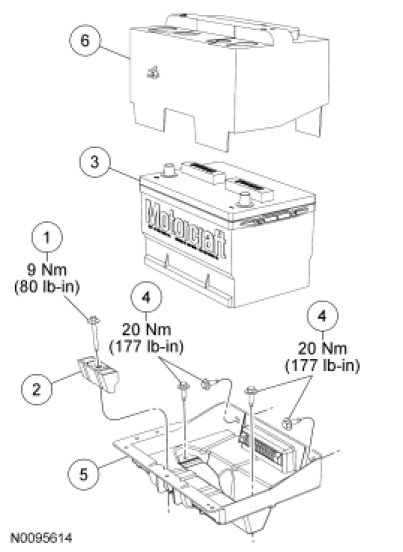

Battery and Battery Tray - Exploded View
1.
For additional information, refer to the procedures.
