Procedures

Differential Draining and Filling






Fluid Drain and Fill

1. Remove both the fill plug and the drain plug.
- Drain the axle assembly.

2. Clean and install the drain plug.
- Tighten to 34 Nm (25 lb-ft).

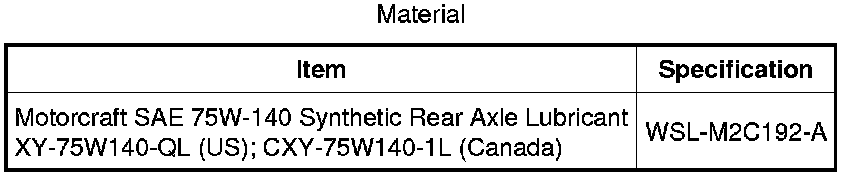

3. Fill the axle with 1.65L (3.5 pt) of axle lubricant to the bottom of the fill plug hole.

4. Clean and install the fill plug.
- Tighten to 34 Nm (25 lb-ft).
