Wiper and Washer Systems: Service and Repair

Wiper and Washer System - Exploded View

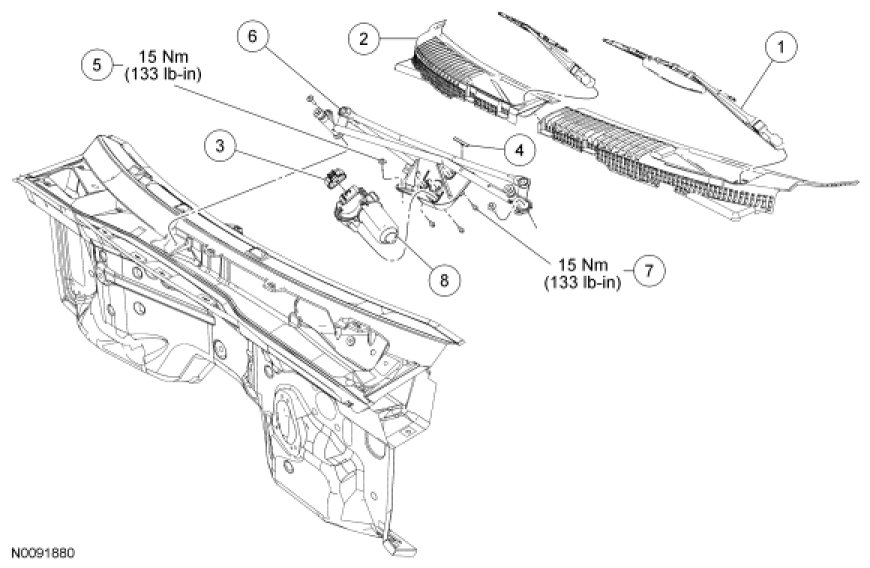

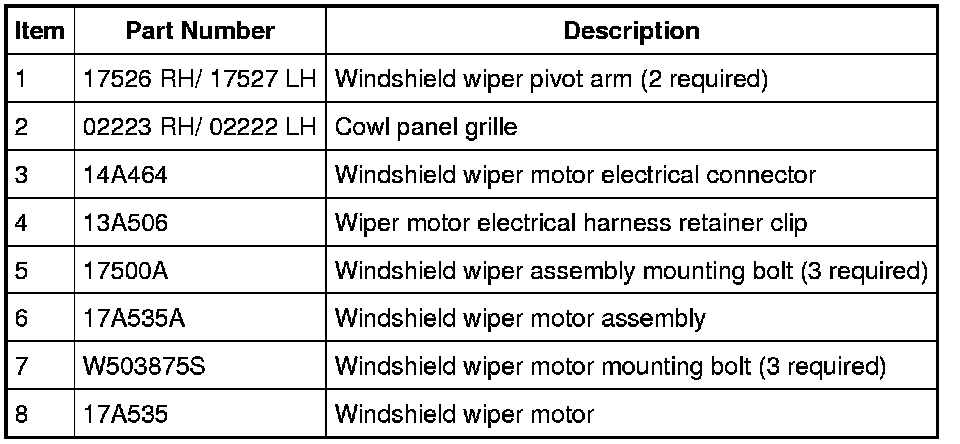

Windshield Wipers

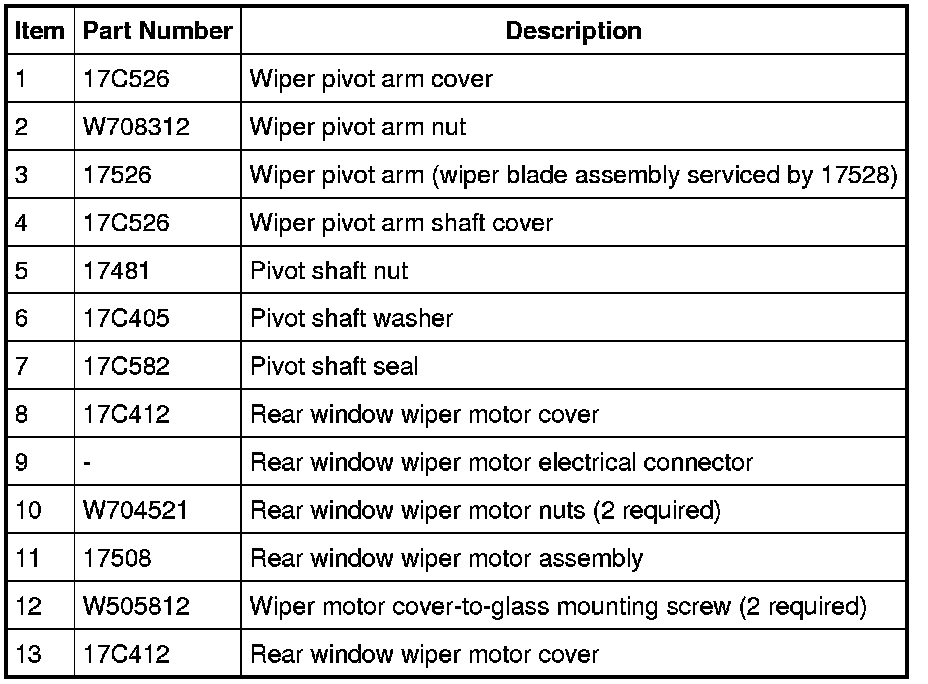

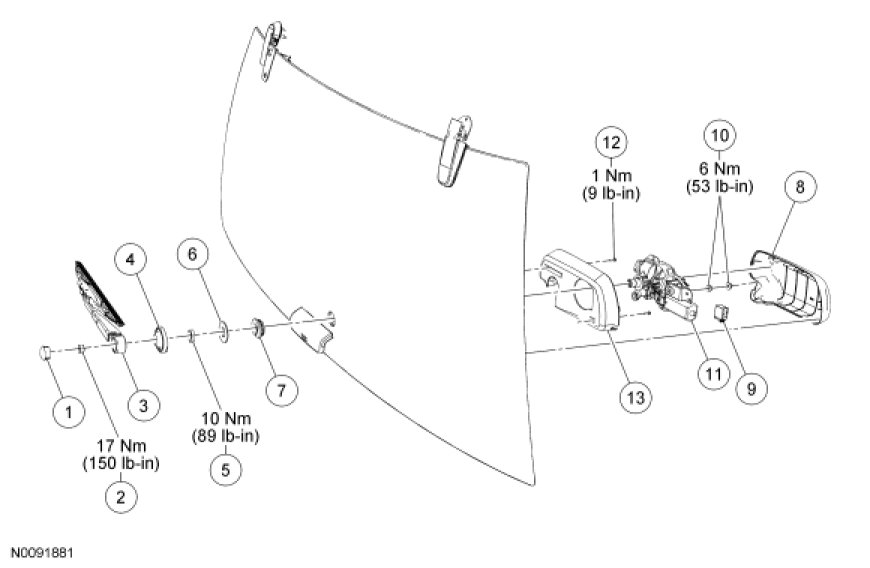

Rear Wiper

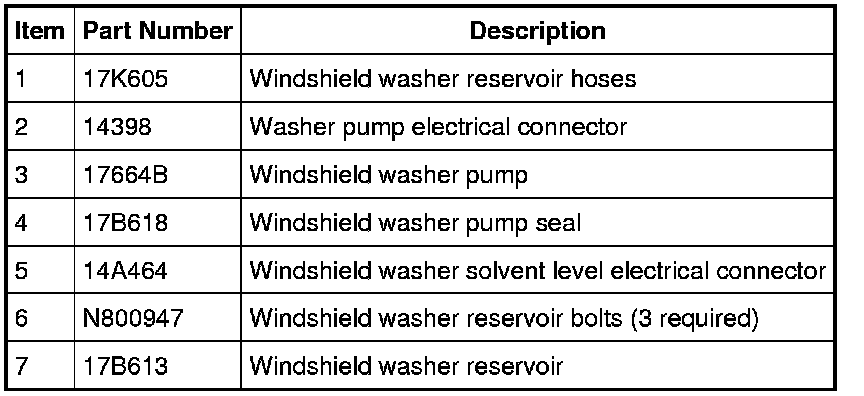

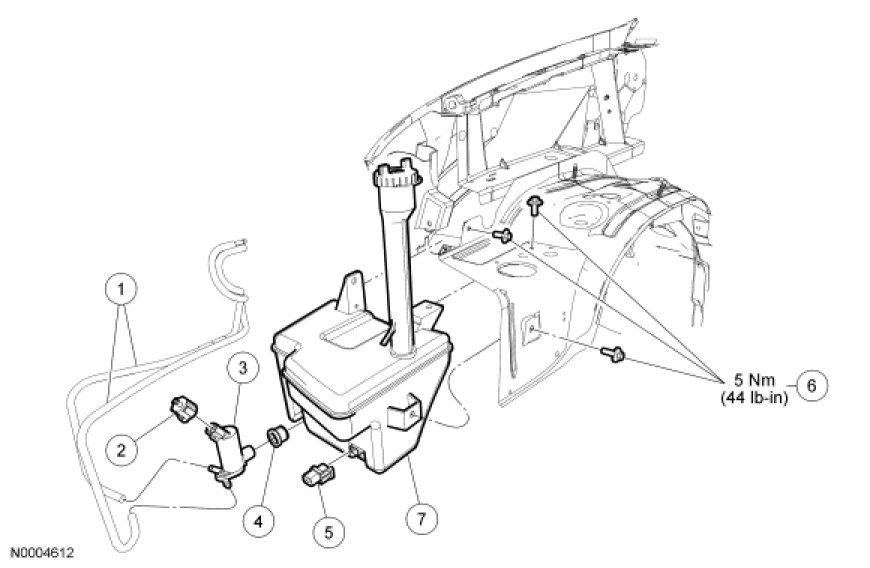

Washer Pump and Reservoir









1. For additional information, refer to the procedures.
