Steering Wheel: Notes

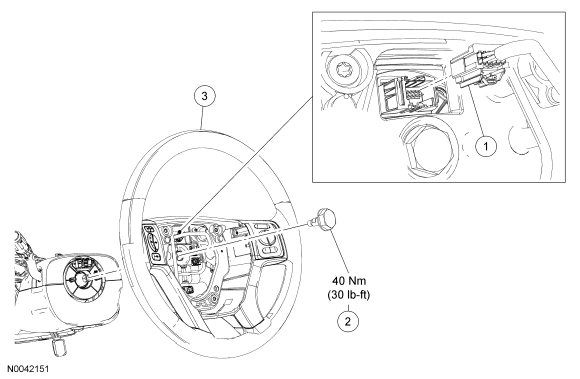

Fig 1: Exploded View Of Steering Wheel Components With Torque Specification
GF0027741Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Steering wheel switches electrical connector (part of 9C888)
2 W705985 Steering wheel bolt
3 3600 Steering wheel
