Steering Column Shaft - Lower: Notes

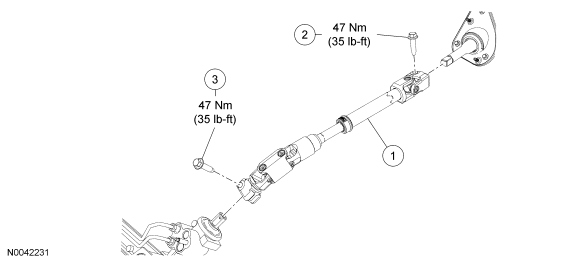

Fig 1: Exploded View Of Lower Steering Column Shaft With Torque Specifications
GF0027749Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3C662 Lower steering column shaft
2 W710570 Lower steering column shaft-to-upper steering column shaft bolt
3 W710570 Lower steering column shaft-to-steering gear bolt
