Transmission Control (TC) Switch: Notes

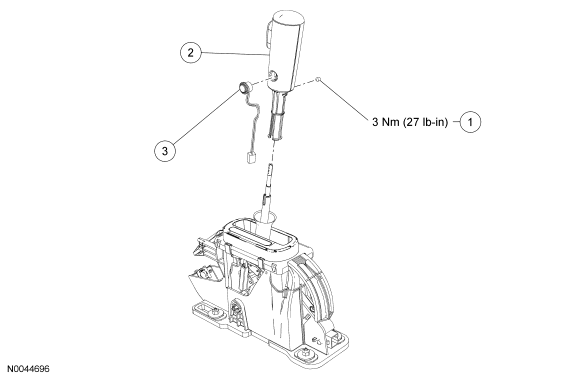

Fig 1: Exploded View Of Transmission Control (TC) Switch With Torque Specification
GF0027532Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Selector lever knob set screw
2 7213 Selector lever knob
3 7G550 Transmission control (TC) switch
