Oil Pan, Engine

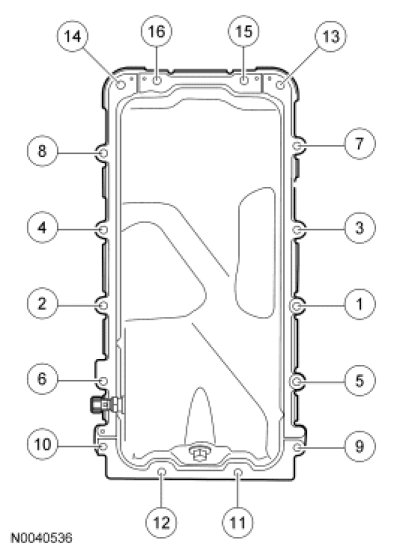

Tighten the bolts in 3 stages in the sequence shown.
Stage 1: Tighten to 2 Nm (18 lb-in).
Stage 2: Tighten to 20 Nm (177 lb-in).
Stage 3: Tighten an additional 60 degrees.
