Blower Motor Speed Control - Auxiliary

Blower Motor Speed Control - Auxiliary

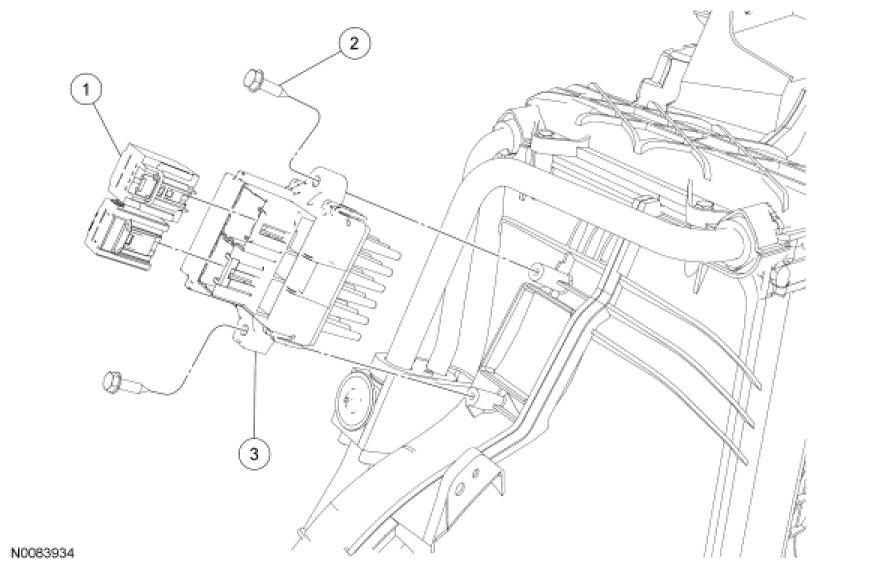

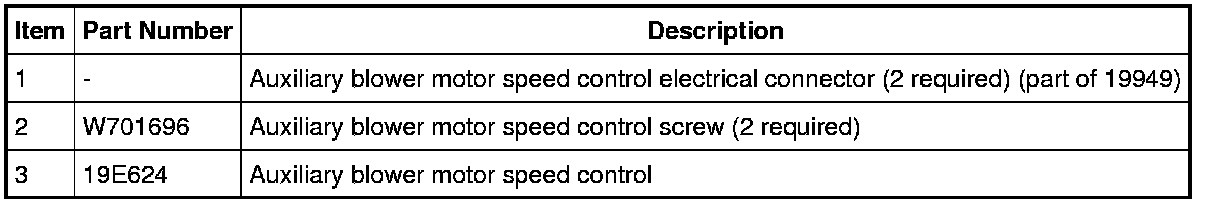

Removal and Installation

1. Remove the LH quarter trim panel.

2. Disconnect the 2 auxiliary blower motor speed control electrical connectors.

3. Remove the 2 auxiliary blower motor speed control screws.

4. Remove the auxiliary blower motor speed control.

5. To install, reverse the removal procedure.
