HVAC Module DTC Chart




Climate Control System

DTC Charts

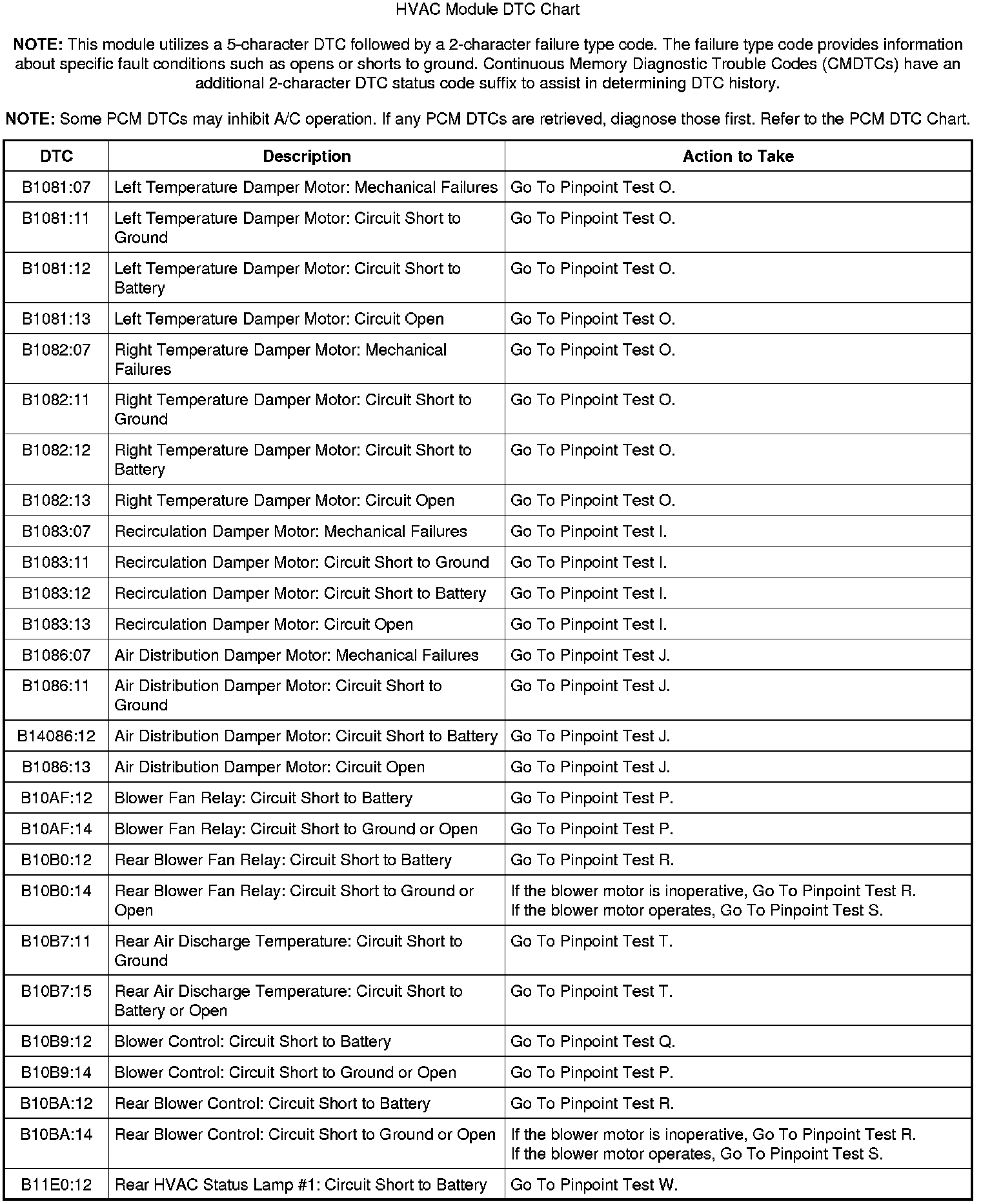

B10AF:12-B14086:12:

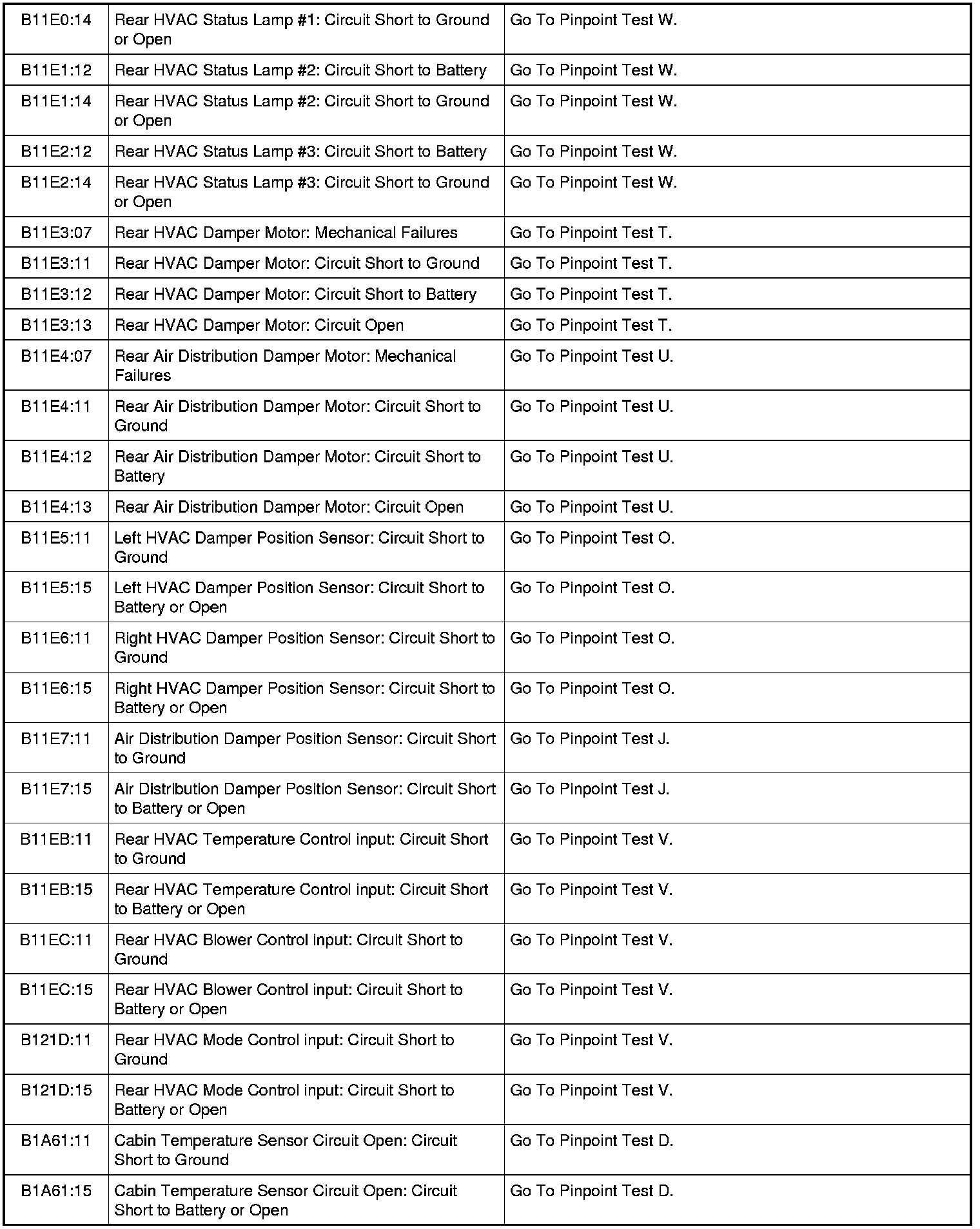

B1A61:11-B11E7:15:

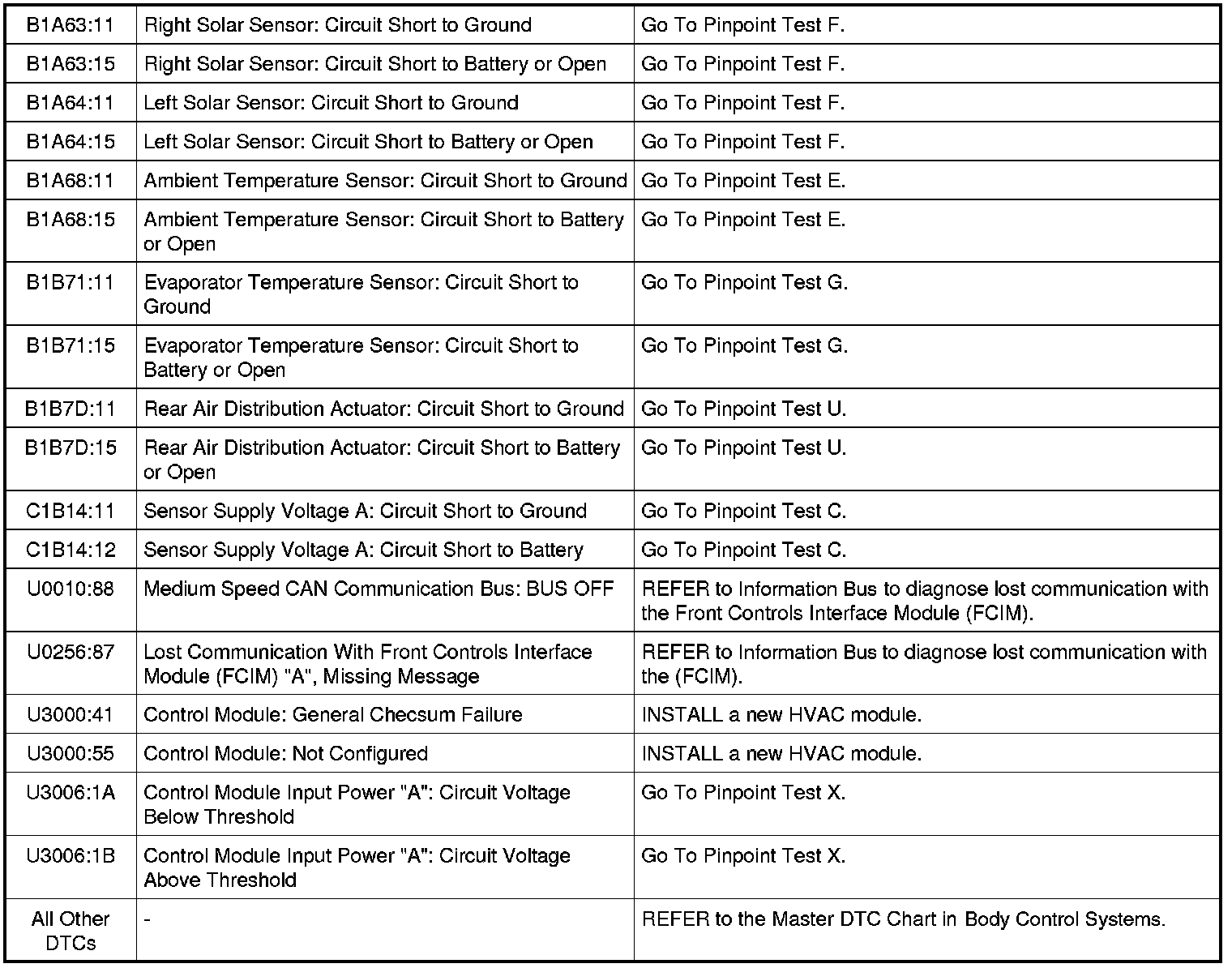

B1A63:11-B1B71:15 / C1B14:11-C1B14:12 / U0010:88-U3006:1B:
