Fuel Tank And Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

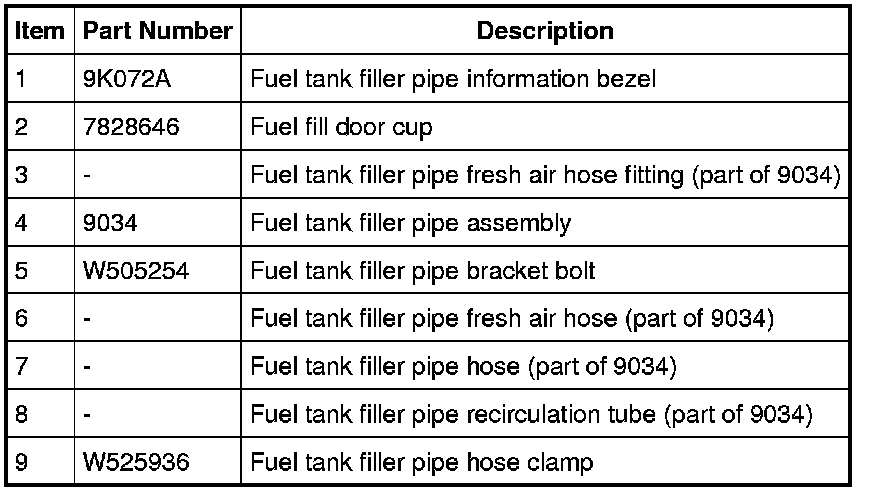

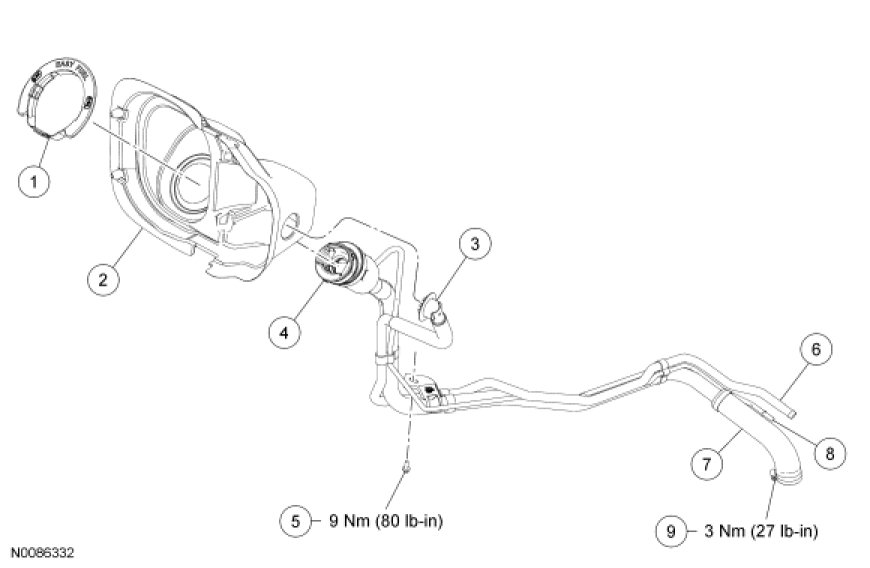

Fuel Tank Filler Pipe Assembly

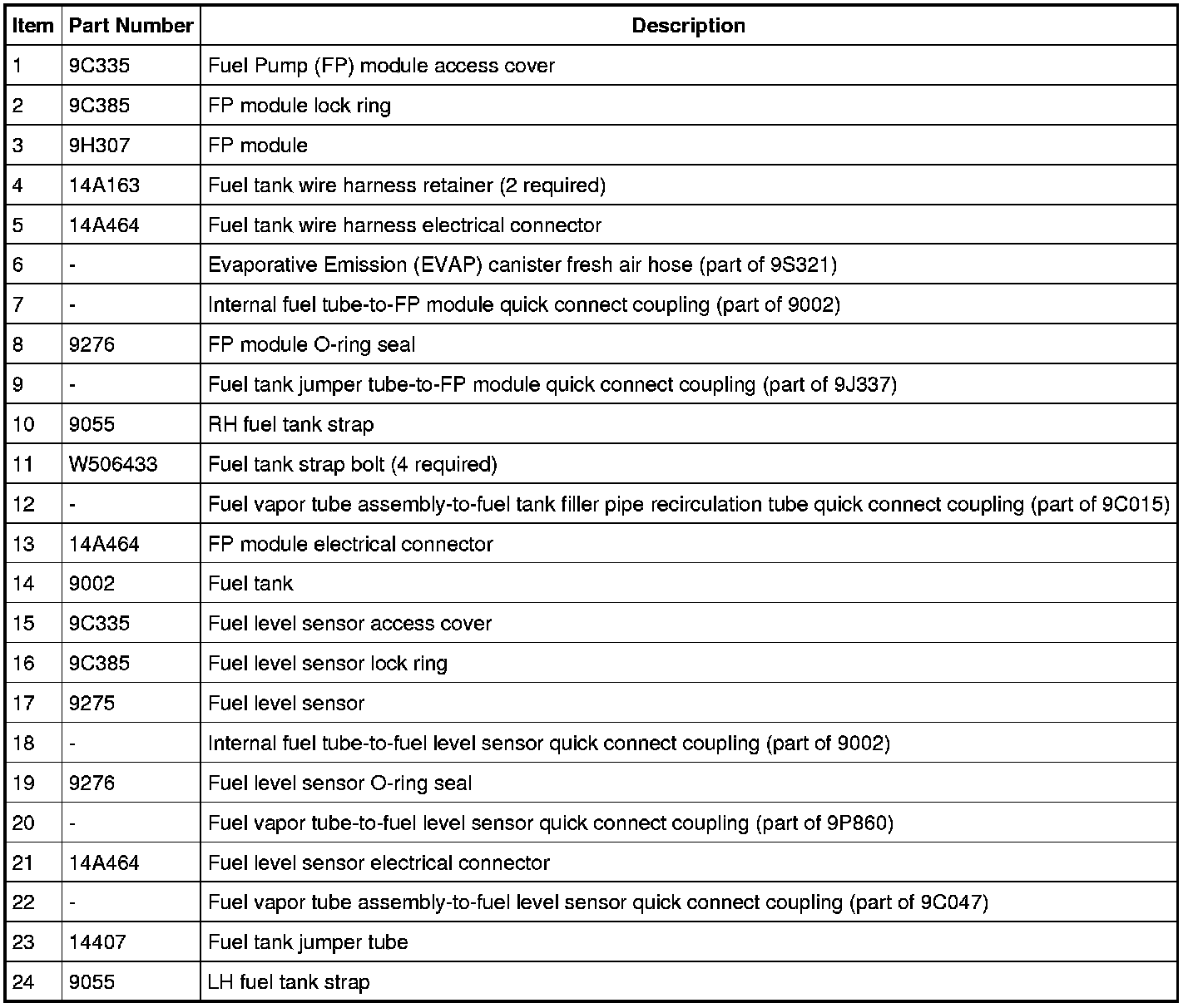

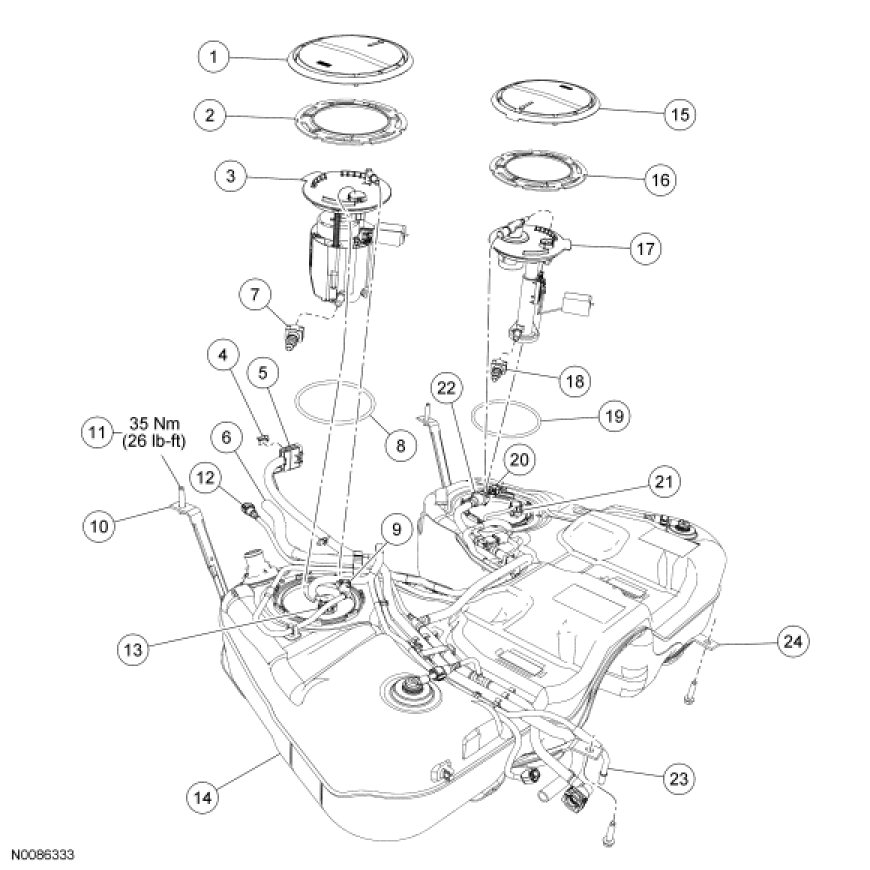

Fuel Tank Assembly









1. For additional information, refer to the procedures.
