Intake Manifold

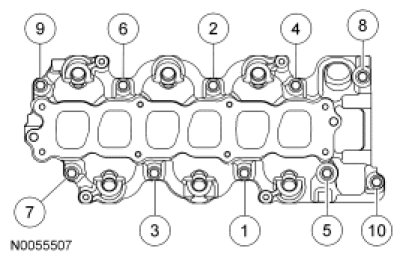

Using new gaskets, install the lower intake manifold and the 10 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).

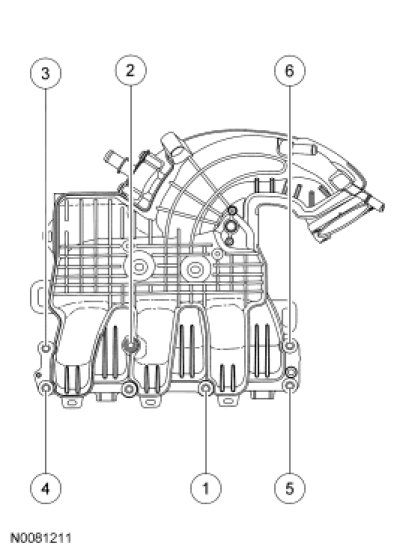

Using a new gasket, install the upper intake manifold and the 6 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).
