Control Module: Service and Repair

4X4 Control Module

Removal and Installation

1. Remove the RH cowl side trim panel.

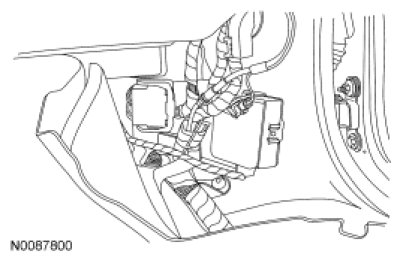

2. Disconnect the 4X4 control module electrical connector.

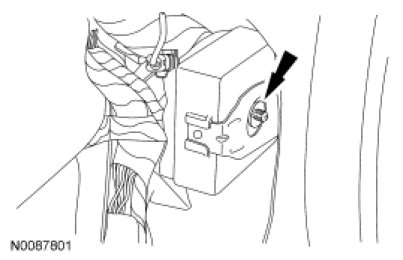

3. Disengage the control module and bracket assembly push pins from the mounting holes.
- Discard the retaining pins.





4. Remove the 4X4 control module and bracket assembly from the vehicle.

5. To install, reverse the removal procedure.
