Removal And Installation: Generator: Notes

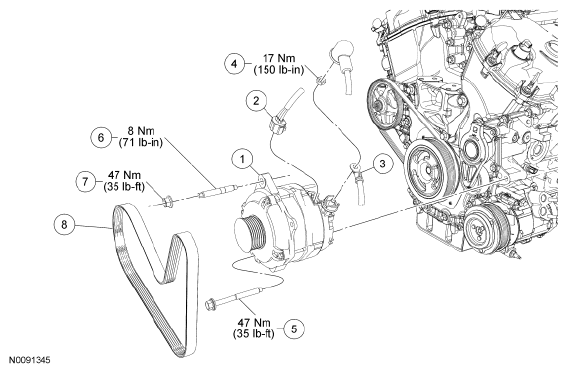

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 10300 | Generator |
| 2 | - | Generator electrical connector (part of 14B060) |
| 3 | - | Generator B+ terminal (part of 14B060) |
| 4 | W706414 | Generator B+ terminal nut |
| 5 | W7 09986 | Generator bolt |
| 6 | W712609 | Generator stud (replace bolt W709986) |
| 7 | W520414 | Generator nut |
| 8 | - | Accessory drive belt |
