Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

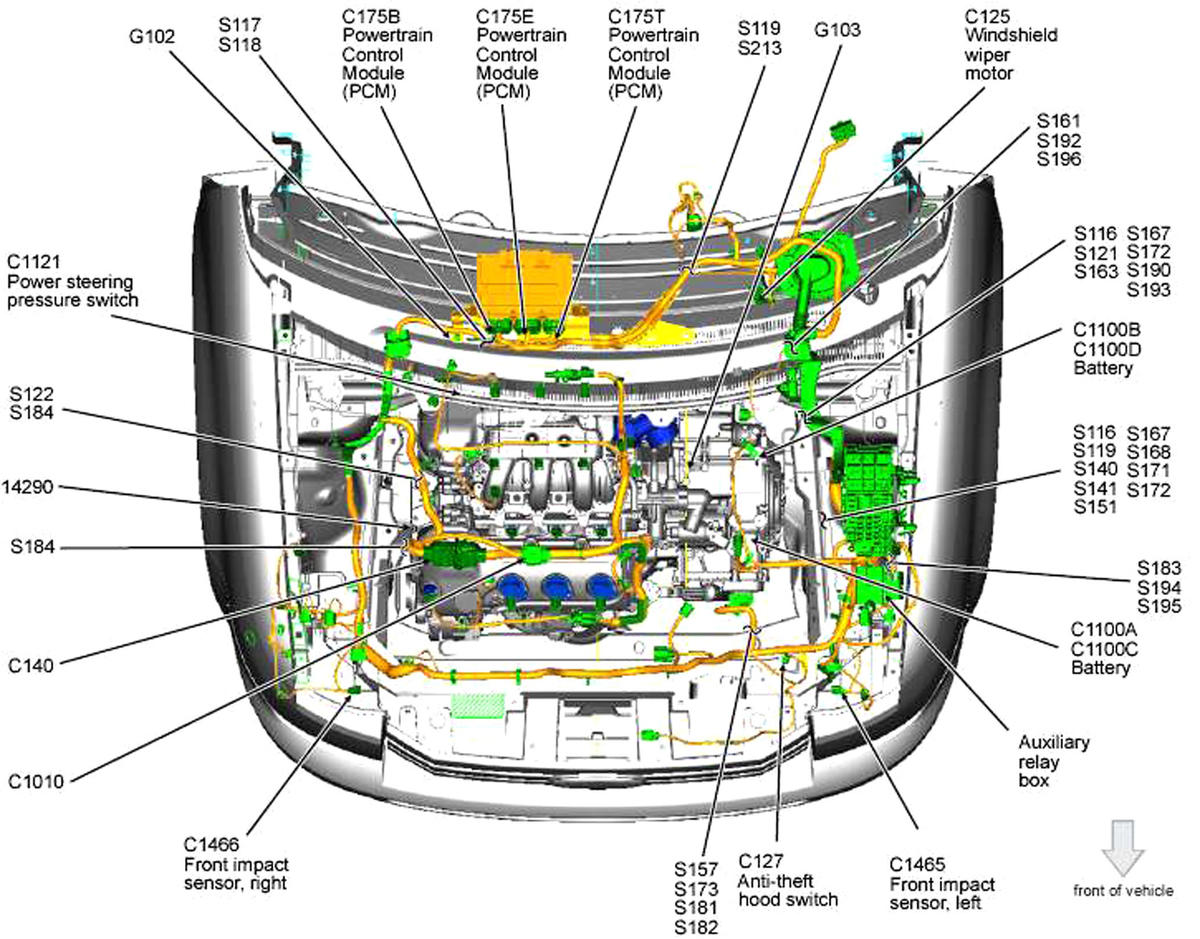

| Auxiliary Relay Box | Left side of engine compartment. See Figure. |

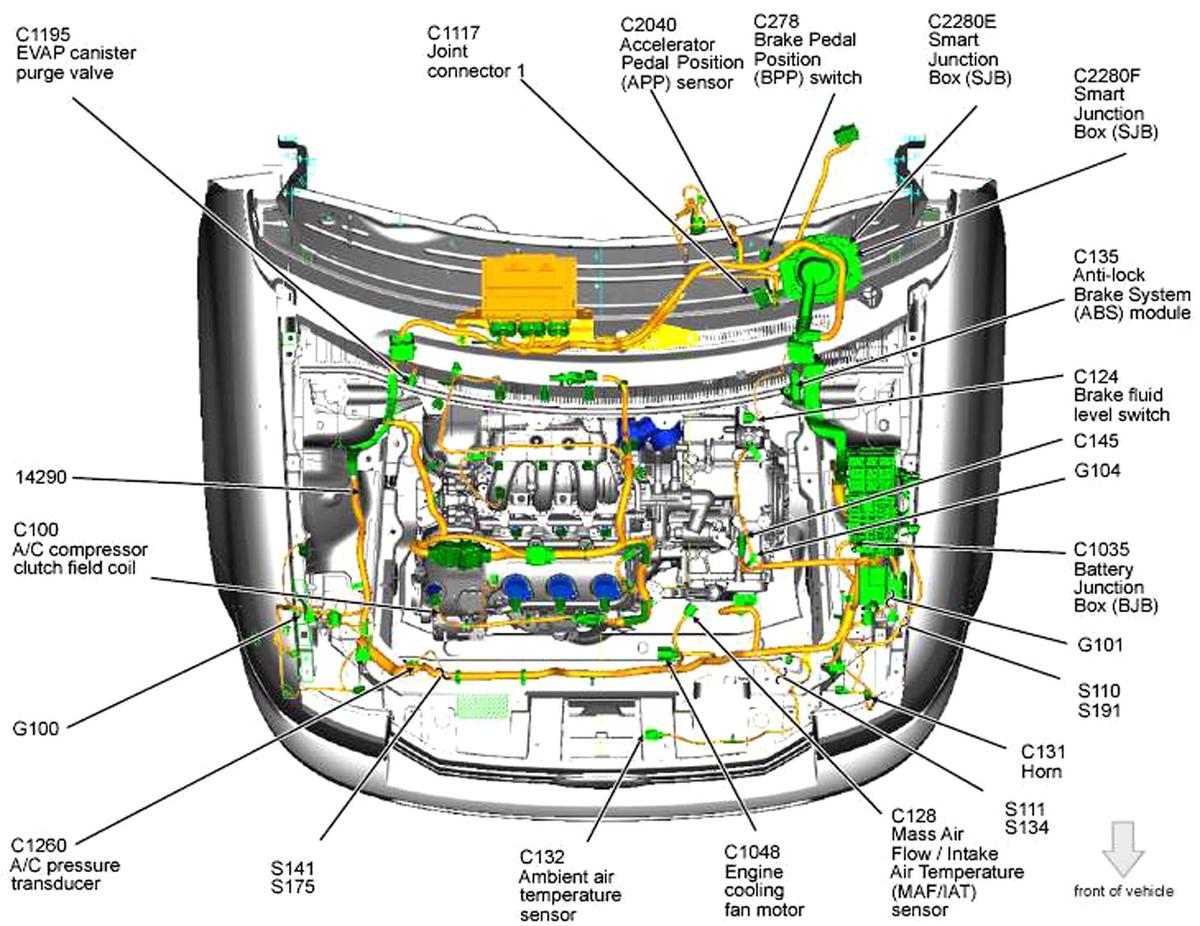

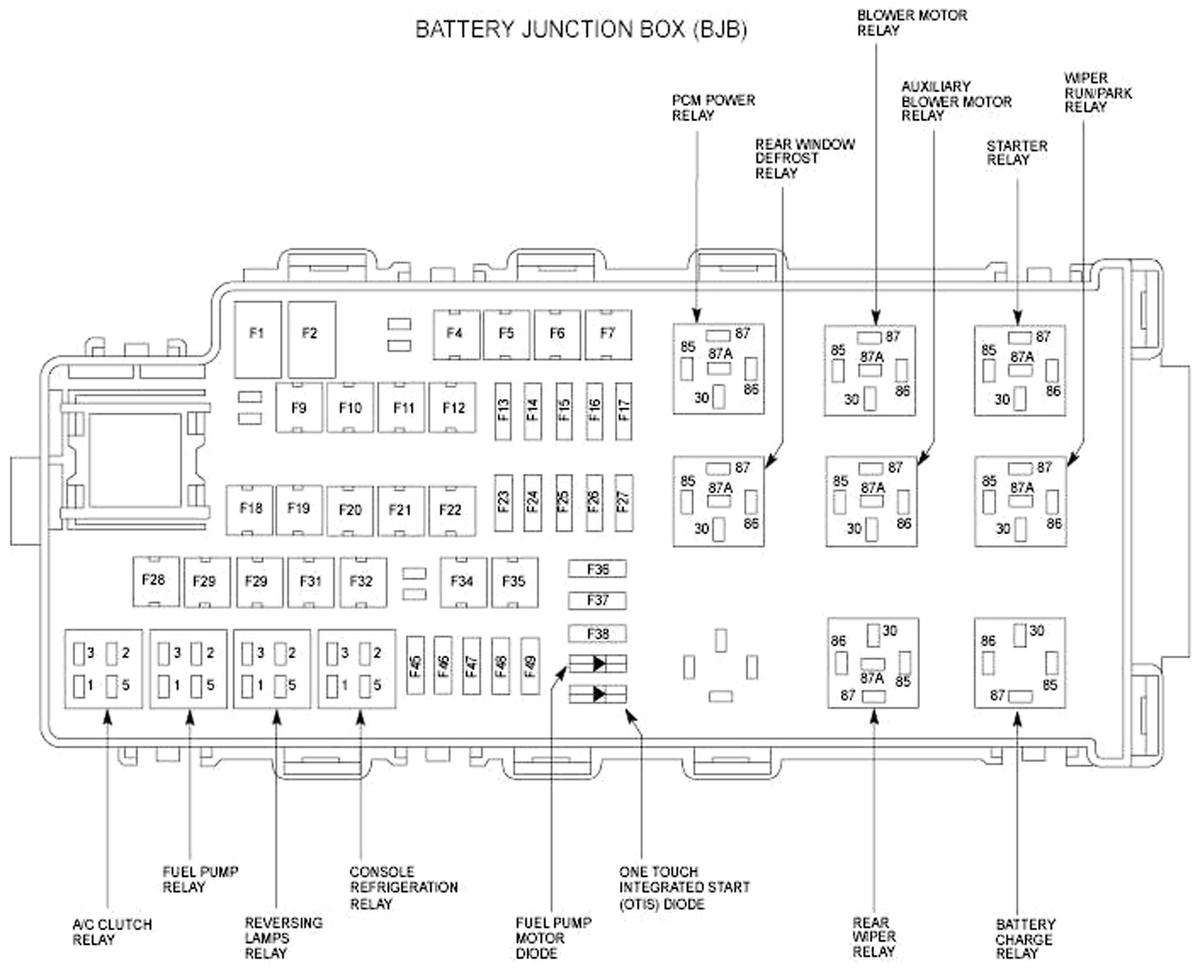

| Battery Junction Box (BJB) | Left side of engine compartment. See Figure. |
| Fuel Pump Motor Diode | Battery junction box. See Figure. |

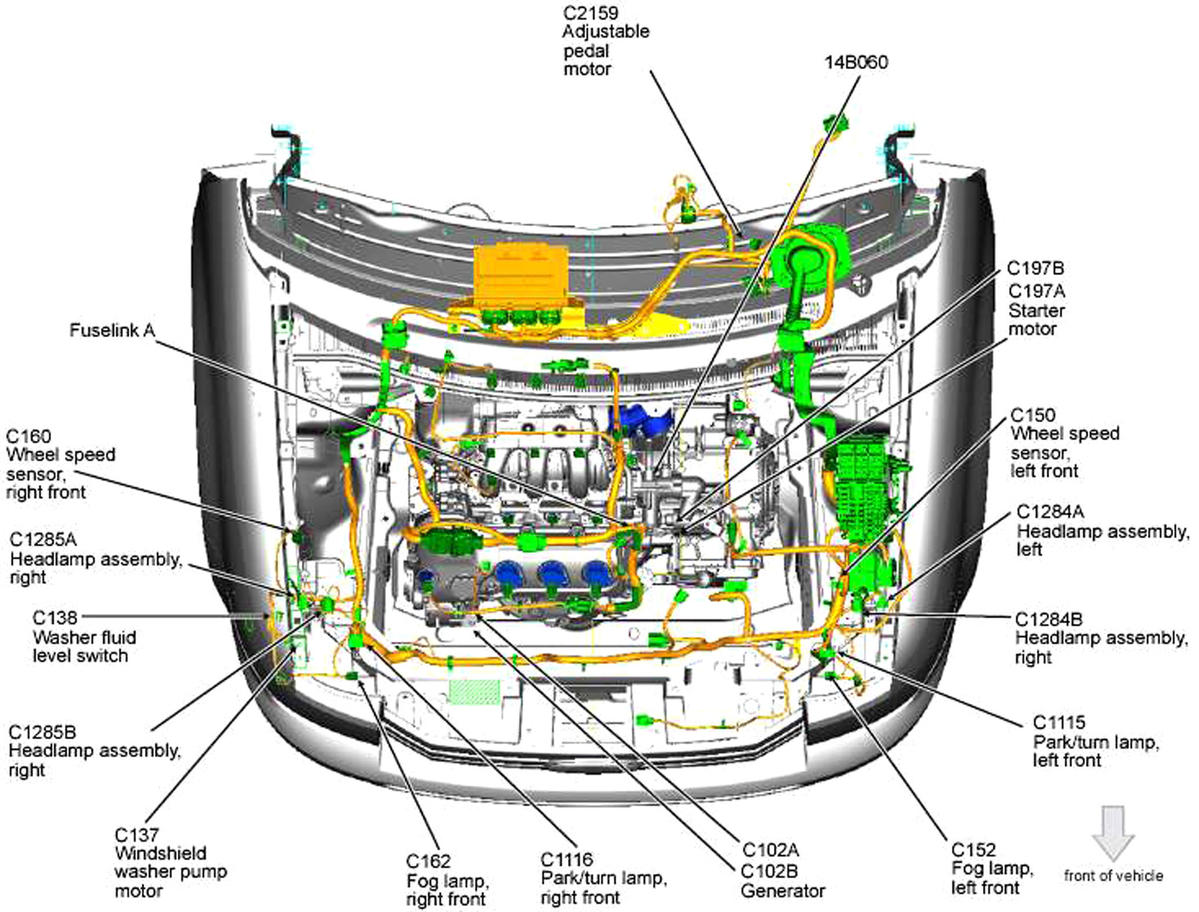

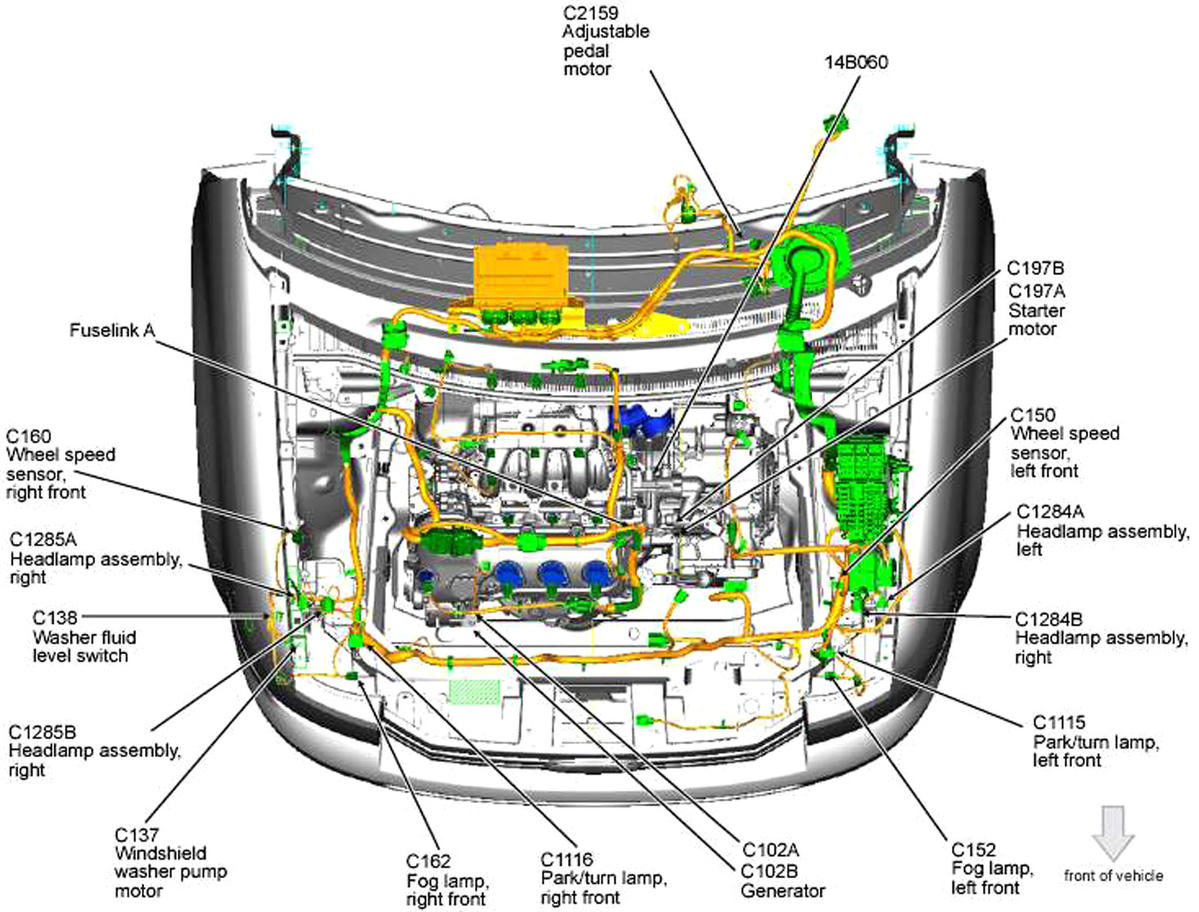

| Fuselink A | Top rear of engine. See Figure. |
| One Touch Integrated Start (OTIS) Diode | Battery junction box. See Figure. |

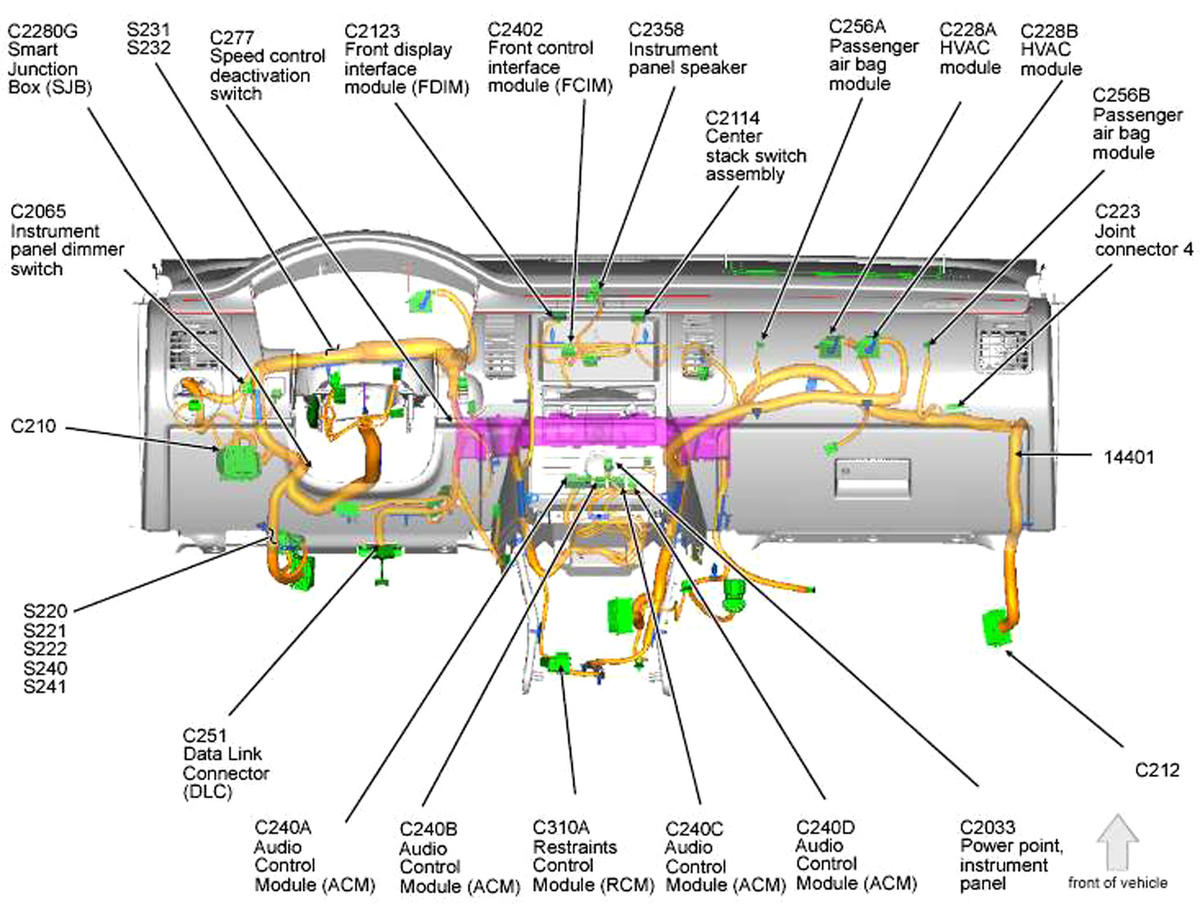

| Smart Junction Box (SJB) | Left side of dash. See Figure. |
