Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00466920

Courtesy of FORD MOTOR CO.

Fig 2: Engine Compartment

G00466921

Courtesy of FORD MOTOR CO.

Fig 3: Engine Compartment

G00466922

Courtesy of FORD MOTOR CO.

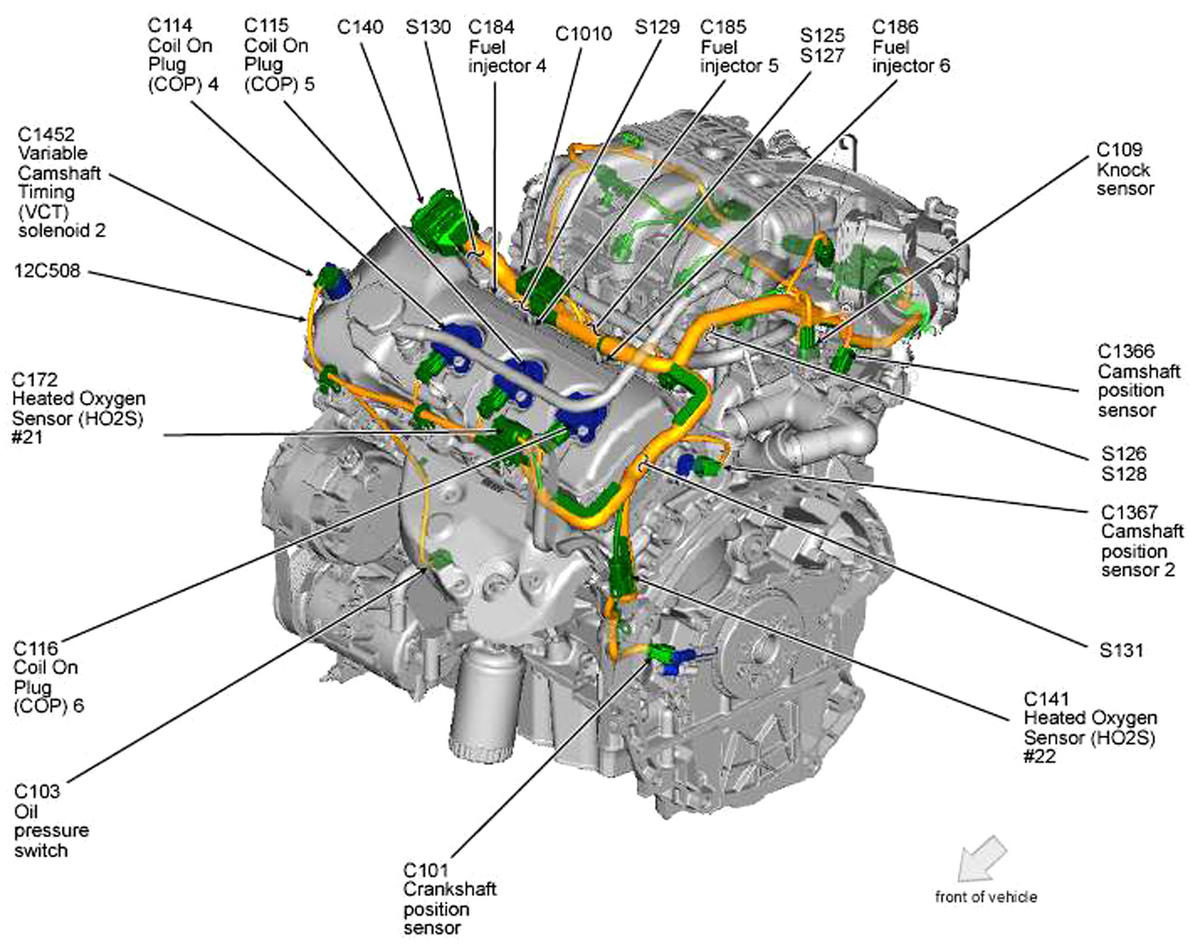

Fig 4: Top Left Side & Rear Of Engine

G00466923

Courtesy of FORD MOTOR CO.

Fig 5: Top Right Side & Front Of Engine

G00574342

Courtesy of FORD MOTOR CO.

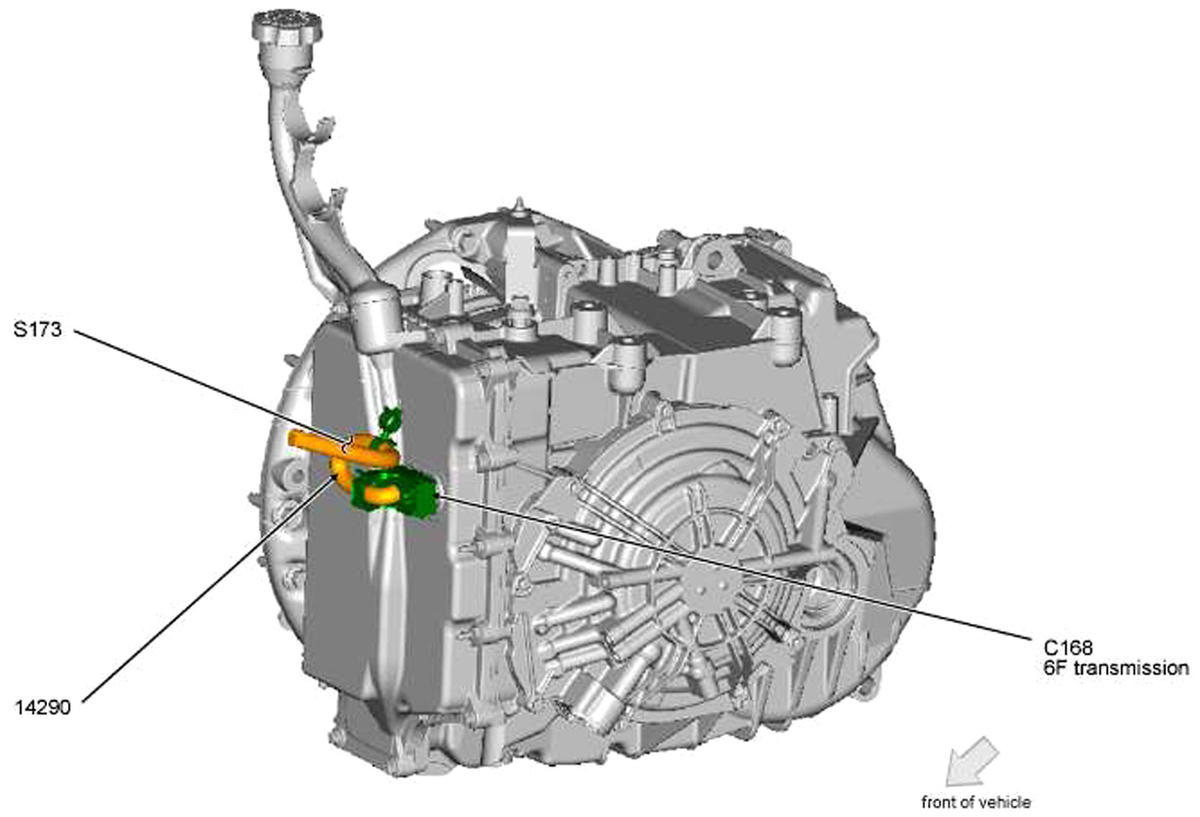

Fig 6: Transmission

G00466925

Courtesy of FORD MOTOR CO.

Fig 7: Dash

G00466926

Courtesy of FORD MOTOR CO.

Fig 8: Dash

G00466927

Courtesy of FORD MOTOR CO.

Fig 9: HVAC Unit

G00466928

Courtesy of FORD MOTOR CO.

Fig 10: Steering Column

G00466929

Courtesy of FORD MOTOR CO.

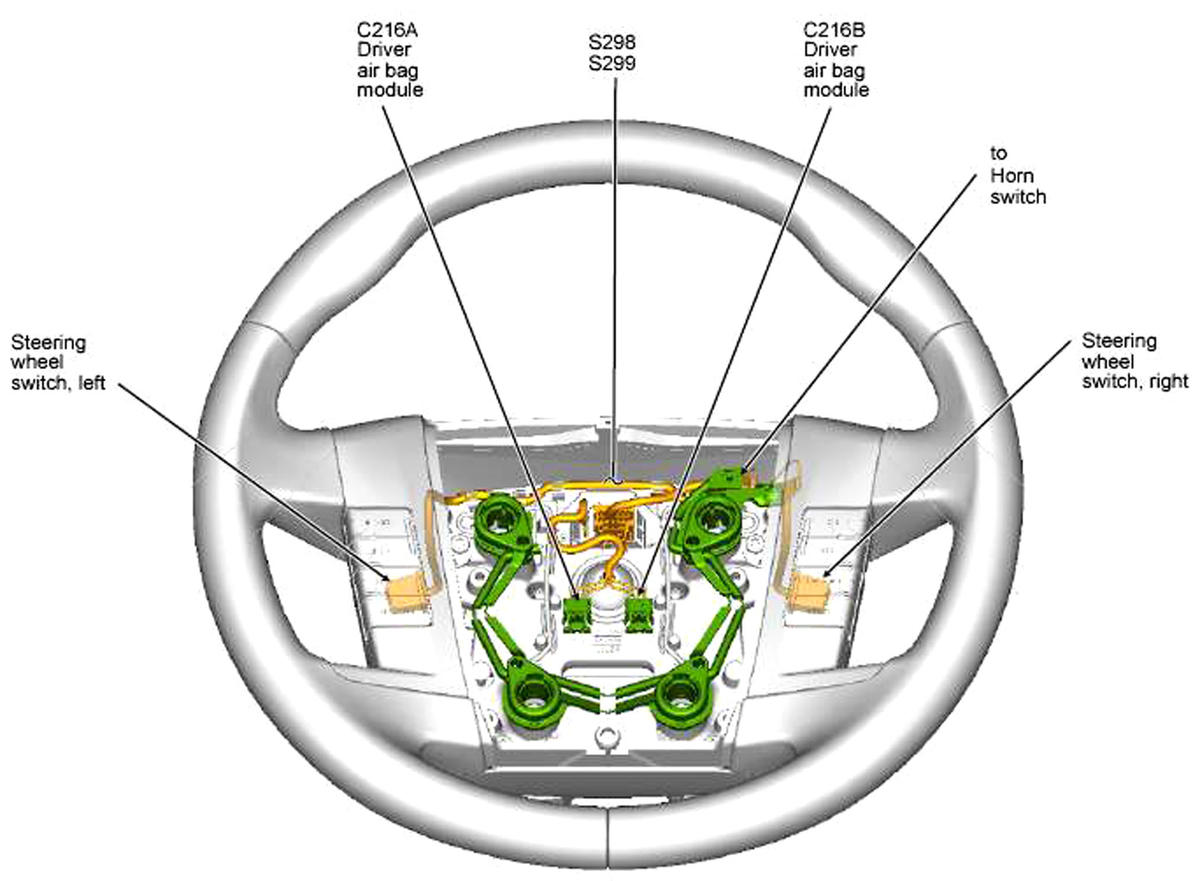

Fig 11: Steering Wheel

G00466930

Courtesy of FORD MOTOR CO.

Fig 12: Center Console

G00466931

Courtesy of FORD MOTOR CO.

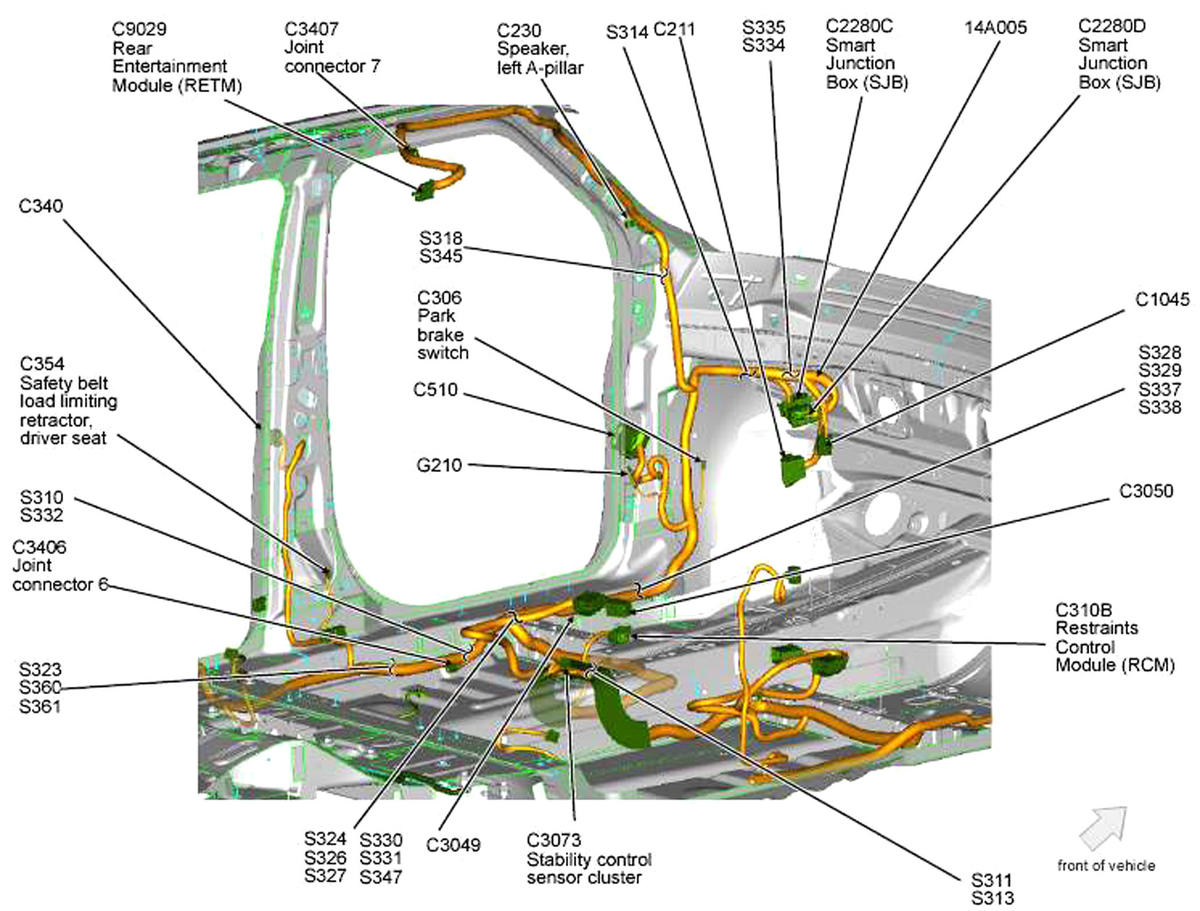

Fig 13: Left Front Vehicle Interior

G00466932

Courtesy of FORD MOTOR CO.

Fig 14: Right Front Vehicle Interior

G00466933

Courtesy of FORD MOTOR CO.

Fig 15: Left Rear Vehicle Interior

G00466934

Courtesy of FORD MOTOR CO.

Fig 16: Right Rear Vehicle Interior

G00466935

Courtesy of FORD MOTOR CO.

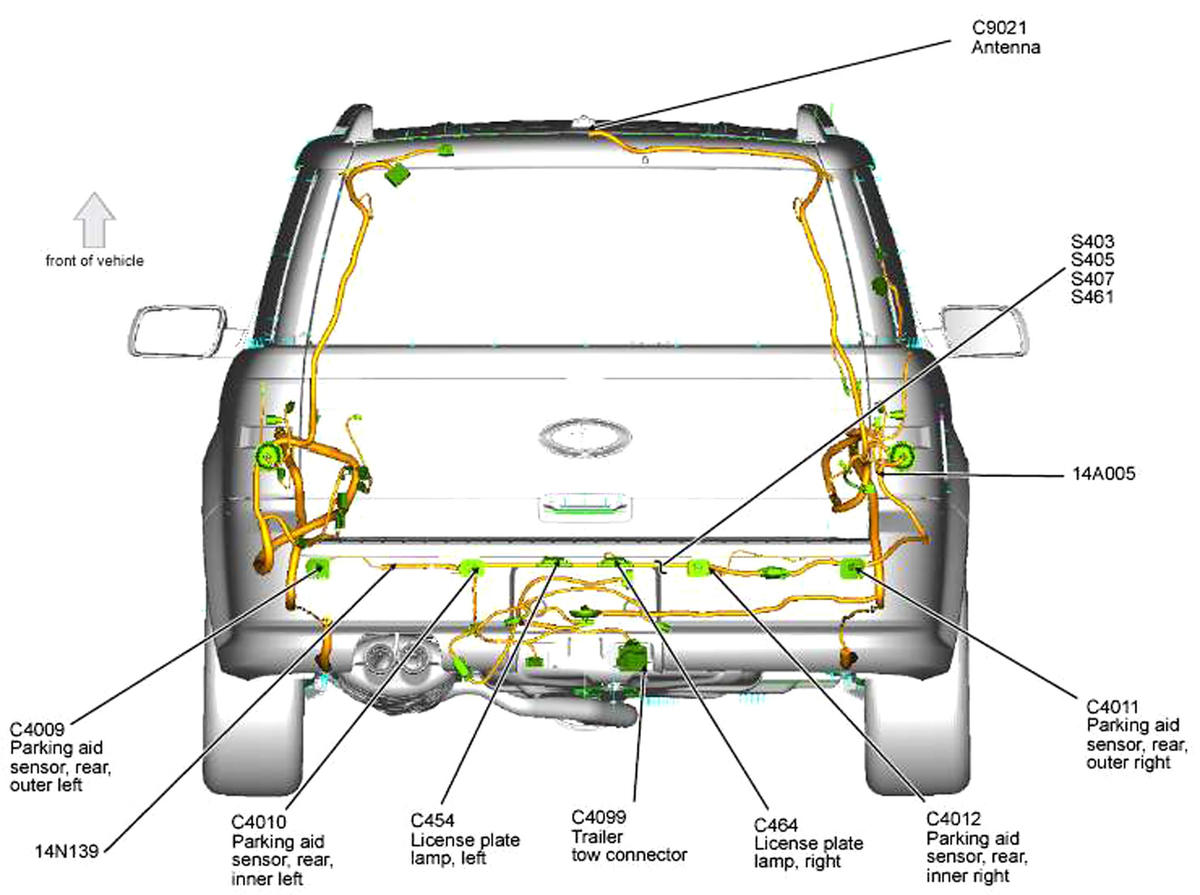

Fig 17: Rear Of Vehicle

G00466936

Courtesy of FORD MOTOR CO.

Fig 18: Driver's Seat

G00466937

Courtesy of FORD MOTOR CO.

Fig 19: Front Passenger's Seat

G00466938

Courtesy of FORD MOTOR CO.

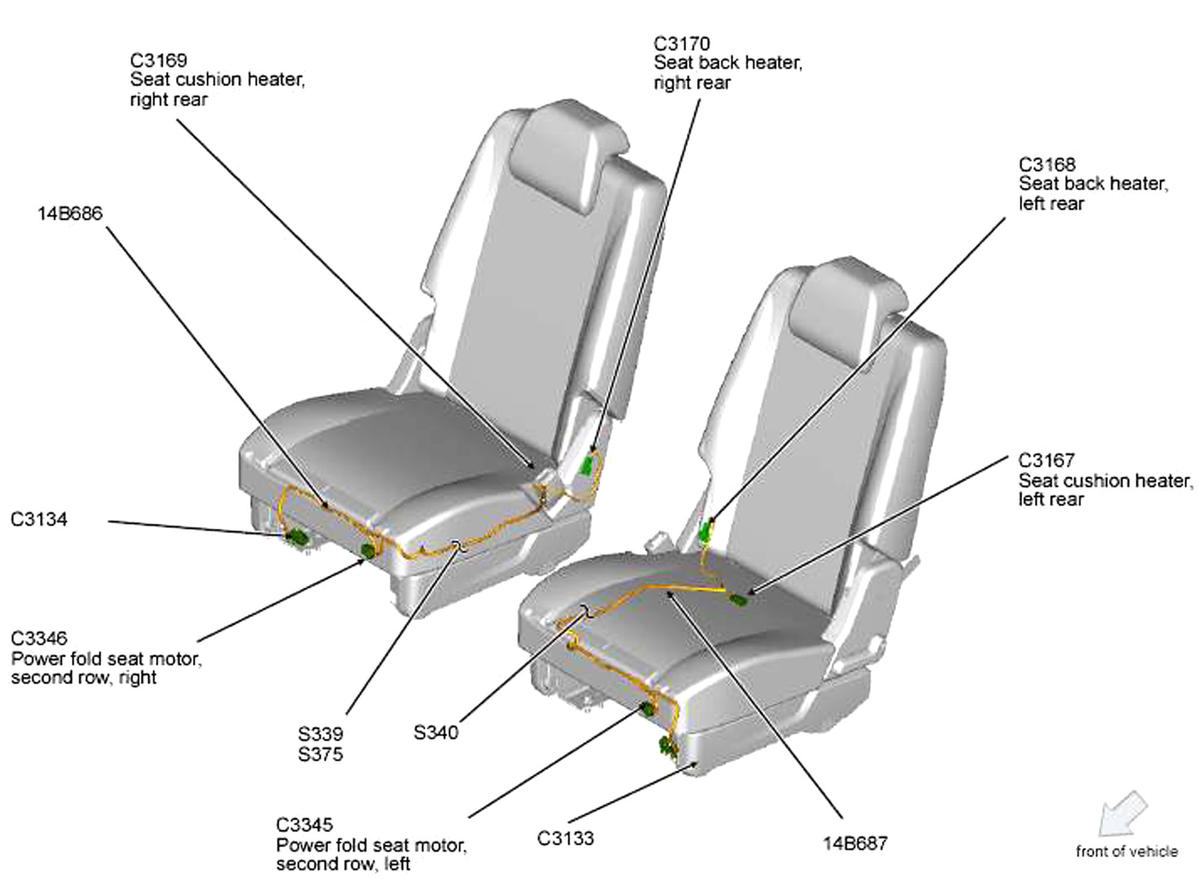

Fig 20: Second Row Seats

G00466939

Courtesy of FORD MOTOR CO.

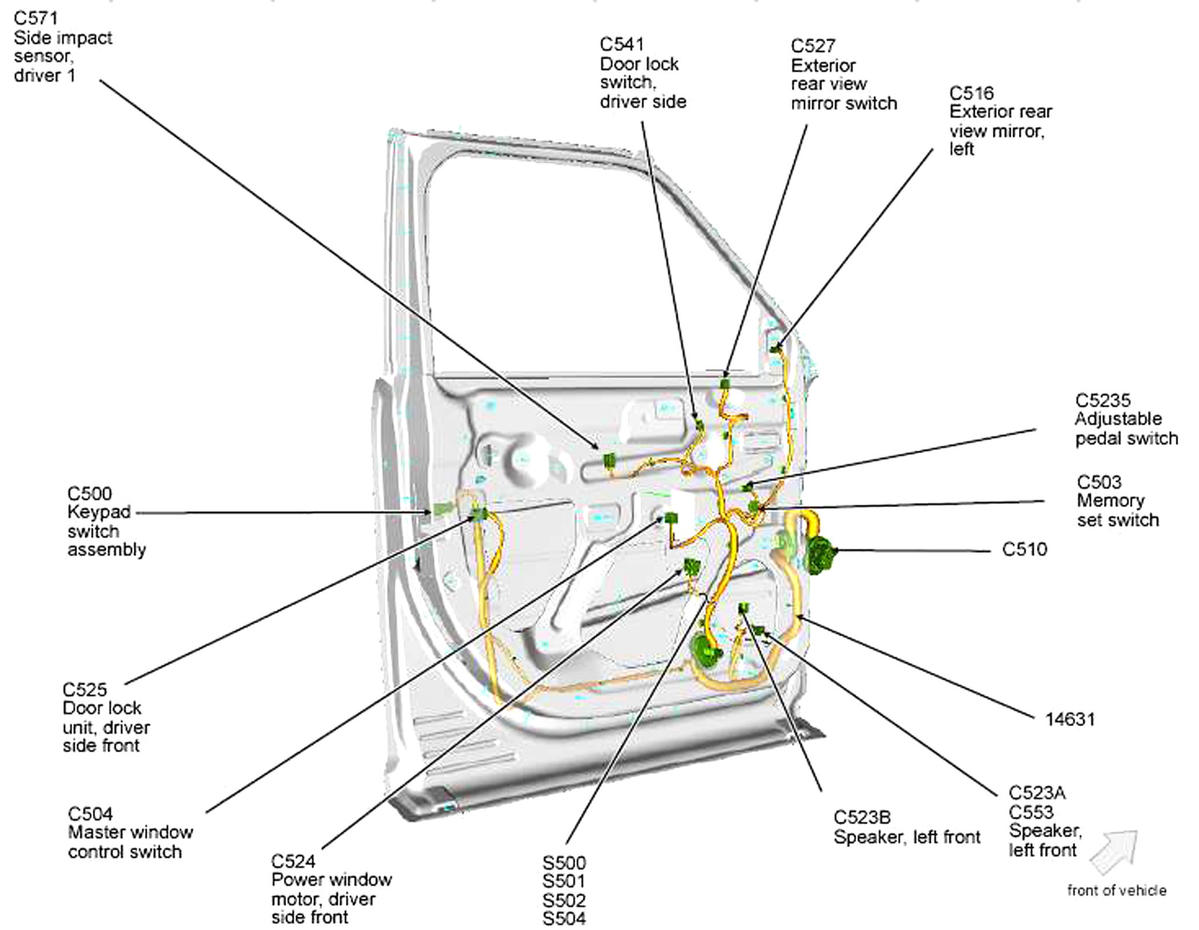

Fig 21: Driver's Door

G00466940

Courtesy of FORD MOTOR CO.

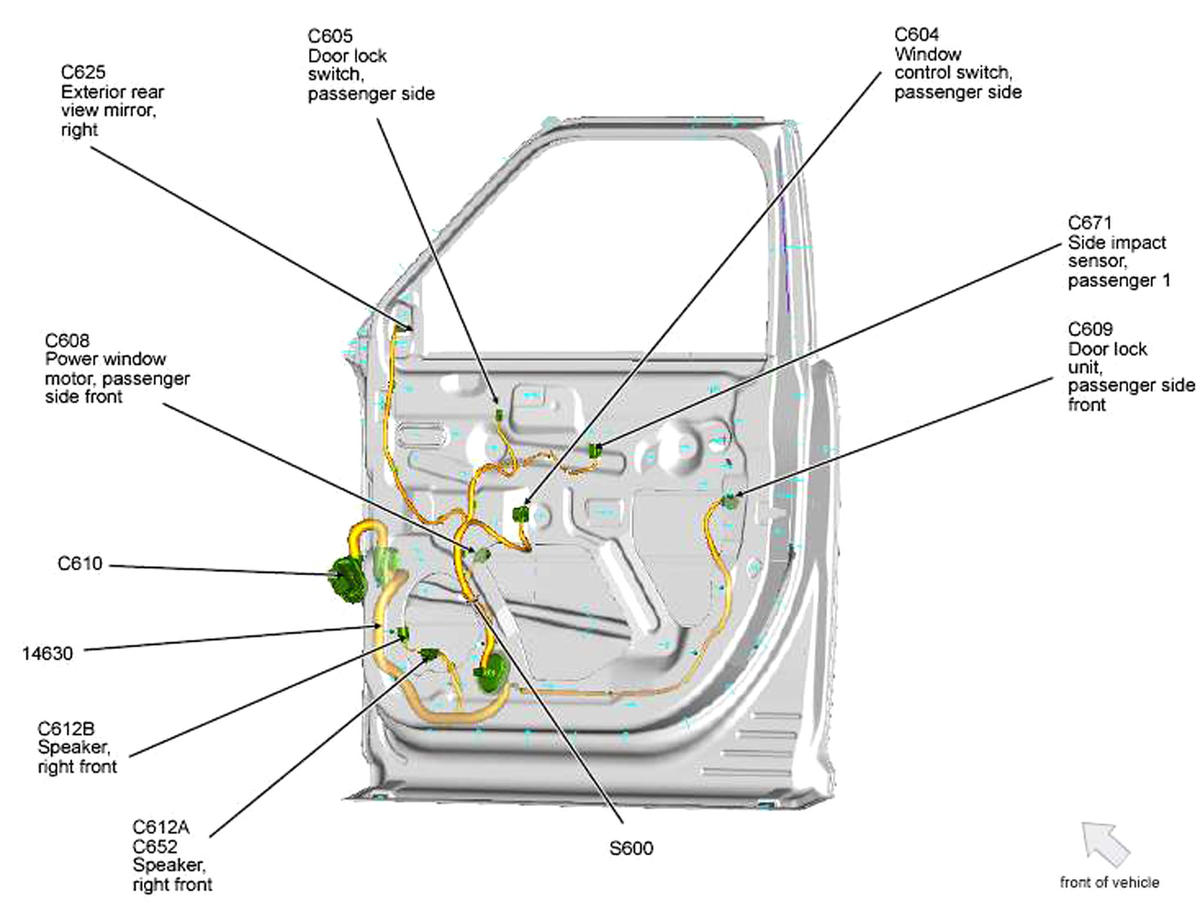

Fig 22: Front Passenger's Door

G00466941

Courtesy of FORD MOTOR CO.

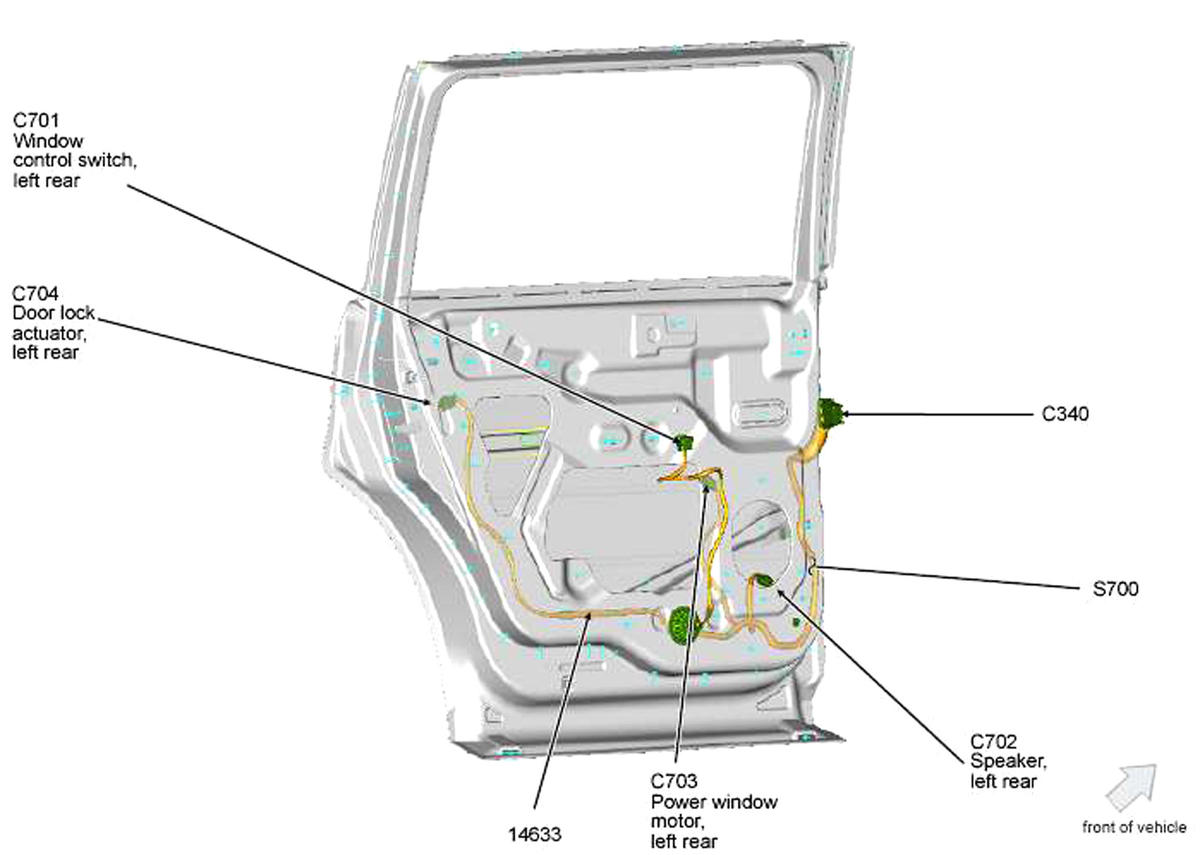

Fig 23: Left Rear Door

G00466942

Courtesy of FORD MOTOR CO.

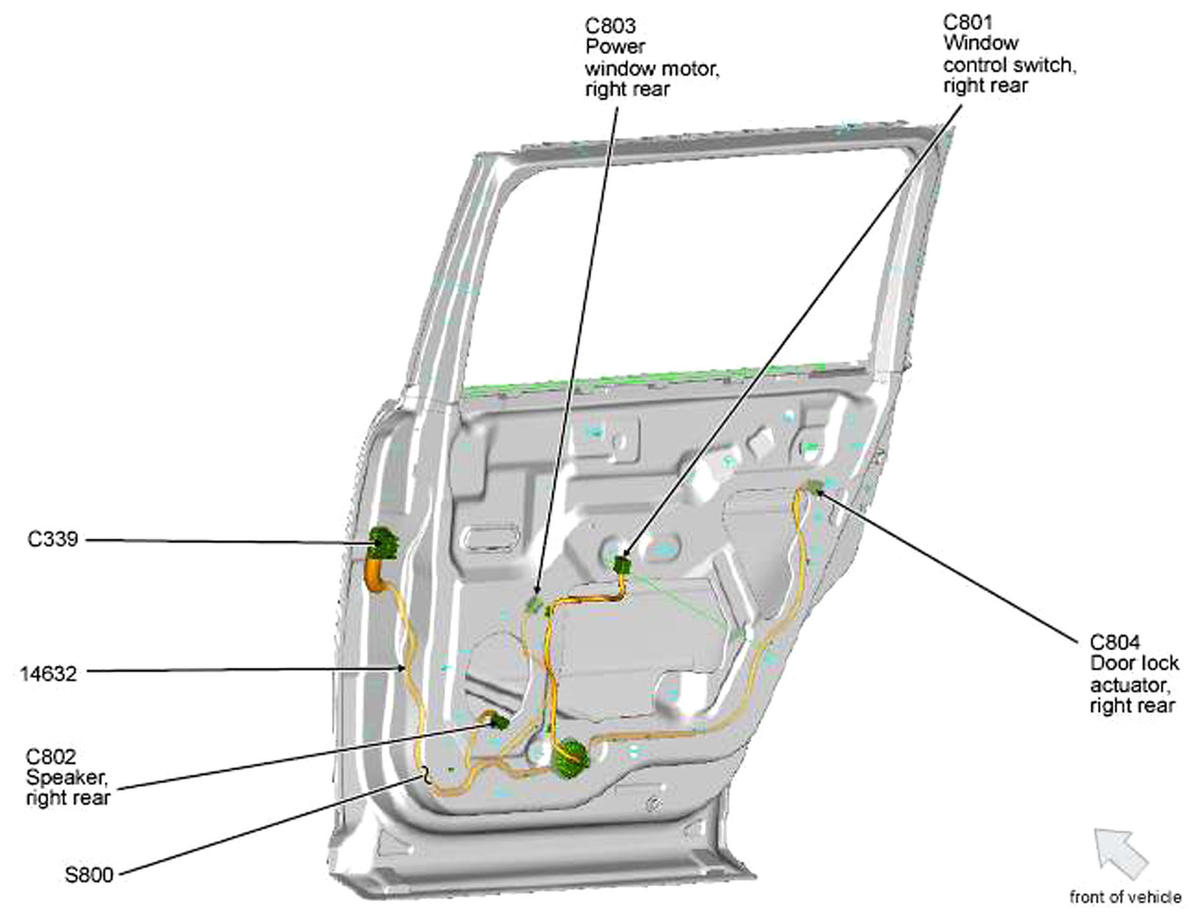

Fig 24: Right Rear Door

G00466943

Courtesy of FORD MOTOR CO.

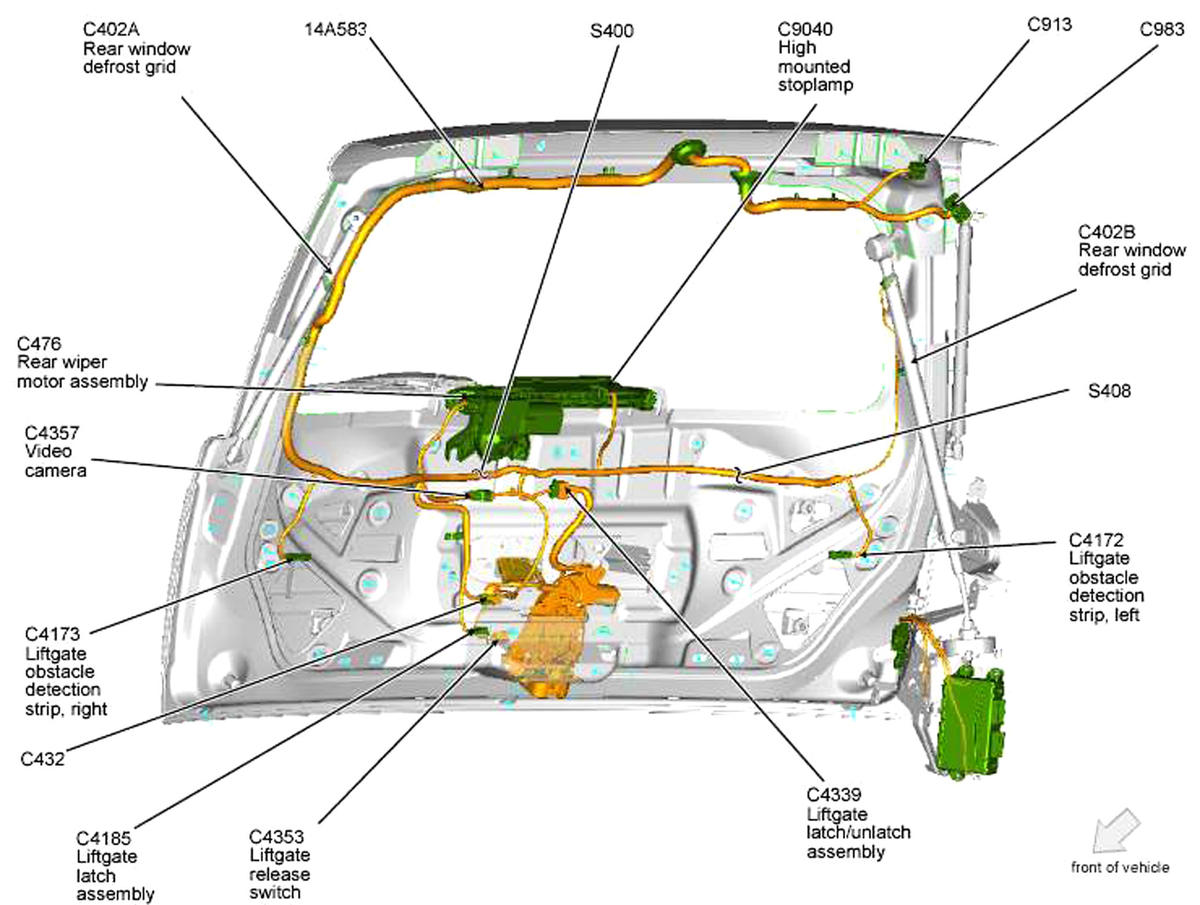

Fig 25: Liftgate

G00466944

Courtesy of FORD MOTOR CO.

Fig 26: Roof

G00466945

Courtesy of FORD MOTOR CO.

Fig 27: Battery Junction Box (BJB)

G00466946

Courtesy of FORD MOTOR CO.

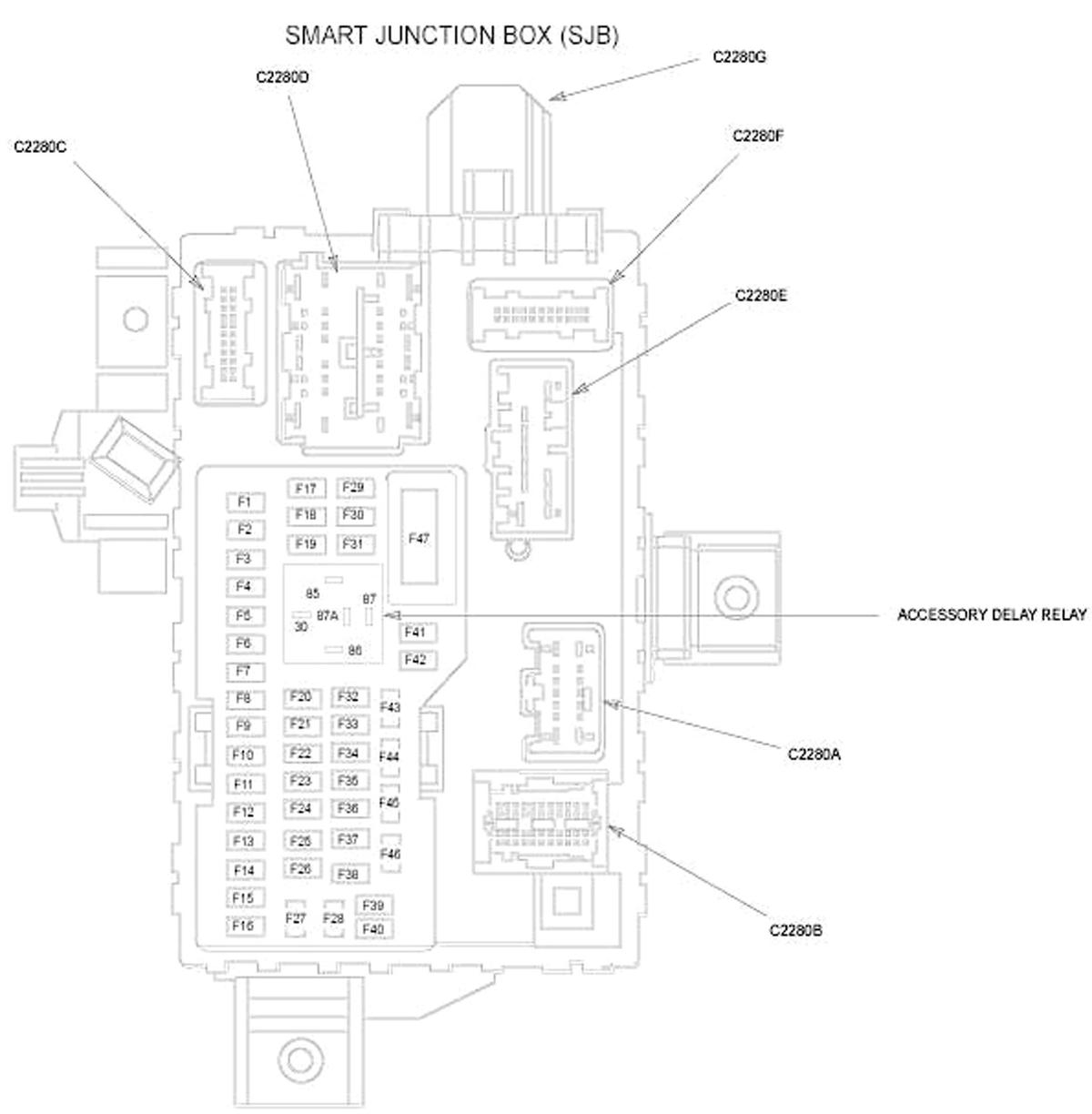

Fig 28: Smart Junction Box (SJB)

G00466947

Courtesy of FORD MOTOR CO.

Fig 29: Auxiliary Relay Box

G00466948

Courtesy of FORD MOTOR CO.
