Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Accessory Protocol Interface Module (APIM) | Center console. See Figure. |
| Ambient Lighting Module | Center console. See Figure. |

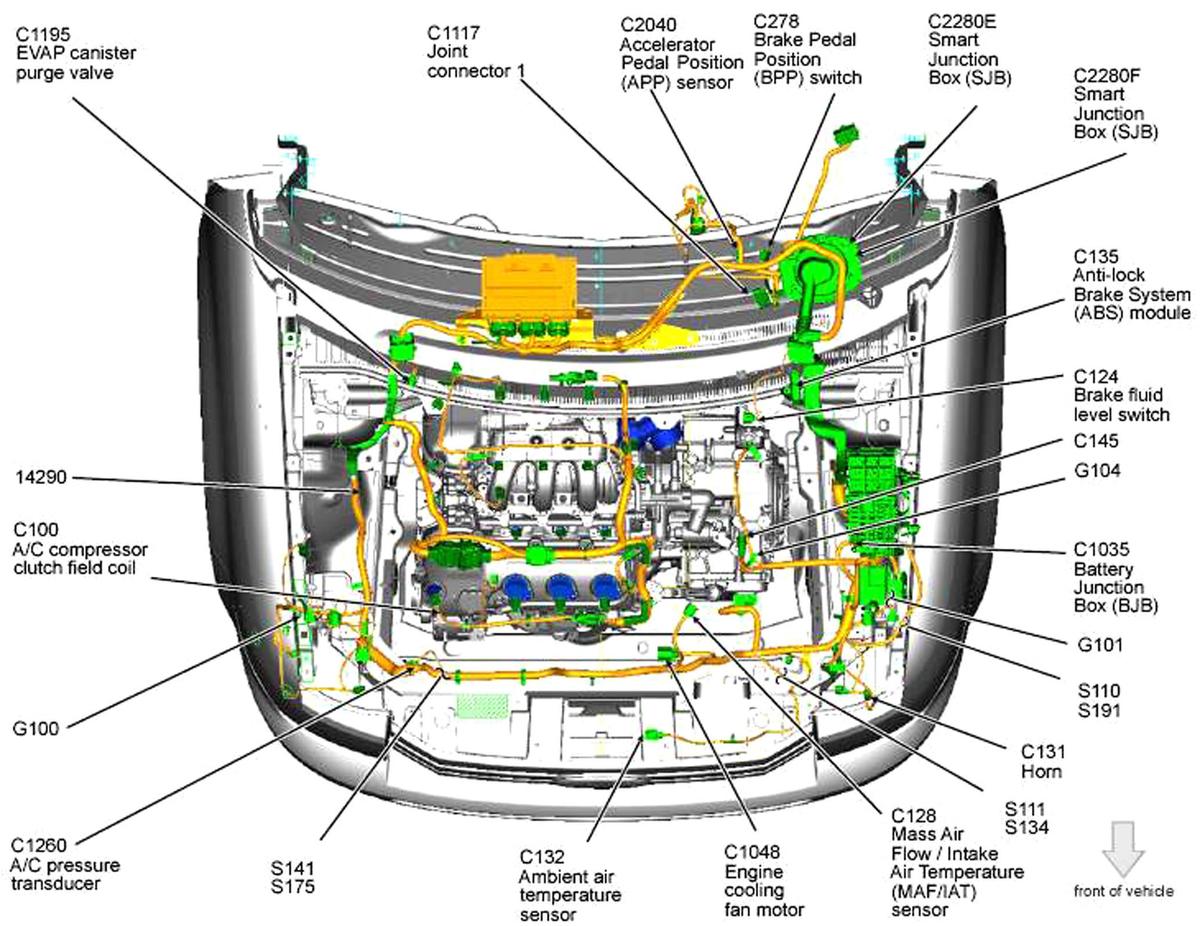

| Anti-Lock Brake System (ABS) Module | Left rear of engine compartment. See Figure. |

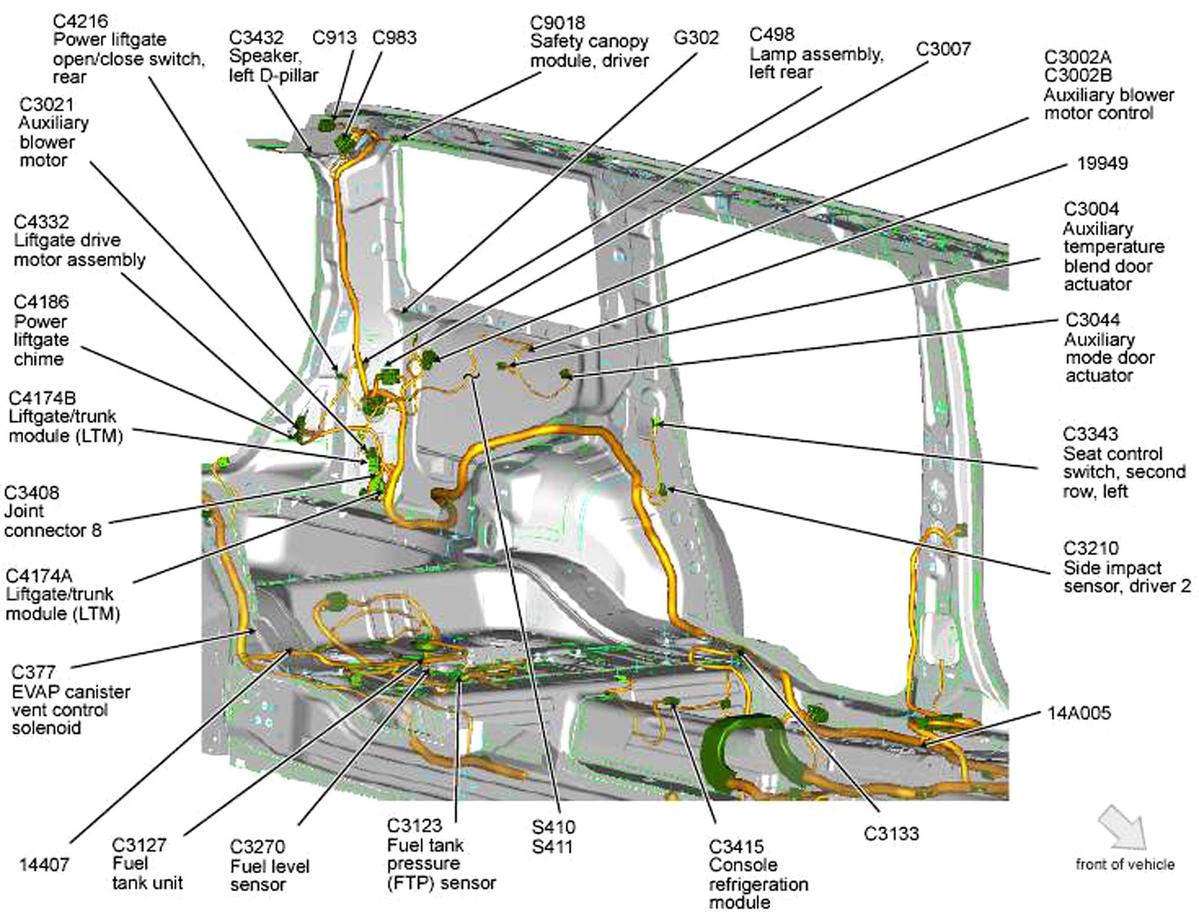

| Auxiliary Blower Control Module | Left rear quarterpanel. See Figure. |

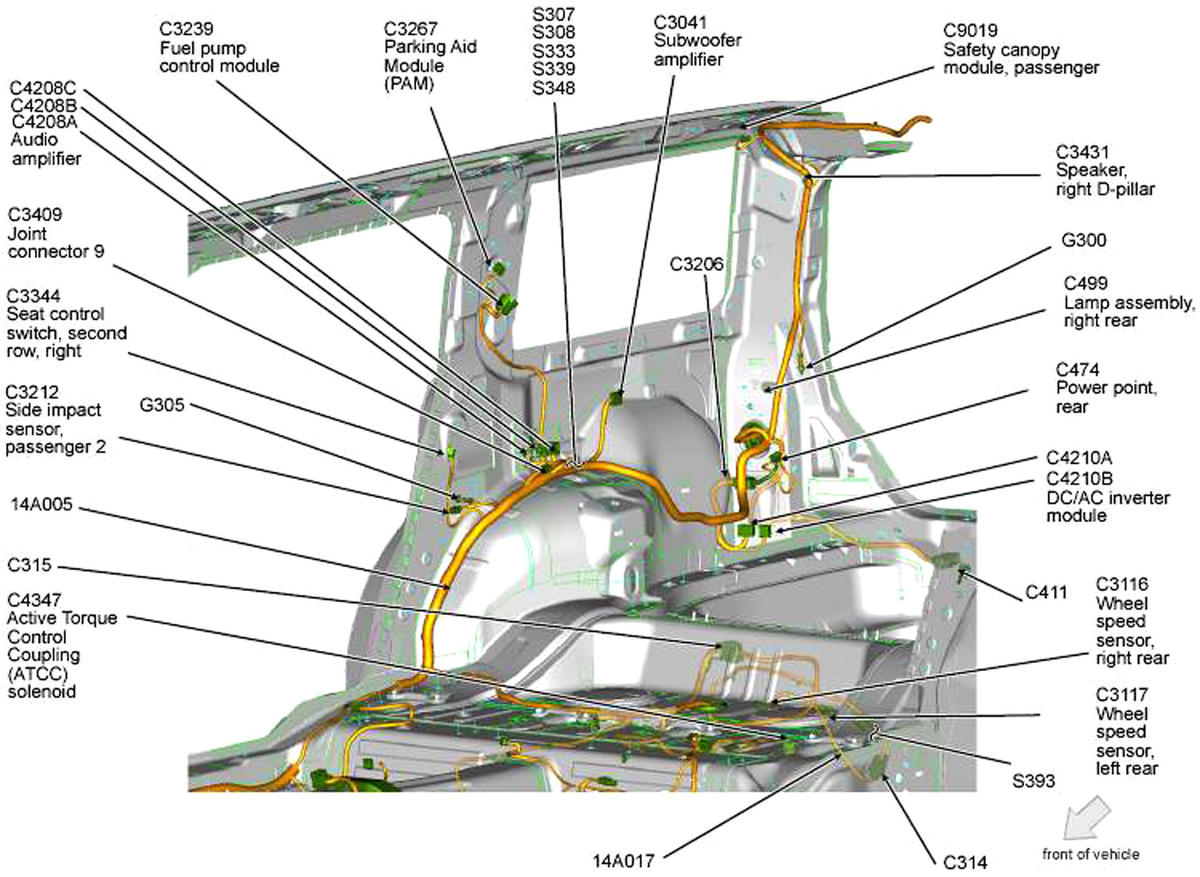

| DC/AC Inverter Module | Base of right "D" pillar. See Figure. |

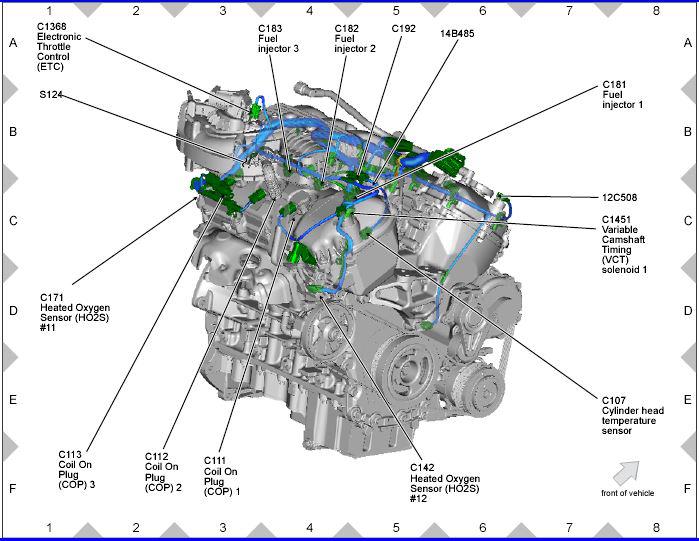

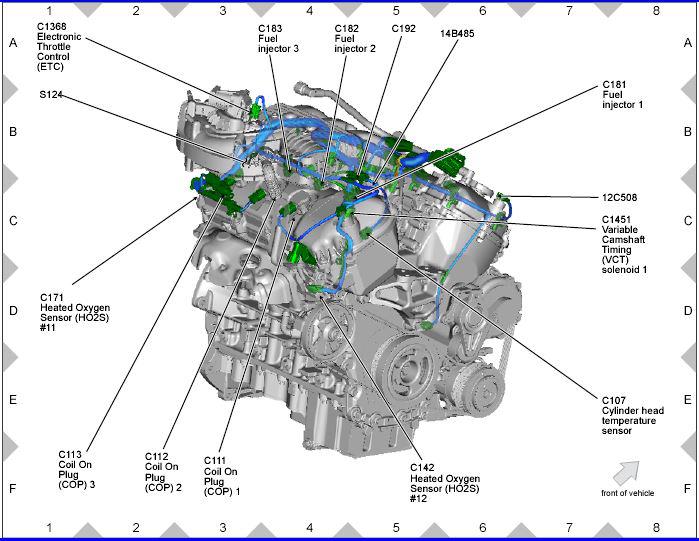

| Electronic Throttle Control (ETC) | Top right rear of engine. See Figure. |

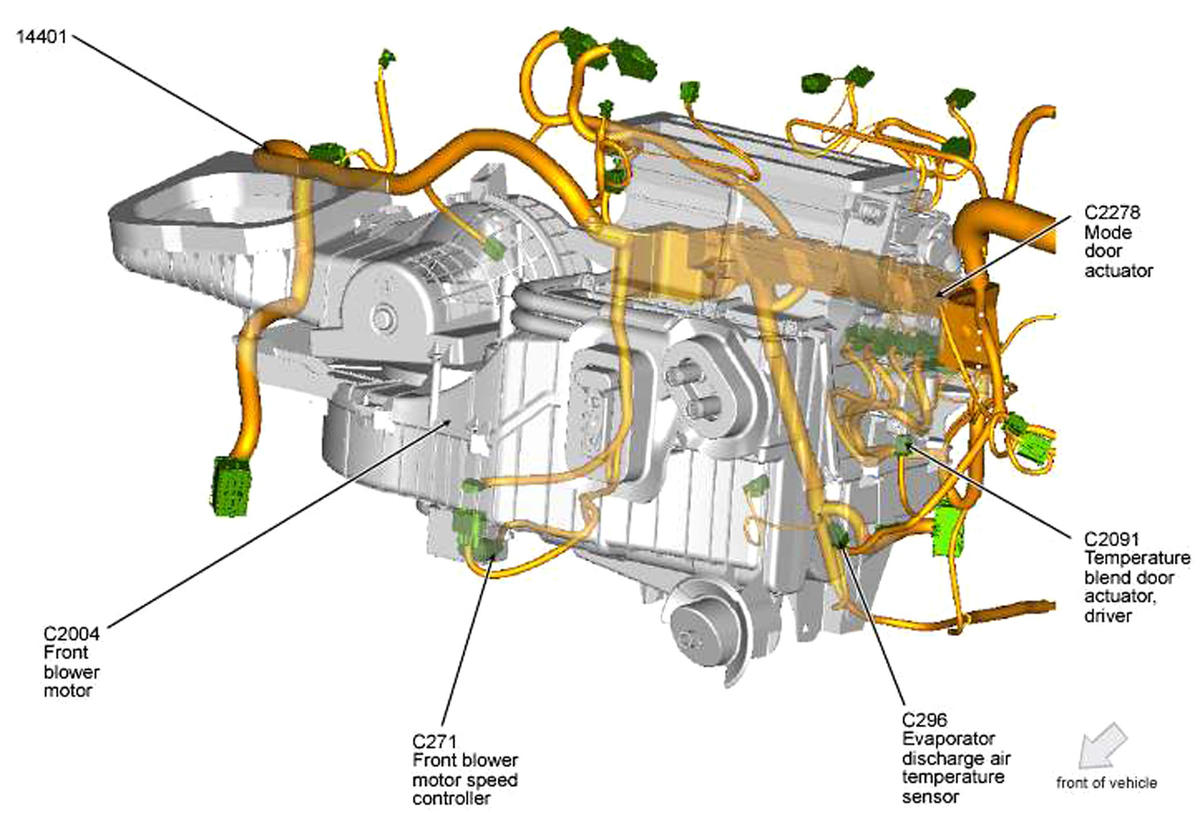

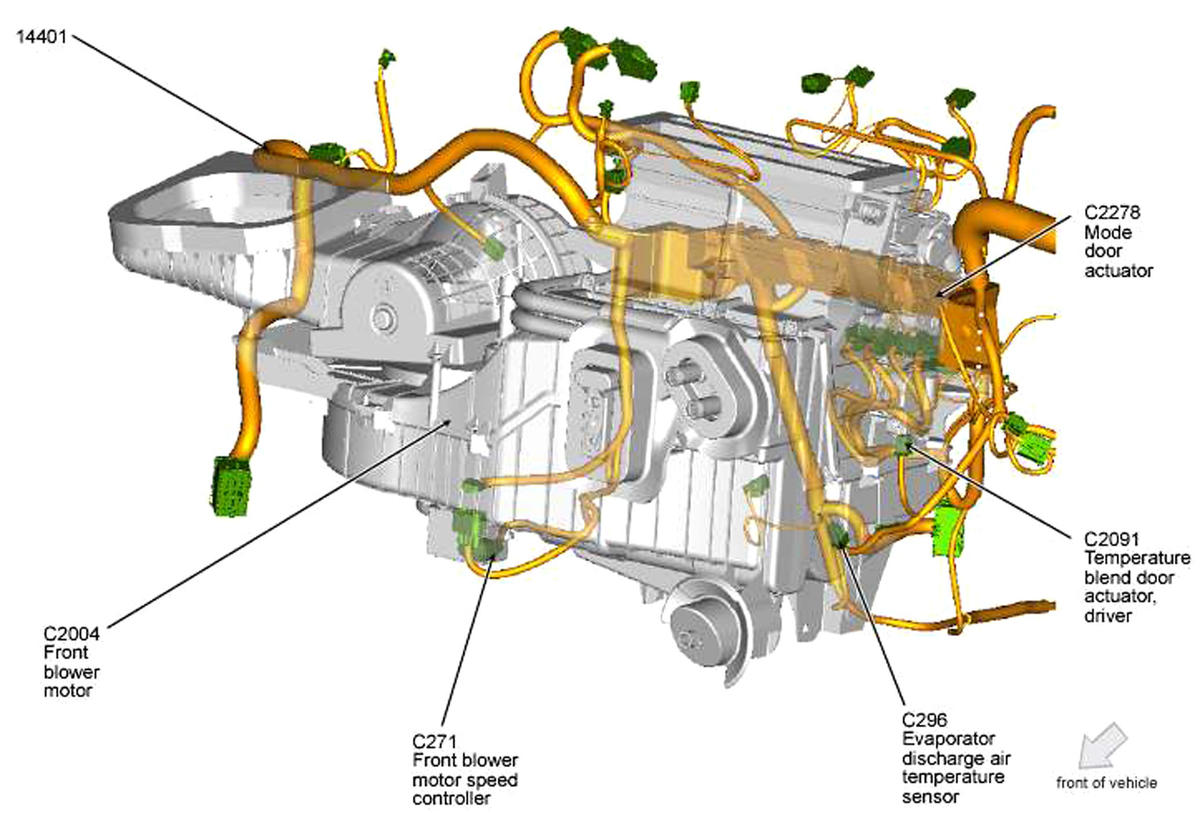

| Front Blower Motor Speed Controller | Right side of HVAC unit. See Figure. |

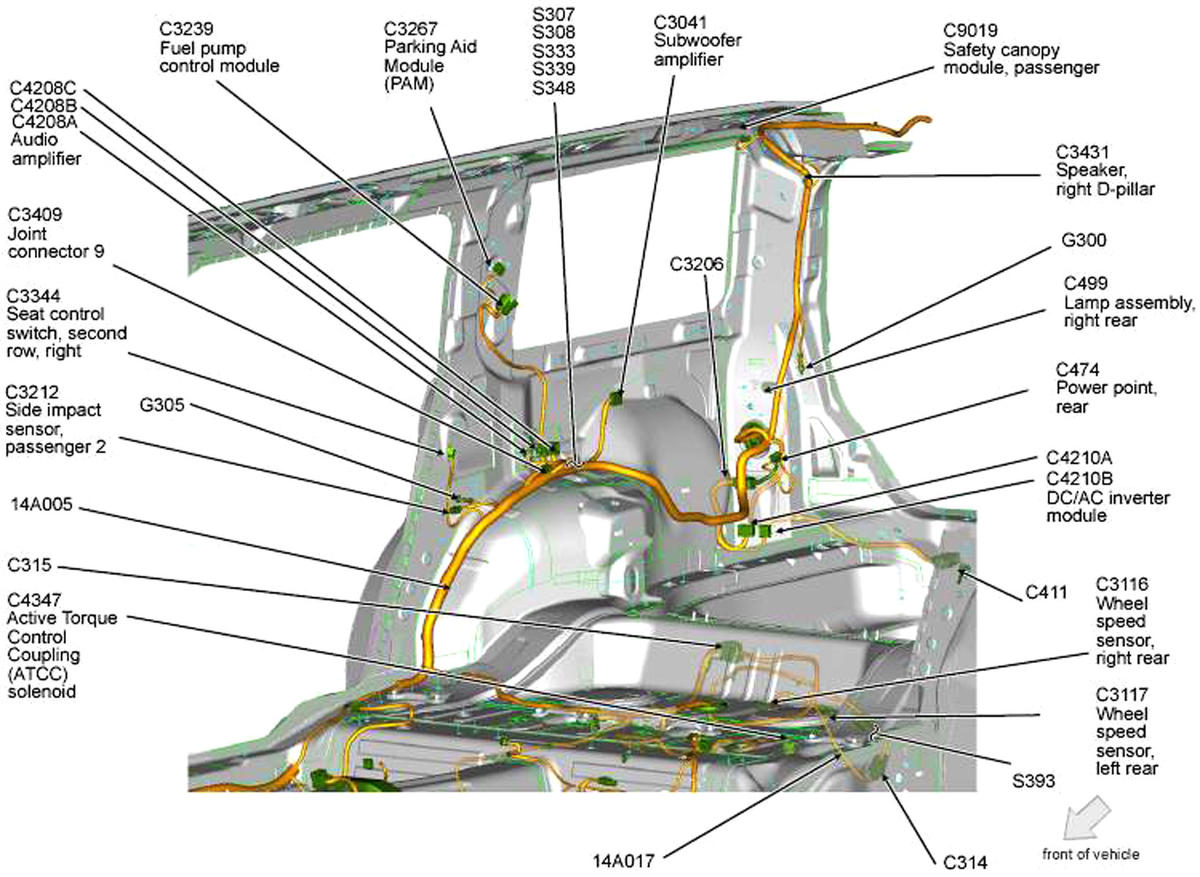

| Fuel Pump Control Module | Right "C" pillar. See Figure. |
| Fuel Tank Unit | In fuel tank. See Figure. |
| Heated Seat Module (Front) | Under front passenger's seat. See Figure. |
| Heated Seat Module (Rear) | Center console. See Figure. |

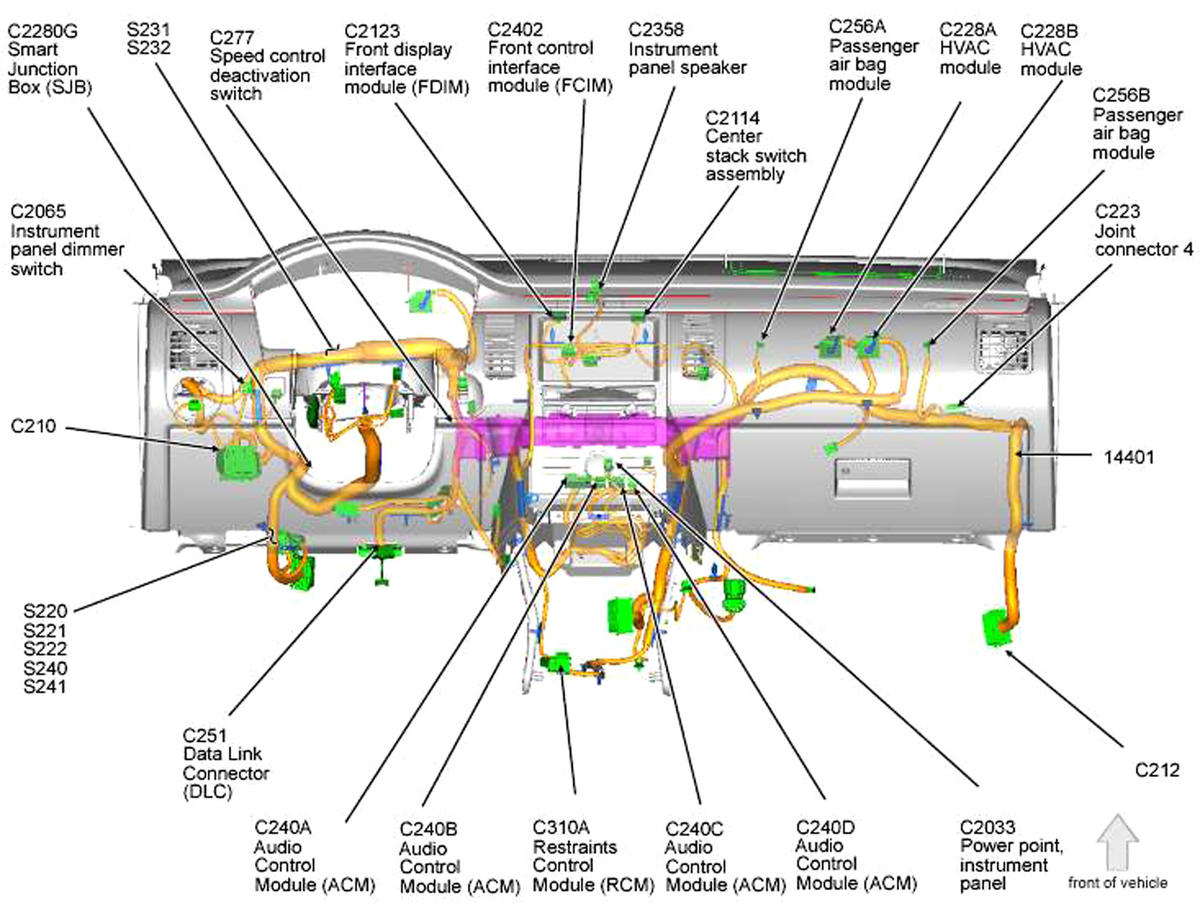

| HVAC Module | Center of dash. See Figure. |

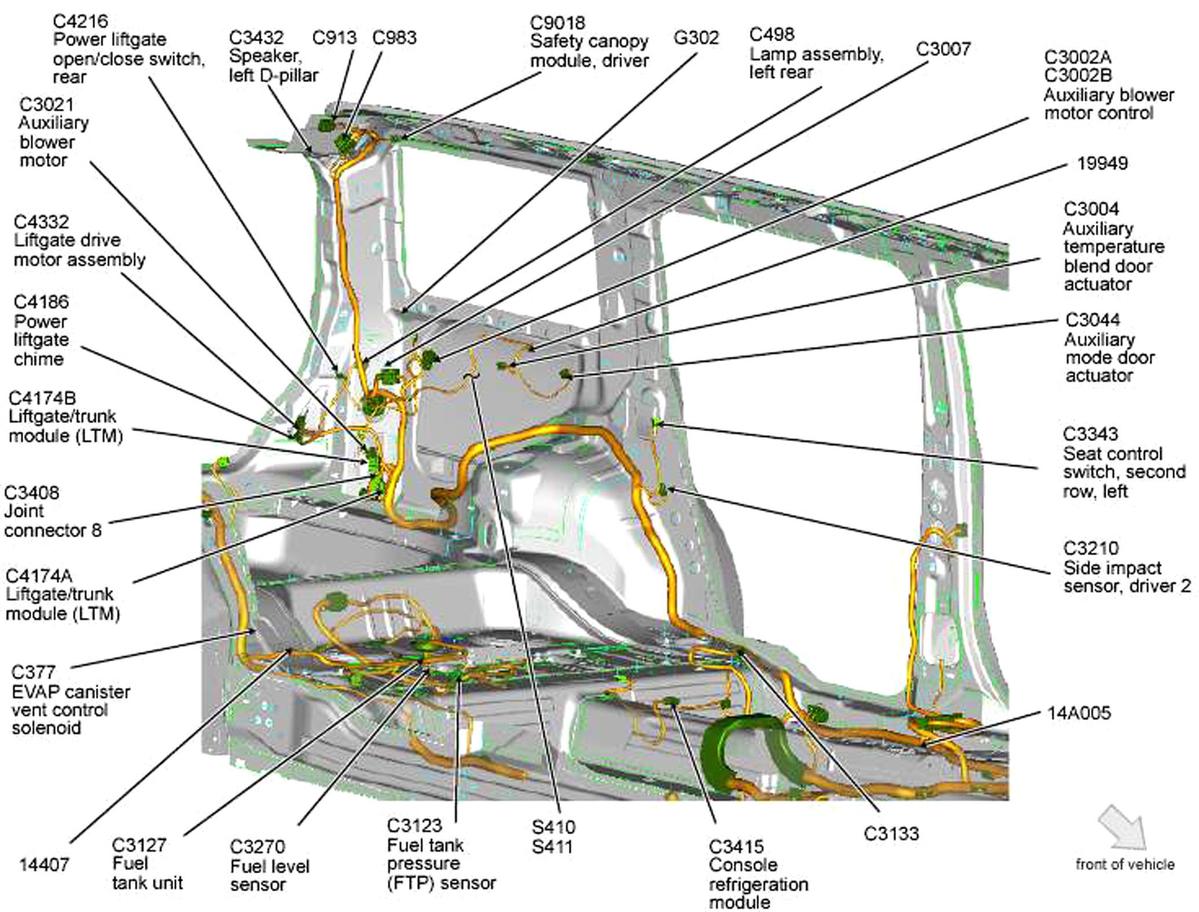

| Liftgate/Trunk Module (LTM) | Left "D" pillar. See Figure. |

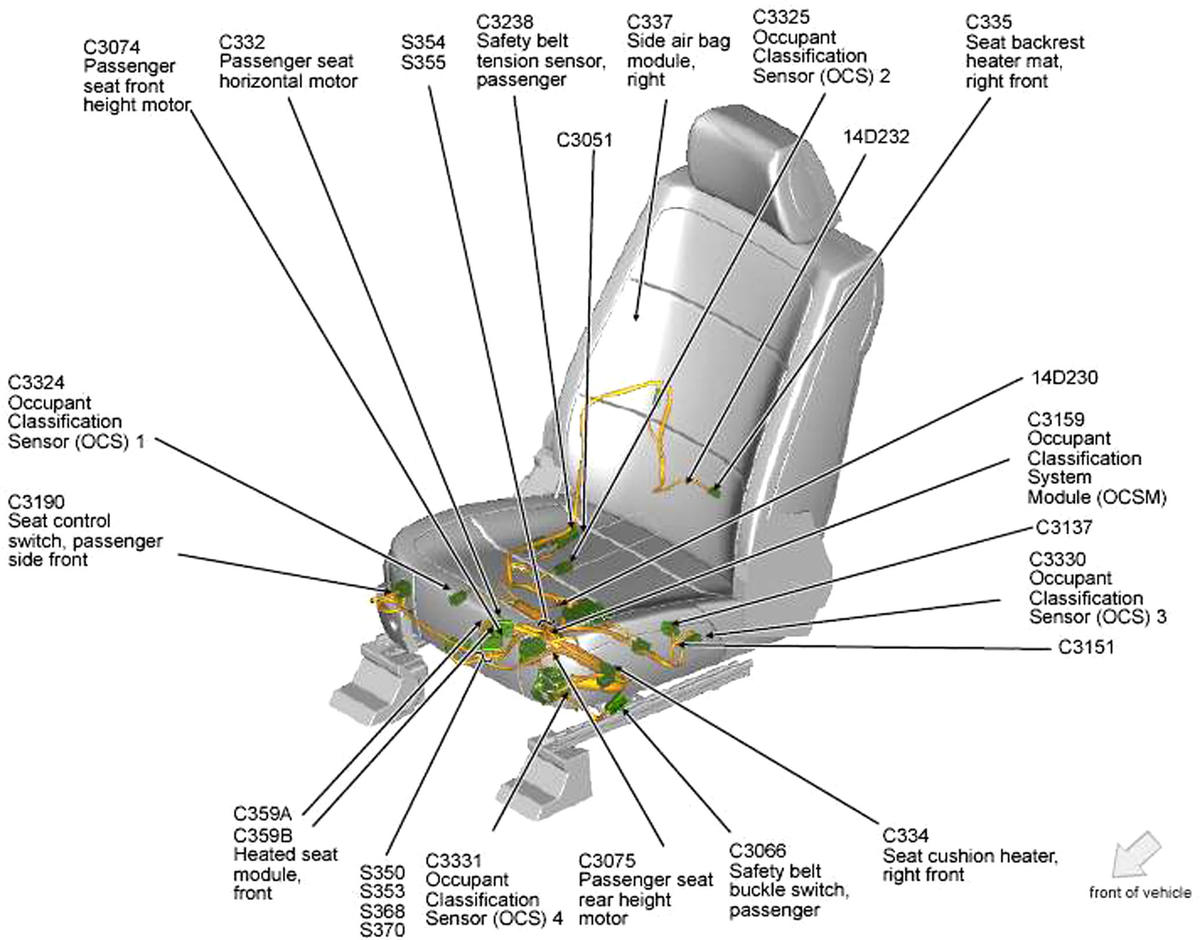

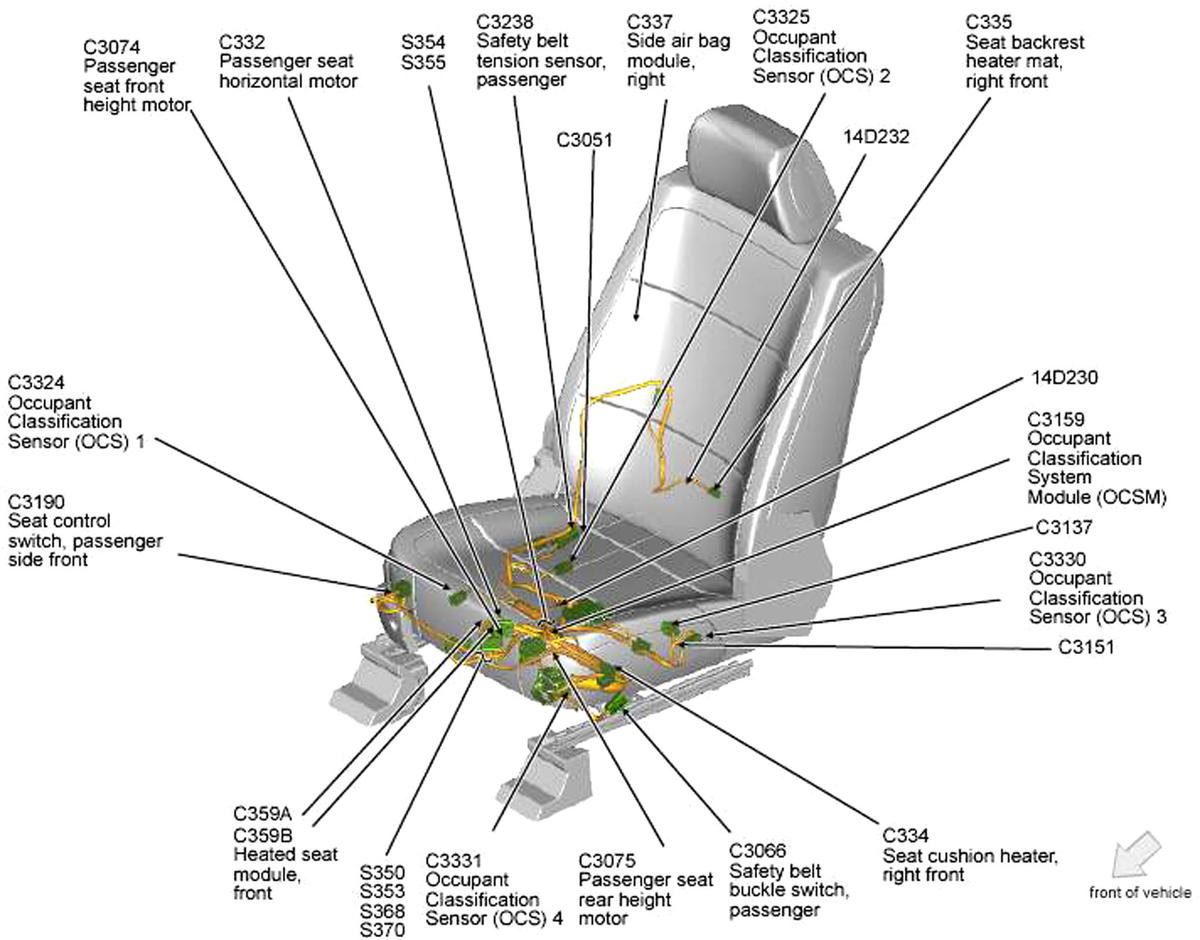

| Occupant Classification System Module (OCSM) | Under front passenger's seat. See Figure. |
| Parking Aid Module (PAM) | Right "C" pillar. See Figure. |

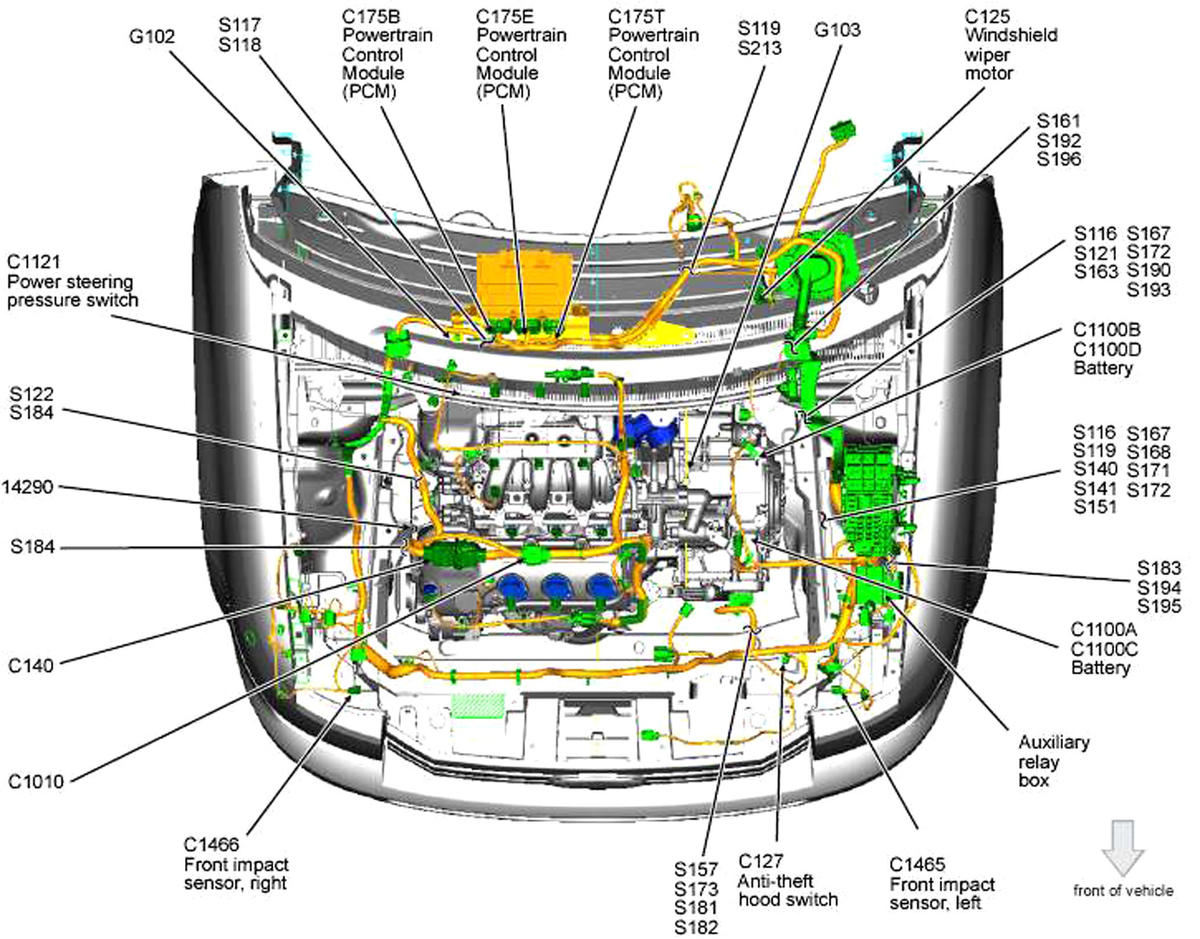

| Powertrain Control Module (PCM) | Rear of engine compartment. See Figure. |
| Restraints Control Module (RCM) | Center console. See Figure. |
| Roof Opening Panel Module | Center front of roof. See Figure. |

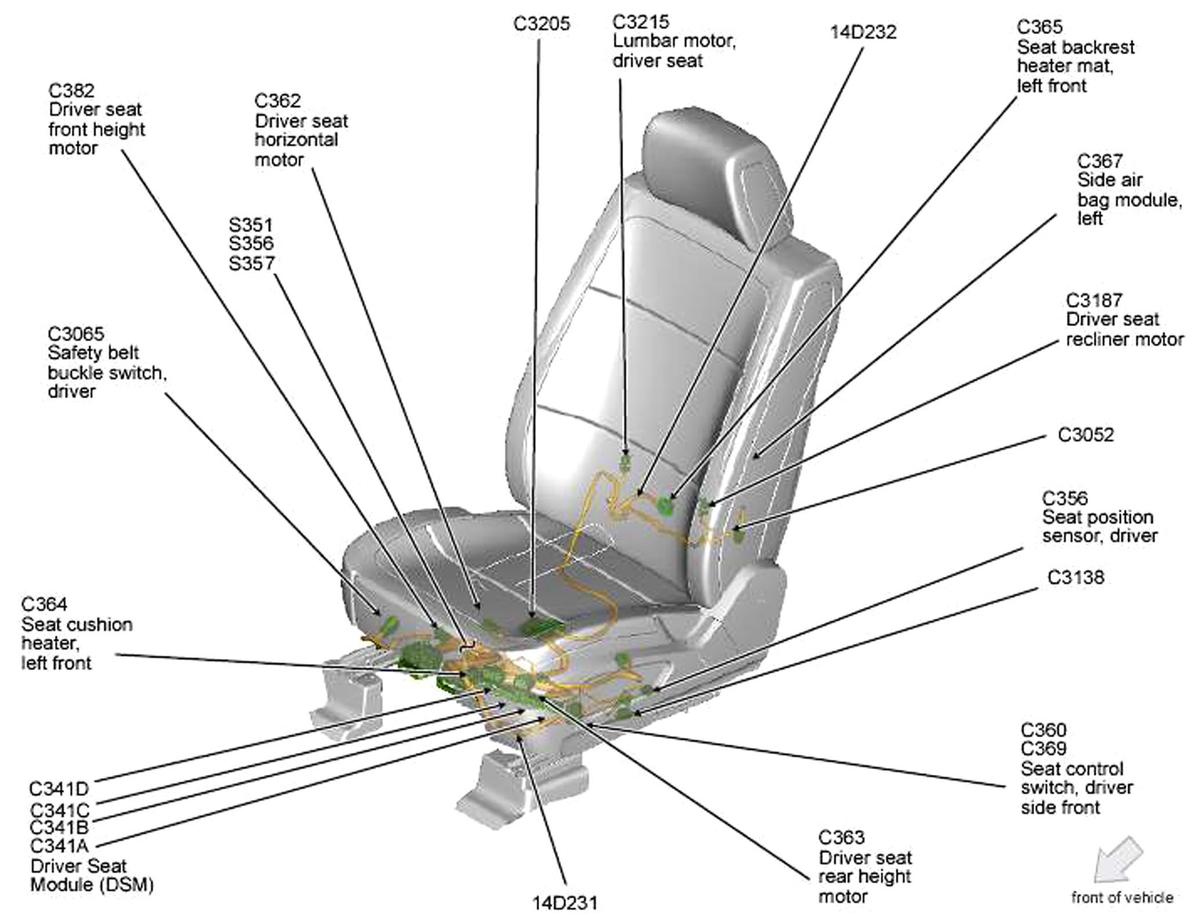

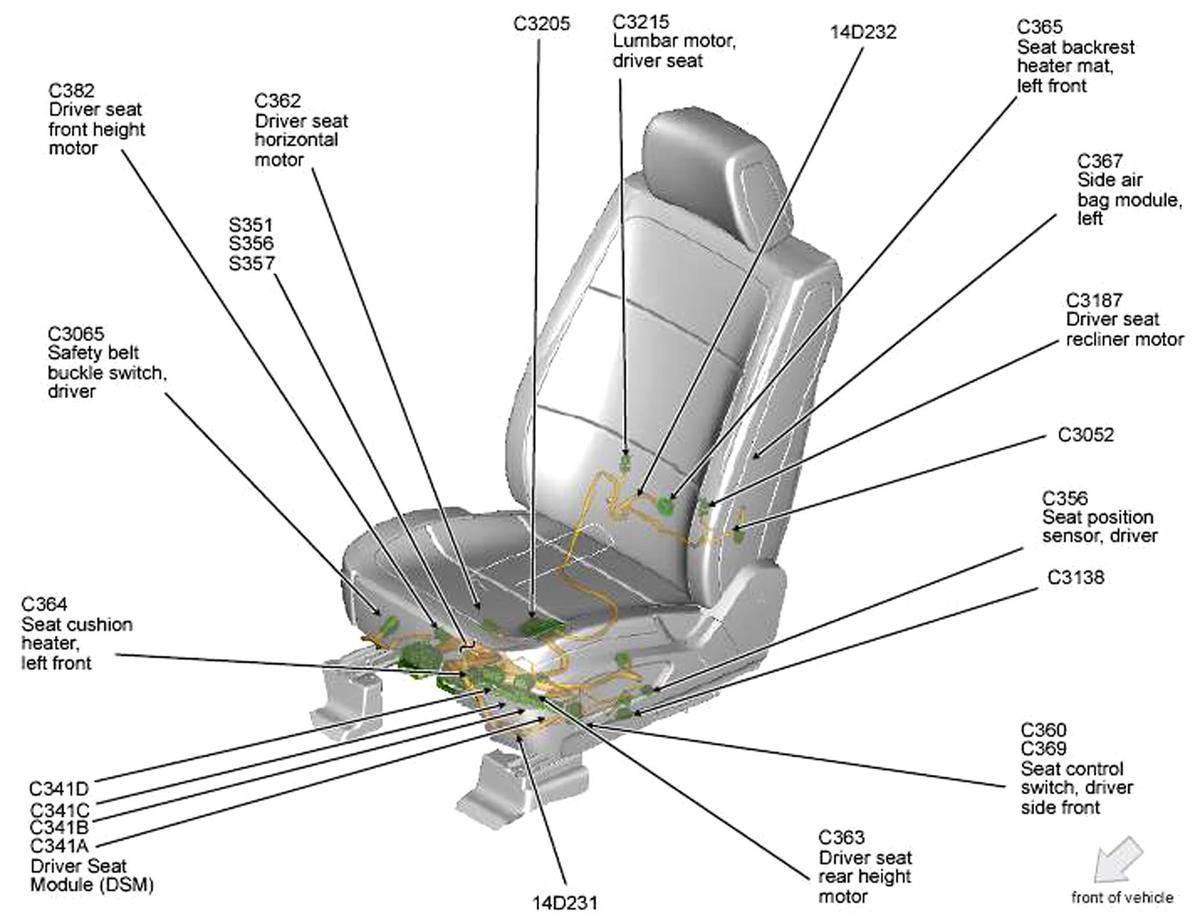

| Seat Module (DSM) (Driver) | Under driver's seat. See Figure. |

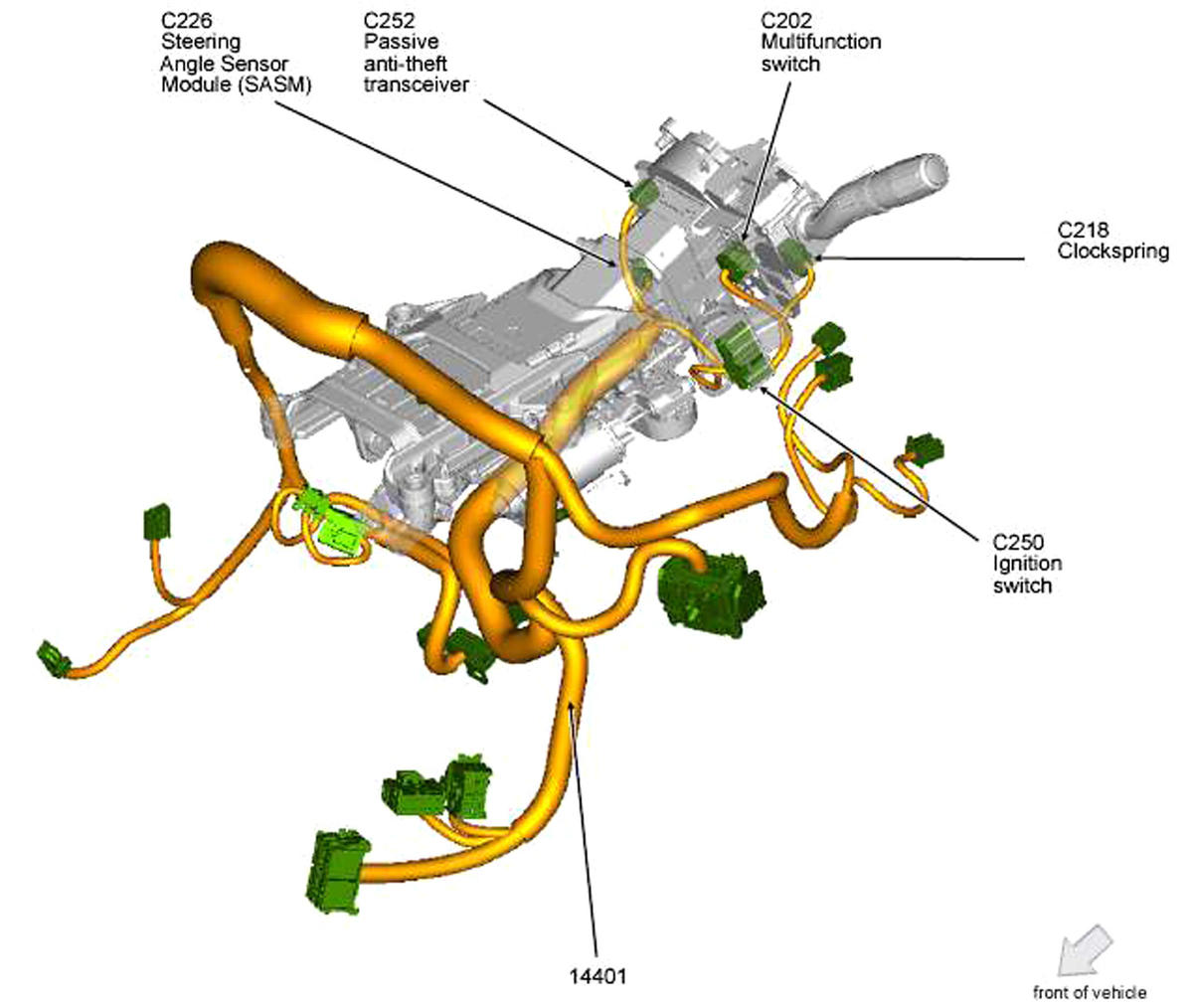

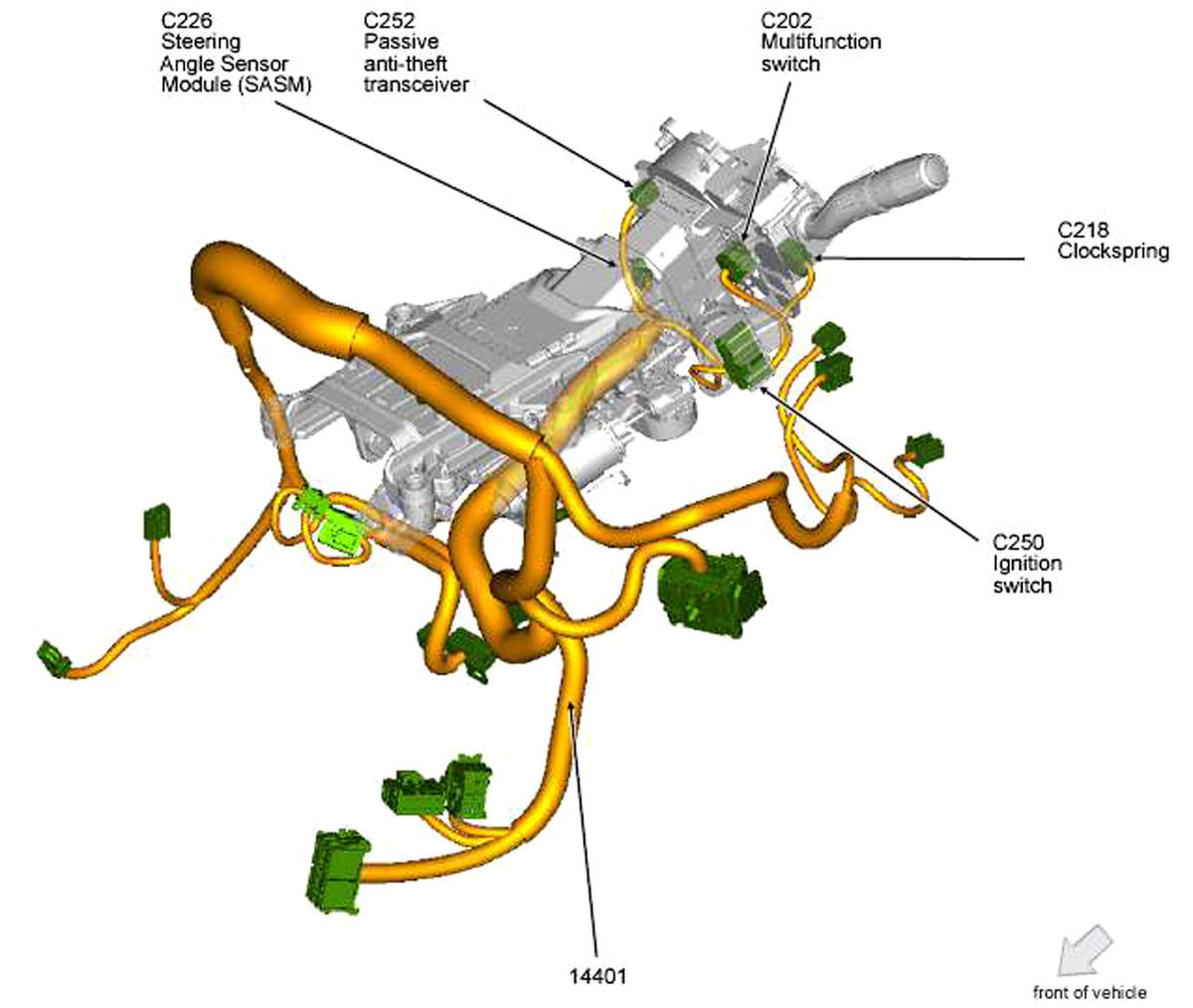

| Steering Angle Sensor Module (SASM) | Top of steering column. See Figure. |

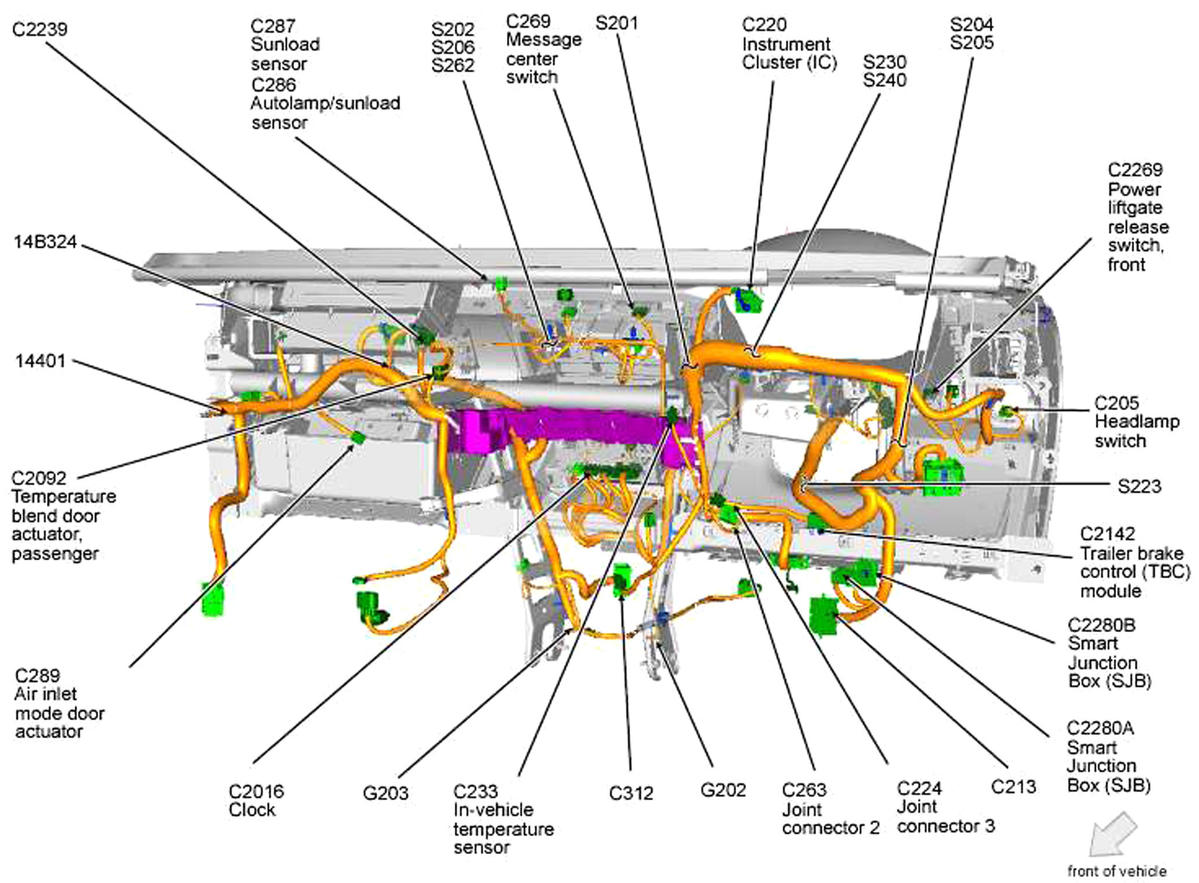

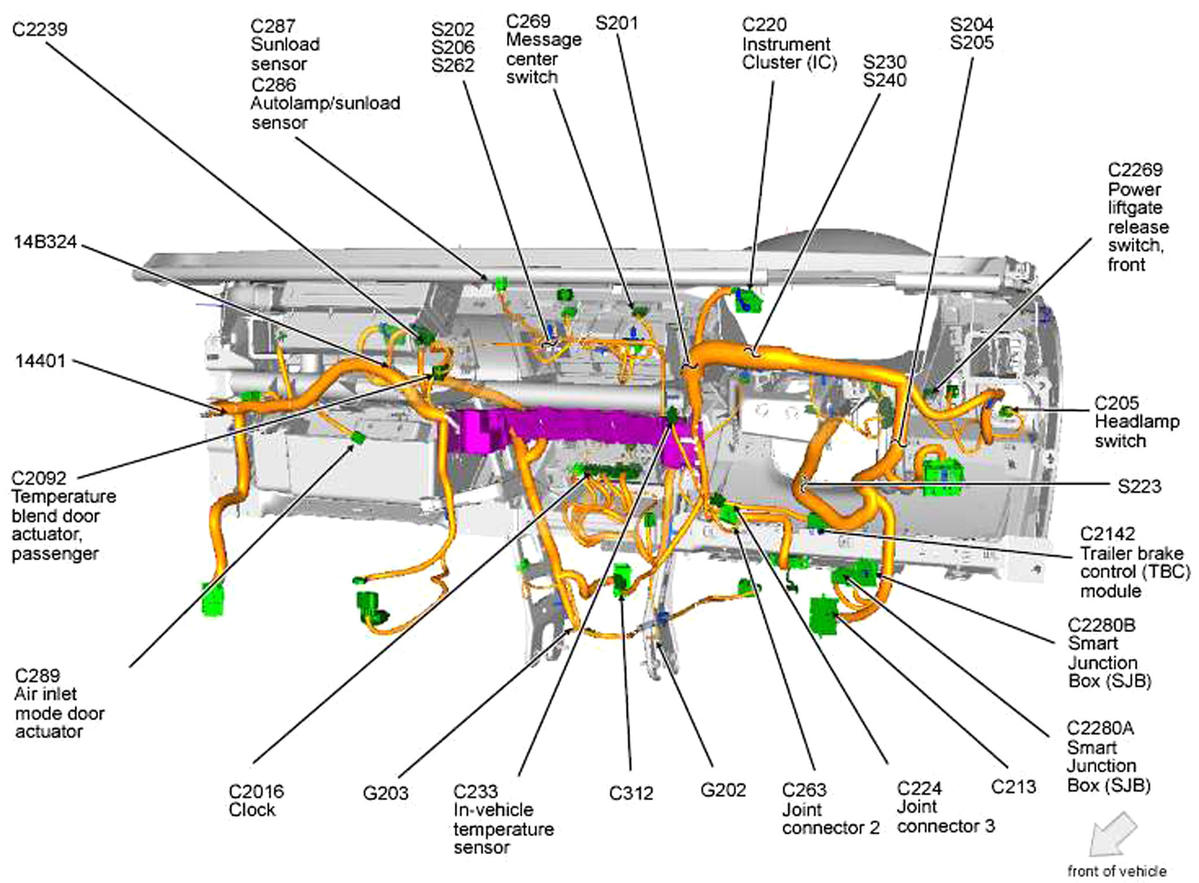

| Trailer Brake Control (TBC) Module | Left side of dash. See Figure. |
| 4X4 Control Module | Right kick panel. See Figure. |
