Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|
| S110 | Dash panel wiring harness, to headlamp junction in breakout to left front of engine compartment. See Figure. |
| S111 | Dash panel wiring harness, to headlamp junction in breakout to center front of engine compartment. See Figure. |
| S116 | Dash panel wiring harness, to headlamp junction near breakout to battery junction box (BJB). See Figure. |
| S117 | Dash panel wiring harness, to headlamp junction near breakout to right rear of engine compartment. See Figure. |
| S118 | Dash panel wiring harness, to headlamp junction near breakout to right rear of engine compartment. See Figure. |
| S119 | Dash panel wiring harness, to headlamp junction near breakout to left front fender. See Figure. |
| S121 | Dash panel wiring harness, to headlamp junction near breakout to battery junction box (BJB). See Figure. |
| S122 | Dash panel wiring harness, to headlamp junction near breakout to right front of engine compartment. See Figure. |
| S124 | Engine control sensor & fuel charge wiring harness, in breakout to right front of engine compartment. See Figure. |
| S125 | Engine control sensor & fuel charge wiring harness, near breakout to top right side of engine. See Figure. |
| S126 | Engine control sensor & fuel charge wiring harness, near breakout to top right side of engine. See Figure. |
| S127 | Engine control sensor & fuel charge wiring harness, near breakout to top right side of engine. See Figure. |
| S128 | Engine control sensor & fuel charge wiring harness, near breakout to top right side of engine. See Figure. |
| S129 | Engine control sensor & fuel charge wiring harness, near breakout to top right side of engine. See Figure. |
| S130 | Engine control sensor & fuel charge wiring harness, in breakout to right front of engine compartment. See Figure. |
| S131 | Engine control sensor & fuel charge wiring harness, near breakout to top front of engine. See Figure. |
| S134 | Dash panel wiring harness, to headlamp junction in breakout to center front of engine compartment. See Figure. |
| S140 | Dash panel wiring harness, to headlamp junction near breakout to left front fender. See Figure. |
| S141 (Early Production) | Dash panel wiring harness, to headlamp junction near breakout to left front fender. See Figure. |
| S141 (Except Early Production) | Dash panel wiring harness, to headlamp junction near breakout to right front of engine compartment. See Figure. |
| S151 | Dash panel wiring harness, to headlamp junction near breakout to left front fender. See Figure. |
| S157 | Dash panel wiring harness, to headlamp junction near breakout to left front of engine compartment, on transaxle. See Figure. |
| S161 | Dash panel wiring harness, to headlamp junction near breakout to left rear of engine compartment. See Figure. |
| S163 | Dash panel wiring harness, to headlamp junction near breakout to battery junction box (BJB). See Figure. |
| S167 | Dash panel wiring harness, to headlamp junction near breakout to left front fender. See Figure. |
| S168 | Dash panel wiring harness, to headlamp junction near breakout to left front fender. See Figure. |
| S171 | Dash panel wiring harness, to headlamp junction near breakout to left front fender. See Figure. |
| S172 | Dash panel wiring harness, to headlamp junction near breakout to left front fender. See Figure. |

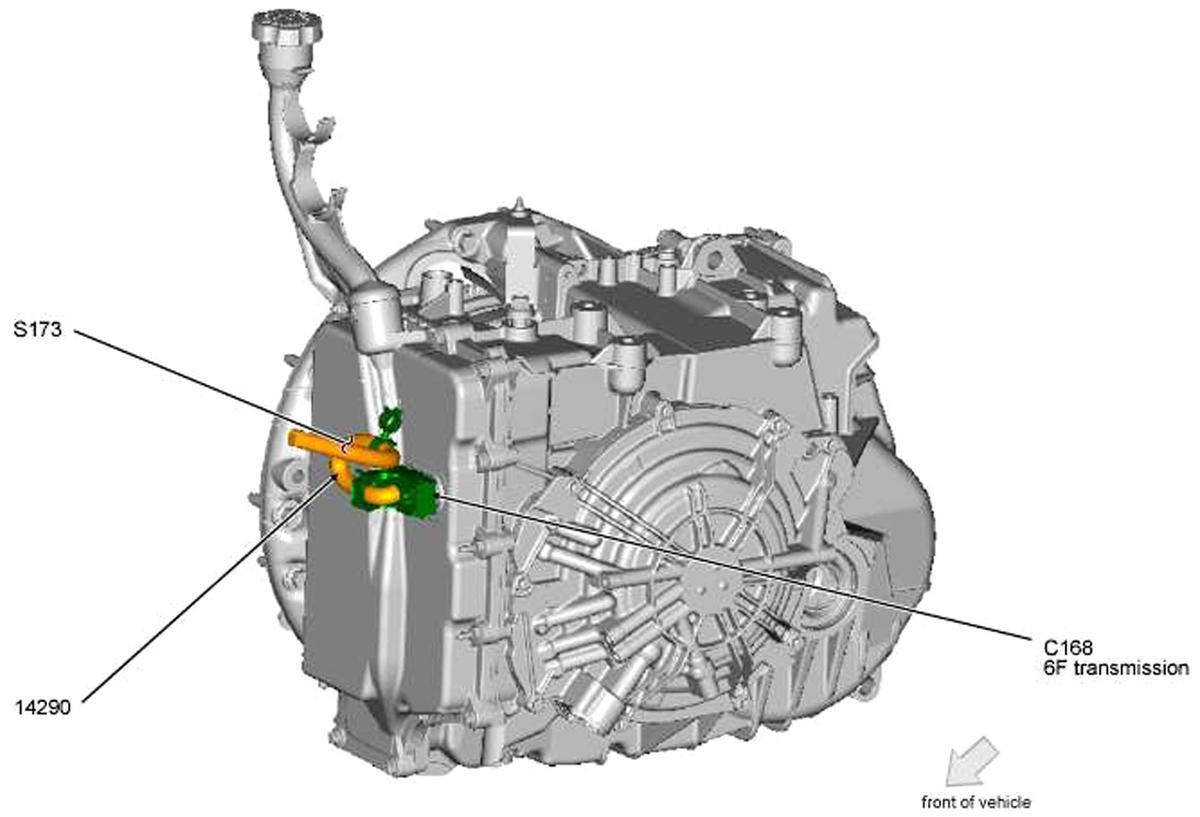

| S173 | Dash panel wiring harness, to headlamp junction in breakout to left front of engine compartment, on transaxle. See Figure. |
| S175 | Dash panel wiring harness, to headlamp junction near breakout to right front of engine compartment. See Figure. |
| S181 | Dash panel wiring harness, to headlamp junction near breakout to left front of engine compartment, on transaxle. See Figure. |
| S182 | Dash panel wiring harness, to headlamp junction near breakout to left front of engine compartment, on transaxle. See Figure. |
| S183 | Dash panel wiring harness, to headlamp junction near breakout to auxiliary relay box. See Figure. |
| S184 | Dash panel wiring harness, to headlamp junction near breakout to right front of engine compartment. See Figure. |
| S190 | Dash panel wiring harness, to headlamp junction near breakout to left rear of engine compartment. See Figure. |
| S191 | Dash panel wiring harness, to headlamp junction in breakout to left front of engine compartment. See Figure. |
| S192 | Dash panel wiring harness, to headlamp junction near breakout to left rear of engine compartment. See Figure. |
| S193 | Dash panel wiring harness, to headlamp junction near breakout to left rear of engine compartment. See Figure. |
| S194 | Dash panel wiring harness, to headlamp junction near breakout to auxiliary relay box. See Figure. |
| S195 | Dash panel wiring harness, to headlamp junction near breakout to auxiliary relay box. See Figure. |
| S196 | Dash panel wiring harness, to headlamp junction near breakout to left rear of engine compartment. See Figure. |
| S201 | Main wiring harness, near breakout to left side of dash. See Figure. |
| S202 | Main wiring harness, near breakout to right side of dash. See Figure. |
| S204 | Main wiring harness, near breakout to left side of dash. See Figure. |
| S205 | Main wiring harness, near breakout to left side of dash. See Figure. |
| S206 | Main wiring harness, near breakout to right side of dash. See Figure. |
| S213 | Dash panel wiring harness, to headlamp junction near breakout to left rear of engine compartment. See Figure. |
| S220 | Main wiring harness, near breakout to C210. See Figure. |
| S221 | Main wiring harness, near breakout to C210. See Figure. |
| S222 | Main wiring harness, near breakout to C210. See Figure. |
| S223 | Main wiring harness, near breakout to C213. See Figure. |
| S230 | Main wiring harness, near breakout to left side of dash. See Figure. |
| S231 | Main wiring harness, near breakout to left side of dash. See Figure. |
| S232 | Main wiring harness, near breakout to left side of dash. See Figure. |
| S240 | Main wiring harness, near breakout to C210. See Figure. |
| S241 | Main wiring harness, near breakout to C210. See Figure. |
| S262 | Main wiring harness, near breakout to right side of dash. See Figure. |

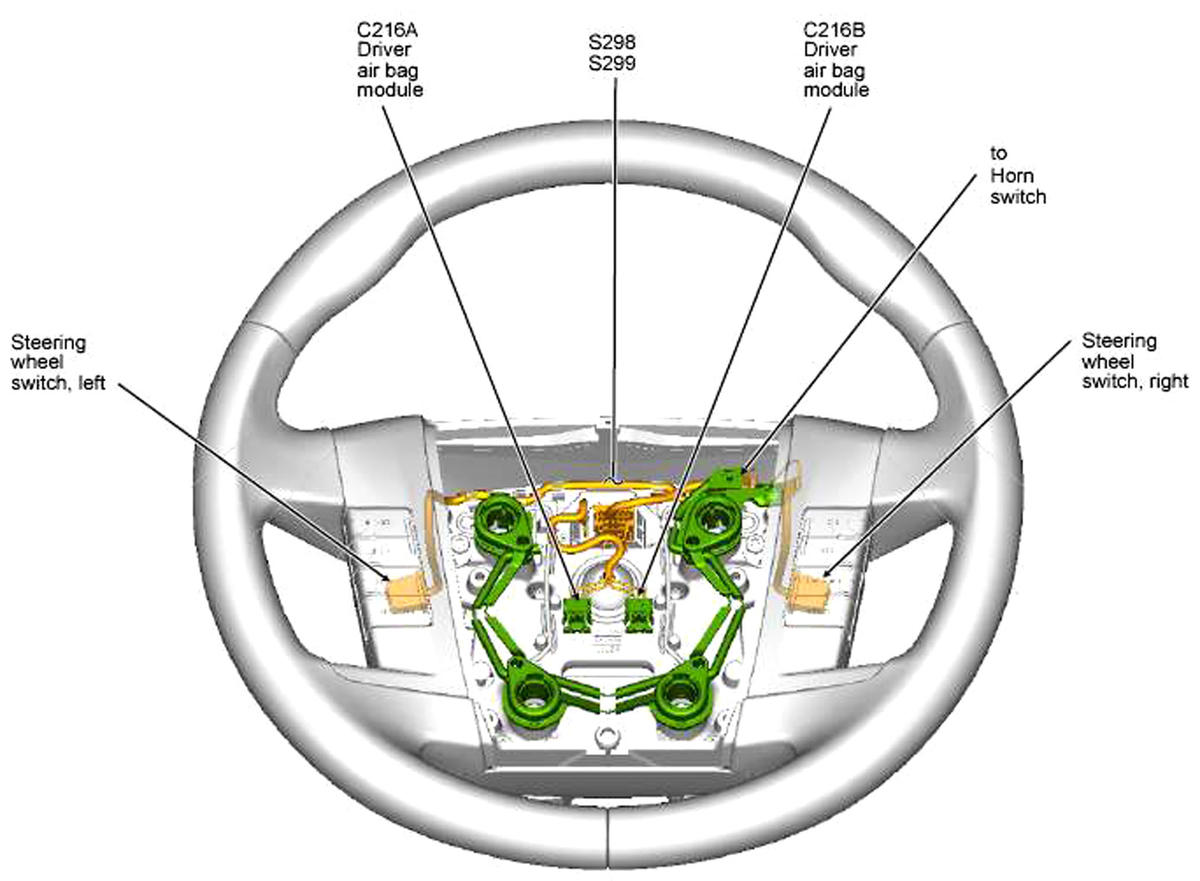

| S298 | Steering wheel. See Figure. |
| S299 | Steering wheel. See Figure. |
| S307 | Body main wiring harness, in breakout to right rear corner of vehicle. See Figure. |
| S308 | Body main wiring harness, in breakout to right rear corner of vehicle. See Figure. |
| S310 | Body main wiring harness, near breakout to floor panel near left "B" pillar. See Figure. |
| S311 | Body main wiring harness, near breakout to rear of center console. See Figure. |
| S313 | Body main wiring harness, near breakout to rear of center console. See Figure. |
| S314 | Body main wiring harness, near breakout to C211. See Figure. |
| S318 | Body main wiring harness, near breakout to left kick panel. See Figure. |
| S323 | Body main wiring harness, near breakout to bottom of left "B" pillar. See Figure. |
| S324 | Body main wiring harness, near breakout to C3050. See Figure. |
| S326 | Body main wiring harness, near breakout to C3050. See Figure. |
| S327 | Body main wiring harness, near breakout to C3050. See Figure. |
| S328 | Body main wiring harness, near breakout to C510. See Figure. |
| S329 | Body main wiring harness, near breakout to C510. See Figure. |
| S330 | Body main wiring harness, near breakout to C3050. See Figure. |
| S331 | Body main wiring harness, near breakout to C3050. See Figure. |
| S332 | Body main wiring harness, near breakout to floor panel near left "B" pillar. See Figure. |
| S333 | Body main wiring harness, in breakout to right rear corner of vehicle. See Figure. |
| S334 | Body main wiring harness, near breakout to C211. See Figure. |
| S335 | Body main wiring harness, near breakout to C211. See Figure. |
| S337 | Body main wiring harness, near breakout to C510. See Figure. |
| S338 | Body main wiring harness, near breakout to C510. See Figure. |
| S339 | Body main wiring harness, in breakout to right rear corner of vehicle. See Figure. |

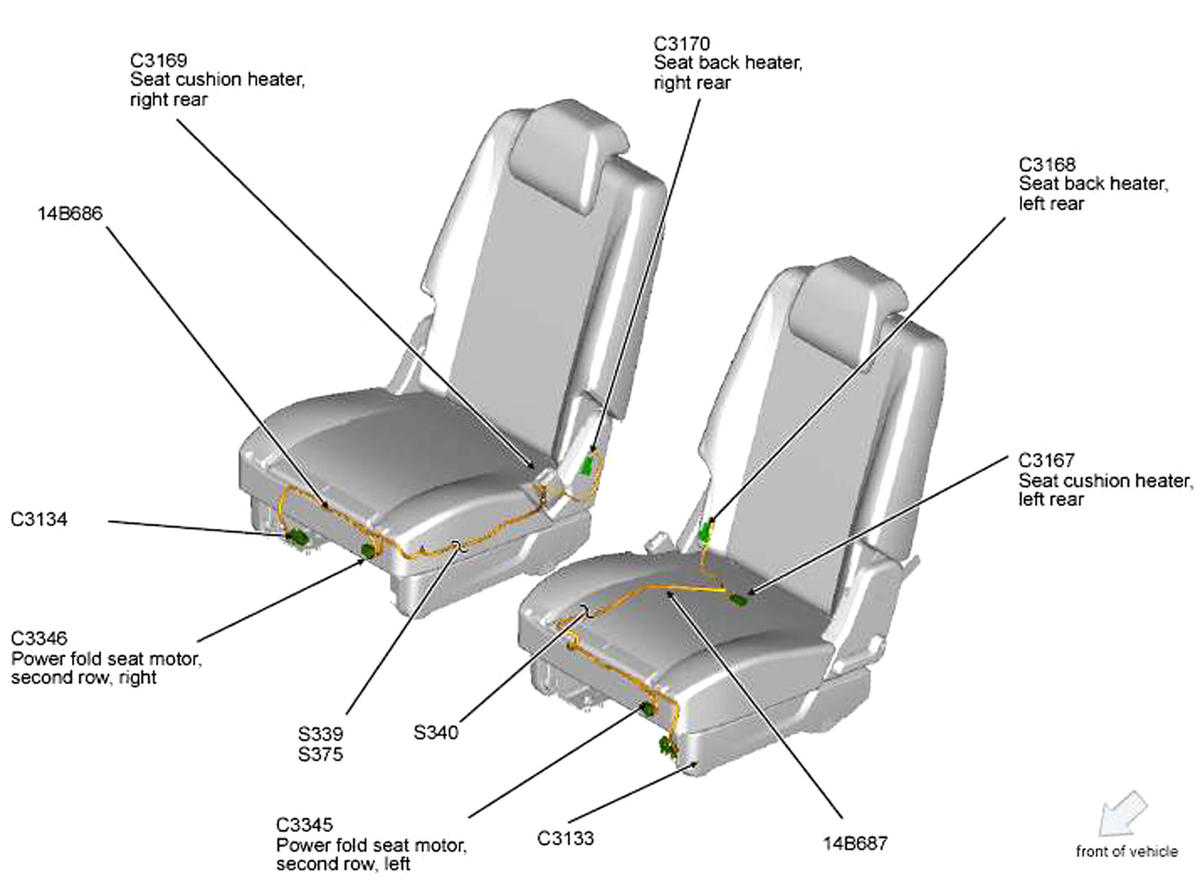

| S340 | Right rear seat wiring harness, near breakout bottom of left "C" pillar. See Figure. |
| S345 | Body main wiring harness, near breakout to left kick panel. See Figure. |
| S347 | Body main wiring harness, near breakout to C3050. See Figure. |
| S348 | Body main wiring harness, in breakout to right rear corner of vehicle. See Figure. |
| S350 | Power seats wiring harness, near breakout to bottom of passenger seat. See Figure. |
| S351 | Power seats wiring harness, near breakout to bottom of driver seat. See Figure. |
| S353 | Power seats wiring harness, near breakout to bottom of passenger seat. See Figure. |
| S354 | Power seats wiring harness, near breakout to C3265A. See Figure. |
| S355 | Power seats wiring harness, near breakout to C3265A. See Figure. |
| S356 | Power seats wiring harness, near breakout to bottom of driver seat. See Figure. |
| S357 | Power seats wiring harness, near breakout to bottom of driver seat. See Figure. |
| S360 | Body main wiring harness, near breakout to bottom of left "B" pillar. See Figure. |
| S361 | Body main wiring harness, near breakout to bottom of left "B" pillar. See Figure. |
| S364 | Console panel wiring harness, near breakout to center console. See Figure. |
| S365 | Console panel wiring harness, near breakout to center console. See Figure. |
| S366 | Console panel wiring harness, near breakout to center console. See Figure. |
| S367 | Console panel wiring harness, near breakout to center console. See Figure. |
| S368 | Power seats wiring harness, near breakout to bottom of passenger seat. See Figure. |
| S370 | Power seats wiring harness, near breakout to bottom of passenger seat. See Figure. |
| S375 | Right rear seat wiring harness, near breakout to bottom of right "C" pillar. See Figure. |
| S380 | Console panel wiring harness, near breakout to center console. See Figure. |
| S381 | Console panel wiring harness, near breakout to center console. See Figure. |
| S382 | Console panel wiring harness, near breakout to center console. See Figure. |
| S383 | Console panel wiring harness, near breakout to center console. See Figure. |
| S393 | Body main wiring harness, in breakout to C314. See Figure. |

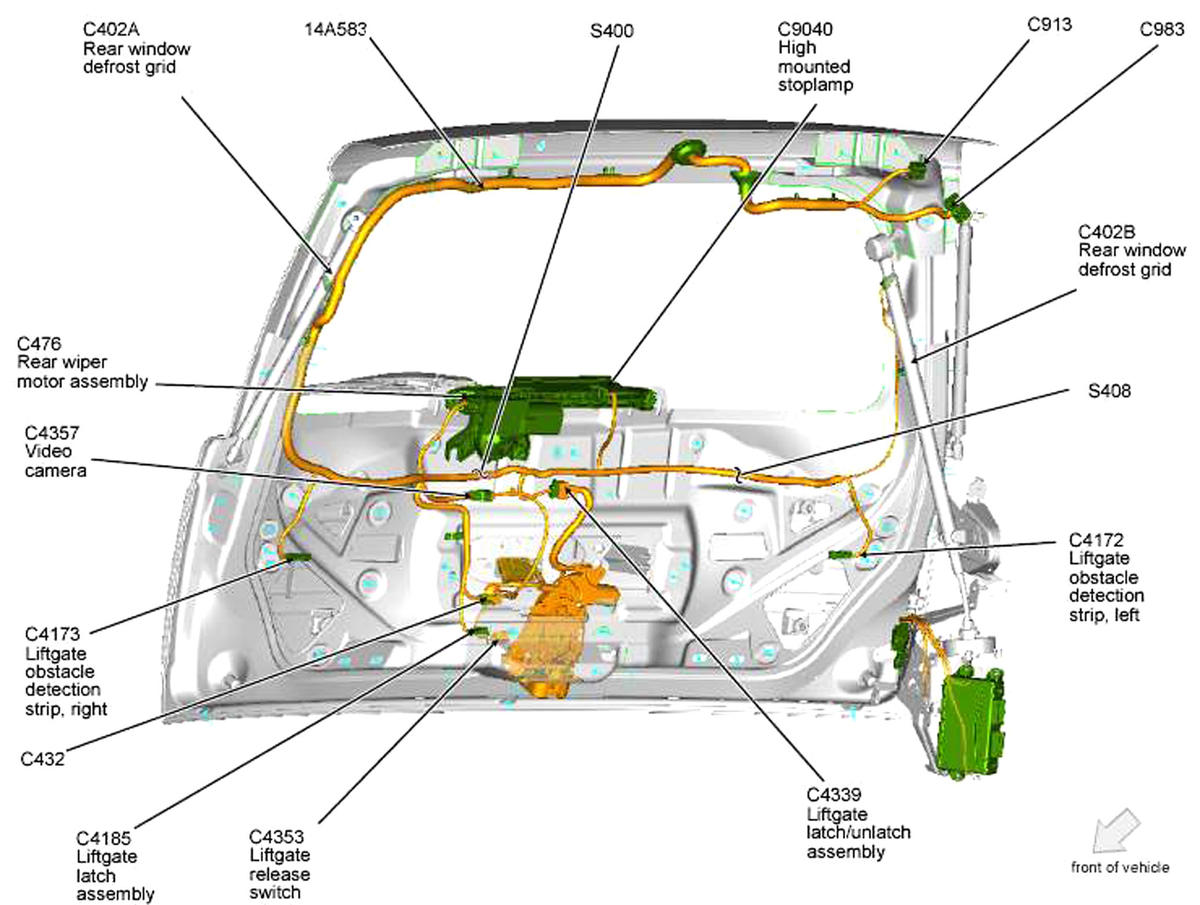

| S400 | Tailgate warning switch wiring harness, near breakout to liftgate. See Figure. |

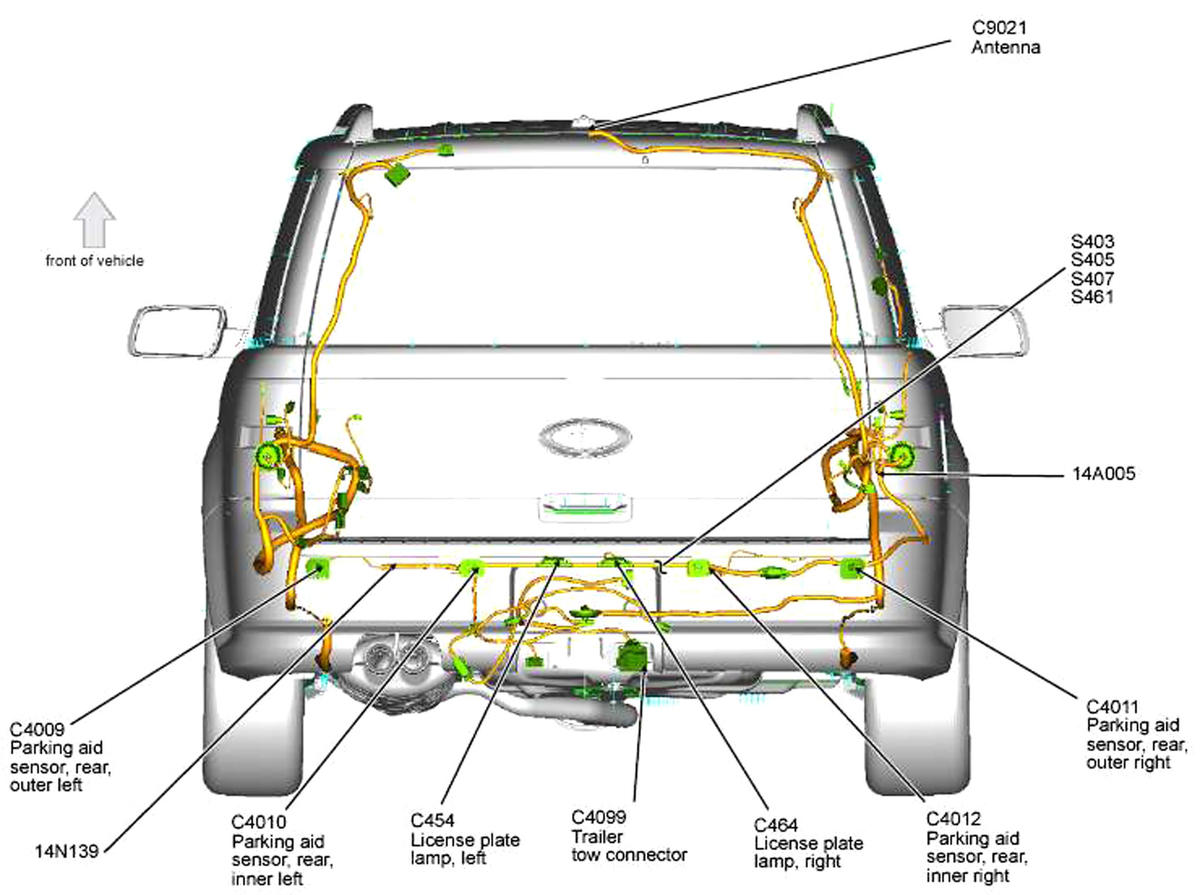

| S403 | Backup alarm jumper wiring harness, near breakout to C462. See Figure. |
| S405 | Backup alarm jumper wiring harness, near breakout to C462. See Figure. |
| S407 | Backup alarm jumper wiring harness, near breakout to C462. See Figure. |
| S408 | Tailgate warning switch wiring harness, near breakout to power liftgate. See Figure. |
| S410 | Auxiliary climate wiring harness, near breakout C3007. See Figure. |
| S411 | Auxiliary climate wiring harness, near breakout C3007. See Figure. |
| S461 | Backup alarm jumper wiring harness, near breakout to C462. See Figure. |

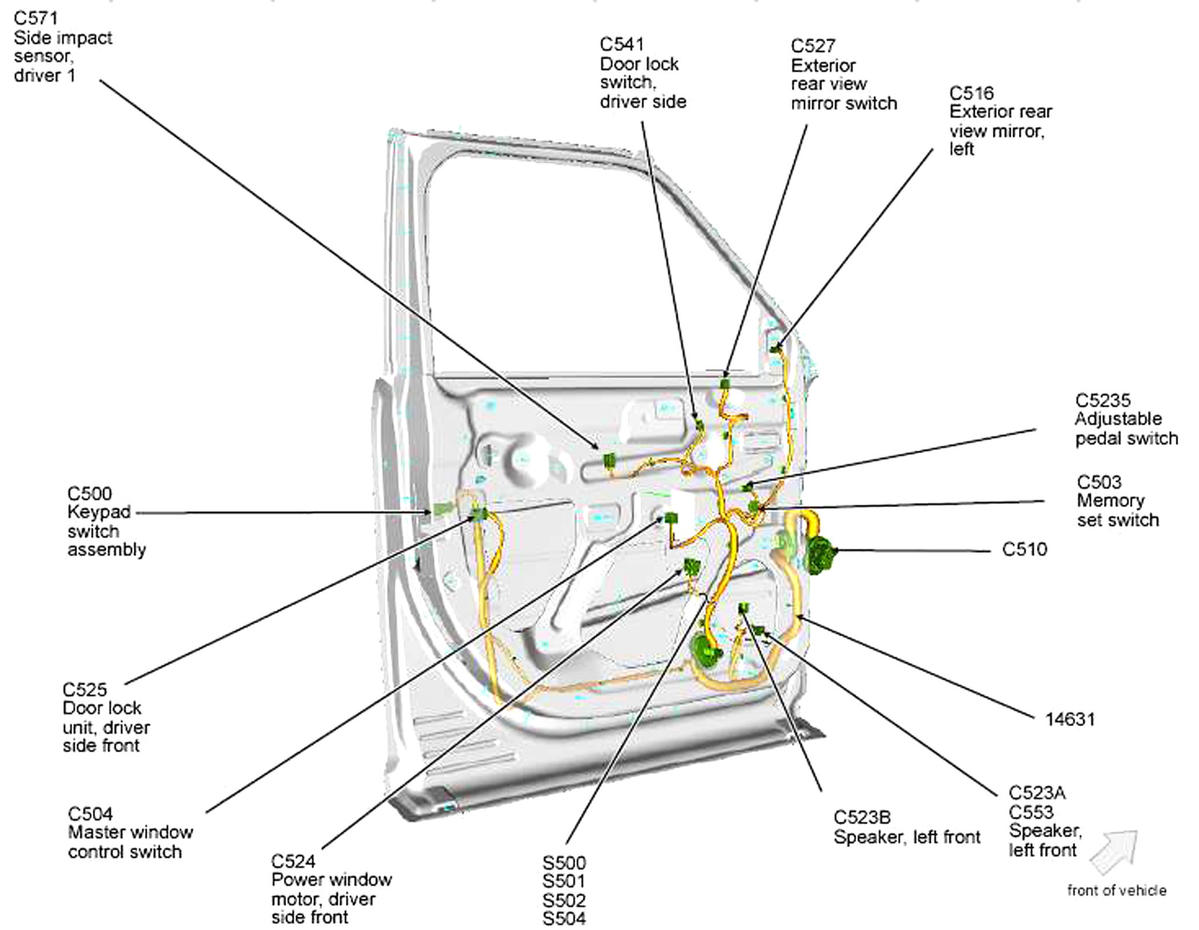

| S500 | Left front door window regulator wiring harness, near breakout to driver door. See Figure. |
| S501 | Left front door window regulator wiring harness, near breakout to driver door. See Figure. |
| S502 | Left front door window regulator wiring harness, near breakout to driver door. See Figure. |
| S504 | Left front door window regulator wiring harness, near breakout to driver door. See Figure. |

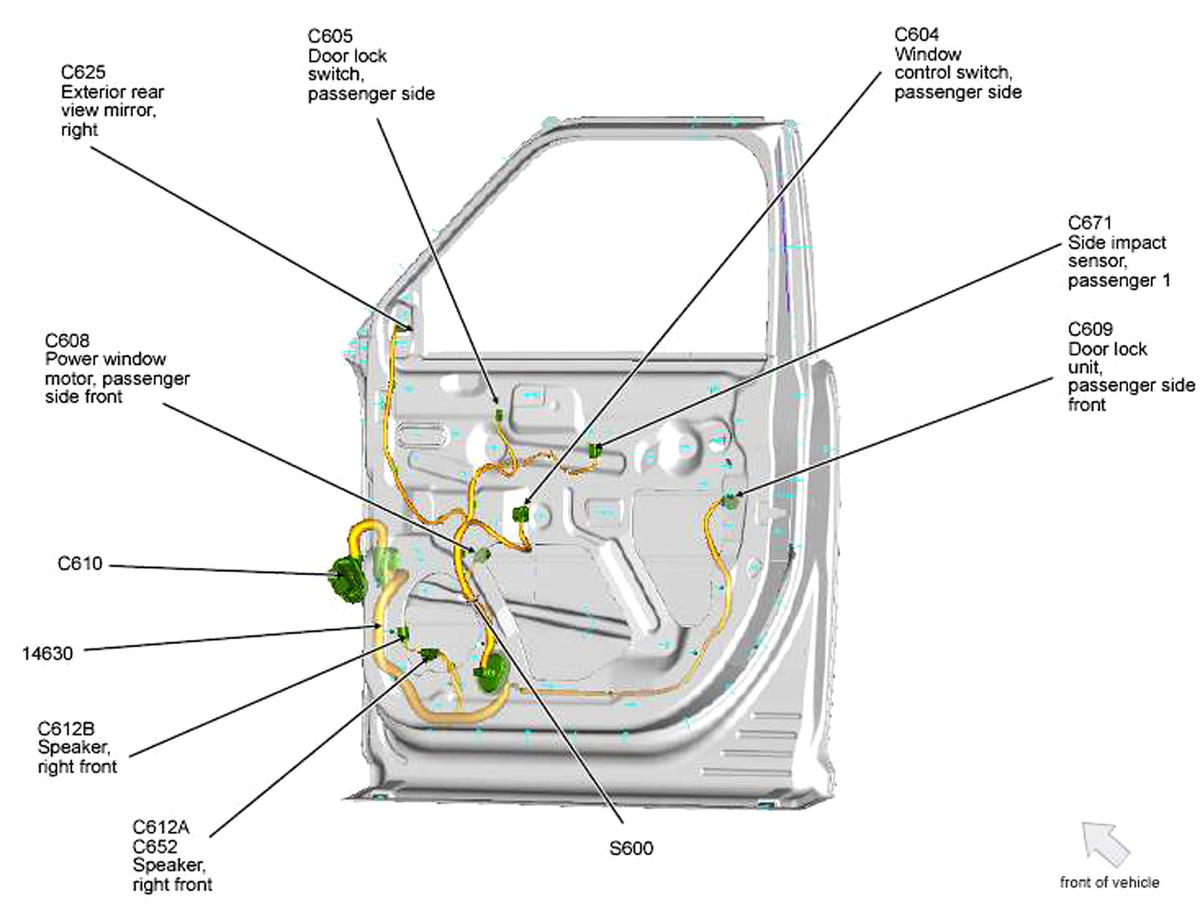

| S600 | Right front door window regulator wiring harness, near breakout to passenger door. See Figure. |

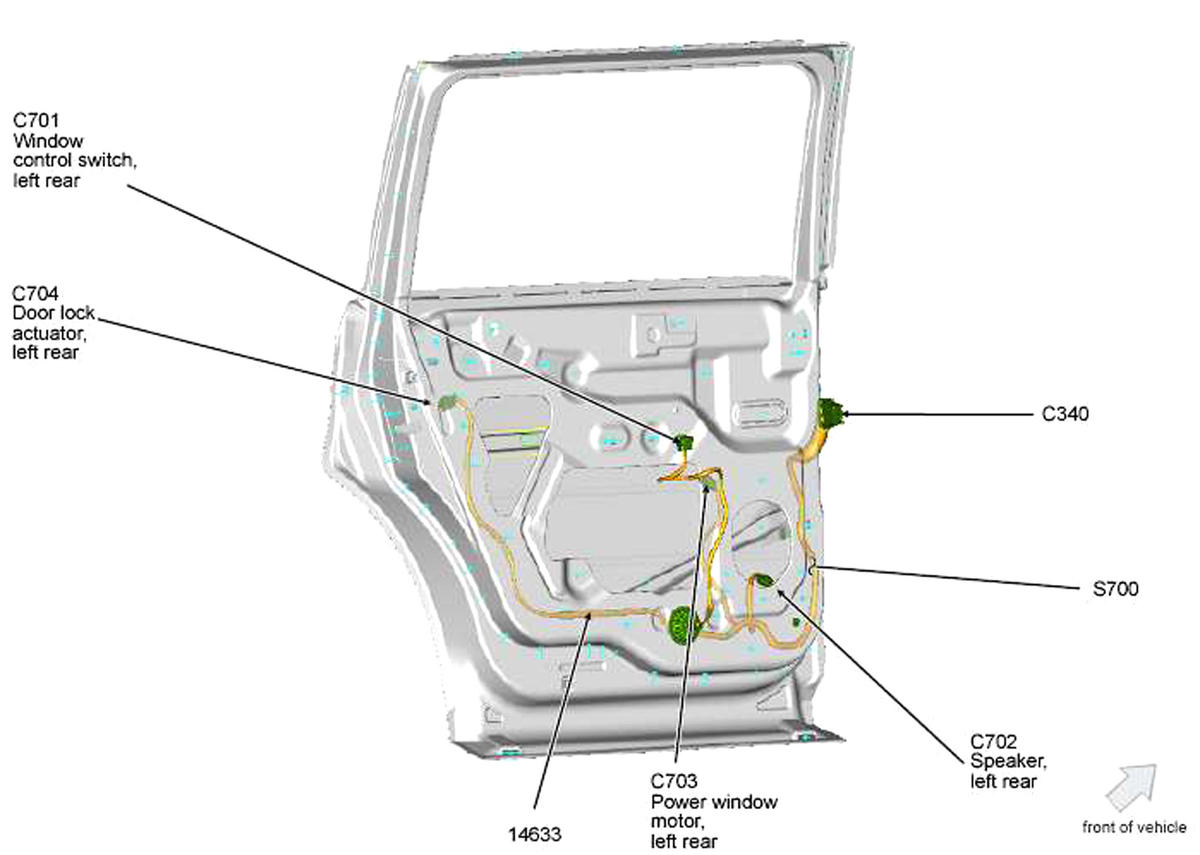

| S700 | Left rear door window regulator wiring harness, in breakout to C340. See Figure. |

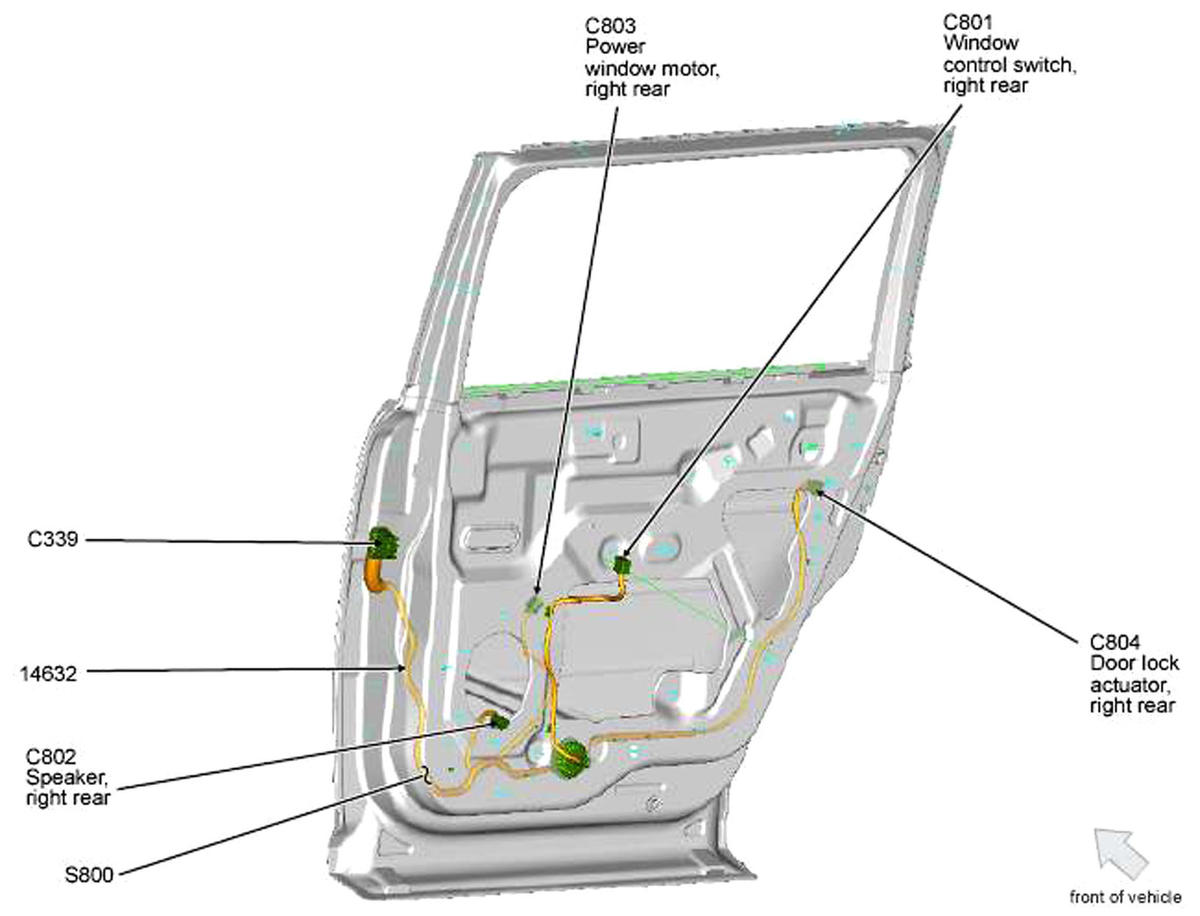

| S800 | Right rear door window regulator wiring harness, in breakout to C339. See Figure. |
| S900 | Interior lamps wiring harness, near breakout to right front of roof. See Figure. |
| S901 | Interior lamps wiring harness, near breakout to right front of roof. See Figure. |
| S902 | Interior lamps wiring harness, near breakout to right front of roof. See Figure. |
| S906 | Interior lamps wiring harness, near breakout to right front of roof. See Figure. |
