Exhaust System - Exploded View

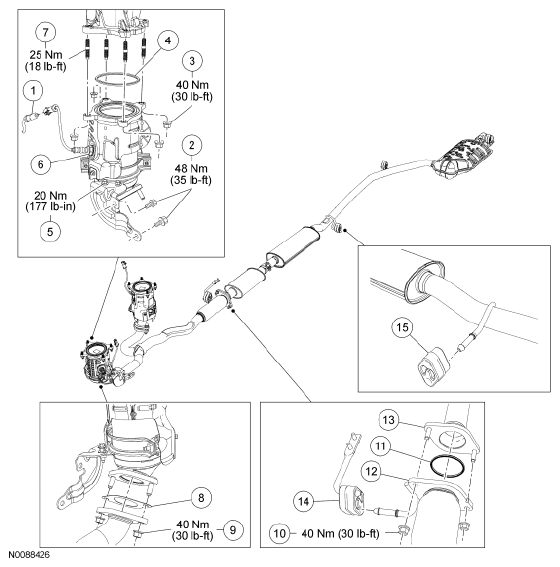

Fig 1: Exploded View Of Exhaust System With Torque Specifications

G06064432

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	14A464	LH catalyst monitor sensor electrical connector
2	W710656	LH catalytic converter support bracket-to-transmission bolts
3	W705443	LH catalytic converter-to-exhaust manifold nut (4 required)
4	5F263	Gasket
5	5G228	Bracket-to-LH catalytic converter bolt (2 required)
6	5E213	LH catalytic converter
7	W711133	LH catalytic converter-to-exhaust manifold stud (4 required)
8	9451	Gasket
9	W705443	Exhaust Y-pipe-to-LH catalytic converter nut
10	W705443	Exhaust Y-pipe-to-flange nut (2 required)
11	5E241	Gasket
12	5G274	Exhaust Y-pipe
13	5A212	Exhaust intermediate pipe
14	5F262	Exhaust Y-pipe isolator
15	5F262	Muffler and tailpipe isolator (3 required)

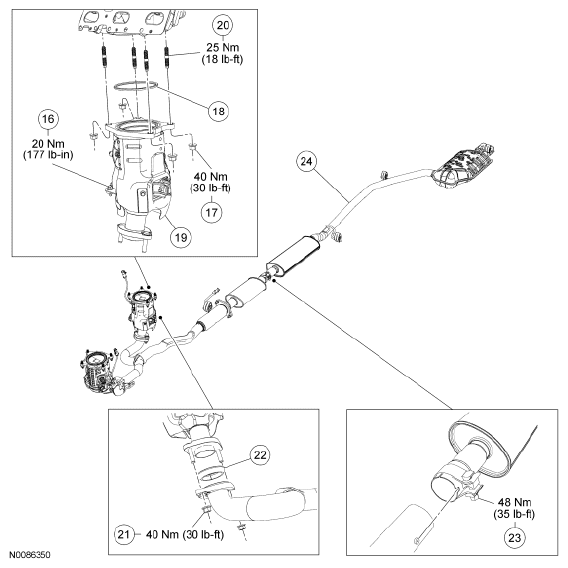

Fig 2: Exploded View Of Exhaust System With Torque Specifications

G06064433

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
16	5G228	Bracket-to-RH catalytic converter bolt (2 required)
17	W705443	RH catalytic converter-to-exhaust manifold nut (4 required)
18	5F263	Gasket
19	5E211	RH catalytic converter
20	W711133	RH catalytic converter-to-exhaust manifold stud (4 required)
21	W705443	Exhaust Y-pipe-to-RH catalytic converter nut (2 required)
22	5E241	Gasket
23	5221	Torca® clamp
24	5K214	Muffler and tailpipe assembly

For additional information, refer to the appropriate procedure. .
