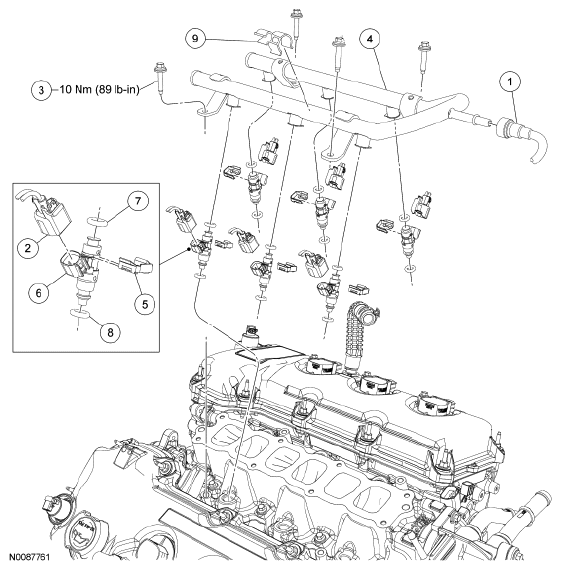

Fuel Rail and Fuel Injector - Exploded View
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel tube-to-fuel rail spring lock coupling (part of 9J280) |
| 2 | 14A464 | Fuel injector electrical connector (6 required) (part of 12A581) |
| 3 | W503279 | Fuel rail bolt (4 required) |
| 4 | 9F792 | Fuel rail |
| 5 | 9N796 | Fuel injector clip (6 required) |
| 6 | 9F593 | Fuel injector |
| 7 | 9229 | Upper fuel injector O-ring seal (6 required) |
| 8 | 9229 | Lower fuel injector O-ring seal (6 required) |
| 9 | - | Fuel tube routing clip (part of 9J280) |
- For additional information, refer to the procedures in this article.
