Safety Belt Retractor - Third Row: Notes

NOTE: RH shown in illustration, LH similar.

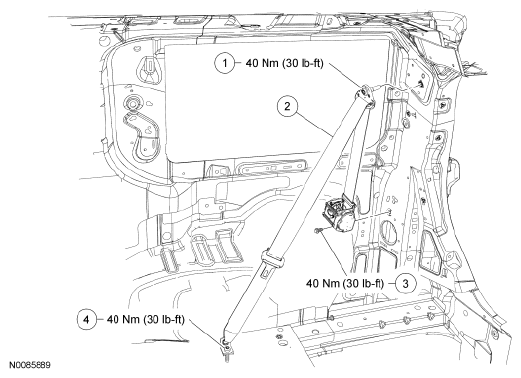

Fig 1: Exploded View Of Safety Belt Retractor With Torque Specifications - Third Row
G06071321Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Third row safety belt D-ring bolt (part of 612C16)
2 612C16 Third row safety belt retractor
3 N807750 Third row safety belt retractor bolt
4 - Third row safety belt anchor bolt (part of 612C16)
