Safety Belt Shoulder Height Adjuster: Notes

NOTE: RH shown in illustration, LH similar.

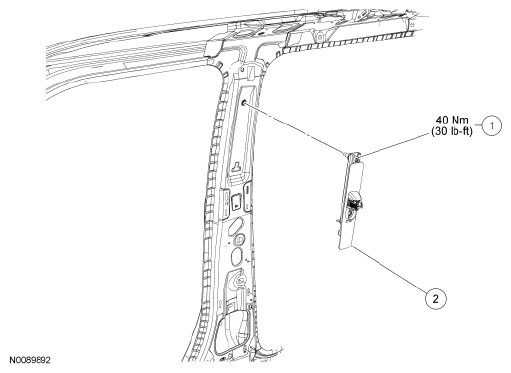

Fig 1: Exploded View Of Safety Belt Shoulder Height Adjuster With Torque Specification
G06071322Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Safety belt shoulder height adjuster bolt (part of 602B82)
2 602B82 Safety belt shoulder height adjuster
