Transaxle Filler Tube: Notes

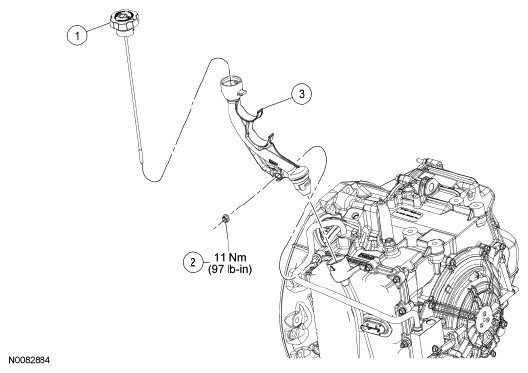

Fig 1: Transaxle Filler Tube Replacement Components With Torque Specifications
G06068013Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 7A020 Transmission fluid level indicator
2 W520101 Transmission fluid filler tube nut
3 7A228 Transmission fluid filler tube
