Transaxle Support Insulator: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the 2 Y-pipe nuts, disconnect the exhaust hanger and discard the exhaust seal.
- Discard the gasket and nuts.

  Fig 1: Locating Y-Pipe Nuts And Exhaust Hanger
  Courtesy of FORD MOTOR CO.
Remove the 4 nuts, the Y-pipe assembly and discard the exhaust seals.
- Discard the nuts.

  Fig 2: Locating Y-Pipe Assembly Nuts
  Courtesy of FORD MOTOR CO.
Loosen the engine roll restrictor-to-subframe through bolt.

Fig 3: Locating Engine Roll Restrictor-To-Subframe Through Bolt
Courtesy of FORD MOTOR CO.
Remove the 2 bolts from the roll restrictor bracket.

Fig 4: Locating Roll Restrictor Bolts
Courtesy of FORD MOTOR CO.
Disconnect the Mass Air Flow (MAF) sensor electrical connector.

Fig 5: Locating Mass Air Flow (MAF) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the engine breather from the Air Cleaner (ACL) assembly.

Fig 6: Locating Engine Breather
Courtesy of FORD MOTOR CO.
Remove the 2 ACL assembly bracket bolts.

Fig 7: Locating ACL Assembly Bracket Bolts
Courtesy of FORD MOTOR CO.
Loosen the ACL outlet pipe clamp at the Throttle Body (TB) and remove the ACL and ACL outlet pipe assembly.

Fig 8: Locating ACL Outlet Pipe Clamp
Courtesy of FORD MOTOR CO.
Remove the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Detach the wiring harness retainers from the battery tray.

Fig 9: Locating Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Remove the 2 lower battery tray bracket bolts.

Fig 10: Locating Lower Battery Tray Bracket Bolts
Courtesy of FORD MOTOR CO.
Remove the upper battery tray bolt and nut. Release the Power Distribution Box (PDB) fasteners. Remove the battery tray and bracket.

Fig 11: Locating Upper Battery Tray Bolt And Nut
Courtesy of FORD MOTOR CO.

NOTE: The Oil Pan Holding Fixture must be carefully aligned to the mounting bosses on the oil pan. Failure to follow these instructions may result in damage to the oil pan.

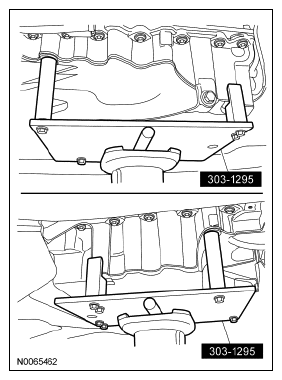

Fig 12: Positioning Floor Jack Under Oil Pan

Courtesy of FORD MOTOR CO.

Position a floor jack and the Oil Pan Holding Fixture under the oil pan and raise the floor jack high enough to release the pressure on the transaxle support insulator.
Remove the transaxle support insulator through bolt.
1. Remove the flagnut.
2. Using the floor jack and Oil Pan Holding Fixture, release the tension from the transaxle support insulator through bolt to remove it from the transaxle mount.

  Fig 13: Identifying Transaxle Support Insulator Through Bolt
  Courtesy of FORD MOTOR CO.
Lower the transaxle from the mount about 50.8 mm (2 in).
Remove the 4 nuts and the transaxle support insulator bracket.

Fig 14: Locating Transaxle Support Insulator Bracket Nuts
Courtesy of FORD MOTOR CO.
Remove the top transaxle support insulator bolts.

Fig 15: Locating Top Transaxle Support Insulator Bolts
Courtesy of FORD MOTOR CO.
Remove the bottom transaxle support insulator bolts and remove the transaxle support insulator.

Fig 16: Locating Bottom Transaxle Support Insulator Bolts
Courtesy of FORD MOTOR CO.
