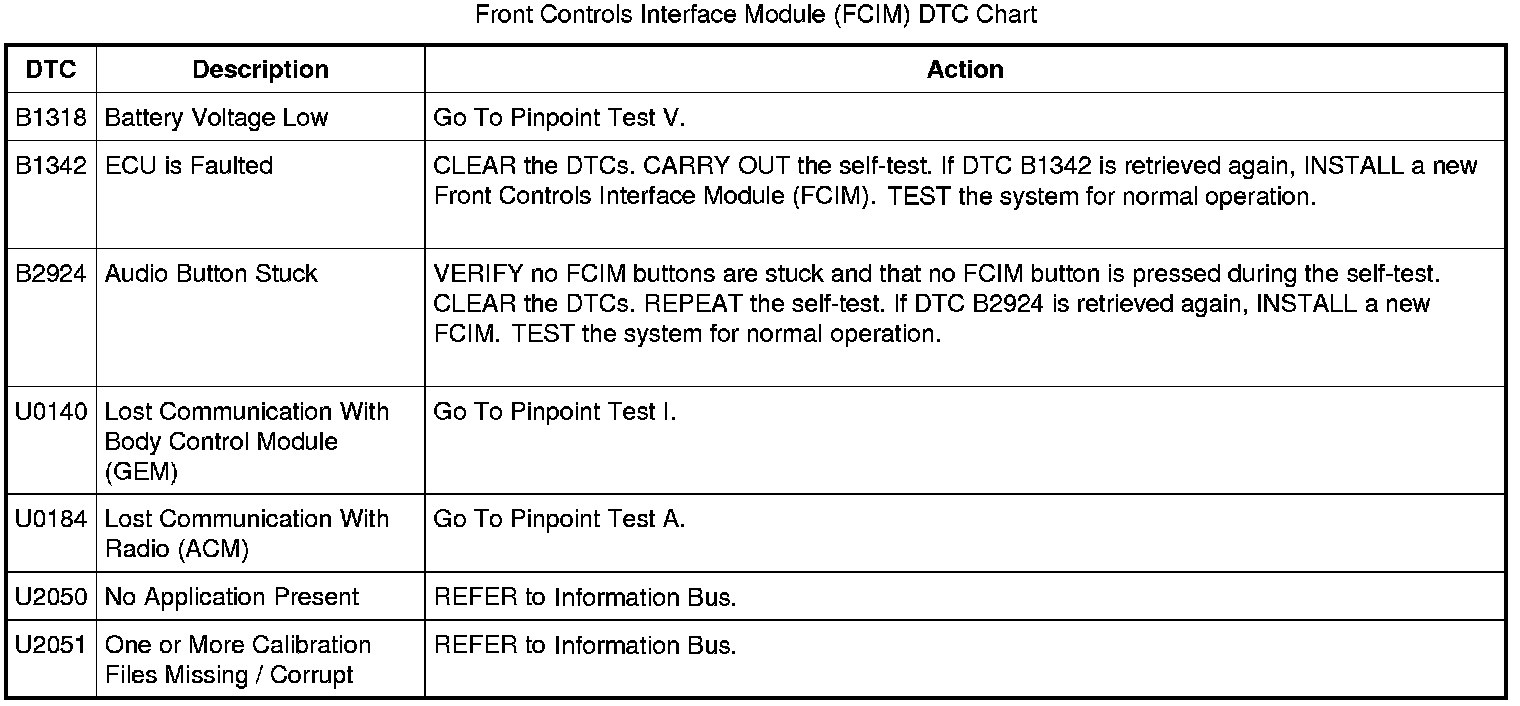

Front Controls Interface Module (FCIM) DTC Chart
Information and Entertainment System
DTC Charts
B1318-B2924 / U0140-U2051:
